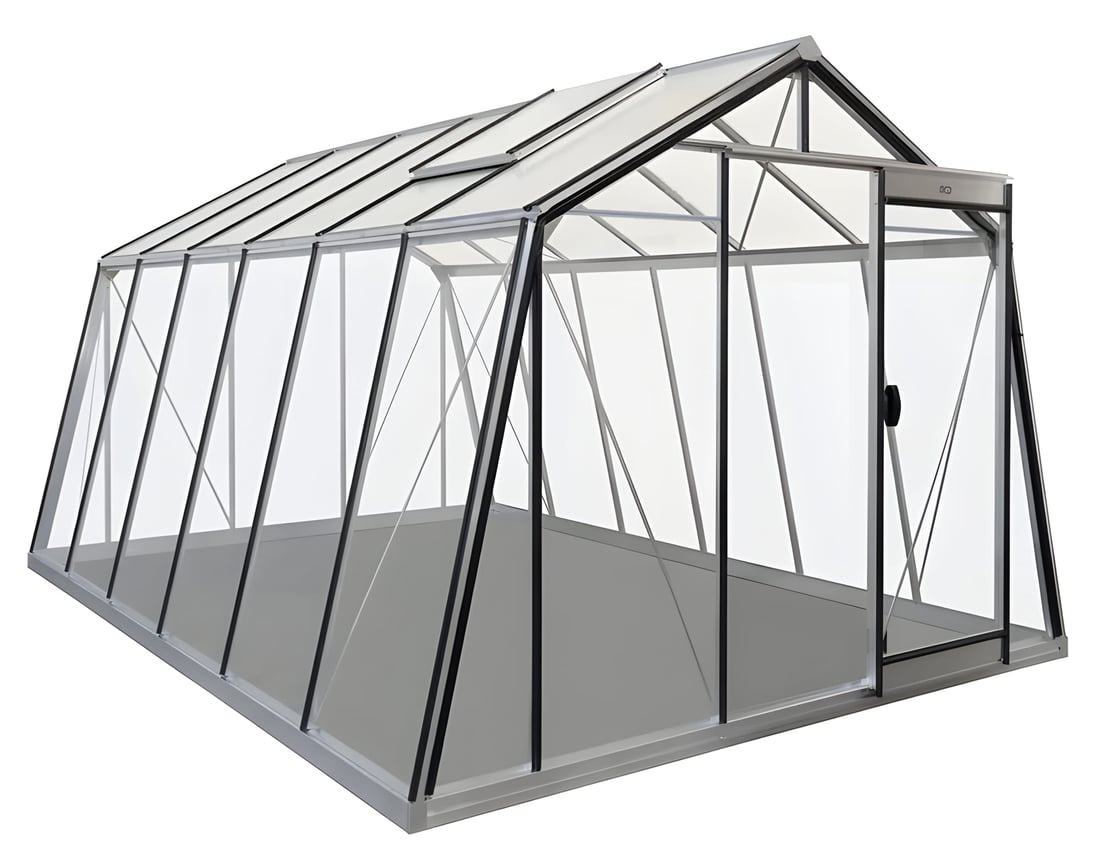

ACD 10x10 S104 Sloping Wall Greenhouse – Silver

At a glance

  • 10ft 0" wide x 9ft 9" deep
  • 3060mm wide x 2980mm deep
  • 1720mm eaves and 2370mm ridge
  • Minimum base size 3060mm x 2980mm
  • 4mm hammered safety glass roof
  • 4mm clear safety glass sides
  • Silver aluminium frame
  • Sloping walls for headroom
  • Single sliding door with 560mm x 1963mm aperture
  • One opening roof vent
  • Double-chamber self-supporting aluminium base
  • No clip glazing system
  • Stainless steel nuts and bolts
  • 12-year manufacturer's warranty
  • Tubular ridge beam and strengthened glazing bars
  • External gutters and internal condensation drainage
  • Rubber glazing seals hold glass firmly

Quick Code: P175135

Greenhouse Size Diagram

Greenhouse Dimensions

A: Greenhouse width

3060mm (10′)

B: Greenhouse depth

2980mm (9′ 9″)

C: Ridge height

2370mm (7′ 9″)

D: Eaves height

1720mm (5′ 7″)

E & F: Door Size

560mm (1′ 10″) x 1963mm (6′ 5″) (aperture)

Minimum Base Size

3060mm (10′) x 2980mm (9′ 9″)

Black Friday: up to £50 off

Discount applied automatically in the basket. No code to type. Ends 30 November 2026.

Discount already applied to price

Customise your Greenhouse

ACD 10x10 S104 Sloping Wall Greenhouse – SilverChoose your size, glazing and colour

Select your Size:

Select your Colour:

Add Base and door upgrades?

Make access easier with a lower threshold or wider doors. Choose either single or double rear doors, not both.

Low-threshold base
+ £165

Lower the doorway threshold for easier access.

Additional single rear door
+ £169

A second single sliding entrance gives you another way in at the back.

Base and door upgrades information

Make access easier with a lower threshold or wider doors. Choose either single or double rear doors, not both.

Low-threshold base - £165.00
Low-threshold base

Lower the doorway threshold for easier access.


Additional single rear door - £169.00
Additional single rear door

A second single sliding entrance gives you another way in at the back.


Add Access ramps?

Pair of aluminium access ramps
+ £139

Two short, individual aluminium ramps make it easier to move items over the base at your greenhouse entrance.

Access ramps information

Pair of aluminium access ramps - £139.00
Pair of aluminium access ramps

Two short, individual aluminium ramps make it easier to move items over the base at your greenhouse entrance.


Add Ventilation?

Automatic wax-operated roof vent opener
+ £49

This wax-operated opener responds to temperature and opens the greenhouse roof vent without electricity.

Additional roof window
+ £109

Add additional ventilation to your greenhouse.

Additional louvre vent
+ £168

Only available in black

Ventilation information

Automatic wax-operated roof vent opener - £49.00
Automatic wax-operated roof vent opener

This wax-operated opener responds to temperature and opens the greenhouse roof vent without electricity.


Additional roof window - £109.00
Additional roof window

Add additional ventilation to your greenhouse.


Additional louvre vent - £168.00
Additional louvre vent

Only available in black


Add Shelving and Tables?

Silver aluminium shelves (pair)
+ £69

860 x 150mm each

Silver shelf with wooden inlay
+ £69

715 x 320mm

Silver staging with wooden inlay
+ £89

715 x 520mm

Silver shelf with PVC inlay
+ £89

2250 x 320mm

Silver staging with PVC inlay
+ £119

2250 x 520mm

Silver sowing table
+ £158

2170 x 420mm

Shelving and Tables information

Silver aluminium shelves (pair) - £69.00
Silver aluminium shelves (pair)

860 x 150mm each


Silver shelf with wooden inlay - £69.00
Silver shelf with wooden inlay

715 x 320mm


Silver staging with wooden inlay - £89.00
Silver staging with wooden inlay

715 x 520mm


Silver shelf with PVC inlay - £89.00
Silver shelf with PVC inlay

2250 x 320mm


Silver staging with PVC inlay - £119.00
Silver staging with PVC inlay

2250 x 520mm


Silver sowing table - £158.00
Silver sowing table

2170 x 420mm


Add Growing & Watering Accessories?

Greenhouse starter pack
+ £79

Includes two sowing trays, 10 tomato hooks, 10 plant guides, a drip kit and a thermometer.

Rainwater collection downpipes
+ £138

A pair of black aluminium downpipes, each 1650mm long and 40mm in diameter.

Growing & Watering Accessories information

Greenhouse starter pack - £79.00
Greenhouse starter pack

Includes two sowing trays, 10 tomato hooks, 10 plant guides, a drip kit and a thermometer.


Rainwater collection downpipes - £138.00
Rainwater collection downpipes

A pair of black aluminium downpipes, each 1650mm long and 40mm in diameter.

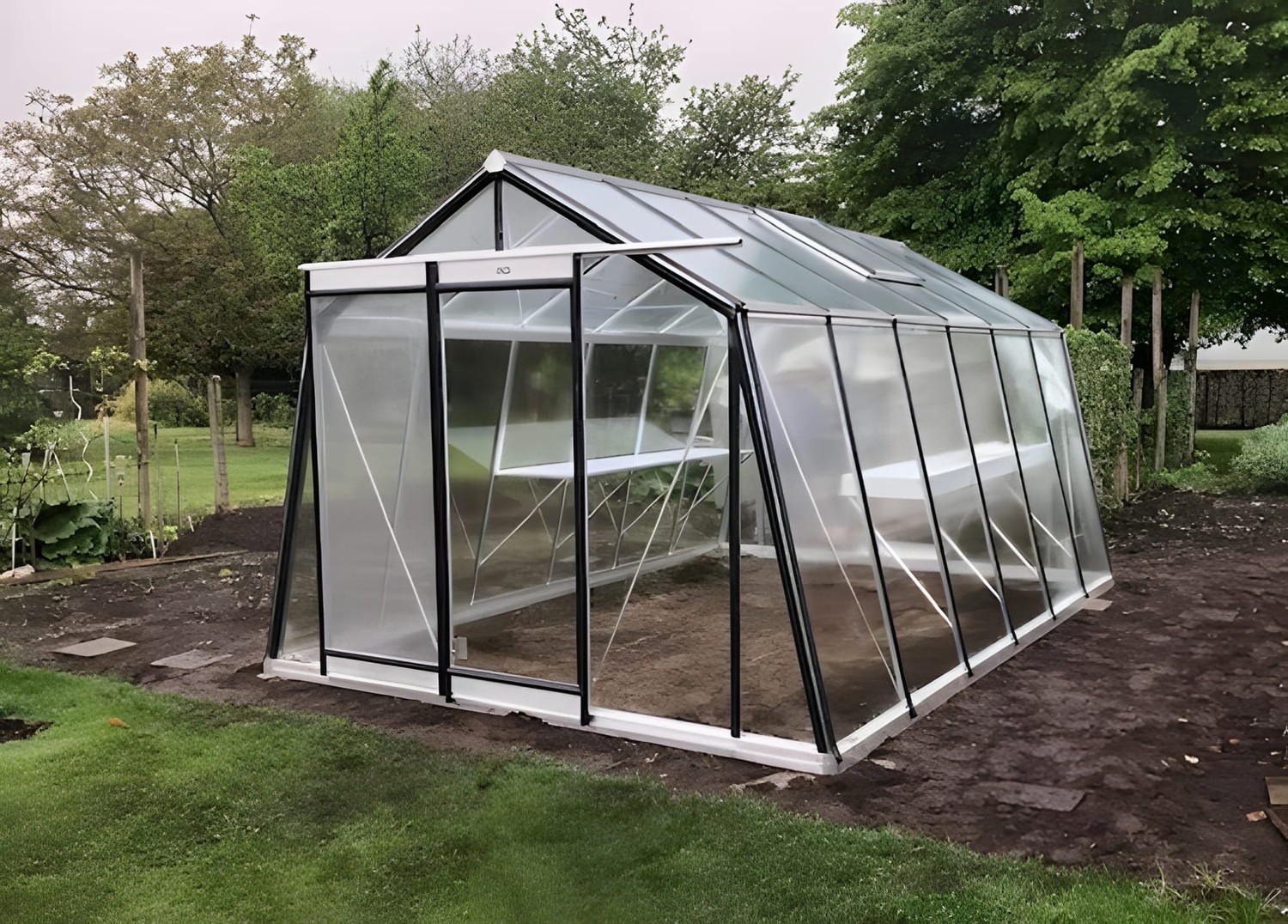

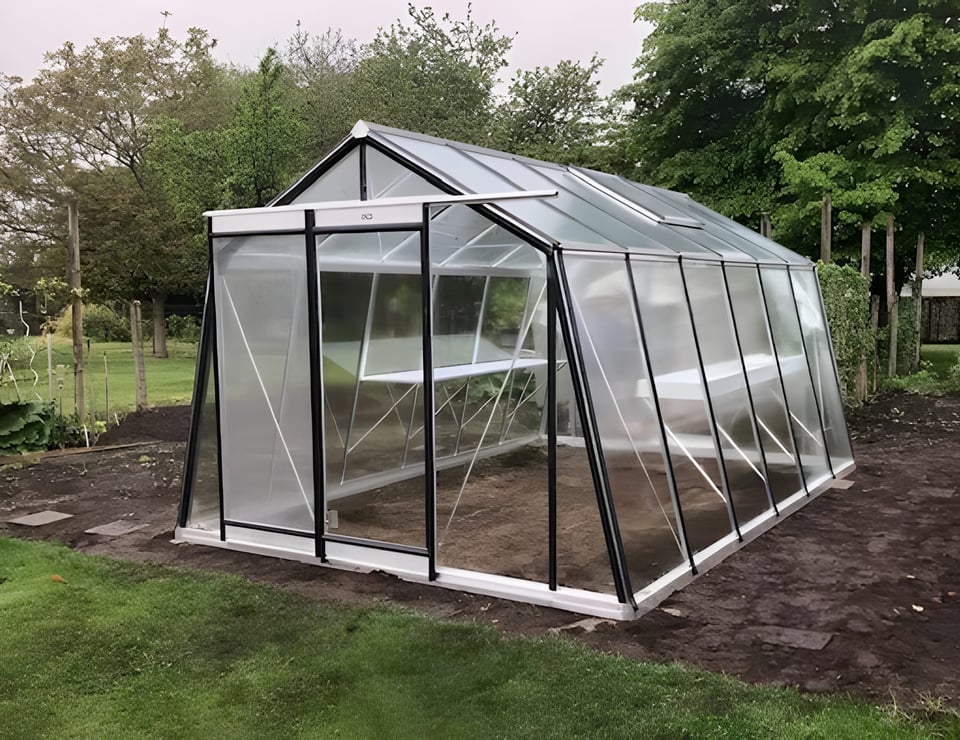

Made in Belgium, the ACD 10x10 S104 Sloping Wall Greenhouse has a plain aluminium frame in a silver finish. Its sloping walls provide headroom for everyday growing. The uncoated aluminium is a straightforward choice for a traditional greenhouse appearance.

A closed tubular ridge beam and strengthened profiles give the frame its strength. The self-supporting double-chamber aluminium base is included, and the structure has a 12-year warranty.

Above your plants, the 4mm hammered safety-glass roof diffuses sunlight. Clear safety-glass sides let you see your plants from the garden. A single sliding door and one opening roof vent provide access and adjustable ventilation.

  • 3060mm wide x 2980mm deep
  • 1720mm eaves and 2370mm ridge
  • Silver aluminium frame
  • Stainless steel nuts and bolts throughout
  • 4mm hammered safety glass roof
  • 4mm clear safety glass sides
  • Sloping walls for headroom
  • Built-in base plinth
  • Single sliding door with 560mm x 1963mm aperture
  • One opening roof vent
  • No clip glazing system
  • 12-year manufacturer's warranty
  • Accessories available below
  • Double-chamber self-supporting aluminium base
  • Tubular ridge beam and strengthened glazing bars
  • External gutters and internal condensation drainage
  • Rubber glazing seals hold glass firmly
Greenhouse Size Diagram

Greenhouse Dimensions

A: Greenhouse width

3060mm (10′)

B: Greenhouse depth

2980mm (9′ 9″)

C: Ridge height

2370mm (7′ 9″)

D: Eaves height

1720mm (5′ 7″)

E & F: Door Size

560mm (1′ 10″) x 1963mm (6′ 5″) (aperture)

Minimum Base Size

3060mm (10′) x 2980mm (9′ 9″)

Light-diffusing roof glass
Light-diffusing roof glass

The 4mm hammered safety-glass roof spreads sunlight across your plants. Clear 4mm safety-glass sides and polished glass edges complete the carefully finished glazing.

Aluminium box corner profiles
Aluminium box corner profiles

Substantial hollow aluminium corner profiles support the greenhouse frame. Their box section provides strength at the corners within this Belgian-engineered frame.

Tubular aluminium ridge beam
Tubular aluminium ridge beam

The aluminium ridge beam has a fully enclosed tubular profile. This closed section gives strength along the top of the greenhouse roof.

Box-section aluminium glazing bars
Box-section aluminium glazing bars

Box-section aluminium glazing bars support the glass and resist twisting. Slots in the profiles provide fixing points for shelving or staging.

Corner and ridge reinforcement plates
Corner and ridge reinforcement plates

Extra reinforcement plates connect the roof and sidewalls at the corners and ridge. They strengthen these joints against wind and snow forces.

Diagonal greenhouse draw bars
Diagonal greenhouse draw bars

Diagonal draw bars are fixed at secure points within the frame. They help maintain the greenhouse's strength and alignment in windy conditions.

Self-supporting aluminium base
Self-supporting aluminium base

The included aluminium base is integral to the greenhouse, with a double-chamber profile for strength and stability. It supports the frame and holds the glass securely.

Stainless steel nuts and bolts
Stainless steel nuts and bolts

Stainless steel nuts and bolts secure the frame throughout the greenhouse. Their corrosion resistance helps keep these frame fixings in good condition.

Rainwater and condensation channels
Rainwater and condensation channels

The gutter profile has a large external gutter for roof rainwater. A wide internal channel collects condensation within the same profile.

Rubber glazing profile seals
Rubber glazing profile seals

Rubber glazing seals fit into the aluminium profiles and hold the glass firmly. They also help keep rain and draughts outside the greenhouse.

Manual roof vent stay
Manual roof vent stay

The roof vent has a manual stay and storm protection. Opening the vent lets warm air escape and controls airflow on warmer days.

ACD greenhouse structure warranty
ACD greenhouse structure warranty

The Belgian-made ACD greenhouse has a 12-year structure warranty. This cover applies to the structure, with glazing and accessories outside its scope.

TÜV NORD production controls
TÜV NORD production controls

ACD displays the TÜV NORD EN1090-1 mark for factory production control of steel and aluminium structural components. This concerns initial factory and system inspection, followed by ongoing surveillance.

Quick tour of ACD greenhouses

Join Greenhouse Stores for a short tour of ACD greenhouses and a closer look at their construction details.
