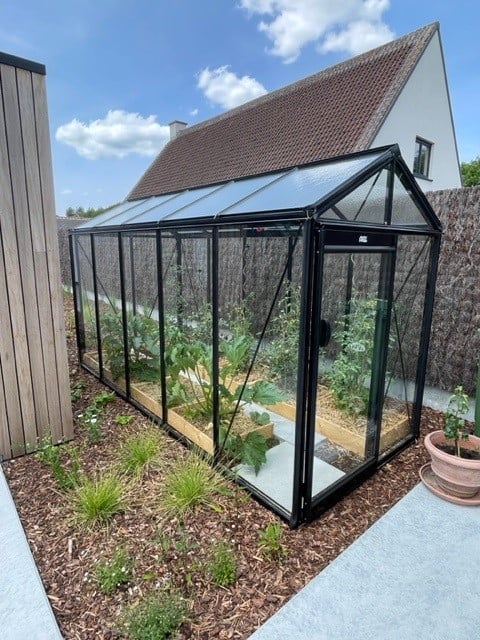

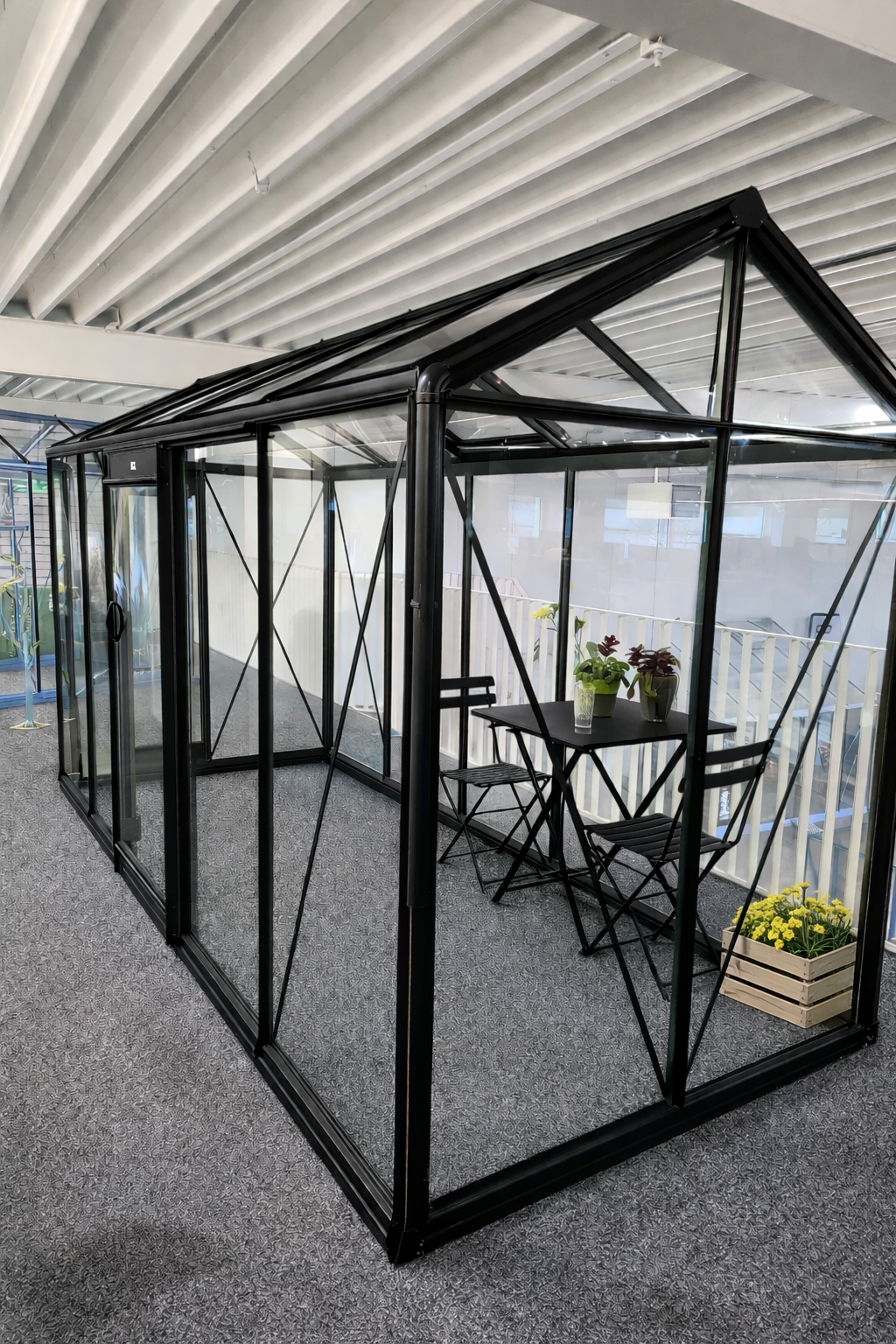

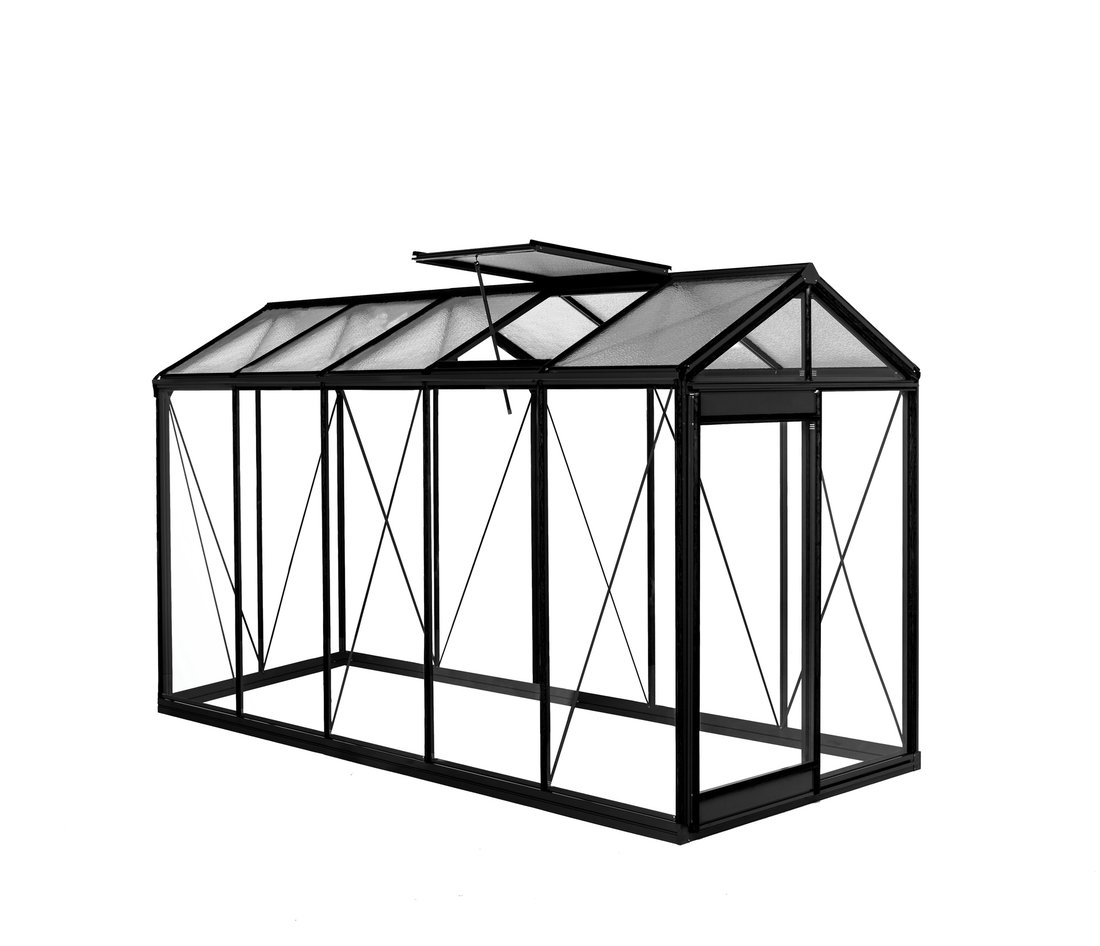

ACD 5x12 P05 Piccolo Urban Greenhouse – Black

At a glance

  • 5ft 2" wide x 12ft 2" deep
  • Black aluminium frame
  • 1590mm wide x 3710mm deep
  • 1790mm eaves; 2210mm ridge
  • 4mm clear toughened safety glass roof
  • 4mm clear safety glass sides
  • Single sliding door and one roof vent
  • Double-chamber self-supporting aluminium base and stainless steel fixings
  • 12-year structure warranty; 2-year coating warranty
  • Photographs show optional accessories, furnishings or planting, which are not included.
  • Tubular ridge beam and strengthened glazing bars
  • External gutters and internal condensation drainage
  • Rubber glazing seals hold glass firmly

Quick Code: P176559

Greenhouse Size Diagram

Greenhouse Dimensions

A: Greenhouse width

1590mm (5′ 2″)

B: Greenhouse depth

3710mm (12′ 2″)

C: Ridge height

2210mm (7′ 3″)

D: Eaves height

1790mm (5′ 10″)

Made in Belgium

Black Friday: up to £50 off

Discount applied automatically in the basket. No code to type. Ends 30 November 2026.

Discount already applied to price

Customise your Greenhouse

ACD 5x12 P05 Piccolo Urban Greenhouse – BlackChoose your size, glazing and colour

Choose your frame finish

Choose your ACD® frame finish. Option prices are surcharges added to the greenhouse price. Your model and chosen RAL colour cost the same whether starting with silver or black. Screen swatches are approximate. We recommend checking a physical RAL sample.

Standard black RAL9005
+ £0

Anthracite grey RAL 7016
+ £1,370

Custom powder-coated frame finish

Reed green RAL 6013
+ £1,370

Custom powder-coated frame finish

Olive green RAL 6003
+ £1,370

Custom powder-coated frame finish

Fir green RAL 6009
+ £1,370

Custom powder-coated frame finish

Quartz grey RAL 7039
+ £1,370

Custom powder-coated frame finish

Purple red RAL 3004
+ £1,370

Custom powder-coated frame finish

Carmine red RAL 3002
+ £1,370

Custom powder-coated frame finish

Pure white RAL 9010
+ £1,370

Custom powder-coated frame finish

Pale green RAL 6021
+ £1,370

Custom powder-coated frame finish

Black grey RAL 7021
+ £1,370

Custom powder-coated frame finish

Pastel blue RAL 5024
+ £1,370

Custom powder-coated frame finish

Signal red RAL 3001
+ £1,370

Custom powder-coated frame finish

Choose your frame finish information

Choose your ACD® frame finish. Option prices are surcharges added to the greenhouse price. Your model and chosen RAL colour cost the same whether starting with silver or black. Screen swatches are approximate. We recommend checking a physical RAL sample.

Standard black RAL9005 - £0.00
Standard black RAL9005

Anthracite grey - RAL 7016 - £1370.00
Anthracite grey - RAL 7016

Custom powder-coated frame finish


Reed green - RAL 6013 - £1370.00
Reed green - RAL 6013

Custom powder-coated frame finish


Olive green - RAL 6003 - £1370.00
Olive green - RAL 6003

Custom powder-coated frame finish


Fir green - RAL 6009 - £1370.00
Fir green - RAL 6009

Custom powder-coated frame finish


Quartz grey - RAL 7039 - £1370.00
Quartz grey - RAL 7039

Custom powder-coated frame finish


Purple red - RAL 3004 - £1370.00
Purple red - RAL 3004

Custom powder-coated frame finish


Carmine red - RAL 3002 - £1370.00
Carmine red - RAL 3002

Custom powder-coated frame finish


Pure white - RAL 9010 - £1370.00
Pure white - RAL 9010

Custom powder-coated frame finish


Pale green - RAL 6021 - £1370.00
Pale green - RAL 6021

Custom powder-coated frame finish


Black grey - RAL 7021 - £1370.00
Black grey - RAL 7021

Custom powder-coated frame finish


Pastel blue - RAL 5024 - £1370.00
Pastel blue - RAL 5024

Custom powder-coated frame finish


Signal red - RAL 3001 - £1370.00
Signal red - RAL 3001

Custom powder-coated frame finish


Add Ventilation?

Automatic wax-operated roof vent opener
+ £49

This wax-operated opener responds to temperature and opens the greenhouse roof vent without electricity.

Additional roof window
+ £148

Add additional ventilation to your greenhouse. Automatic opener shown in the photo is sold separately.

Additional louvre vent
+ £168

Only available in black

Ventilation information

Automatic wax-operated roof vent opener - £49.00
Automatic wax-operated roof vent opener

This wax-operated opener responds to temperature and opens the greenhouse roof vent without electricity.


Additional roof window - £148.00
Additional roof window

Add additional ventilation to your greenhouse. Automatic opener shown in the photo is sold separately.


Additional louvre vent - £168.00
Additional louvre vent

Only available in black


Add Shelving and Tables?

Black aluminium shelves (pair)
+ £99

860 x 150mm each

Black shelf with wooden inlay
+ £89

715 x 320mm

Black staging with wooden inlay
+ £109

715 x 520mm

Black shelf with wooden inlay
+ £158

2250 x 320mm

Black staging with wooden inlay
+ £208

2250 x 520mm

Black shelf with PVC inlay
+ £119

2250 x 320mm

Black staging with PVC inlay
+ £158

2250 x 520mm

Black sowing table
+ £198

2170 x 420mm

Black double shelf
+ £99

810 x 100 x 30mm

Shelving and Tables information

Black aluminium shelves (pair) - £99.00
Black aluminium shelves (pair)

860 x 150mm each


Black shelf with wooden inlay - £89.00
Black shelf with wooden inlay

715 x 320mm


Black staging with wooden inlay - £109.00
Black staging with wooden inlay

715 x 520mm


Black shelf with wooden inlay - £158.00
Black shelf with wooden inlay

2250 x 320mm


Black staging with wooden inlay - £208.00
Black staging with wooden inlay

2250 x 520mm


Black shelf with PVC inlay - £119.00
Black shelf with PVC inlay

2250 x 320mm


Black staging with PVC inlay - £158.00
Black staging with PVC inlay

2250 x 520mm


Black sowing table - £198.00
Black sowing table

2170 x 420mm


Black double shelf - £99.00
Black double shelf

810 x 100 x 30mm


Add Growing & Watering Accessories?

Greenhouse starter pack
+ £79

Includes two sowing trays, 10 tomato hooks, 10 plant guides, a drip kit and a thermometer.

Rainwater collection downpipes
+ £138

A pair of black aluminium downpipes, each 1650mm long and 40mm in diameter.

Growing & Watering Accessories information

Greenhouse starter pack - £79.00
Greenhouse starter pack

Includes two sowing trays, 10 tomato hooks, 10 plant guides, a drip kit and a thermometer.


Rainwater collection downpipes - £138.00
Rainwater collection downpipes

A pair of black aluminium downpipes, each 1650mm long and 40mm in diameter.


Add Access ramps?

Pair of aluminium access ramps
+ £139

Two short, individual aluminium ramps make it easier to move items over the base at your greenhouse entrance.

Access ramps information

Pair of aluminium access ramps - £139.00
Pair of aluminium access ramps

Two short, individual aluminium ramps make it easier to move items over the base at your greenhouse entrance.


The ACD 5x12 P05 Piccolo Urban Greenhouse combines Belgian manufacture with a black powder-coated aluminium frame. Its narrow width suits gardens where a wider greenhouse would take up too much space.

A closed tubular ridge beam strengthens the frame, while the self-supporting double-chamber base supports the structure. The frame has a 12-year structure warranty, with a separate two-year warranty for the coating.

Clear 4 mm toughened safety glass in the roof and sides admits direct sunlight for your plants. The longer footprint gives you room to develop your greenhouse growing. One roof vent provides ventilation, and the single sliding door needs no outward opening space.

  • Black aluminium frame
  • 1590mm wide x 3710mm deep
  • 1790mm eaves; 2210mm ridge
  • 4mm clear toughened safety glass roof
  • 4mm clear safety glass sides
  • Single sliding door and one roof vent
  • Self-supporting base and stainless steel fixings
  • 12-year structure warranty; 2-year coating warranty
  • Double-chamber self-supporting aluminium base
  • Tubular ridge beam and strengthened glazing bars
  • External gutters and internal condensation drainage
  • Rubber glazing seals hold glass firmly

ACD delivery is available only in supported postcode areas. Enter your delivery postcode to check. Delivery is unavailable in all other areas, where online ordering is not possible.

Greenhouse Size Diagram

Greenhouse Dimensions

A: Greenhouse width

1590mm (5′ 2″)

B: Greenhouse depth

3710mm (12′ 2″)

C: Ridge height

2210mm (7′ 3″)

D: Eaves height

1790mm (5′ 10″)

Made in Belgium

Clear toughened glass
Clear toughened glass

Urban Piccolo has clear 4mm toughened safety glass in both the roof and sides. Polished glass edges give the glazing a neat, considered finish.

Aluminium box corner profiles
Aluminium box corner profiles

Substantial hollow aluminium corner profiles support the greenhouse frame. Their box section provides strength at the corners within this Belgian-engineered frame.

Tubular aluminium ridge beam
Tubular aluminium ridge beam

The aluminium ridge beam has a fully enclosed tubular profile. This closed section gives strength along the top of the greenhouse roof.

Box-section aluminium glazing bars
Box-section aluminium glazing bars

Box-section aluminium glazing bars support the glass and resist twisting. Slots in the profiles provide fixing points for shelving or staging.

Corner and ridge reinforcement plates
Corner and ridge reinforcement plates

Extra reinforcement plates connect the roof and sidewalls at the corners and ridge. They strengthen these joints against wind and snow forces.

Diagonal greenhouse draw bars
Diagonal greenhouse draw bars

Diagonal draw bars are fixed at secure points within the frame. They help maintain the greenhouse's strength and alignment in windy conditions.

Self-supporting aluminium base
Self-supporting aluminium base

The included self-supporting aluminium base means you do not need a separate perimeter base. We recommend basic levelling of the ground before fitting. The supplied corner anchors must be set in concrete to secure the greenhouse.

Stainless steel nuts and bolts
Stainless steel nuts and bolts

Stainless steel nuts and bolts secure the frame throughout the greenhouse. Their corrosion resistance helps keep these frame fixings in good condition.

Rainwater and condensation channels
Rainwater and condensation channels

The gutter profile has a large external gutter for roof rainwater. A wide internal channel collects condensation within the same profile.

Rubber glazing profile seals
Rubber glazing profile seals

Rubber glazing seals fit into the aluminium profiles and hold the glass firmly. They also help keep rain and draughts outside the greenhouse.

Manual roof vent stay
Manual roof vent stay

The roof vent has a manual stay and storm protection. Opening the vent lets warm air escape and controls airflow on warmer days.

ACD greenhouse structure warranty
ACD greenhouse structure warranty

ACD has made greenhouses in Belgium since 1986. The structure has a 12-year warranty. Glazing and accessories are excluded.

TÜV NORD production controls
TÜV NORD production controls

ACD’s manufacturing processes are checked by TÜV NORD under the EN 1090-1 standard. Regular inspections help ensure consistent production quality.

Quick tour of ACD greenhouses

Take a quick look at the greenhouse construction in the tour video. Clear assembly instructions and videos are available.
