Automatic Watering System Ultimate Kit for 10x12 Greenhouse

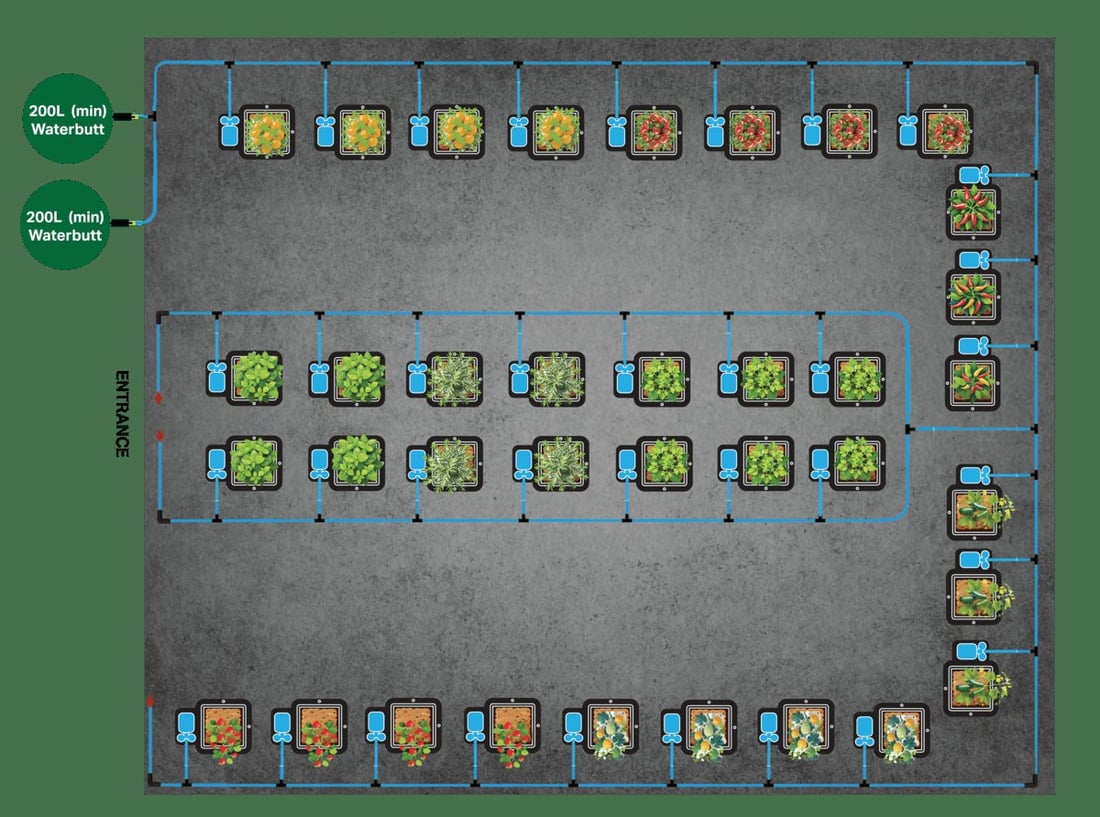

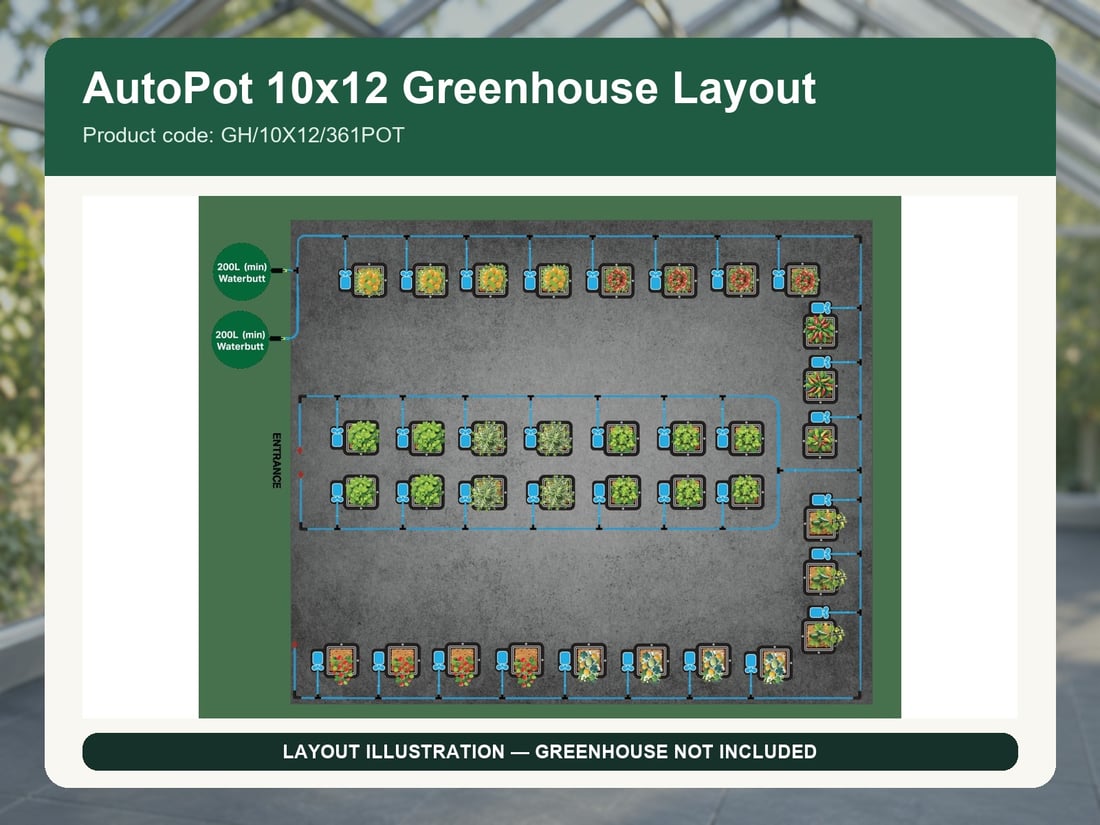

Ultimate layout: Designed for a 10x12 greenhouse, this kit has thirty-six 15L pots, each with its own 1Pot tray. The thirty-six individual trays suit bushy crops such as peppers, chillies and aubergines. Separate reservoirs feed water to the trays by gravity. No pump is needed, and the system requires no mains water connection or electricity.

We recommend this AutoPot automatic greenhouse irrigation system for a large mixed crop plan in a 10x12 greenhouse. The greenhouse watering kit has thirty-six individual 1Pot modules.

The AQUAvalve5 handles the watering automatically. It lets a shallow 20mm layer of water into each tray, then shuts off. Once the plants have used that water, the valve opens and tops the tray up again. Water flows in by gravity from an external water butt or reservoir, so no pump is needed.

What is included

• 36x 15L Pot
• 36x 1Pot Tray and Lid with Grommet
• 36x AQUAvalve5
• 36x Square Root Control Disc
• 36x Marix Disc
• 2x 16mm Click Fit Filter
• 8 metres of 9mm Pipe
• 17 metres of 16mm Pipe
• 36x 16mm-9mm Tee Connector
• 5x 16mm Elbow Connector
• 3x 16mm In-Line Tap

What you still need

You need two separate 200L water butts or reservoirs, with 400L capacity in total. These are not included with the kit.

If you keep a reservoir inside the greenhouse, leave enough room for it. You may need to remove one or two modules.

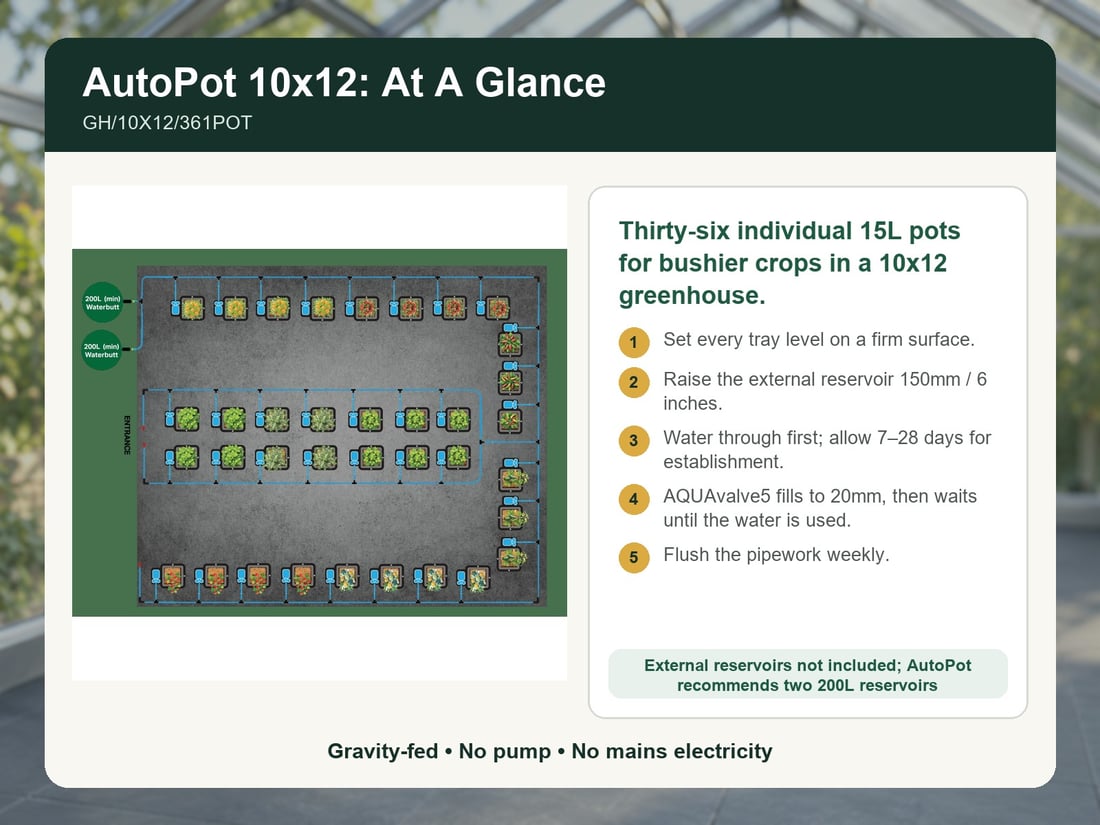

How to set it up

1. Choose a firm, level surface and check that every tray sits flat.
2. Place each external water butt or reservoir 150mm / 6 inches above the system.
3. Water the plants by hand when you first pot them up. Wait 7-28 days for roots to establish before turning on the system.
4. Flush the pipework every week.
