Assembly guide

Vitavia Orion

Sizes 3800, 5000

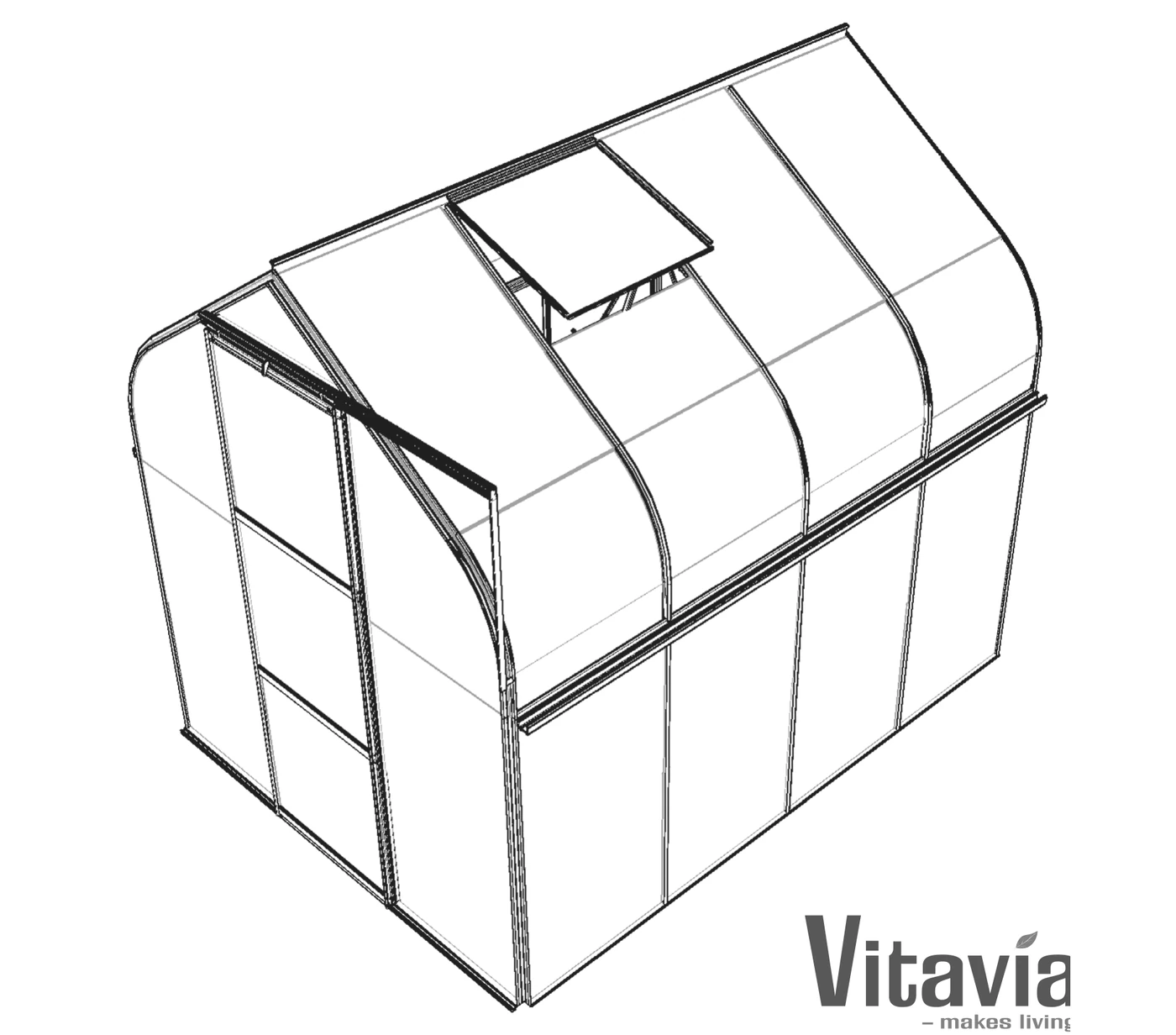

Vitavia Orion greenhouse
8steps, base first
2people needed
1922 mm2544 mm × 1922 mm1922 mmbase size (A × B)

Pick your size at the top. Quantities and drawings change to match.

The build at a glance

Drawings: Vitavia (Vitavia manual 008.01.1306 (Orion 3800, 5000)). Words and layout: Greenhouse Stores, greenhousestores.co.uk. Keep this guide with your greenhouse.
Read this first

Before you start

Six golden rules

  1. Build frames loose; tighten only when the whole greenhouse stands square on its base.
  2. Measure both diagonals; they must be equal.
  3. Never overtighten nuts 1002: maximum 3 Nm. Overtightening strips aluminium and cracks glass.
  4. Fit extra bolts when instructed; you cannot add them after bar ends are capped.
  5. Build with two people.
  6. Always anchor your greenhouse. An unanchored greenhouse can blow away.

Get ready

  • Read the whole guide once before you start.
  • Gather flat/PH2 screwdrivers, 10 mm socket spanner/wrench, 10 mm combination spanner, knife, tape measure, spirit level. Set cordless drill adjustable torque low.
  • Wear gloves, safety glasses, sturdy shoes and a hat. Aluminium edges are sharp. Clear up broken glass straight away.
  • Open one bundle at a time and keep opened bundles apart. Mixed bundles are the main cause of lost-part searches.
  • Check every part against the parts check pages. Contact Greenhouse Stores before you begin if anything is missing.
  • Read single-frame drawings as views from inside the greenhouse. Read double-frame drawings as views from outside.
  • Choose a sunny spot with as much shelter from wind as possible.
Single frame: inside view
Double frame: outside view
Before step 1

Parts check

Open one bundle at a time. Tick each part as you find it. The number in green is how many your size should have.

Bars and profiles

Part 1020
1020
Glazing seal (reel)
6200079000 mm×11
Part 1032
1032
Vertical bar
12141214 mm×46
Part 1036
1036
12141214 mm×44
Part 1051
1051
Ridge bar
18621862 mm×1-
Part 1052
1052
Ridge bar
24842484 mm×-1
Part 1059
1059
Upper bar
621621 mm×11
Part 1060
1060
Door bar
621621 mm×11
Part 1061
1061
621621 mm×22
Part 1062
1062
Door bar
613613 mm×11
Part 1063
1063
Vent sill
635635 mm×11
Part 1064
1064
Vent top bar
602602 mm×11
Part 1065
1065
Vent side bar
520520 mm×22
Part 1066
1066
Vent bottom bar
602602 mm×11
Part 1067
1067
Window opener
295295 mm×11
Part 2022
2022
24842484 mm×-2
Part 3057
3057
Roof brace
841841 mm×23
Part 5021
5021
Door seal
19911991 mm×22
Part 5022
5022
18621862 mm×31
Part 5027
5027
18621862 mm×2-
Part 5028
5028
24842484 mm×-2
Part 5041
5041
Vertical bar
20302030 mm×22
Part 5042
5042
Vertical bar
20302030 mm×22
Part 5043
5043
Door runner support
750750 mm×11
Part 5058
5058
Side bar
19911991 mm×22
Part 5062
5062
18541854 mm×2-
Part 5063
5063
24762476 mm×-2
Part 5091
5091
Corner plate
178178 mm×88
Part 5096
5096
619619 mm×11
Part 5097
5097
619619 mm×11
Part 5537
5537
15061506 mm×22
Part 5538
5538
15061506 mm×22
Part 5539
5539
18541854 mm×11
Part 5540
5540
Cross brace
984984 mm×44
Part 5546
5546
18621862 mm×11
Part 5547
5547
Door runner bar
13031303 mm×11
Part 5548
5548
Horizontal bar
696696 mm×11
Part 5549
5549
13041304 mm×84
Part 5554
5554
696696 mm×11
Part 5555
5555
Roof glazing bar
14831483 mm×46
Part 5595
5595
Cross brace
16811681 mm×-4

Fixings and small parts

Part 1001
1001
Bolt
M6 x 12M6 x 12×131151
Part 1002
1002
Nut
M6M6×131151
Part 1003
1003
Screw
3.5 x 163.5 x 16×1616
Part 1004
1004
M4 x 16M4 x 16×22
Part 1005
1005
Bolt
M6 x 40M6 x 40×11
Part 1006
1006
Screw
3.5 x 63.5 x 6×66
Part 1007
1007
Nut
M4M4×22
Part 1009
1009
Washer
Ø8/4Ø8/4×22
Part 1010
1010
Spacer
3232×11
Part 1011
1011
Glazing spring clip
7070×250298
Part 1012
1012
Glass retaining clip
1111×85105
Part 1014
1014
Door glider
2020×22
Part 1015
1015
Door roller
Ø22Ø22×22
Part 1016
1016
Window fixer
4040×22
Part 1017
1017
End cap
4646×44
Part 1019
1019
Plastic cap
1515×11
Part 1111
1111
Door fixer
37.537.5×11
Part 1112
1112
Door fixer
7.47.4×11
Part 1113
1113
Door fixer
2525×11
Part 1500
1500
Bolt
M6 x 5M6 x 5×22
Part 1515
1515
Nut
M6M6×22
Part 5001
5001
3333×11
Part 5002
5002
3333×11
Part 5012
5012
3838×1212
Part 5090
5090
610 x 610610 x 610×68
Part 6060
6060
Washer
Ø12/6Ø12/6×11
0
Step 0

Prepare your base

Start with an exactly square, level base before you assemble the greenhouse.

A B X = X
38005000
A1922 mm2544 mm
B1922 mm1922 mm

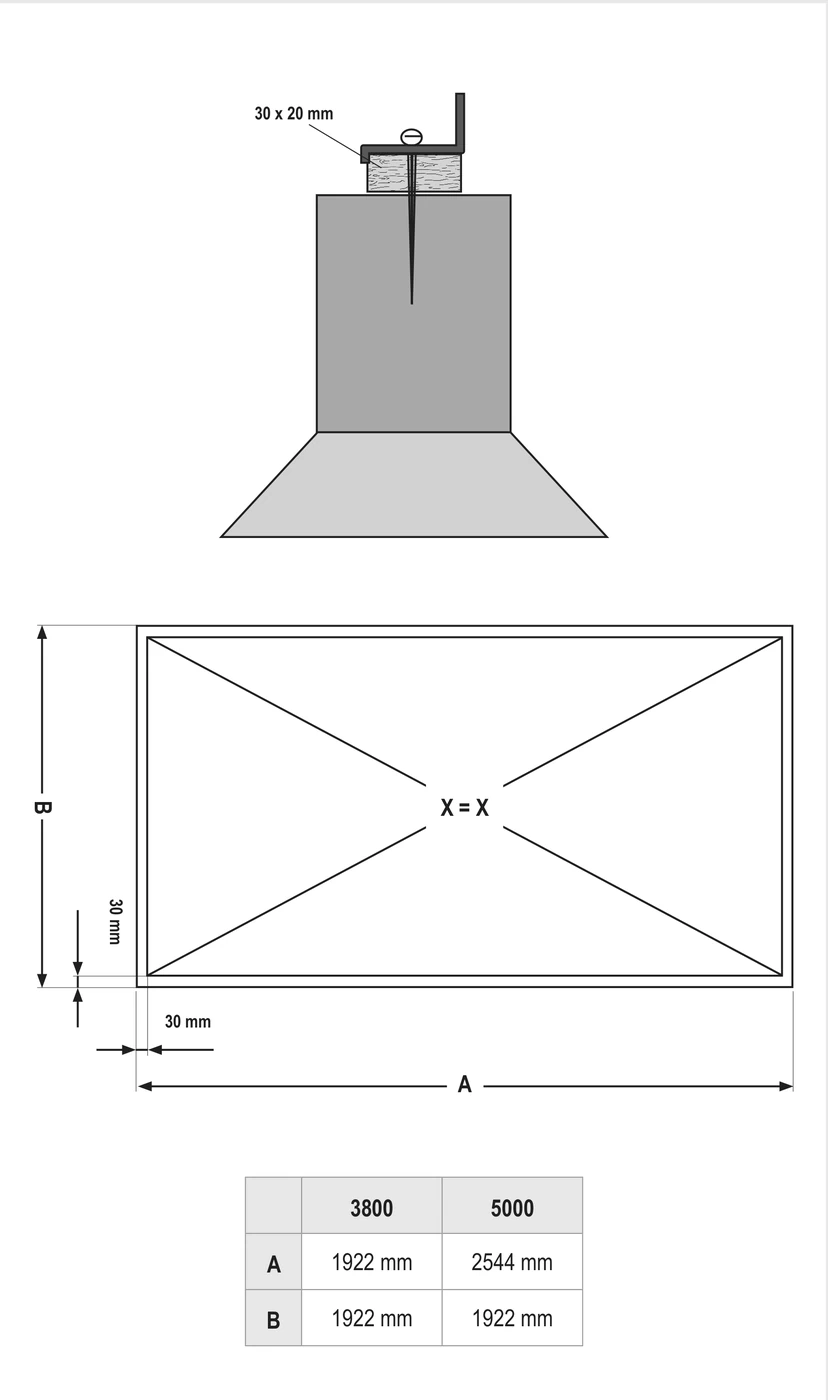

Step 0 drawing
Vitavia drawing 0. The circled numbers match the pictures below.

Installer tip

Use ground spikes or anchor legs on soil only. On concrete or paving, bolt the base down with suitable fixings; use one method, not both.

Watch out

Check the base is square and level, or the frame above will be wrong. Glass will not fit an out-of-square frame.

0.1

Use an exactly square, level base; the accessory zinc-coated steel base is the easiest option. Measure both diagonals and check they match, as shown by X = X.

0.2

Only for DIY stone or concrete foundations, use sizes A and B. Fit treated timber between foundation and aluminium frame, minimum 18 mm high, maximum 32 mm wide; secure with 50 mm foundation bolts (not supplied). The foundation must extend below frost level.

0.3

On a very windy, exposed site, drill through the greenhouse bottom profile and steel base. Bolt them together.

1
Step 1

Build both side frames

Build two identical side frames flat on the ground, and leave every bolt loose.

You need

Part 1001
1001×24
Part 1001
1001×32
Part 1002
1002×24
Part 1002
1002×32
Part 1032
1032×4
Part 1032
1032×6
Part 2022
2022×2
Part 5022
5022×2
Part 5027
5027×2
Part 5028
5028×2
Part 5091
5091×4
Part 5091
5091×4
Part 5549
5549×4
Part 5595
5595×4

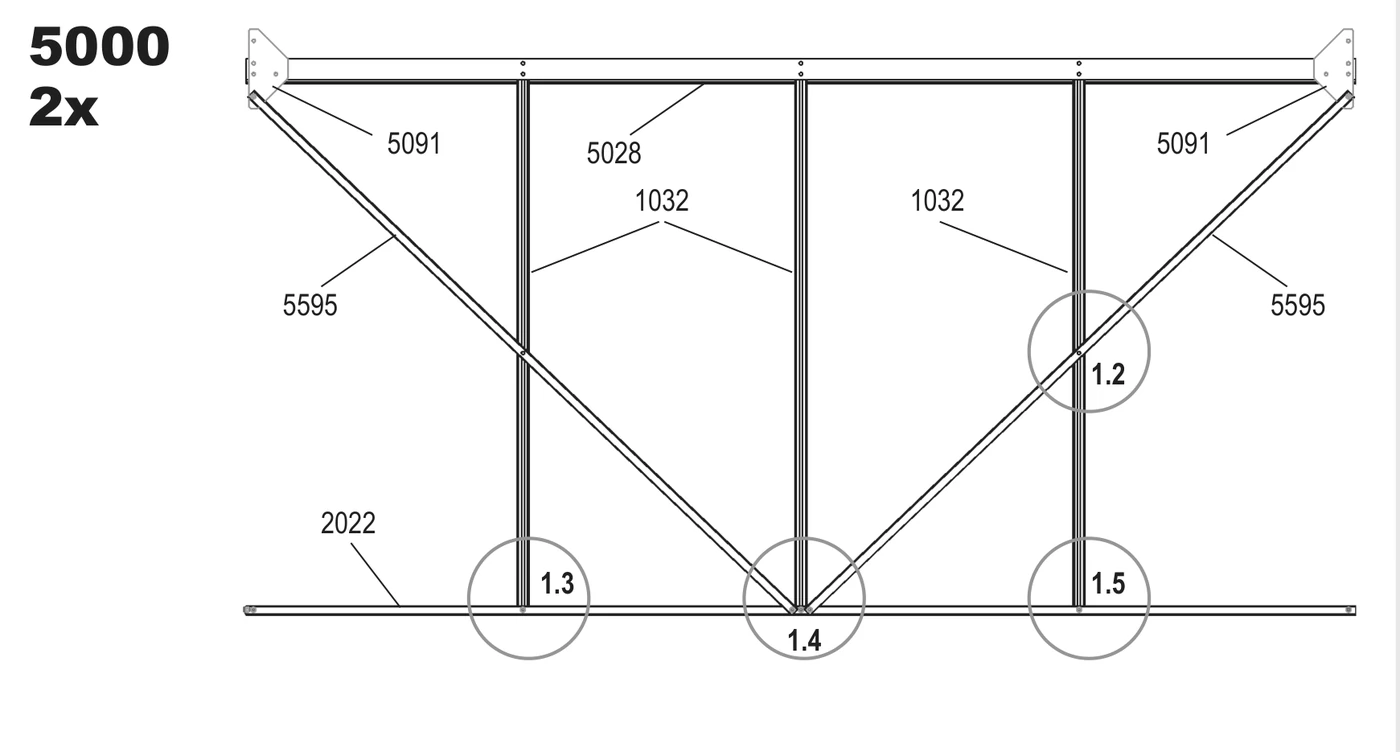

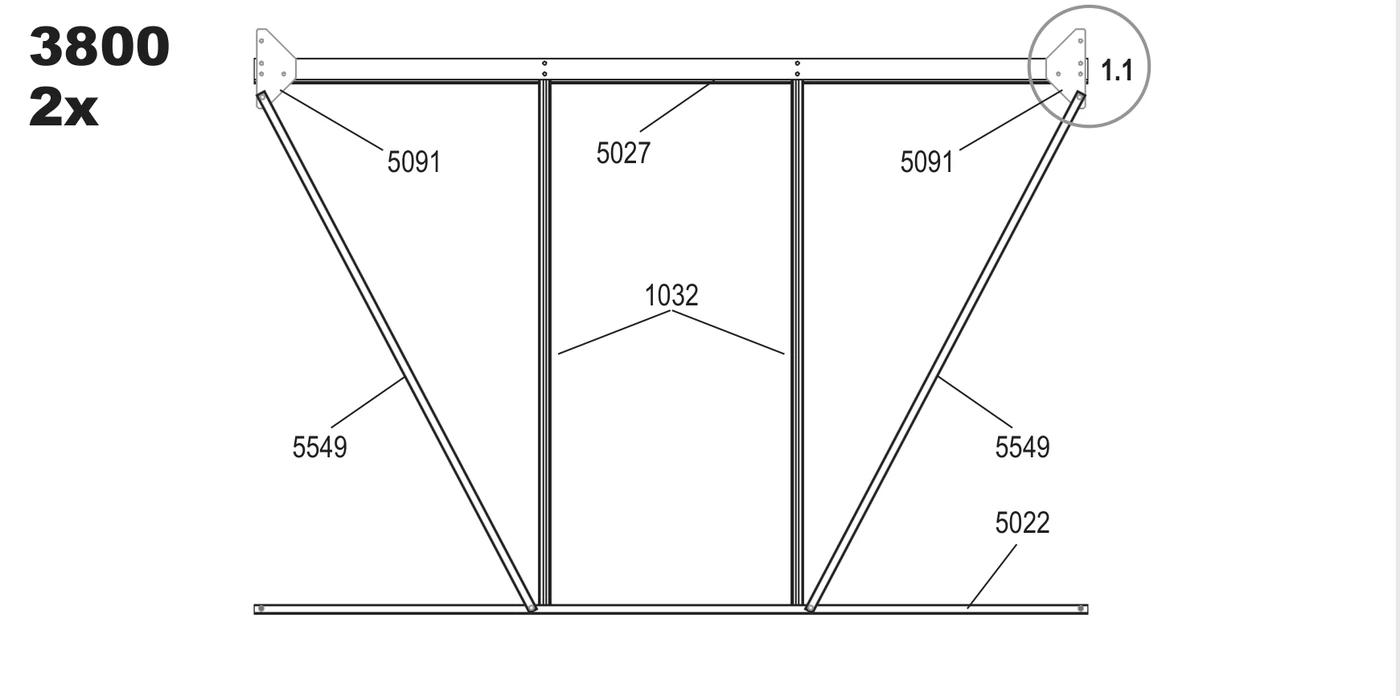

Step 1 drawing, 3800Step 1 drawing, 5000
Vitavia drawing 1. The circled numbers match the pictures below.

Installer tip

Lay the parts on a blanket or lawn to protect the finish. Leave every nut loose so the frames can flex during step 4.

Watch out

Use 2 uprights 1032 per side on the 3800. Use 3 per side on the 5000.

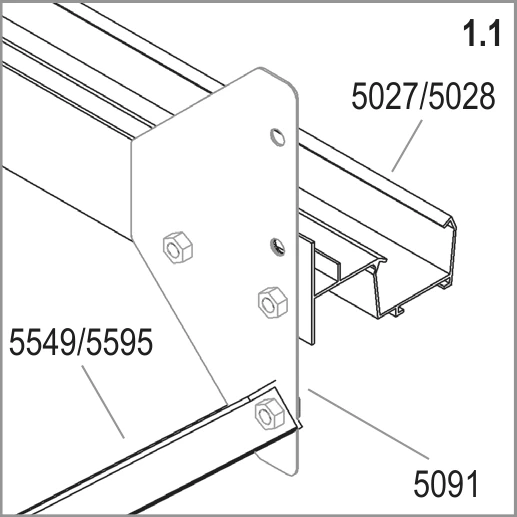

Detail 1.1
1.1

Loosely fit corner plate 5091 at each top end between your eave bar (5027 or 5028) and brace (5549 or 5595). Leave these bolts loose for the gable connections in step 4.

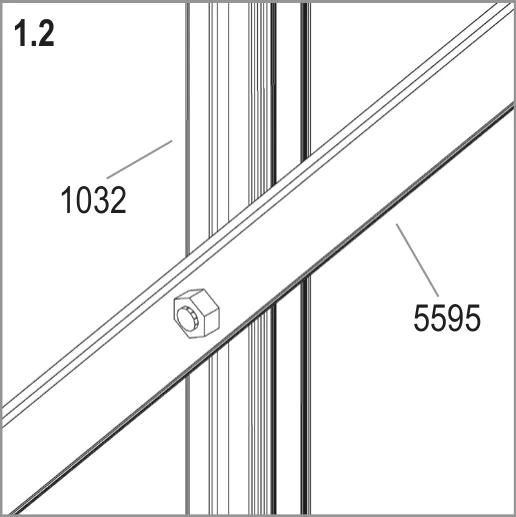

Detail 1.2
1.2

On the 5000, slide one extra bolt into each outside upright 1032 now. You need these bolts to connect cross brace 5595.

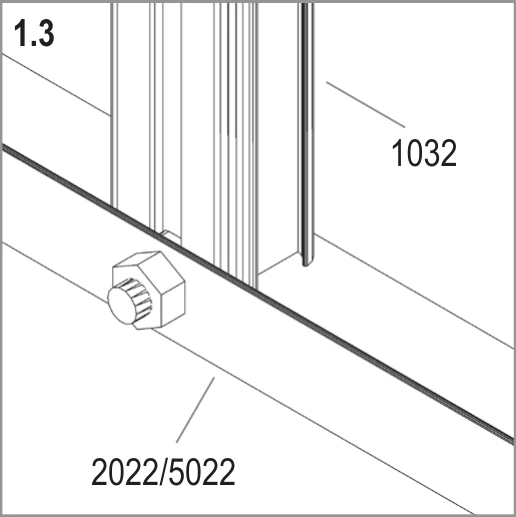

Detail 1.3
1.3

Bolt the bottom of each upright 1032 to your sill bar (5022 or 2022).

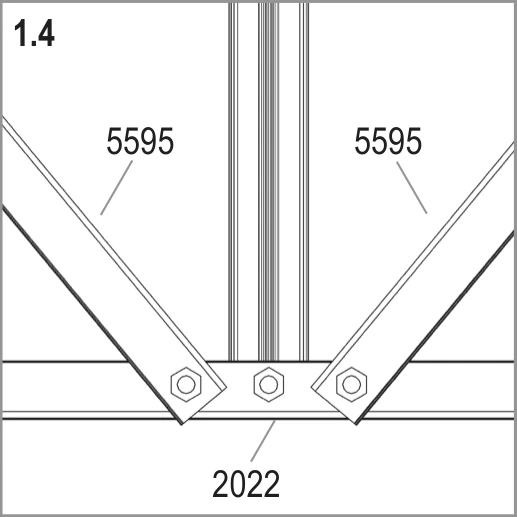

Detail 1.4
1.4

On the 5000, join both cross braces 5595 to sill bar 2022 as shown.

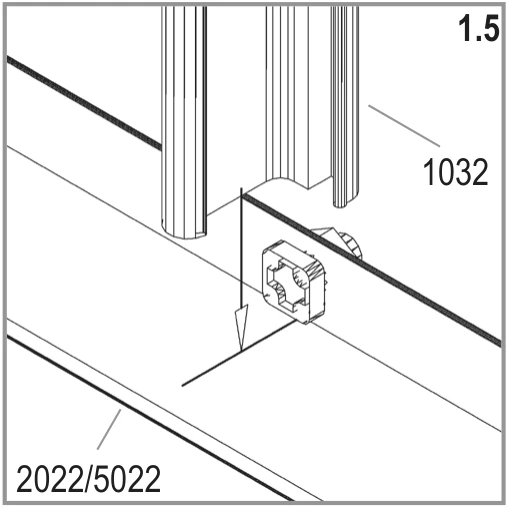

Detail 1.5
1.5Outside view

Slide the bolts into the sill bar channel through its open end, in the arrow's direction. Insert them before you close the bar end.

2
Step 2

Build the back gable

Assemble the plain back gable flat on the ground, and leave the bolts loose.

You need

Part 1001
1001×22
Part 1001
1001×22
Part 1002
1002×22
Part 1002
1002×22
Part 1036
1036×2
Part 1036
1036×2
Part 5022
5022×1
Part 5022
5022×1
Part 5041
5041×1
Part 5041
5041×1
Part 5042
5042×1
Part 5042
5042×1
Part 5091
5091×2
Part 5091
5091×2
Part 5537
5537×1
Part 5537
5537×1
Part 5538
5538×1
Part 5538
5538×1
Part 5539
5539×1
Part 5539
5539×1
Part 5549
5549×2
Part 5549
5549×2
Part 5554
5554×1
Part 5554
5554×1

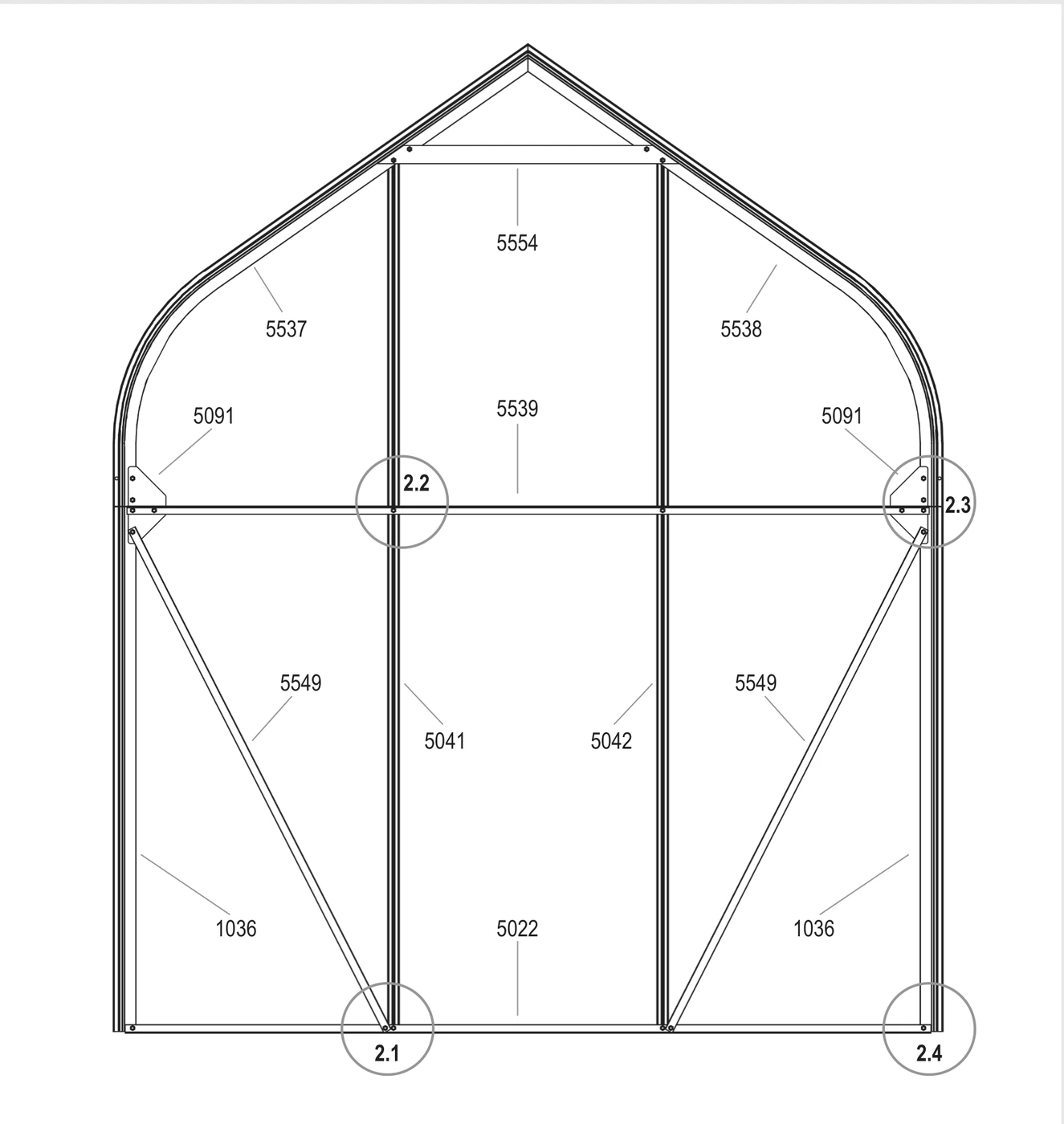

Step 2 drawing
Vitavia drawing 2. The circled numbers match the pictures below.

Installer tip

Work upwards from the bottom. Slide each extra bolt into its channel before you fit the bar above it.

Watch out

Check the extra bolts are in vertical bars 5041 and 5042 before you cap the bar ends.

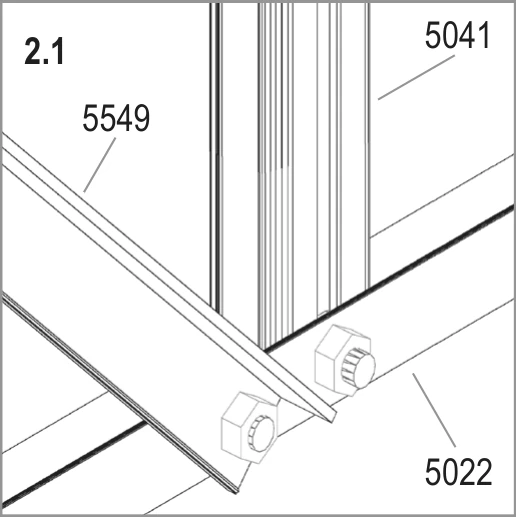

Detail 2.1
2.1

At the bottom, bolt brace 5549 and vertical bar 5041 to sill bar 5022.

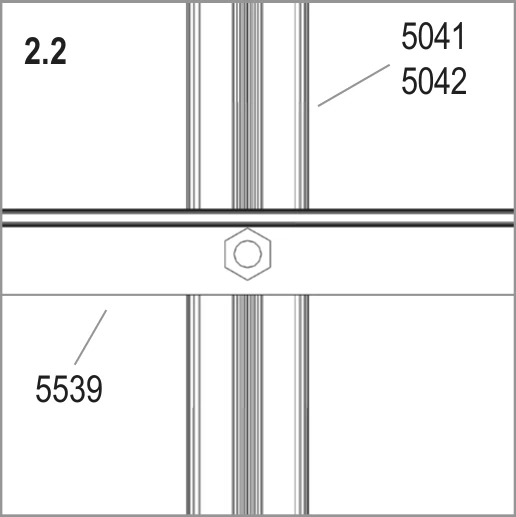

Detail 2.2
2.2

Bolt bar 5539 across vertical bars 5041 and 5042. Insert one extra bolt into each vertical bar now for the cross braces.

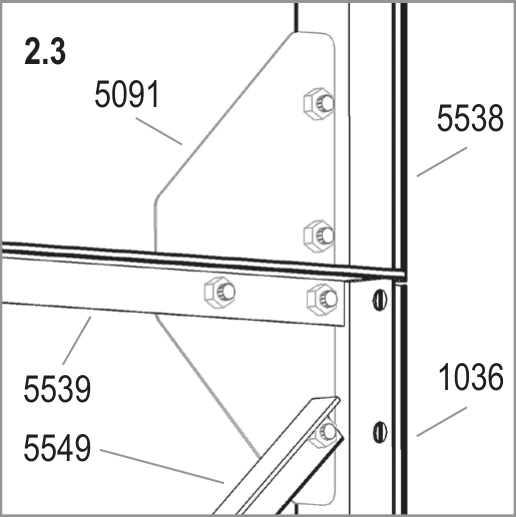

Detail 2.3
2.3

At each side, use corner plate 5091 to join roof bar 5538, bar 5539, brace 5549 and corner bar 1036.

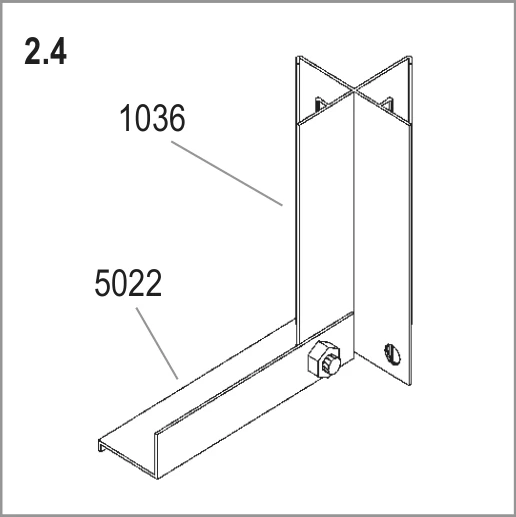

Detail 2.4
2.4

At each bottom corner, bolt corner bar 1036 to sill bar 5022.

3
Step 3

Build the door gable

Assemble the front door gable flat on the ground, and leave the bolts loose.

You need

Part 1001
1001×25
Part 1001
1001×25
Part 1002
1002×25
Part 1002
1002×25
Part 1036
1036×2
Part 1036
1036×2
Part 5001
5001×1
Part 5001
5001×1
Part 5002
5002×1
Part 5002
5002×1
Part 5041
5041×1
Part 5041
5041×1
Part 5042
5042×1
Part 5042
5042×1
Part 5091
5091×2
Part 5091
5091×2
Part 5096
5096×1
Part 5096
5096×1
Part 5097
5097×1
Part 5097
5097×1
Part 5537
5537×1
Part 5537
5537×1
Part 5538
5538×1
Part 5538
5538×1
Part 5546
5546×1
Part 5546
5546×1
Part 5547
5547×1
Part 5547
5547×1
Part 5548
5548×1
Part 5548
5548×1
Part 5549
5549×2
Part 5549
5549×2

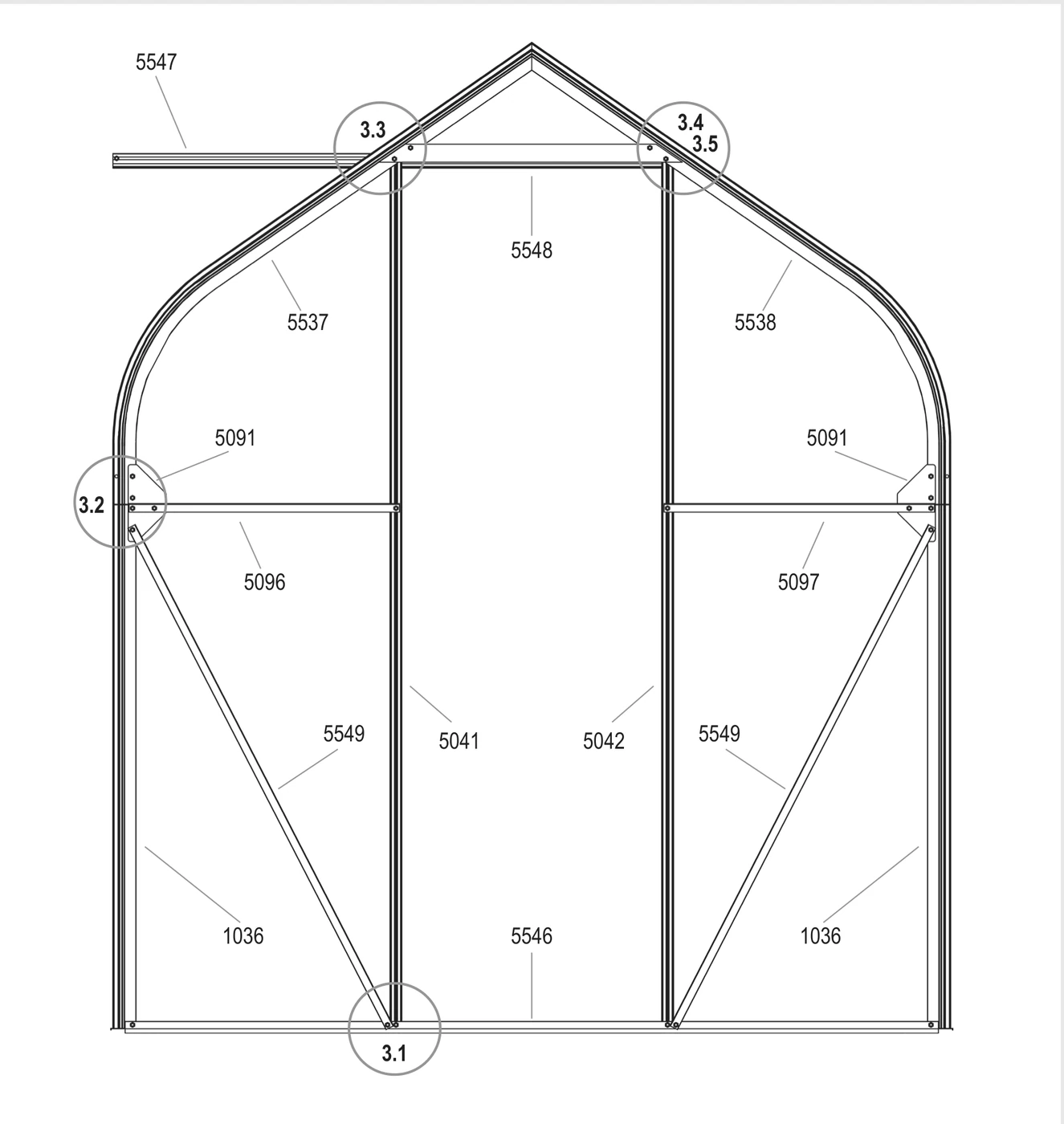

Step 3 drawing
Vitavia drawing 3. The circled numbers match the pictures below.

Installer tip

Position door runner bar 5547 left or right to suit your chosen door opening direction. Decide now; changing it later means taking the gable apart.

Watch out

Insert one extra bolt into each vertical bar 5041 and 5042 before closing the ends. If parts will not align, check for bars fitted upside down or back to front.

Detail 3.1

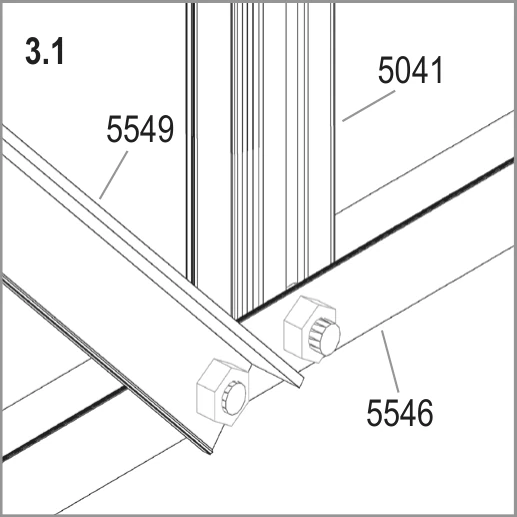

3.1

At the bottom, bolt brace 5549 and vertical bar 5041 to bottom bar 5546.

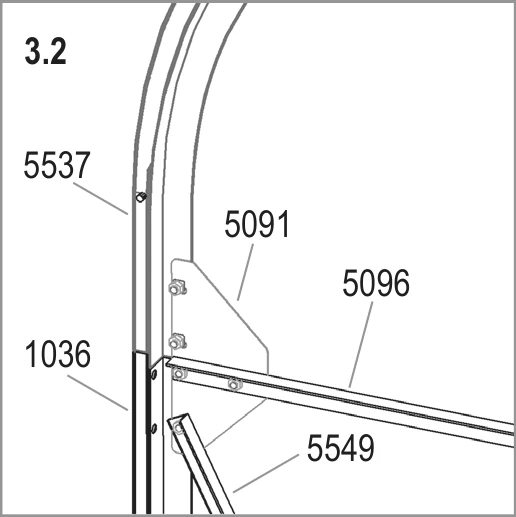

Detail 3.2
3.2

At each side, use corner plate 5091 to join roof bar 5537, corner bar 1036, bar 5096 and brace 5549.

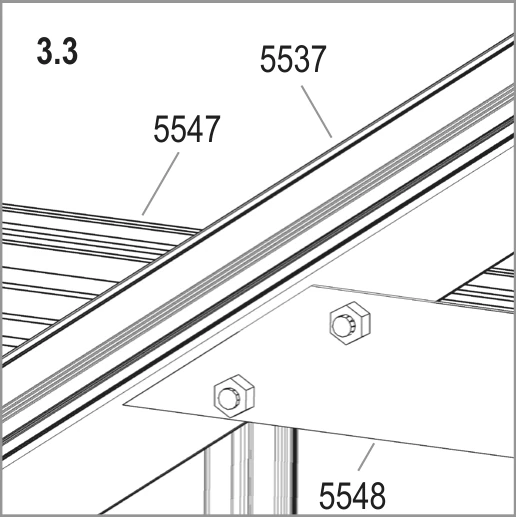

Detail 3.3
3.3

Join door runner bar 5547 and horizontal bar 5548 at roof bar 5537 as shown.

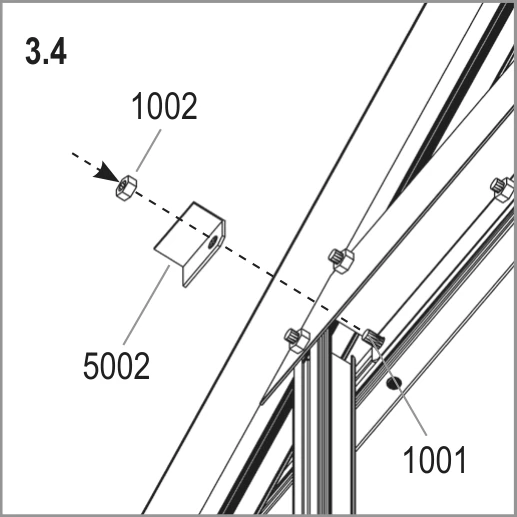

Detail 3.4
3.4

Connect part 5002 with bolt 1001 and nut 1002 as shown.

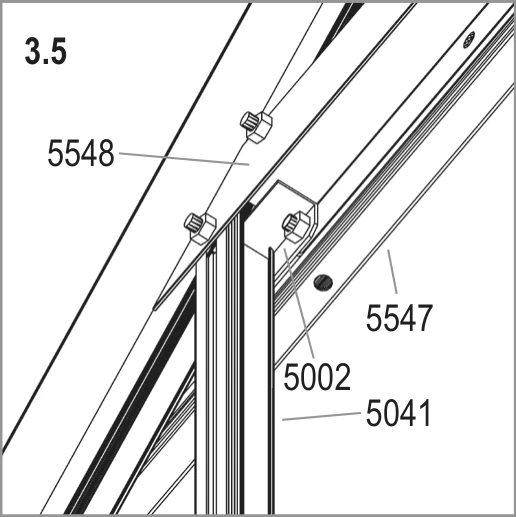

Detail 3.5
3.5

Use part 5002 to join horizontal bar 5548 and door runner bar 5547 at vertical bar 5041. Connect parts 5001 and 5002 with a bolt.

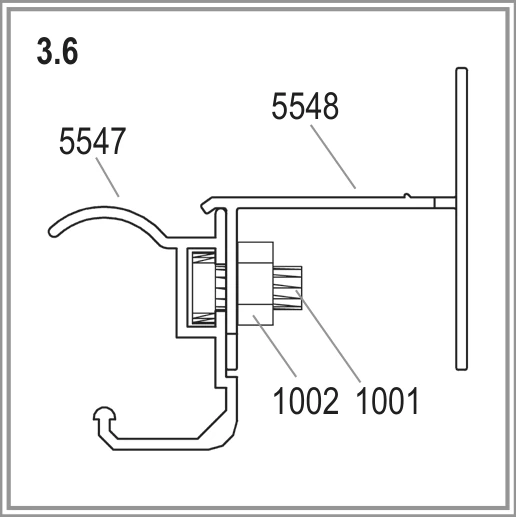

Detail 3.6
3.6Outside view

Work from the outside. Loosely connect door runner bar 5547 to horizontal bar 5548 with two nuts 1002 and bolts 1001.

4
Step 4

Join and square the frame

Work with another person to join the frames and stand the greenhouse up, using drawing 4A before 4B.

You need

Part 1001
1001×26
Part 1001
1001×26
Part 1002
1002×28
Part 1002
1002×28
Part 1005
1005×1
Part 1005
1005×1
Part 1010
1010×1
Part 1010
1010×1
Part 1051
1051×1
Part 1052
1052×1
Part 5043
5043×1
Part 5043
5043×1
Part 6060
6060×1
Part 6060
6060×1
Part 1017
1017×4
Part 1017
1017×4
Part 3057
3057×2
Part 3057
3057×3
Part 5062
5062×2
Part 5063
5063×2
Part 5540
5540×4
Part 5540
5540×4
Part 5555
5555×4
Part 5555
5555×6

Installer tip

Count the circled extra bolts on every roof bar before you fit any end cap. The quantity depends on your greenhouse size.

Watch out

Keep all bolts loose until the greenhouse is square on its base. You cannot adjust the frame once the glass is fitted.

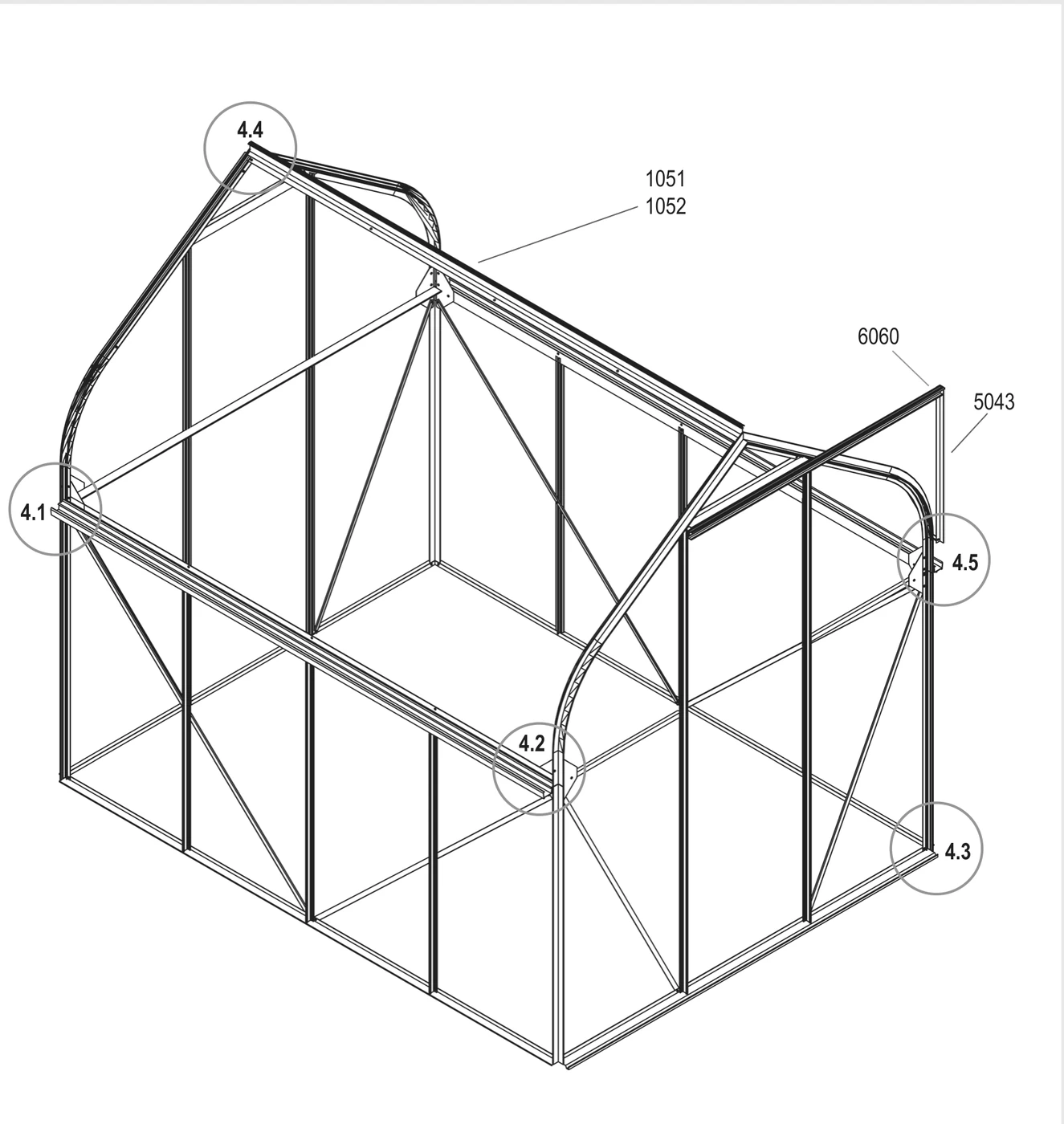

Step 4A drawing
Vitavia drawing 4A. The circled numbers match the pictures below.

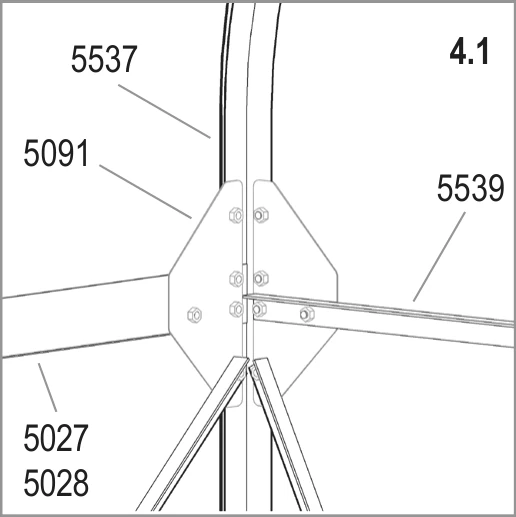

Detail 4.1
4.1

At each top corner, bolt your eave bar (5027 or 5028) to the gable end with corner plate 5091. Make this connection where roof bar 5537 and bar 5539 meet.

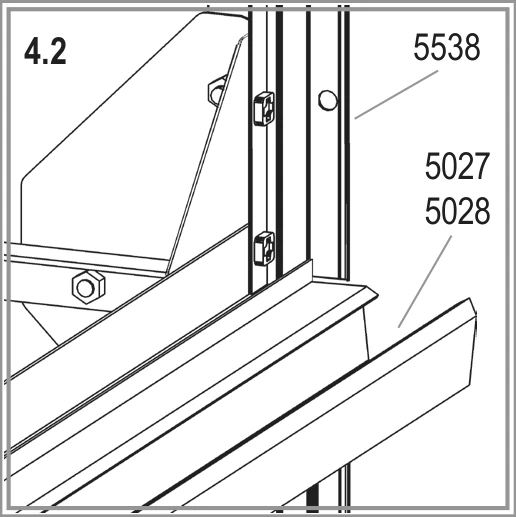

Detail 4.2
4.2Outside view

Work from the outside. Bolt the side frame to the gable where your eave bar (5027 or 5028) meets roof bar 5538, as shown.

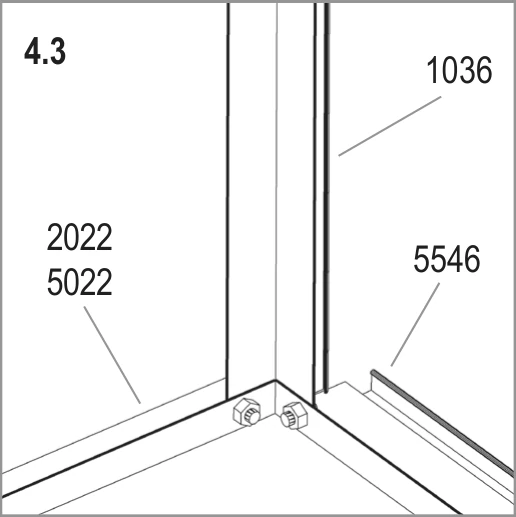

Detail 4.3
4.3

Bolt the side frames to the gable ends at the bottom corners. Join your sill bar (5022 or 2022), corner bar 1036 and bottom bar 5546 as shown.

Detail 4.4

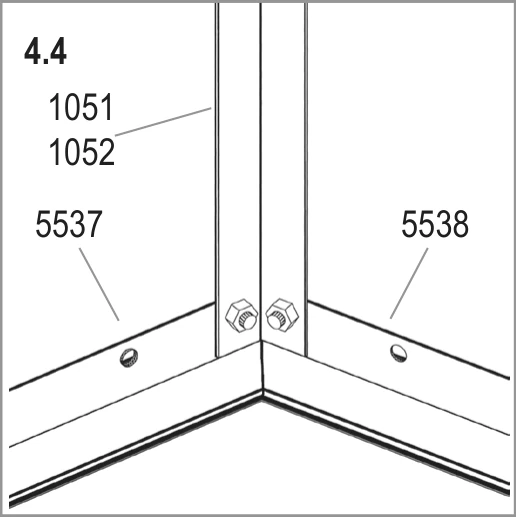

4.4

Bolt your ridge bar (1051 or 1052) to roof bars 5537 and 5538 at the top of both gable ends.

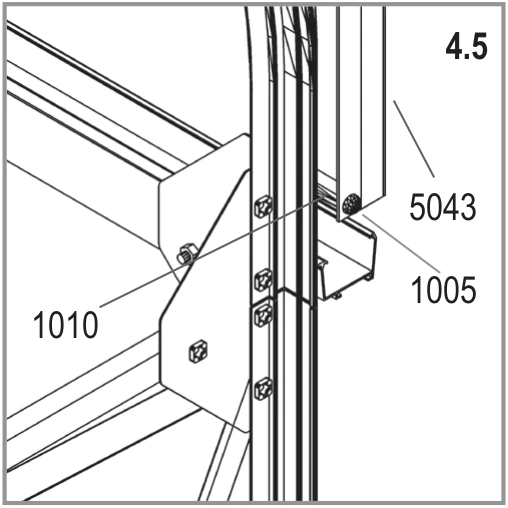

Detail 4.5
4.5Outside view

Connect door runner support 5043 to door runner bar 5547 with washer 6060. Fix the support to the gable end with bolt 1005 and spacer 1010.

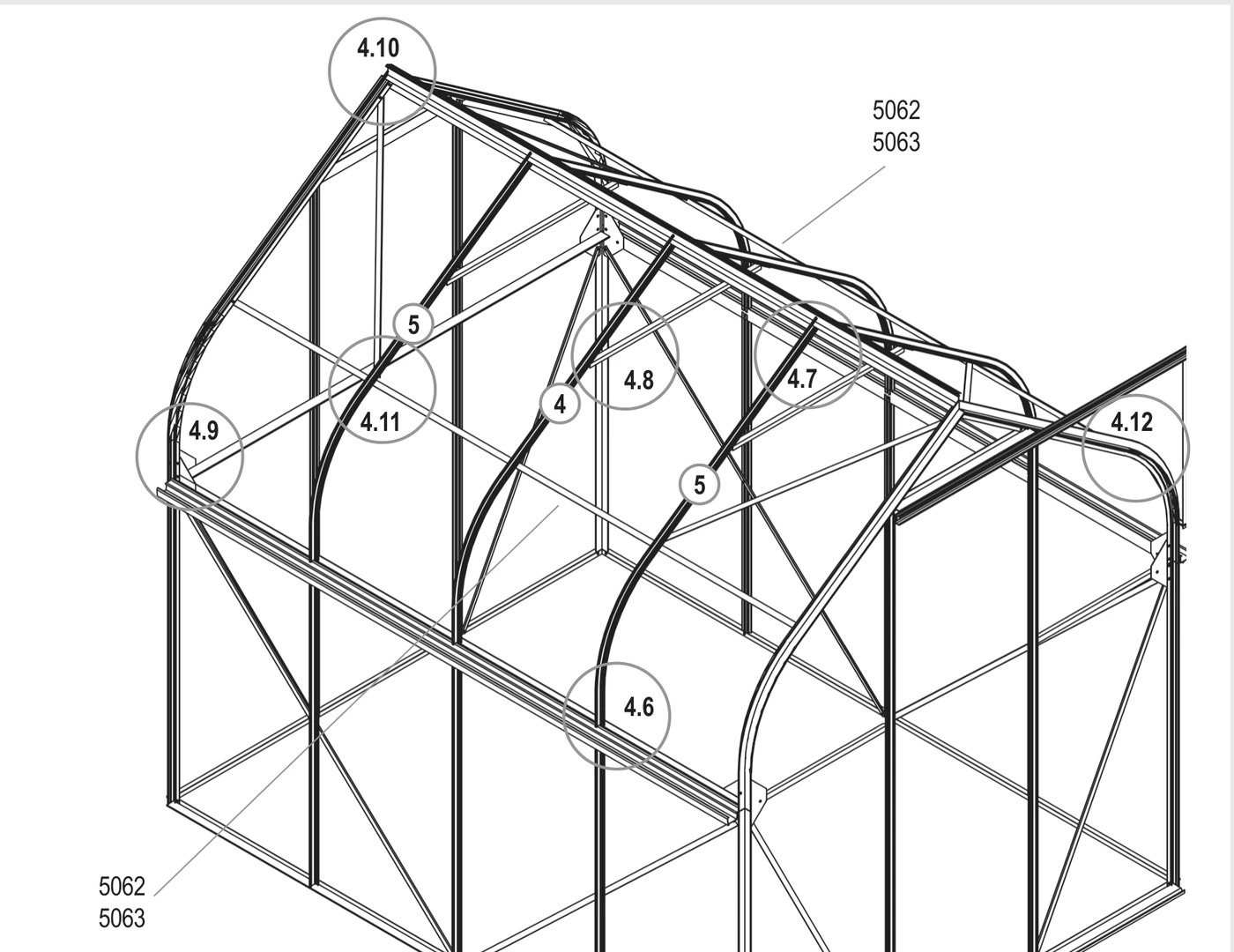

Step 4B drawing
Vitavia drawing 4B. The circled numbers match the pictures below.

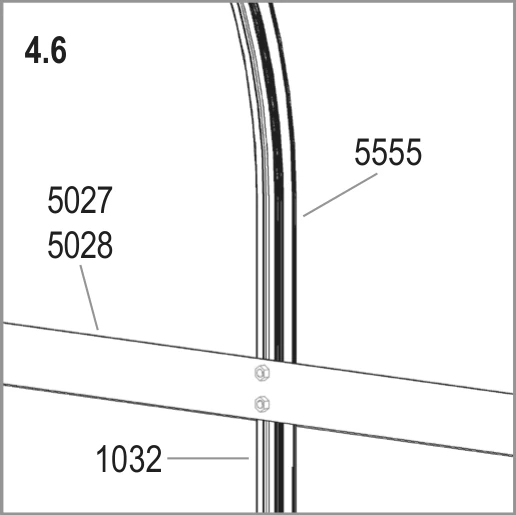

Detail 4.6
4.6

Follow drawing 4B. Bolt roof glazing bars 5555 to your eave bar (5027 or 5028), above upright 1032.

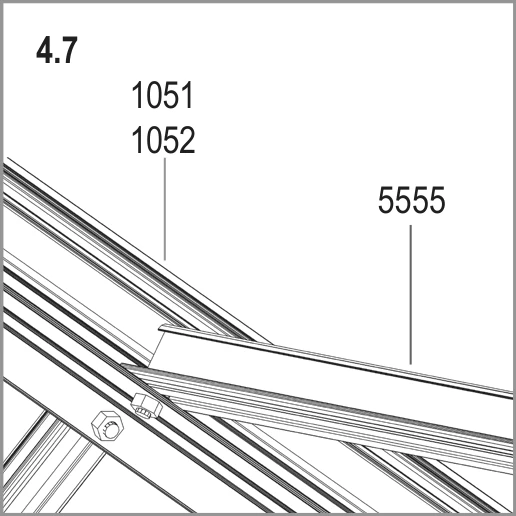

Detail 4.7
4.7

Bolt roof glazing bars 5555 to your ridge bar (1051 or 1052). Insert extra bolts into each glazing bar as you go. Each bar's circled number in the drawing gives the count from both ends of that bar.

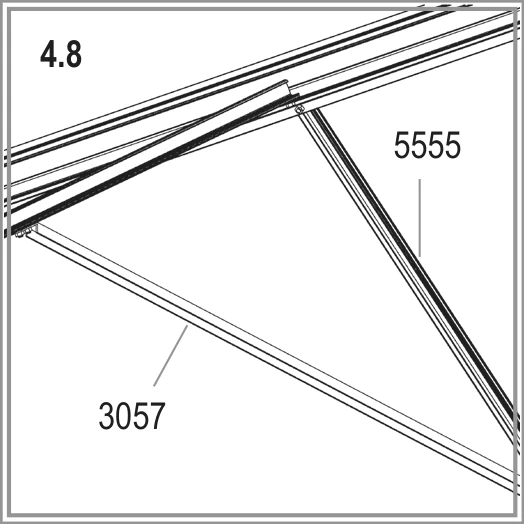

Detail 4.8
4.8Outside view

Work from the outside and connect roof braces 3057 to roof glazing bars 5555.

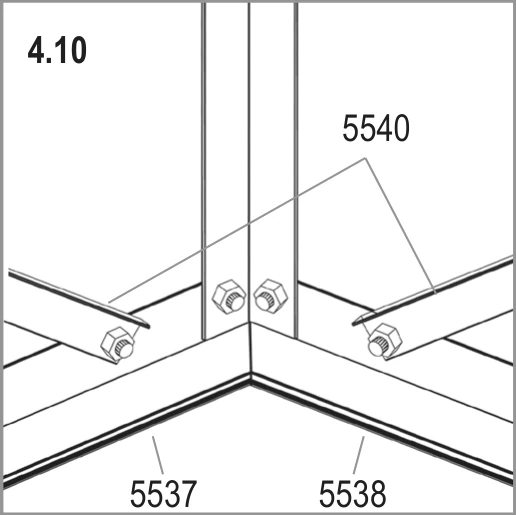

Detail 4.10
4.10

Connect cross braces 5540 to roof bars 5537 and 5538 at the gable peak as shown.

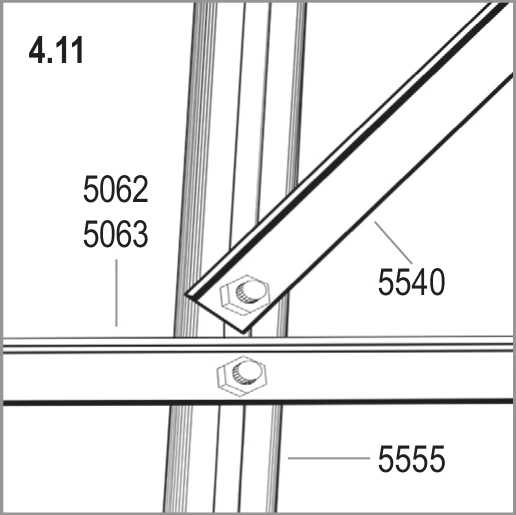

Detail 4.11
4.11

Bolt cross brace 5540 where it crosses roof glazing bar 5555 and your bar (5062 or 5063).

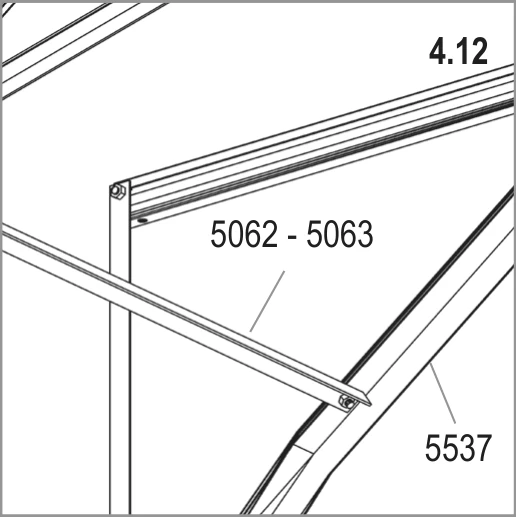

Detail 4.12
4.12

Connect your bar (5062 or 5063) to roof bar 5537 as shown.

Do this now

Place the greenhouse on your prepared base, bolt it down loosely, then adjust until both corner-to-corner measurements match. Only then tighten all bolts to a maximum of 3 Nm.

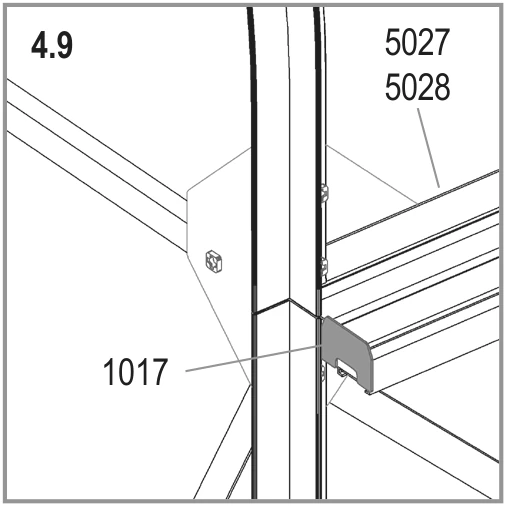

Detail 4.9
4.9Outside view

Press end caps 1017 onto the eave ends.

5
Step 5

Build and hang the door

Assemble the sliding door, then hang it in the upper runner and bottom track.

You need

Part 1001
1001×3
Part 1001
1001×3
Part 1002
1002×3
Part 1002
1002×3
Part 1003
1003×16
Part 1003
1003×16
Part 1004
1004×2
Part 1004
1004×2
Part 1007
1007×2
Part 1007
1007×2
Part 1009
1009×2
Part 1009
1009×2
Part 1014
1014×2
Part 1014
1014×2
Part 1015
1015×2
Part 1015
1015×2
Part 1059
1059×1
Part 1059
1059×1
Part 1060
1060×1
Part 1060
1060×1
Part 1061
1061×2
Part 1061
1061×2
Part 1062
1062×1
Part 1062
1062×1
Part 1111
1111×1
Part 1111
1111×1
Part 1112
1112×1
Part 1112
1112×1
Part 1113
1113×1
Part 1113
1113×1
Part 1500
1500×2
Part 1500
1500×2
Part 1515
1515×2
Part 1515
1515×2
Part 5021
5021×2
Part 5021
5021×2
Part 5058
5058×2
Part 5058
5058×2

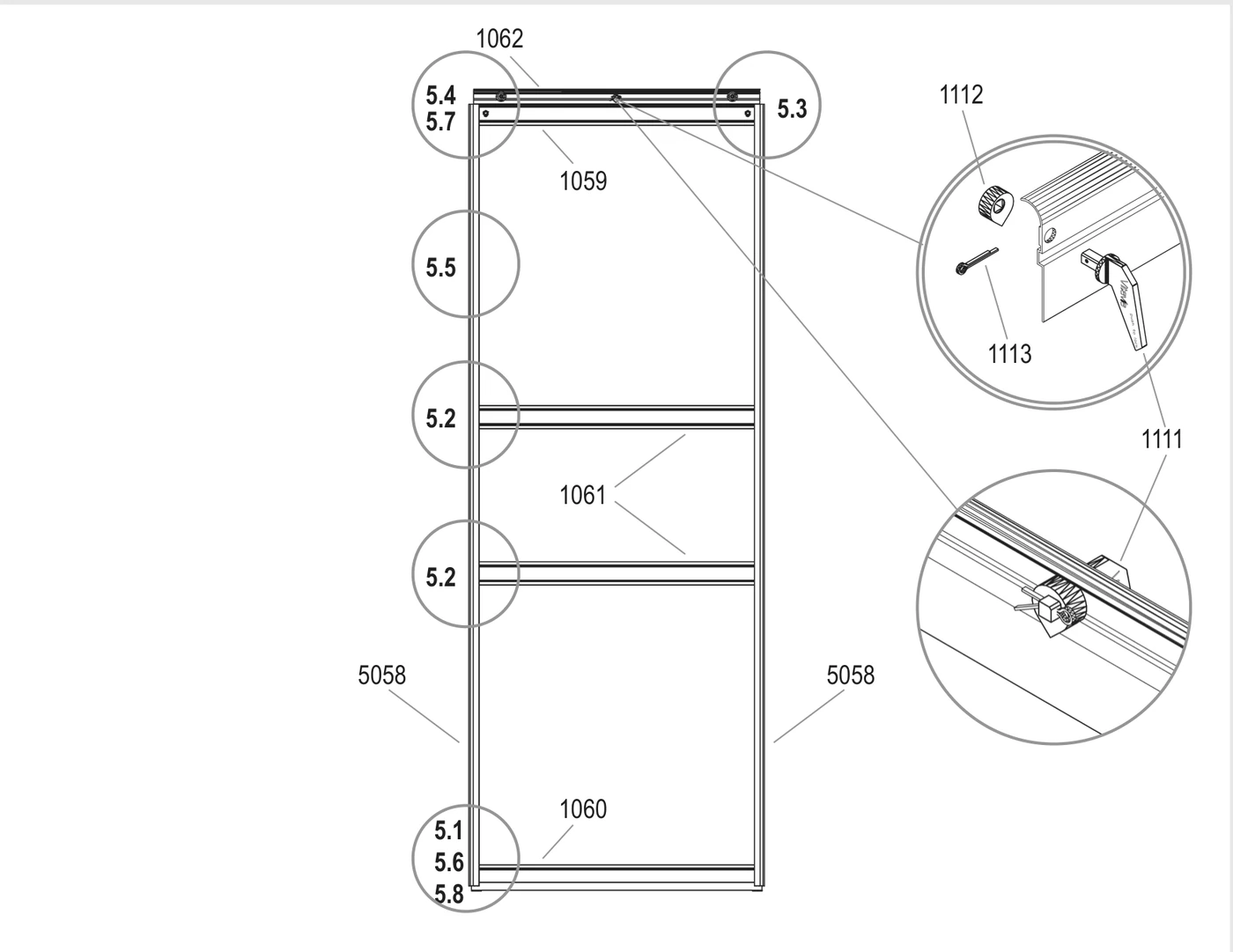

Step 5 drawing
Vitavia drawing 5. The circled numbers match the pictures below.

Installer tip

If the door binds or jumps the track, check the frame is square before you force it. An out-of-square frame is almost certainly the cause.

Watch out

Never stand the assembled door on gliders 1014. This damages them.

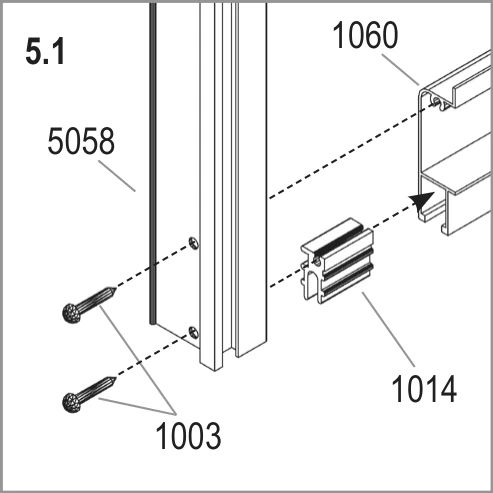

Detail 5.1
5.1

Push a door glider 1014 onto each end of bottom door bar 1060. Screw side bars 5058 to it with screws 1003.

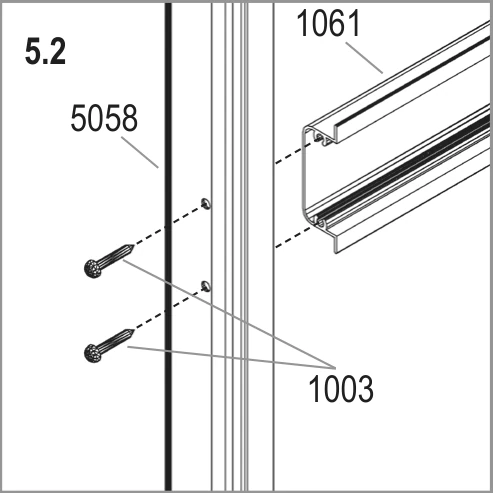

Detail 5.2
5.2

Screw middle bars 1061 between side bars 5058 with screws 1003.

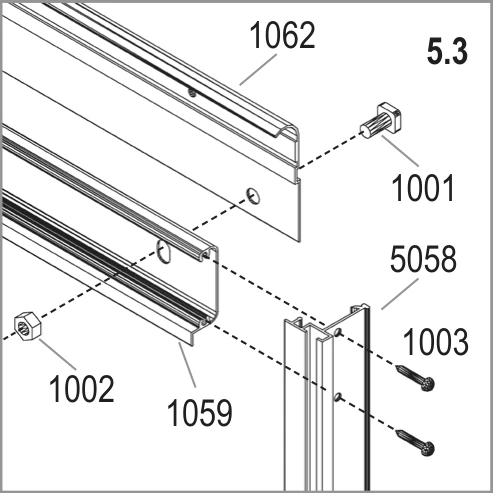

Detail 5.3
5.3

Bolt door bar 1062 to upper bar 1059 with bolt 1001 and nut 1002. Screw upper bar 1059 to side bars 5058 with screws 1003.

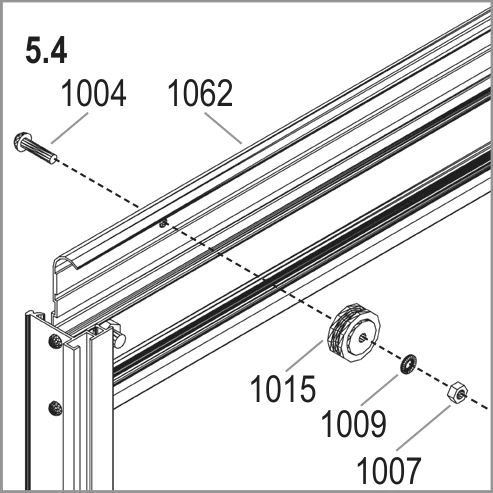

Detail 5.4
5.4

Fix both door rollers 1015 to door bar 1062 with bolt 1004, washer 1009 and nut 1007.

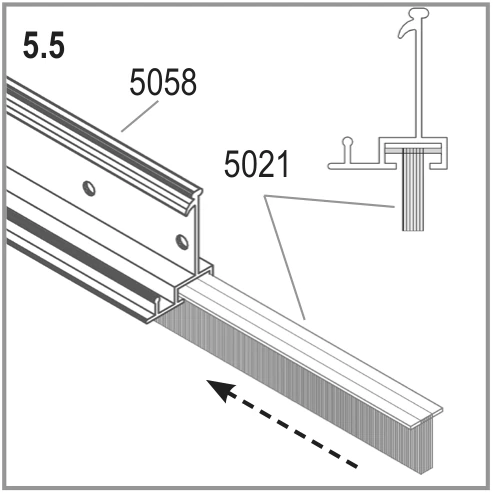

Detail 5.5
5.5Outside view

Slide door seals 5021 into side bars 5058.

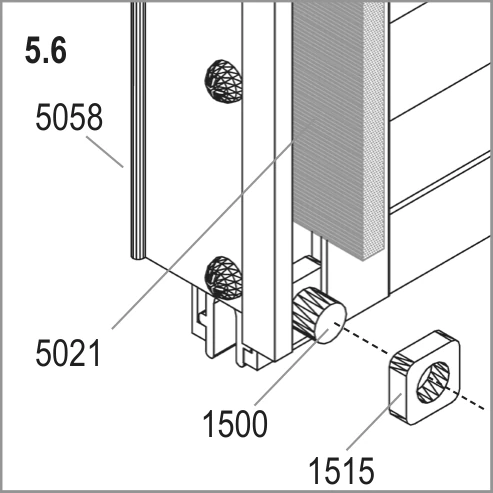

Detail 5.6
5.6

Slide bolt 1500 into the bottom of the door seal channel and secure it with nut 1515. This stops the seal sliding out.

Do this now

Loosen door runner support 5043 before you hang the door.

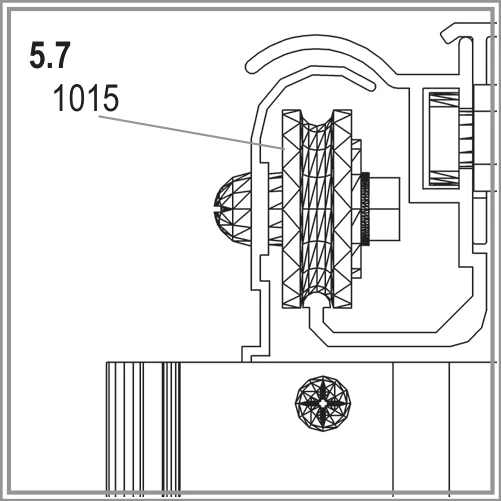

Detail 5.7
5.7Outside view

Work from the outside. Lift the door and slide rollers 1015 into door runner bar 5547.

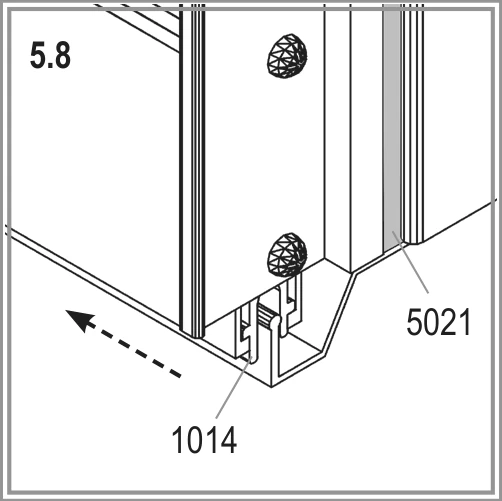

Detail 5.8
5.8Outside view

Check from the outside that door gliders 1014 also run in the bottom track.

Do this now

Connect door fixer parts 1111, 1112 and 1113 as shown, then adjust the door until it slides freely. Put a nut and bolt into the open end of door runner bar 5547 as a stop.

6
Step 6

Build and fit the vent

Assemble and fit your Orion's one roof vent.

You need

Part 1001
1001×4
Part 1001
1001×4
Part 1002
1002×4
Part 1002
1002×4
Part 1006
1006×6
Part 1006
1006×6
Part 1016
1016×2
Part 1016
1016×2
Part 1019
1019×1
Part 1019
1019×1
Part 1063
1063×1
Part 1063
1063×1
Part 1064
1064×1
Part 1064
1064×1
Part 1065
1065×2
Part 1065
1065×2
Part 1066
1066×1
Part 1066
1066×1
Part 1067
1067×1
Part 1067
1067×1

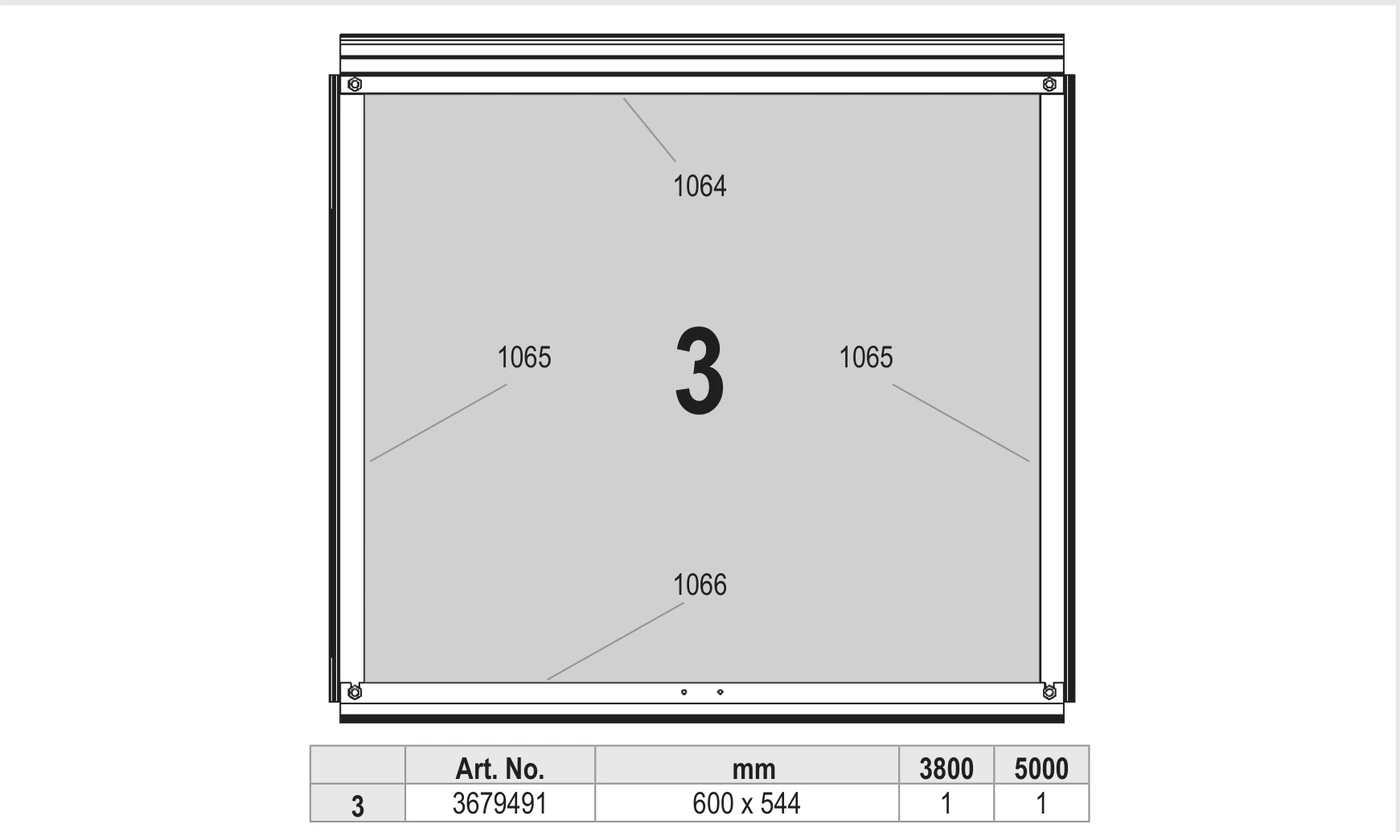

Step 6 drawing
Vitavia drawing 6. The circled numbers match the pictures below.

Installer tip

Fit the slam bar (vent sill 1063) flat edge up, with its grooved lip down towards the pane below. Recheck its position if that pane will not sit snugly.

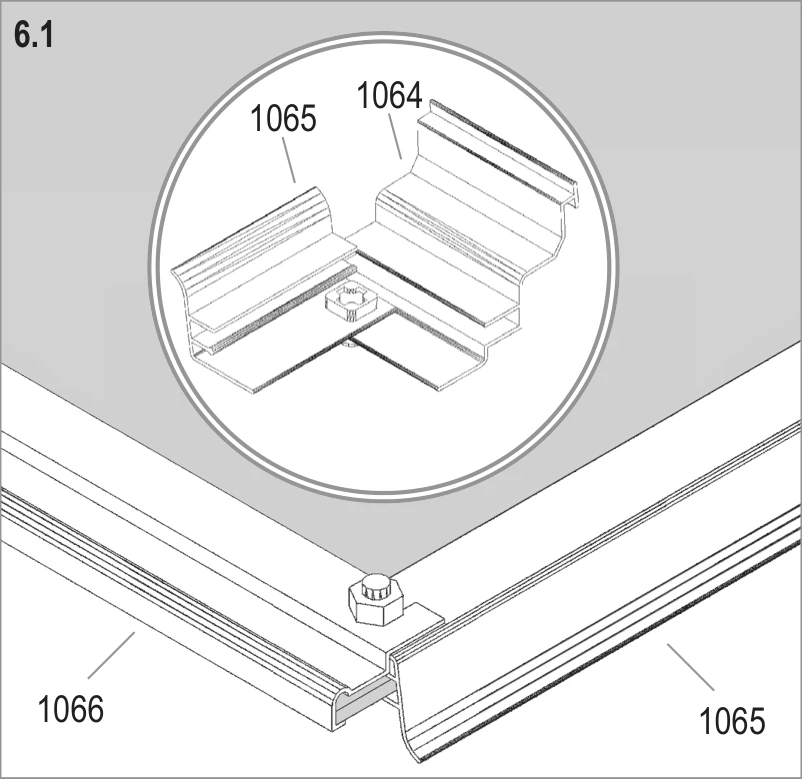

Detail 6.1
6.1

For glass up to 4 mm thick, join vent side bars 1065 and top bar 1064 as shown.

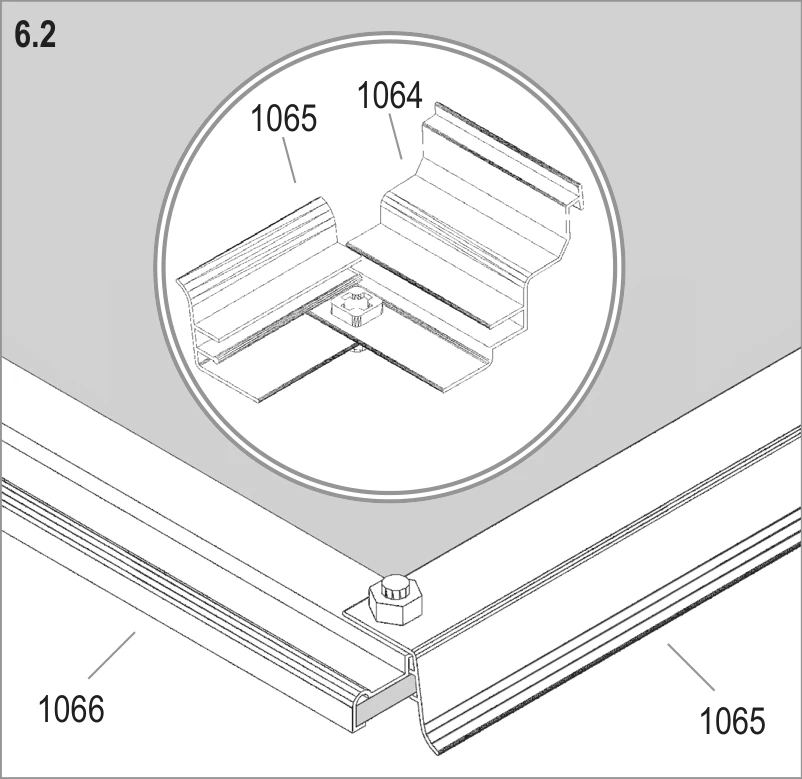

Detail 6.2
6.2

For glass 4 mm or thicker, join vent side bars 1065 and top bar 1064 as shown here instead.

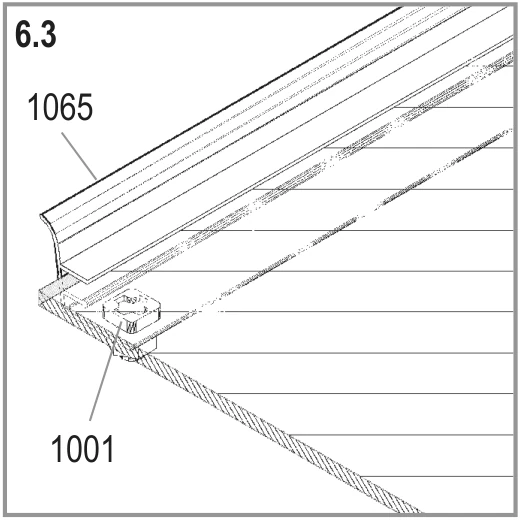

Detail 6.3
6.3Outside view

Insert the bottom bar 1066 bolts into the prepared holes, then slide the glass into side bar tracks 1065. Fit bottom bar 1066 and check the vent is square before tightening.

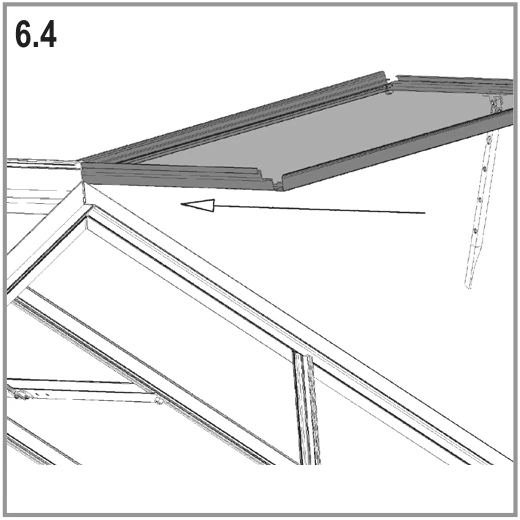

Detail 6.4
6.4Outside view

Hook the vent into the ridge bar from one end of the greenhouse.

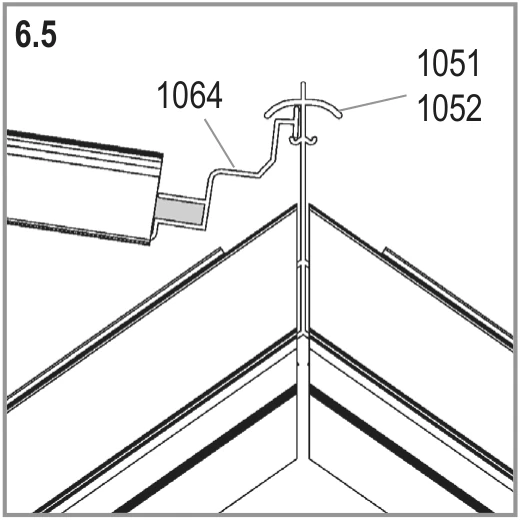

Detail 6.5
6.5Outside view

Hook vent top bar 1064 over your ridge bar (1051 or 1052).

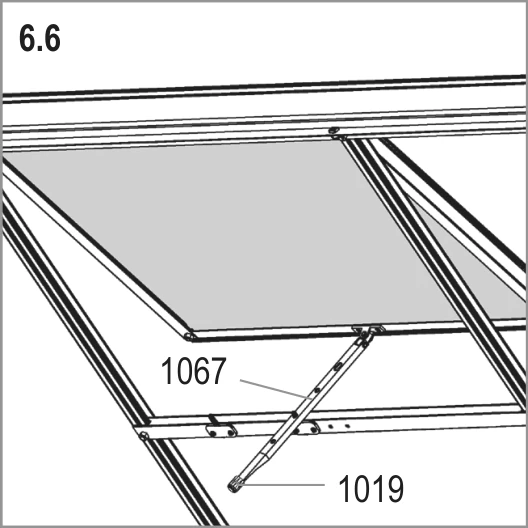

Detail 6.6
6.6

Slide the vent to your chosen position. Push plastic cap 1019 onto the end of window opener 1067.

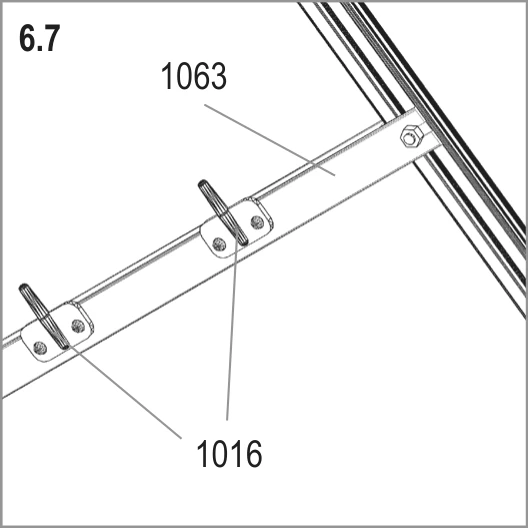

Detail 6.7
6.7

Fix vent sill 1063 to the extra bolts you left in the roof bars.

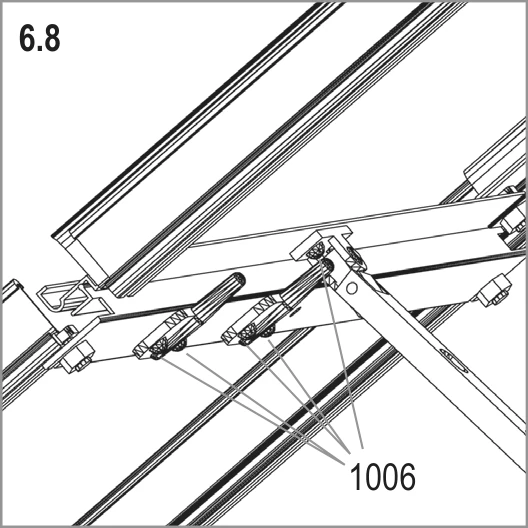

Detail 6.8
6.8

Screw window opener 1067 to vent bottom bar 1066 with screws 1006. Screw both window fixers 1016 onto vent sill 1063 with screws 1006.

7
Step 7

Fit the glazing

Fit the rubber seal before any glass, then follow the glazing layout for each opening.

Your toughened glass

Your full toughened panes and Perspex roof panes K are tabulated below. Use the plan below for positions, not the drawing above. Join your gable glass and roof glass/Perspex with plastic H profiles, replacing glass retaining clips 1012. Vitavia advises you place spring clip 1011 directly over both H strip ends where roof glass meets Perspex.

PaneSize (mm)38005000
1610 x 12101113
2610 x 810 (curved)44
3610 x 81311
4610 x 88957
5610 x 35111
6600 x 54411
7610 x 61033
8610 x 216 x 622
K610 x 610 (Perspex)68
Total panes3440
Plastic H profiles1113

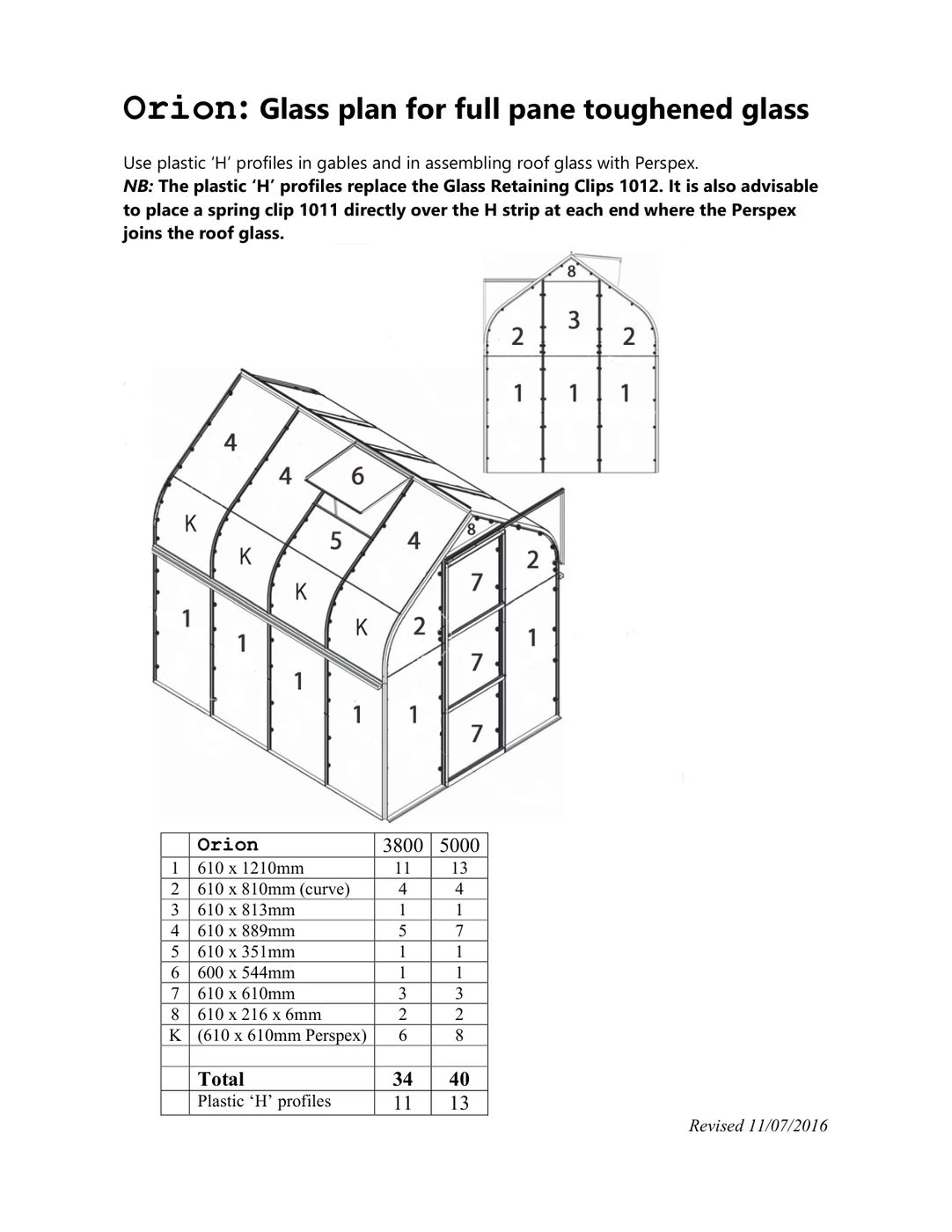

Vitavia toughened glass plan for the Orion
Vitavia's toughened glass plan. Pane numbers match the table.

You need

Part 1011
1011×240
Part 1011
1011×288
Part 1012
1012×42
Part 1012
1012×50
Part 1020
1020×1
Part 1020
1020×1
Part 5012
5012×10
Part 5012
5012×10
Part 5090
5090×6
Part 5090
5090×8

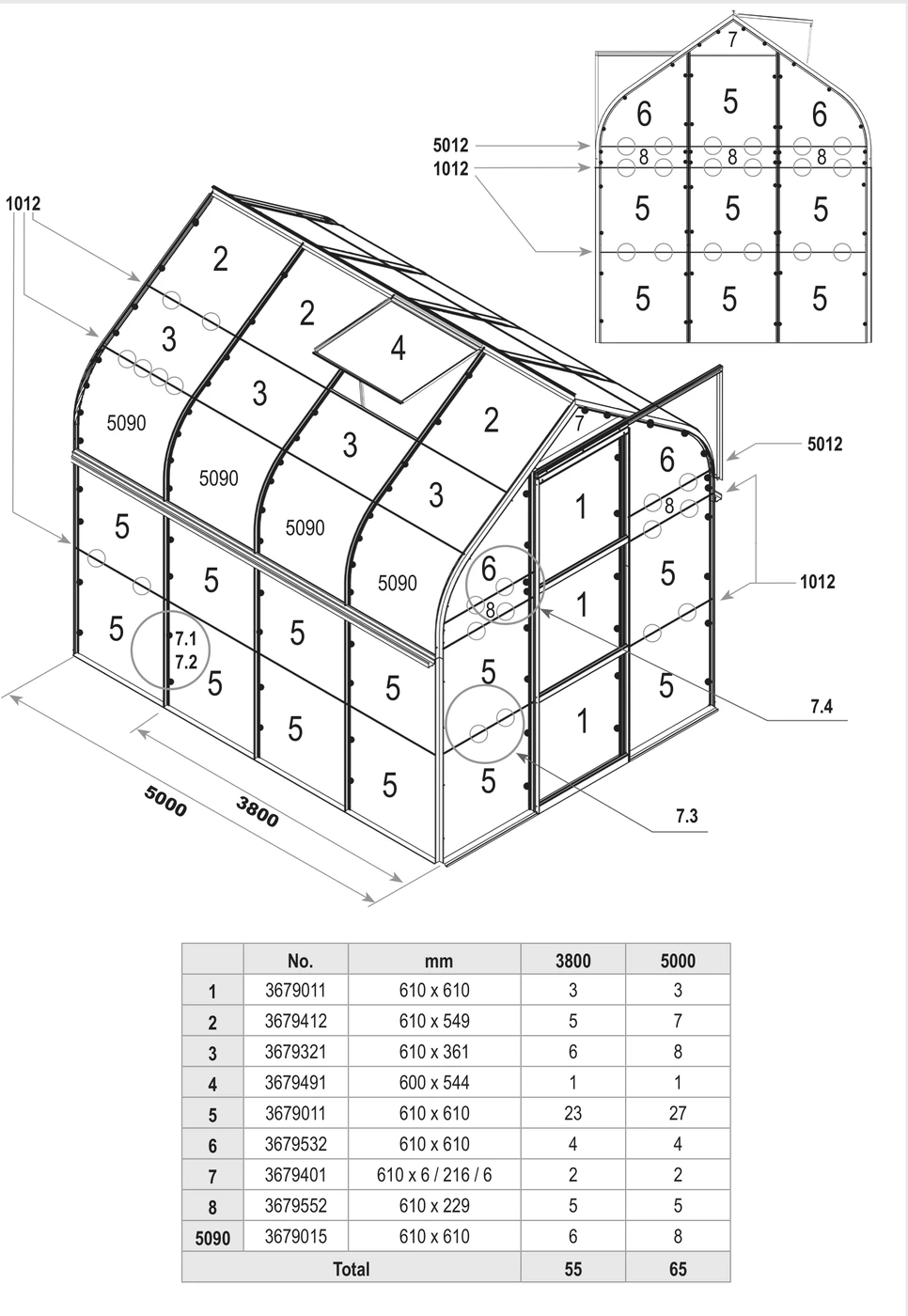

Step 7 drawing
Vitavia drawing 7. The circled numbers match the pictures below.

Installer tip

Soak the whole glazing seal reel in hot soapy water first so it presses on more easily. Check the glazing layout if a pane looks too big; it usually belongs in another opening.

Watch out

Never force a pane, as this cracks glass. If it will not seat, correct the out-of-square frame first.

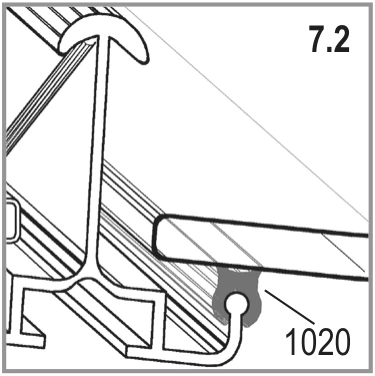

Detail 7.2
7.2Outside view

Press rubber glazing seal 1020 onto the aluminium profiles and cut it to length. Complete this before you fit any glass.

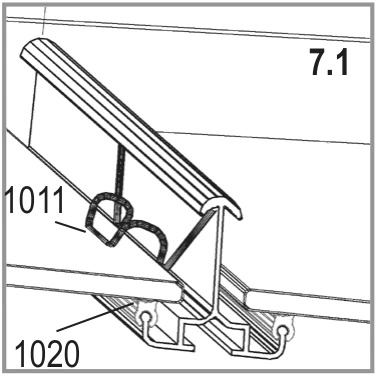

Detail 7.1
7.1Outside view

Start the roof at the eave with acrylic sheets 5090 over the curved section. Secure them with glazing spring clips 1011, bend them over the curve, then continue fixing with clips 1011.

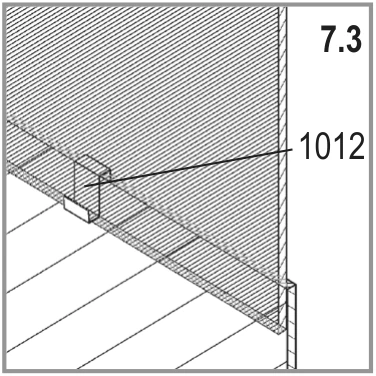

Detail 7.3
7.3Outside view

Overlap each next pane over the pane below it. Secure the panes with glass retaining clips 1012 between them.

Do this now

Glaze the sides from the bottom upwards.

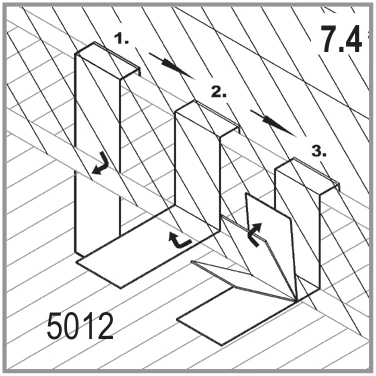

Detail 7.4
7.4Outside view

On the front and back gables, fit part 5012 on pane 5 as shown. Bend it up to hold upper pane 6 or 8.

Glass for your greenhouse

PaneSize (mm)38005000
1610 x 61033
2610 x 54957
3610 x 36168
4600 x 54411
5610 x 6102327
6610 x 61044
7610 x 6 / 216 / 622
8610 x 22955
5090610 x 61068
Total5565

Pane numbers match the glazing layout in the drawing above.

Last jobs

Finish and look after it

Finish

  • Anchor your greenhouse. This is required.
  • Seal the edges with neutral silicone if you wish. Silicone is not supplied.
  • Stick the warning label inside the greenhouse.
  • Stick the model label onto door bar 1062. You need it to order spare parts.
  • Keep this guide somewhere safe.

Looking after it

  • Shut the door and vent in high winds.
  • Clear the roof or support it in heavy snow. Heat the greenhouse in winter.
  • Wash the greenhouse occasionally with a mild detergent that does not attack aluminium or the glazing clips.
  • Keep the upper and lower door tracks clean to prevent grit build-up.
  • Add the greenhouse to your home insurance and check local building rules about where you can put it.

Drawings reproduced from the Vitavia assembly instructions (Vitavia manual 008.01.1306 (Orion 3800, 5000)). Greenhouse Stores, greenhousestores.co.uk.
