Greenhouse Stores Vitavia Apollo assembly guide
Your size:
Assembly guide

Vitavia Apollo

Sizes 6200, 7500

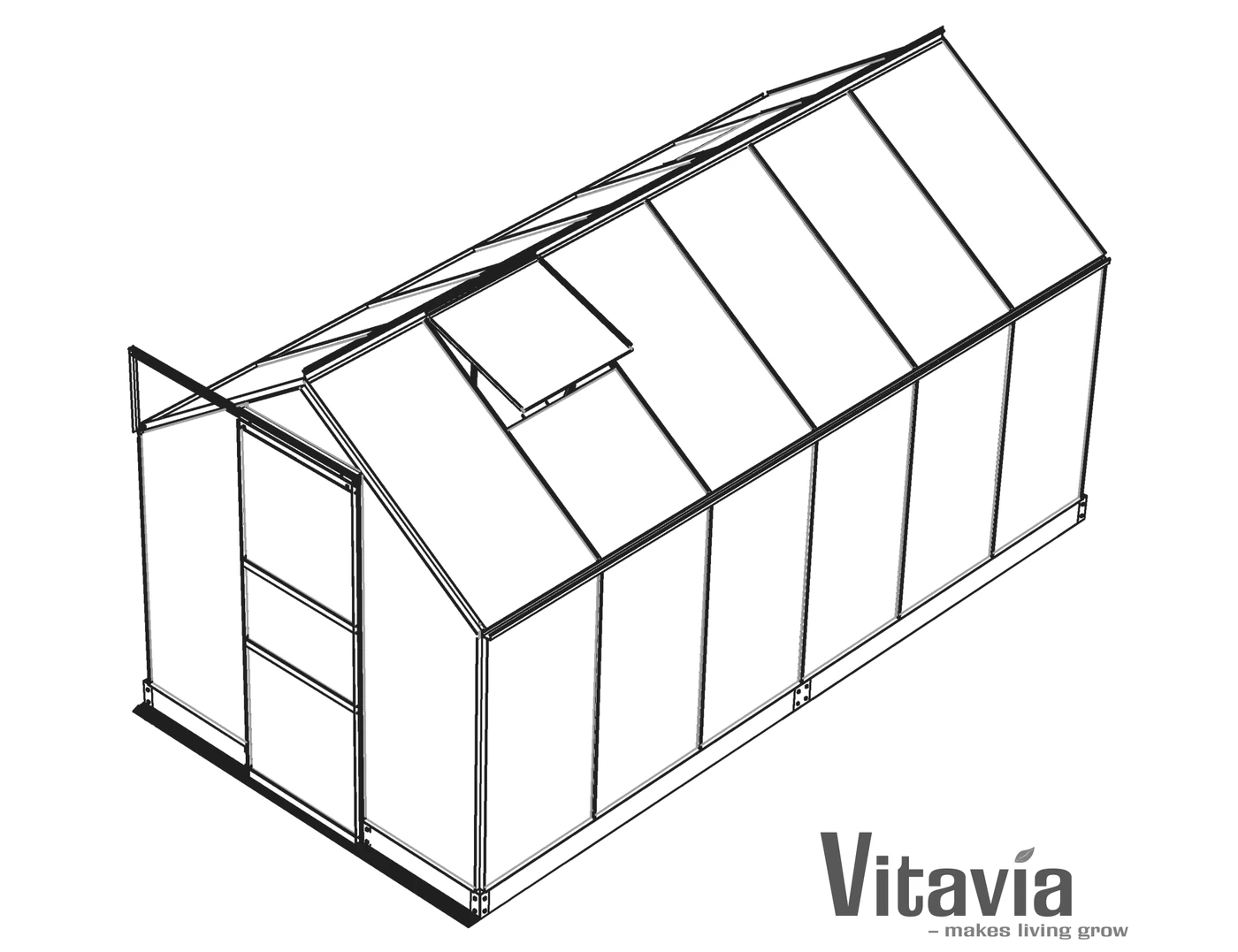

Vitavia Apollo greenhouse
9steps, base first
2people needed
3176 + 70 mm3798 + 70 mm × 1942 mm1942 mmbase size (A × B)

Pick your size at the top. Quantities and drawings change to match.

The build at a glance

Drawings: Vitavia (Vitavia manual 062.01.1703 (Apollo 6200, 7500)). Words and layout: Greenhouse Stores, greenhousestores.co.uk. Keep this guide with your greenhouse.
Read this first

Before you start

Six golden rules

  1. Build frames loose; tighten only when the whole greenhouse stands square on its base.
  2. Measure both diagonals; they must be equal.
  3. Never overtighten nuts 1002: maximum 3 Nm. Overtightening strips aluminium and cracks glass.
  4. Fit extra bolts when instructed; you cannot add them after bar ends are capped.
  5. Build with two people.
  6. Always anchor your greenhouse. An unanchored greenhouse can blow away.

Get ready

  • Read the whole guide once before you start.
  • Gather flat/PH2 screwdrivers, 10 mm socket spanner/wrench, 10 mm combination spanner, knife, tape measure, spirit level. Set cordless drill adjustable torque low.
  • Wear gloves, safety glasses, sturdy shoes and a hat. Aluminium edges are sharp. Clear up broken glass straight away.
  • Open one bundle at a time and keep opened bundles apart. Mixed bundles are the main cause of lost-part searches.
  • Check every part against the parts check pages. Contact Greenhouse Stores before you begin if anything is missing.
  • Read single-frame drawings as views from inside the greenhouse. Read double-frame drawings as views from outside.
  • Choose a sunny spot with as much shelter from wind as possible.
Single frame: inside view
Double frame: outside view
Before step 1

Parts check

Open one bundle at a time. Tick each part as you find it. The number in green is how many your size should have.

Bars and profiles

Part 1020
1020
Glazing seal (reel)
7400084000 mm×11
Part 1032
1032
12141214 mm×8x10x
Part 1035
1035
Brace
18541854 mm×1x1x
Part 1036
1036
12141214 mm×4x4x
Part 1037
1037
11541154 mm×1x1x
Part 1038
1038
11541154 mm×1x1x
Part 1039
1039
11541154 mm×1x1x
Part 1040
1040
11541154 mm×1x1x
Part 1041
1041
Vertical bar
16651665 mm×1x1x
Part 1042
1042
Vertical bar
16651665 mm×1x1x
Part 1043
1043
170170 mm×4x4x
Part 1049
1049
599599 mm×2x2x
Part 1053
1053
Ridge bar
31063106 mm×1x-
Part 1054
1054
Ridge bar
37283728 mm×-1x
Part 1056
1056
Roof brace
255255 mm×4x5x
Part 1057
1057
Door runner support
390390 mm×1x1x
Part 1063
1063
Vent sill
635635 mm×2x2x
Part 1064
1064
Vent top bar
602602 mm×2x2x
Part 1065
1065
Vent side bar
520520 mm×4x4x
Part 1066
1066
Vent bottom bar
602602 mm×2x2x
Part 1067
1067
Window opener
295295 mm×2x2x
Part 1068
1068
614614 mm×1x1x
Part 1069
1069
614614 mm×1x1x
Part 1085
1085
17761776 mm×1x1x
Part 1086
1086
17761776 mm×1x1x
Part 1325
1325
Sill bar
31063106 mm×2x-
Part 1326
1326
Sill bar
37283728 mm×-2x
Part 1330
1330
Eave bar
31063106 mm×2x-
Part 1331
1331
Eave bar
37283728 mm×-2x
Part 1334
1334
Door runner bar
19221922 mm×1x1x
Part 1347
1347
Door runner bar
12571257 mm×1x1x
Part 1350
1350
Door side bar
17281728 mm×2x2x
Part 1359
1359
Upper bar
621621 mm×1x1x
Part 1360
1360
Door bar
621621 mm×1x1x
Part 1361
1361
621621 mm×2x2x
Part 1362
1362
Door bar
613613 mm×1x1x
Part 2056
2056
Corner brace
255255 mm×-10x
Part 3021
3021
Door seal
18001800 mm×2x2x
Part 5022
5022
18621862 mm×1x1x
Part 5549
5549
Side brace
13041304 mm×8x8x
Part 9001
9001
Anchor leg
520520 mm×4x4x
Part 9003
9003
148148 mm×2x2x
Part 9006
9006
100100 mm×4x4x
Part 9007
9007
Anchor leg
520520 mm×2x2x
Part 9014
9014
19221922 mm×1x1x
Part 9020
9020
15831583 mm×4x-
Part 9021
9021
18941894 mm×-4x
Part 9042
9042
Base length
644644 mm×1x1x
Part 9043
9043
Base length
644644 mm×1x1x
Part 9046
9046
122122 mm×2x2x

Fixings and small parts

Part 1001
1001
Bolt
M6 x 12M6 x 12×166x199x
Part 1002
1002
Nut
M6M6×167x200x
Part 1003
1003
Screw
3.5 x 163.5 x 16×16x16x
Part 1006
1006
Screw
3.5 x 63.5 x 6×12x12x
Part 1007
1007
Nut
M4M4×2x2x
Part 1009
1009
Washer
Ø8/4Ø8/4×2x2x
Part 1011
1011
Glazing spring clip
7070×240x272x
Part 1012
1012
Glass retaining clip
1111×60x68x
Part 1013
1013
Clip
2020×2x2x
Part 1014
1014
Door glider
2020×2x2x
Part 1015
1015
Door roller
Ø22Ø22×2x2x
Part 1016
1016
Window fixer
4040×4x4x
Part 1017
1017
End cap
4646×4x4x
Part 1018
1018
End cap
43.743.7×8x8x
Part 1019
1019
Plastic cap
1515×2x2x
Part 1048
1048
Horizontal bar
630,5630,5×1x1x
Part 1055
1055
Roof glazing bar
1132,51132,5×8x10x
Part 1304
1304
Bolt
M4 x 18M4 x 18×2x2x
Part 1310
1310
Spacer
30.430.4×1x1x
Part 1500
1500
Bolt
M6 x 5M6 x 5×2x2x
Part 1515
1515
Nut
M6M6×2x2x
Part 4201
4201
M6 x 45M6 x 45×1x1x
Part 6060
6060
Washer
Ø12/6Ø12/6×1x1x
Part 9002
9002
Clip
1919×20x22x
Part 9004
9004
Washer
Ø16/6.5Ø16/6.5×8x8x
0A
Step 0A

Prepare the foundation

Prepare a square, level foundation before you assemble the steel base.

A B X = X
62007500
A3176 + 70 mm3798 + 70 mm
B1942 mm1942 mm

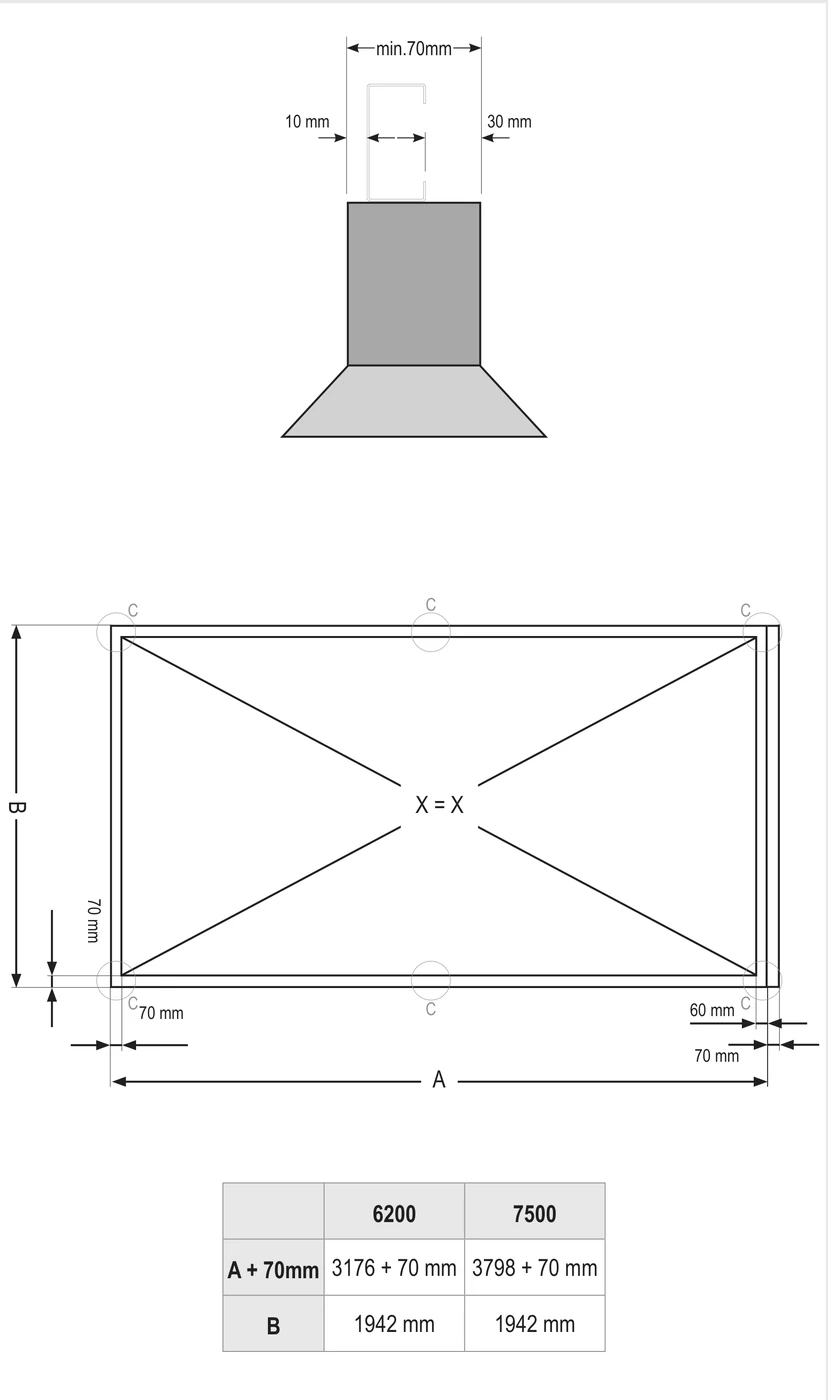

Step 0A drawing
Vitavia drawing 0A. The circled numbers match the pictures below.

Watch out

Check the base before you continue. If it is not square and level, the frame will be wrong and the glass will not fit.

0A.1

Check that the base is exactly square and level. Measure both diagonals as shown by X = X; they must match.

0A.2

Only for your own stone or concrete foundation. Follow drawing 0A and page sizes A and B. The table gives each A length plus 70 mm. The section shows foundations at least 70 mm wide beneath the base. Extend below frost level.

0A.3

If you use the anchor legs supplied with the steel base, make a hole at each point marked C on the drawing. Fill these holes with concrete after the greenhouse is fully assembled.

Do this now

Only on a very windy, exposed site, drill through both the greenhouse bottom profile and the steel base. Bolt them together with nuts and bolts.

0B
Step 0B

Build the steel base

Assemble the supplied zinc-coated steel base with bolts 1001 and nuts 1002.

You need

Part 1001
1001×28
Part 1001
1001×28
Part 1002
1002×28
Part 1002
1002×28
Part 9001
9001×4
Part 9001
9001×4
Part 9003
9003×2
Part 9003
9003×2
Part 9004
9004×8
Part 9004
9004×8
Part 9006
9006×4
Part 9006
9006×4
Part 9007
9007×2
Part 9007
9007×2
Part 9014
9014×1
Part 9014
9014×1
Part 9020
9020×4
Part 9021
9021×4
Part 9042
9042×1
Part 9042
9042×1
Part 9043
9043×1
Part 9043
9043×1
Part 9046
9046×2
Part 9046
9046×2

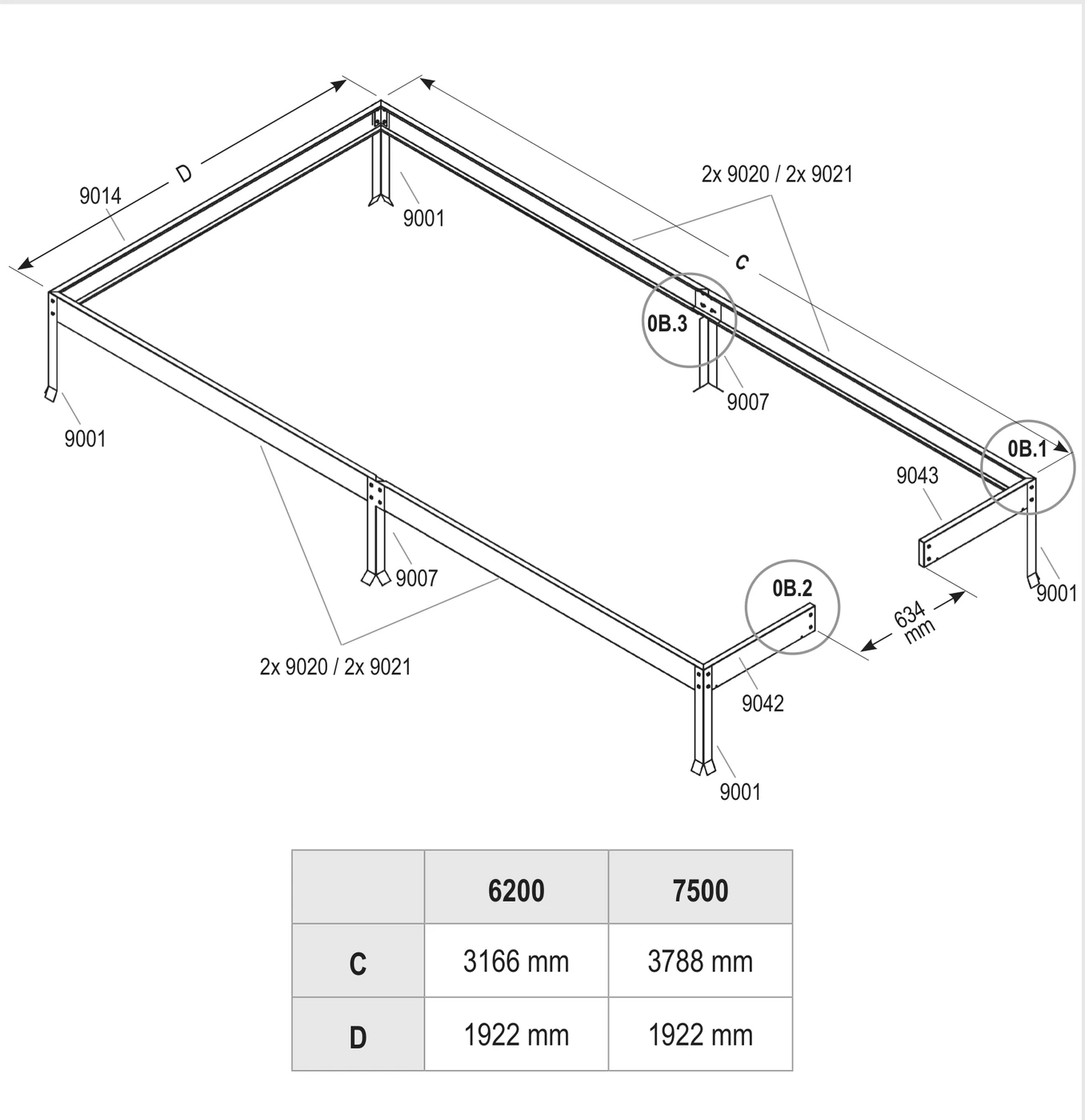

Step 0B drawing
Vitavia drawing 0B. The circled numbers match the pictures below.

Installer tip

Use anchor legs 9001 and 9007, as Vitavia recommends.

Watch out

Measure the 634 mm door gap before you continue. Door runner bar 1334 fits across it in step 4.

Detail 0B.1
0B.1

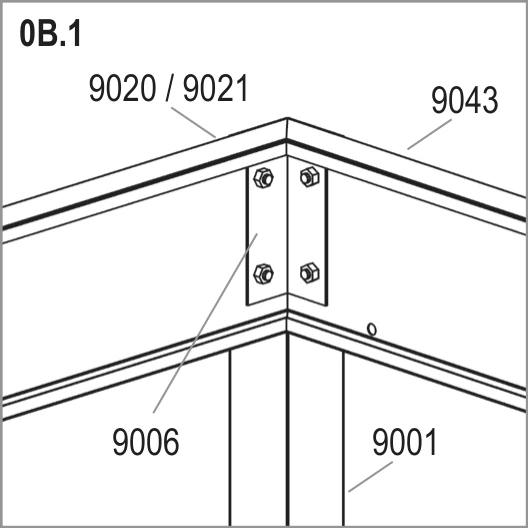

Join each corner with corner bracket 9006 and fit anchor leg 9001 as shown. Use back rail 9014, your side rails (9020 or 9021), and front base lengths 9042 and 9043.

Detail 0B.2
0B.2

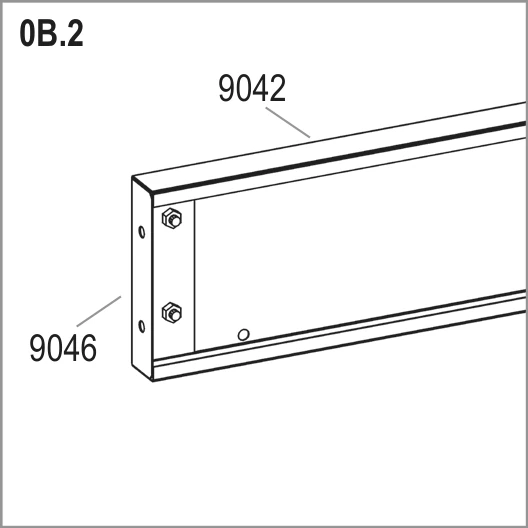

Bolt bracket 9046 to the end of base length 9042 at the door gap, as shown.

Detail 0B.3
0B.3

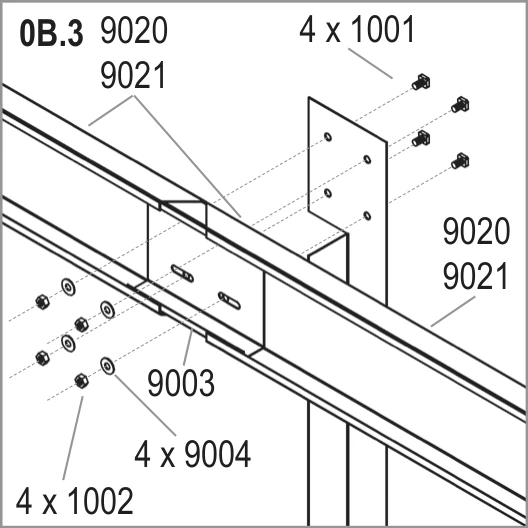

Join your side rails (9020 or 9021) with plate 9003 at the middle of each long side. Use 4 bolts 1001, 4 washers 9004 and 4 nuts 1002; fit anchor leg 9007 here.

Do this now

Leave exactly 634 mm between the inside ends of front base lengths 9042 and 9043. Check the outside base sizes against C and D in your model's table.

Do this now

Bend the anchor leg ends so they hold firmly in concrete, then place the finished base on your prepared foundation. Pour concrete only after the greenhouse is completely assembled.

1
Step 1

Build both side frames

Build two identical side frames flat on the ground, with every bolt loose.

You need

Part 1001
1001×16
Part 1001
1001×30
Part 1002
1002×16
Part 1002
1002×30
Part 1032
1032×8
Part 1032
1032×10
Part 1325
1325×2
Part 1326
1326×2
Part 1330
1330×2
Part 1331
1331×2
Part 2056
2056×10

Installer tip

Lay the parts on a blanket or lawn to protect the finish. Leave every nut loose so the frame can flex when you join it in step 4.

Watch out

Use 4 uprights 1032 per side on the 6200. Use 5 per side on the 7500.

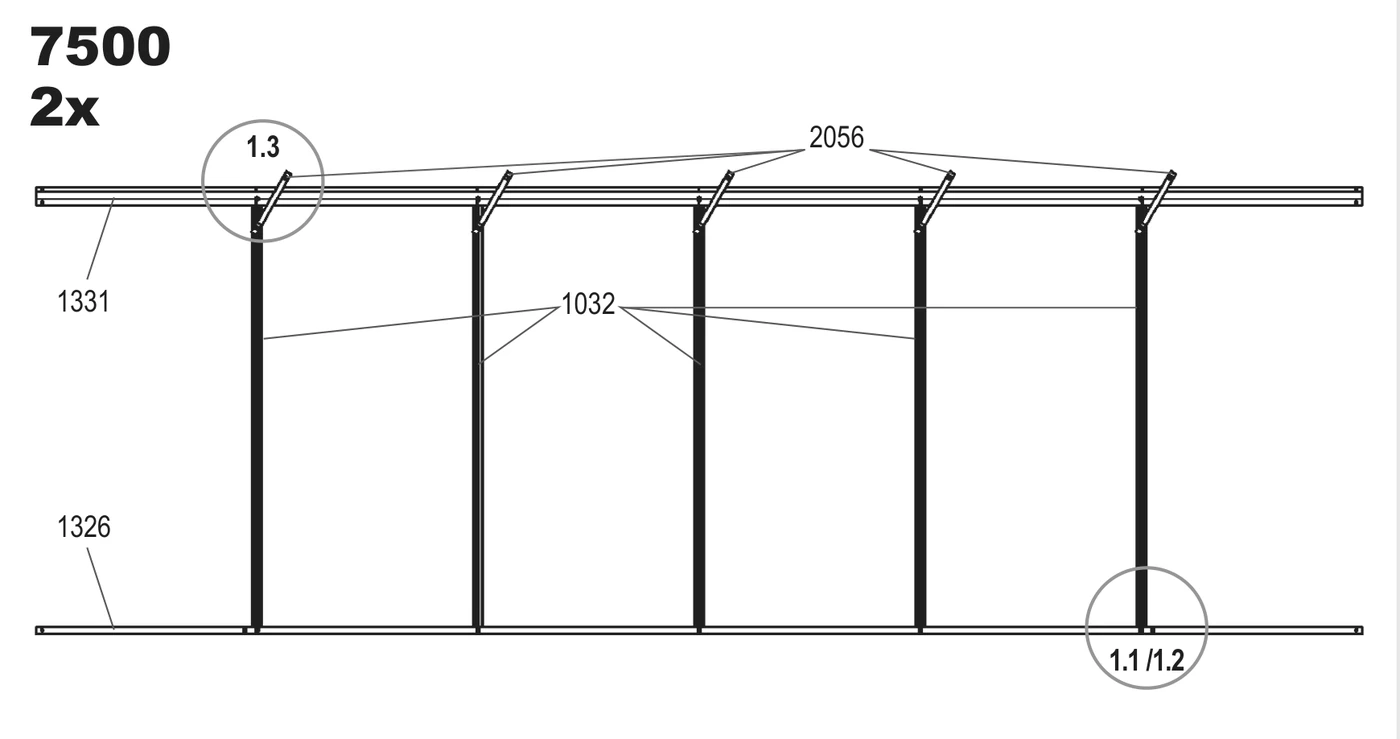

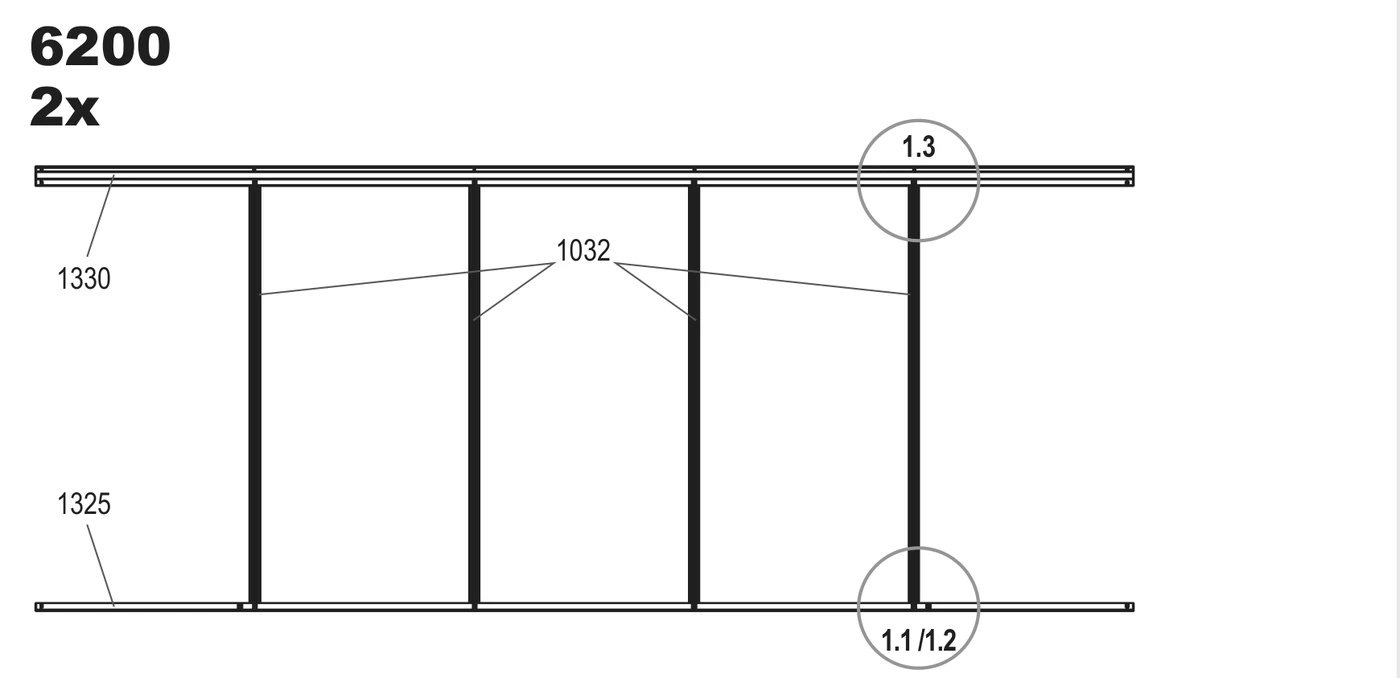

Step 1 drawing, 6200Step 1 drawing, 7500
Vitavia drawing 1. The circled numbers match the pictures below.

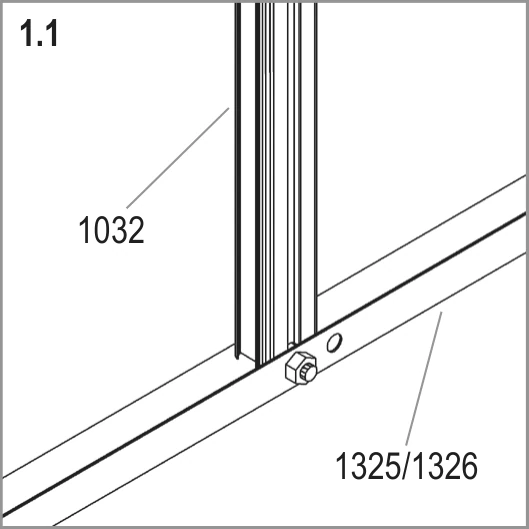

Detail 1.1
1.1

Bolt the bottom of each upright 1032 to your sill bar (1325 or 1326).

Detail 1.2
1.2Outside view

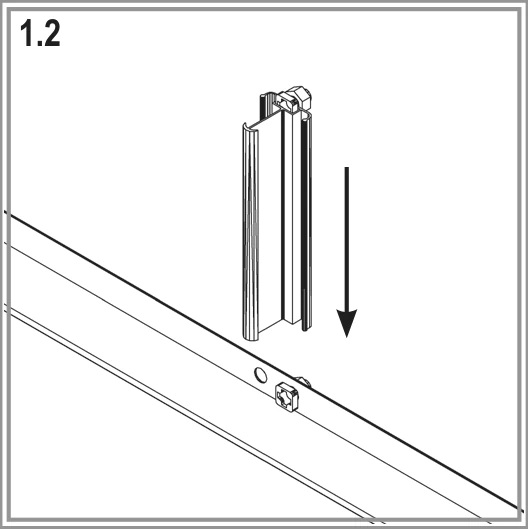

Slide bolts into the bar's channel through its open end, then line them up with the holes. Insert them before you close off the bar end.

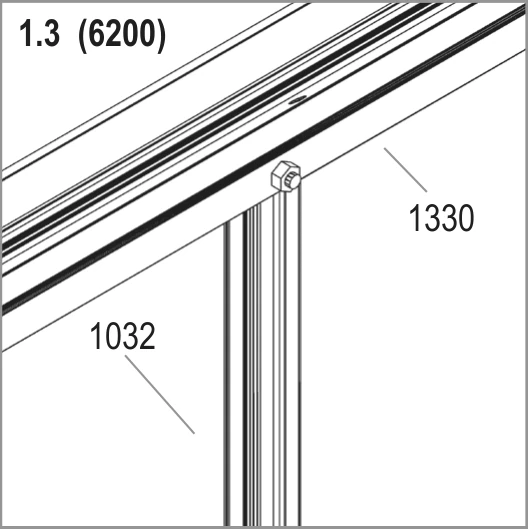

Detail (6200) 1.3
(6200) 1.3

On the 6200, bolt the top of each upright 1032 to eave bar 1330.

Step 1 drawing, 6200Step 1 drawing, 7500
Vitavia drawing 1. The circled numbers match the pictures below.
Detail 1.1
1.1

Bolt the bottom of each upright 1032 to your sill bar (1325 or 1326).

Detail 1.2
1.2Outside view

Slide bolts into the bar's channel through its open end, then line them up with the holes. Insert them before you close off the bar end.

Detail (7500) 1.3
(7500) 1.3

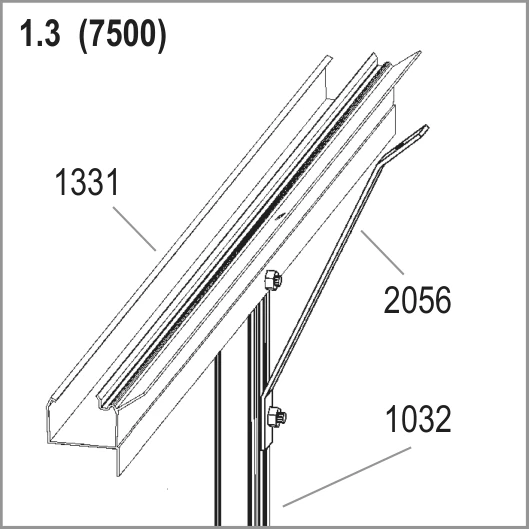

On the 7500, bolt the top of each upright 1032 to eave bar 1331. Connect corner brace 2056 between eave bar 1331 and each upright 1032, as shown.

2
Step 2

Build the back gable

Build the back gable flat on the ground and leave the bolts loose.

You need

Part 1001
1001×18
Part 1001
1001×18
Part 1002
1002×18
Part 1002
1002×18
Part 1035
1035×1
Part 1035
1035×1
Part 1036
1036×2
Part 1036
1036×2
Part 1037
1037×1
Part 1037
1037×1
Part 1038
1038×1
Part 1038
1038×1
Part 1041
1041×1
Part 1041
1041×1
Part 1042
1042×1
Part 1042
1042×1
Part 1043
1043×2
Part 1043
1043×2
Part 5022
5022×1
Part 5022
5022×1
Part 5549
5549×2
Part 5549
5549×2

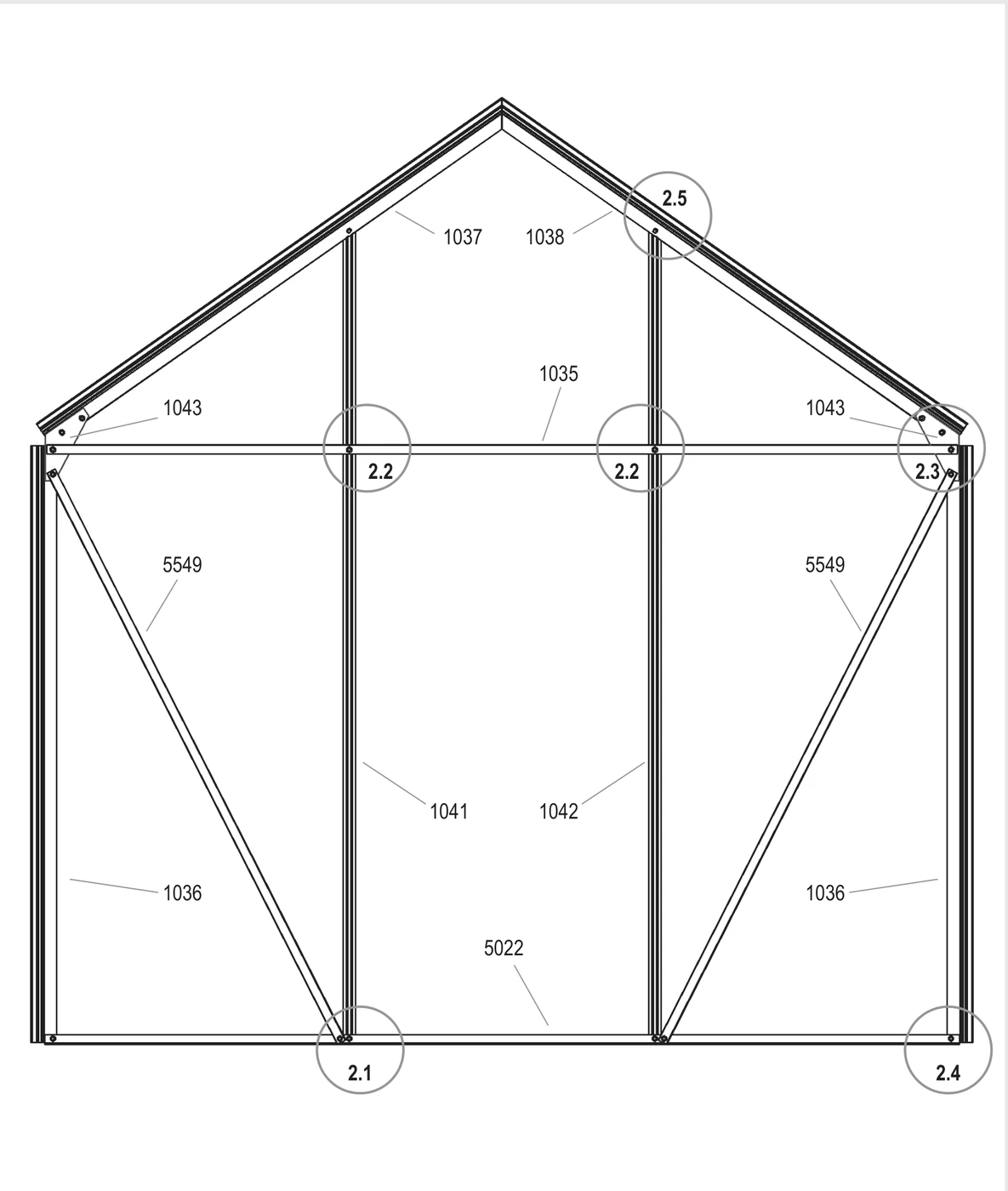

Step 2 drawing
Vitavia drawing 2. The circled numbers match the pictures below.

Installer tip

Work upwards from the bottom. Slide each extra bolt into its channel before you fit the bar above it.

Watch out

Insert the extra bolts for brace 1035 before the bar ends are capped. They are easy to miss.

Detail 2.1
2.1

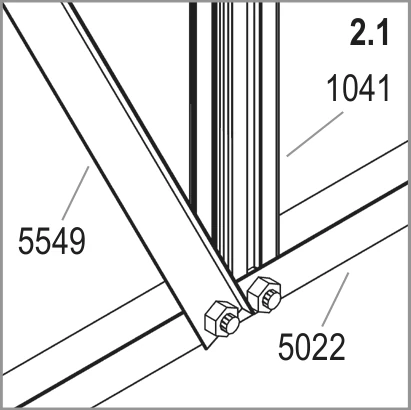

Bolt upright 1041 and side brace 5549 to sill bar 5022 at the bottom.

Detail 2.2
2.2

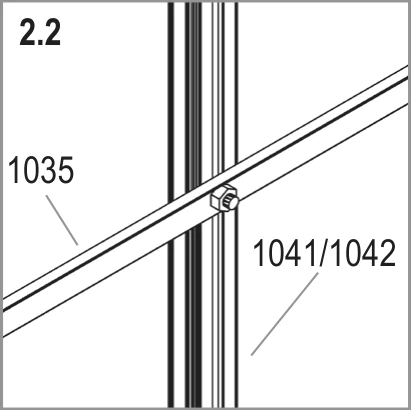

Put one extra bolt into each upright 1041 and 1042 for brace 1035. Bolt brace 1035 across these uprights as shown.

Detail 2.3
2.3

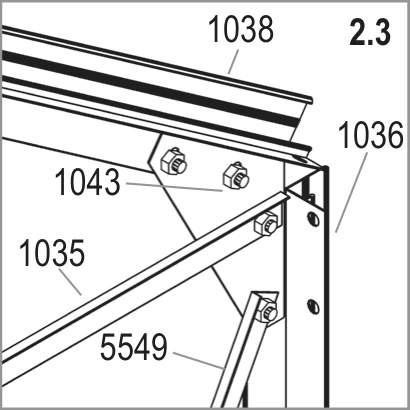

At each top corner, corner plate 1043 joins these parts. Connect corner bar 1036, roof bar 1038, brace 1035 and side brace 5549.

Detail 2.4
2.4

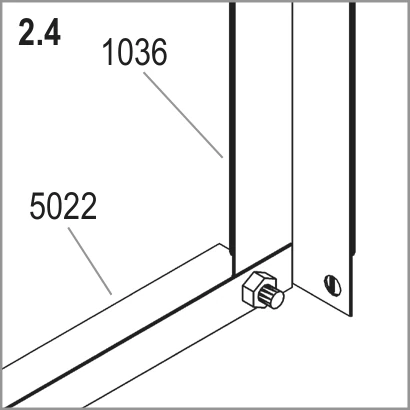

At each bottom corner, bolt corner bar 1036 to sill bar 5022.

Detail 2.5
2.5

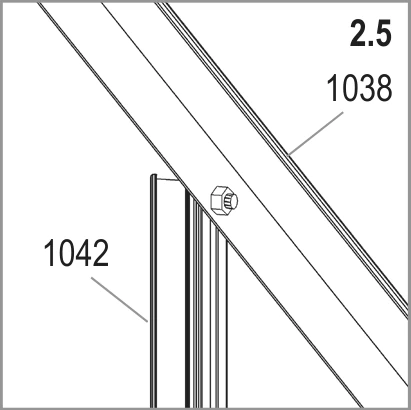

Bolt the top of upright 1042 to roof bar 1038.

3
Step 3

Build the door gable

Build the front gable flat with loose bolts; leave the doorway clear between its separate bottom bars.

You need

Part 1001
1001×20
Part 1001
1001×20
Part 1002
1002×20
Part 1002
1002×20
Part 1013
1013×2
Part 1013
1013×2
Part 1036
1036×2
Part 1036
1036×2
Part 1039
1039×1
Part 1039
1039×1
Part 1040
1040×1
Part 1040
1040×1
Part 1043
1043×2
Part 1043
1043×2
Part 1048
1048×1
Part 1048
1048×1
Part 1049
1049×2
Part 1049
1049×2
Part 1068
1068×1
Part 1068
1068×1
Part 1069
1069×1
Part 1069
1069×1
Part 1085
1085×1
Part 1085
1085×1
Part 1086
1086×1
Part 1086
1086×1
Part 1347
1347×1
Part 1347
1347×1
Part 5549
5549×2
Part 5549
5549×2
Step 3 drawing

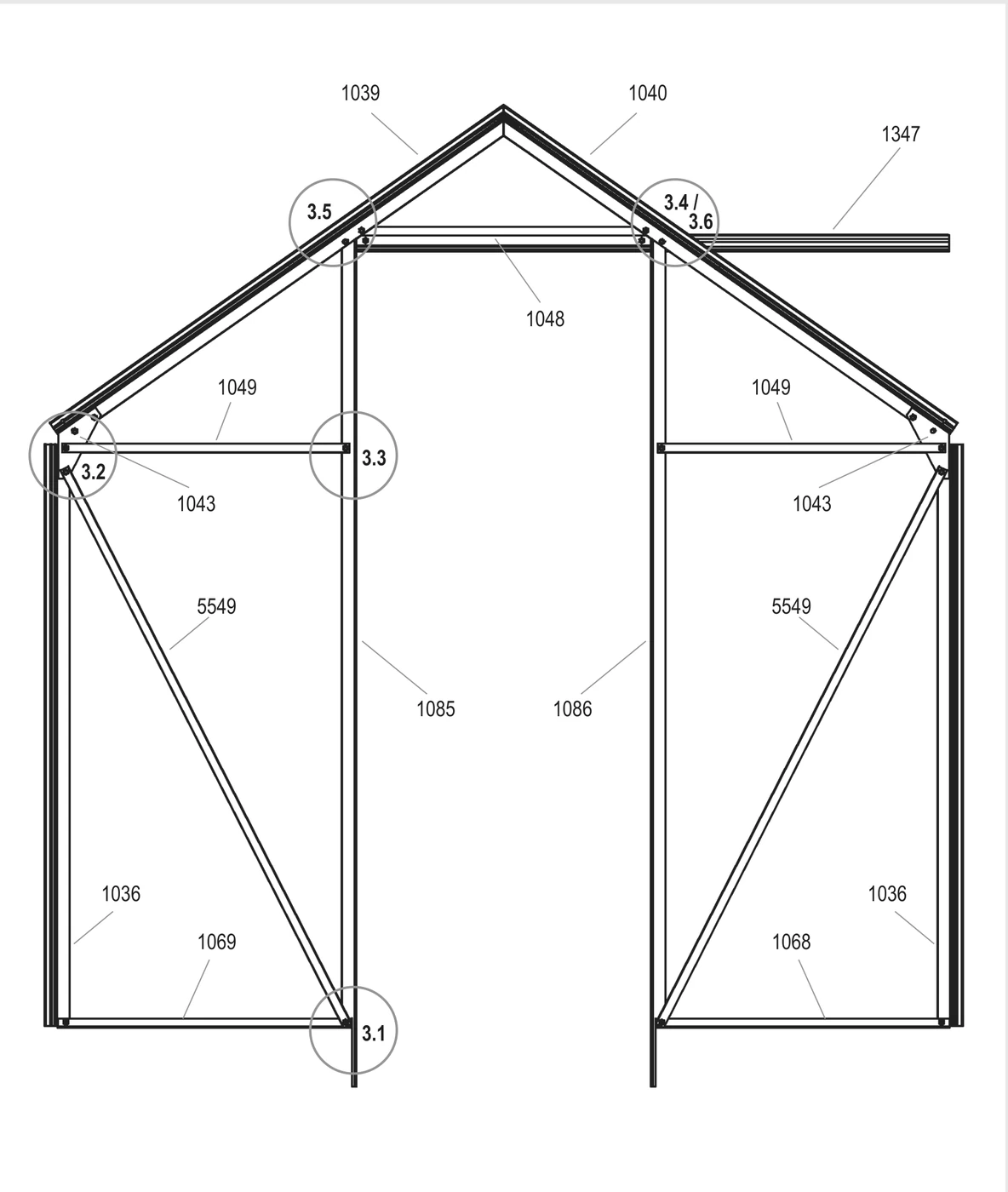

Vitavia drawing 3. The circled numbers match the pictures below.

Installer tip

Position door runner bar 1347 left or right to suit the direction you want the door to open. Decide now; changing it later means taking the gable apart.

Watch out

If parts will not line up, check for bars fitted upside down or back to front. Do not force them.

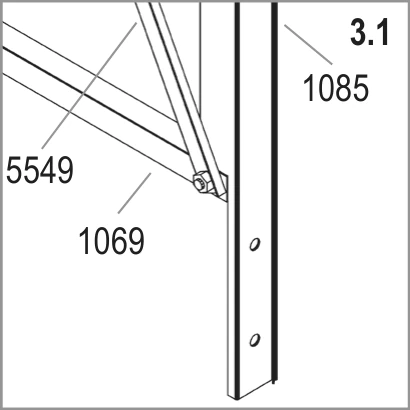

Detail 3.1
3.1

Bolt door post 1085 and side brace 5549 to bottom bar 1069 on the left. On the right, join door post 1086, the other side brace 5549 and bottom bar 1068.

Detail 3.2
3.2

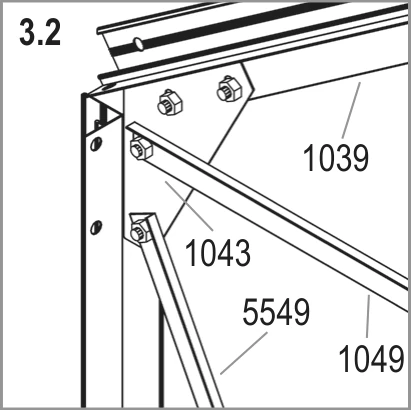

At each top corner, join roof bar 1039, bar 1049 and side brace 5549 with corner plate 1043.

Detail 3.3
3.3

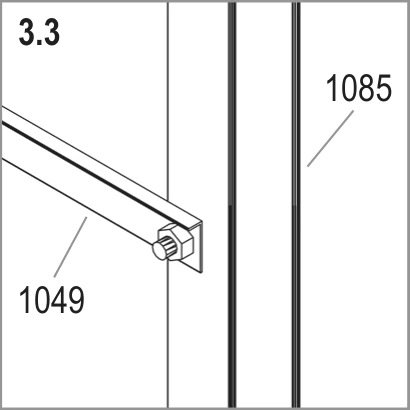

Bolt bar 1049 to door post 1085.

Detail 3.4
3.4

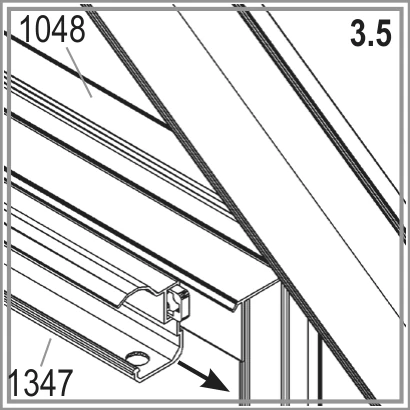

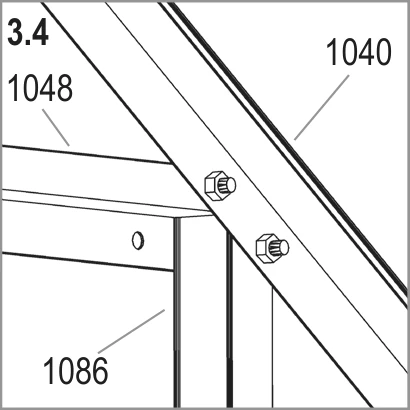

Bolt roof bar 1040 to horizontal bar 1048 and door post 1086.

Detail 3.5
3.5Outside view

Connect door runner bar 1347 to horizontal bar 1048. Fit two nuts and bolts loosely from the outside.

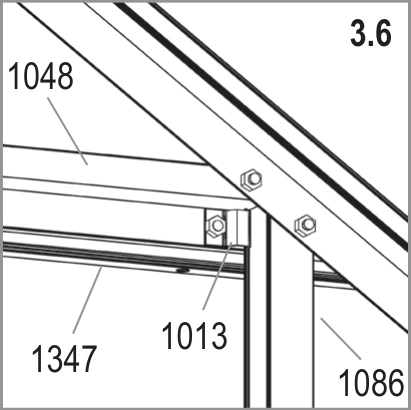

Detail 3.6
3.6

Fix clip 1013 with a bolt as shown to strengthen the frame. Make sure its edge overlaps and holds door post 1085 or 1086.

4
Step 4

Join the frame together

Work with two people on the prepared steel base, and attach the frame loosely with clips 9002.

You need

Part 1001
1001×61
Part 1001
1001×77
Part 1002
1002×62
Part 1002
1002×78
Part 1017
1017×4
Part 1017
1017×4
Part 1018
1018×8
Part 1018
1018×8
Part 1053
1053×1
Part 1054
1054×1
Part 1055
1055×8
Part 1055
1055×10
Part 1056
1056×4
Part 1056
1056×5
Part 1057
1057×1
Part 1057
1057×1
Part 1310
1310×1
Part 1310
1310×1
Part 1334
1334×1
Part 1334
1334×1
Part 4201
4201×1
Part 4201
4201×1
Part 5549
5549×4
Part 5549
5549×4
Part 6060
6060×1
Part 6060
6060×1
Part 9002
9002×20
Part 9002
9002×22

Installer tip

Count the extra roof bar bolts on your drawing before you fit any end cap. The number depends on your greenhouse size and vent positions.

Watch out

Leave everything loose until the whole greenhouse is on its steel base and square. You cannot adjust the frame once the glass is fitted.

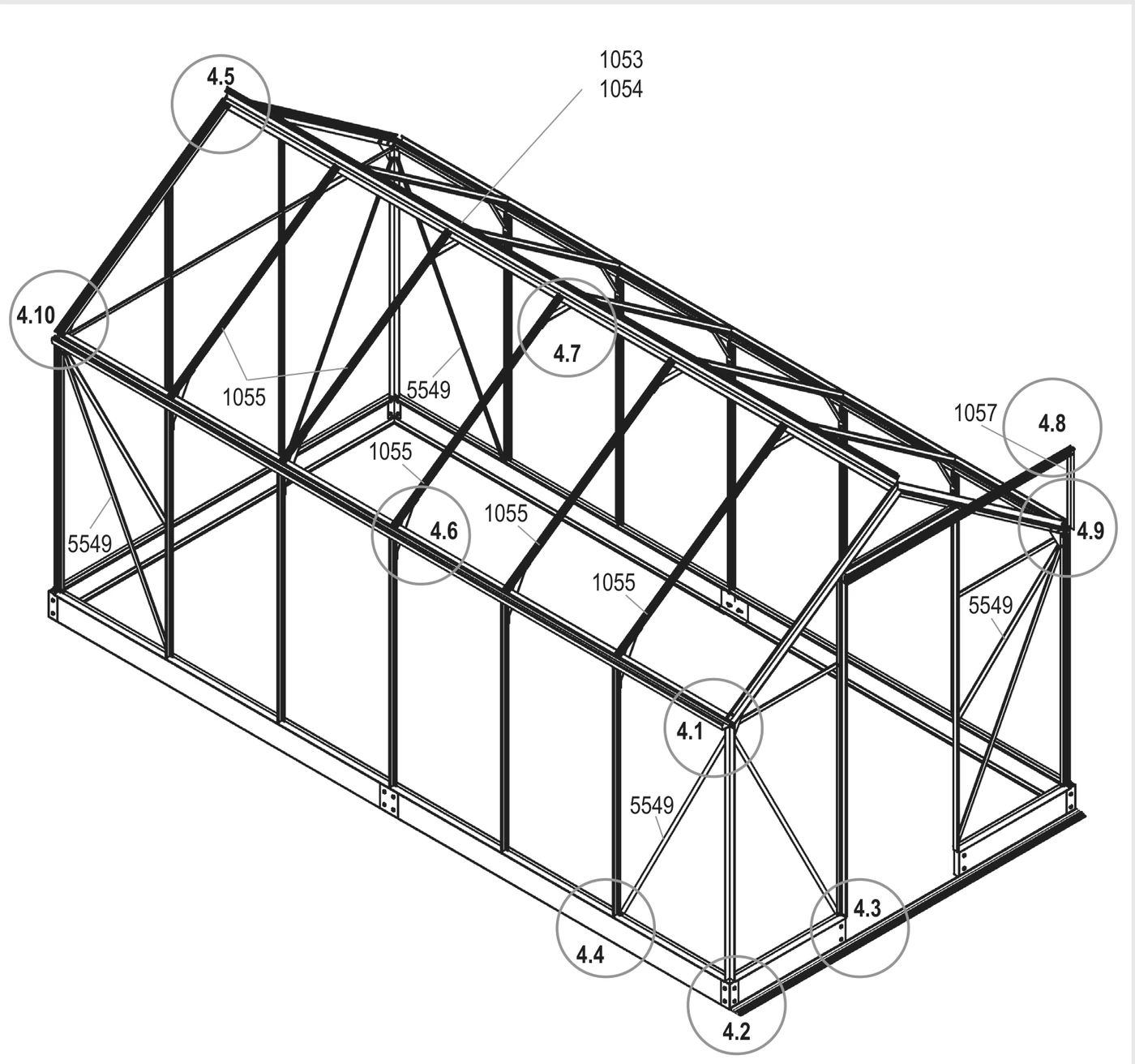

Step 4 drawing
Vitavia drawing 4. The circled numbers match the pictures below.
Detail 4.1
4.1

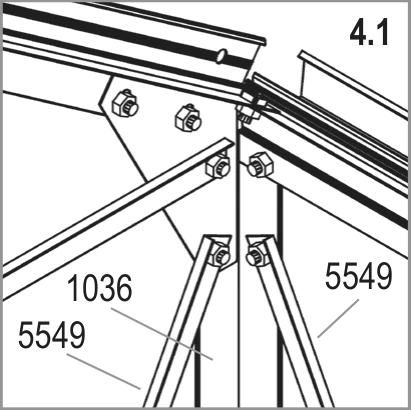

Bolt the side frames to the gable ends at the top corners, where corner bar 1036 and side braces 5549 meet.

Detail 4.2
4.2

Bolt the side frames to the gable ends at each bottom corner. Clip your sill bar (1325 or 1326), corner bar 1036 and bottom bar 1068 to the base with clip 9002 and bolt 1001.

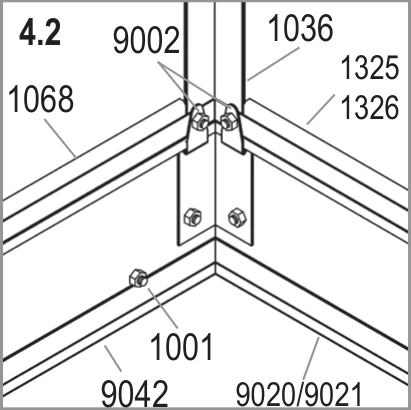

Detail 4.4
4.4

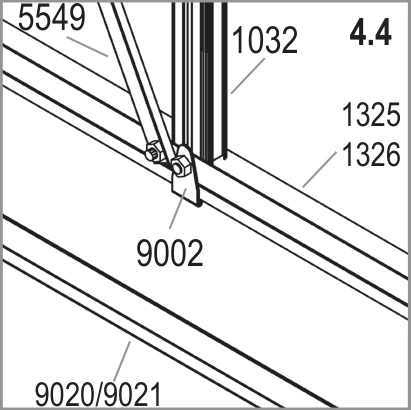

Fit side brace 5549 at each corner between the eave bar and sill bar. At the bottom, attach the sill bar to the steel base with clip 9002, as shown.

Detail 4.5
4.5

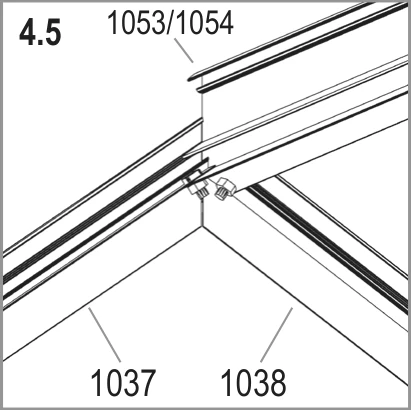

Bolt your ridge bar (1053 or 1054) to the top of both gable ends. Follow the drawing at back gable roof bars 1037 and 1038.

Detail (6200) 4.6
(6200) 4.6

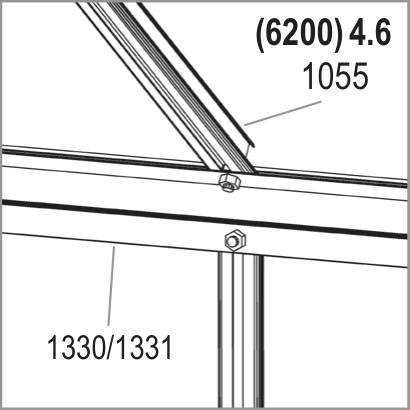

On the 6200, bolt roof glazing bars 1055 to eave bar 1330.

Detail 4.7
4.7

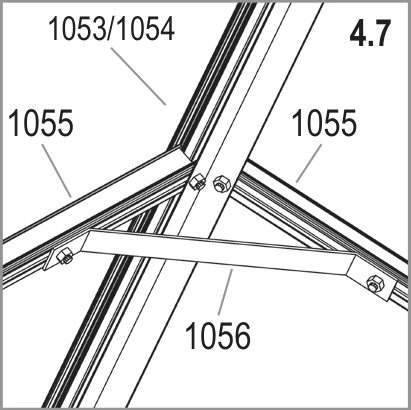

Bolt roof glazing bars 1055 to the ridge bar; add an extra bolt to each for roof braces 1056. Fit the braces; add an extra bolt to 2 glazing bars 1055 at the vent positions.

Detail 4.3
4.3

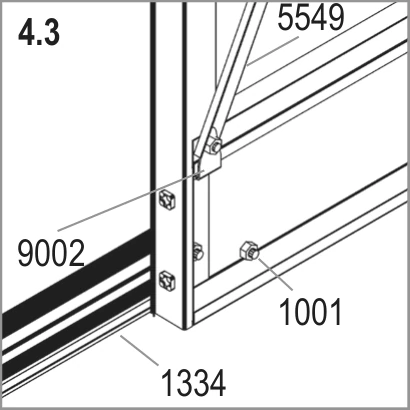

Slide bolts 1001 into the channel of door runner bar 1334 and fit it across base lengths 9042 and 9043. Fit clip 9002 and bolt 1001 at the end as shown.

Do this now

Adjust the greenhouse until it is completely square; check both corner-to-corner measurements match, as you did with the base. Only then tighten all bolts to a maximum of 3 Nm.

Detail 4.8
4.8Outside view

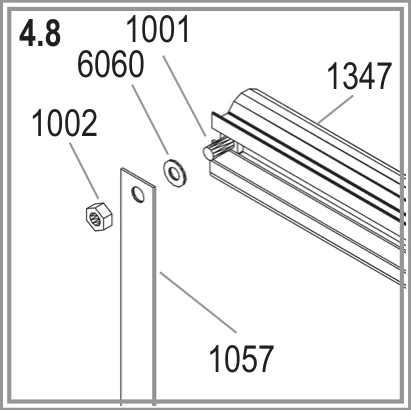

Fit door runner support 1057 to door runner bar 1347 with bolt 1001, washer 6060 and nut 1002.

Detail 4.9
4.9Outside view

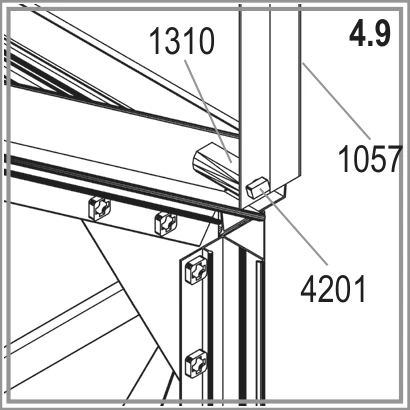

Fix the other end of support 1057 to the gable with bolt 4201 and spacer 1310.

Detail 4.10
4.10Outside view

Press end caps 1017 and 1018 onto the open profile ends.

Step 4 drawing
Vitavia drawing 4. The circled numbers match the pictures below.
Detail 4.1
4.1

Bolt the side frames to the gable ends at the top corners, where corner bar 1036 and side braces 5549 meet.

Detail 4.2
4.2

Bolt the side frames to the gable ends at each bottom corner. Clip your sill bar (1325 or 1326), corner bar 1036 and bottom bar 1068 to the base with clip 9002 and bolt 1001.

Detail 4.4
4.4

Fit side brace 5549 at each corner between the eave bar and sill bar. At the bottom, attach the sill bar to the steel base with clip 9002, as shown.

Detail 4.5
4.5

Bolt your ridge bar (1053 or 1054) to the top of both gable ends. Follow the drawing at back gable roof bars 1037 and 1038.

Detail (7500) 4.6
(7500) 4.6

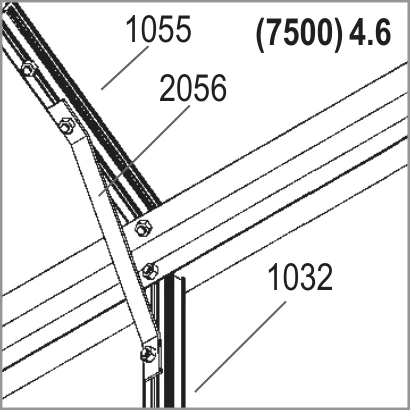

On the 7500, bolt roof glazing bars 1055 to eave bar 1331. Insert an extra bolt at each bar's eave end, then connect corner braces 2056 fitted in step 1.

Detail 4.7
4.7

Bolt roof glazing bars 1055 to the ridge bar; add an extra bolt to each for roof braces 1056. Fit the braces; add an extra bolt to 2 glazing bars 1055 at the vent positions.

Detail 4.3
4.3

Slide bolts 1001 into the channel of door runner bar 1334 and fit it across base lengths 9042 and 9043. Fit clip 9002 and bolt 1001 at the end as shown.

Do this now

Adjust the greenhouse until it is completely square; check both corner-to-corner measurements match, as you did with the base. Only then tighten all bolts to a maximum of 3 Nm.

Detail 4.8
4.8Outside view

Fit door runner support 1057 to door runner bar 1347 with bolt 1001, washer 6060 and nut 1002.

Detail 4.9
4.9Outside view

Fix the other end of support 1057 to the gable with bolt 4201 and spacer 1310.

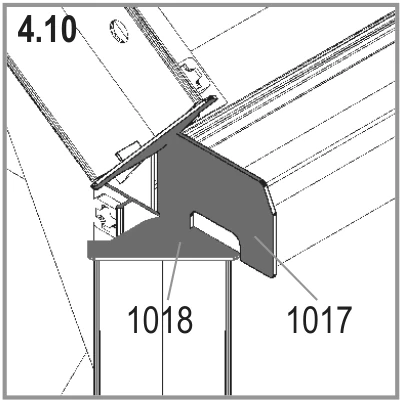

Detail 4.10
4.10Outside view

Press end caps 1017 and 1018 onto the open profile ends.

5
Step 5

Build and hang the door

Assemble the sliding door, then fit it into the upper and lower tracks.

You need

Part 1001
1001×3
Part 1001
1001×3
Part 1002
1002×3
Part 1002
1002×3
Part 1003
1003×16
Part 1003
1003×16
Part 1007
1007×2
Part 1007
1007×2
Part 1009
1009×2
Part 1009
1009×2
Part 1014
1014×2
Part 1014
1014×2
Part 1015
1015×2
Part 1015
1015×2
Part 1304
1304×2
Part 1304
1304×2
Part 1350
1350×2
Part 1350
1350×2
Part 1359
1359×1
Part 1359
1359×1
Part 1360
1360×1
Part 1360
1360×1
Part 1361
1361×2
Part 1361
1361×2
Part 1362
1362×1
Part 1362
1362×1
Part 1500
1500×2
Part 1500
1500×2
Part 1515
1515×2
Part 1515
1515×2
Part 3021
3021×2
Part 3021
3021×2

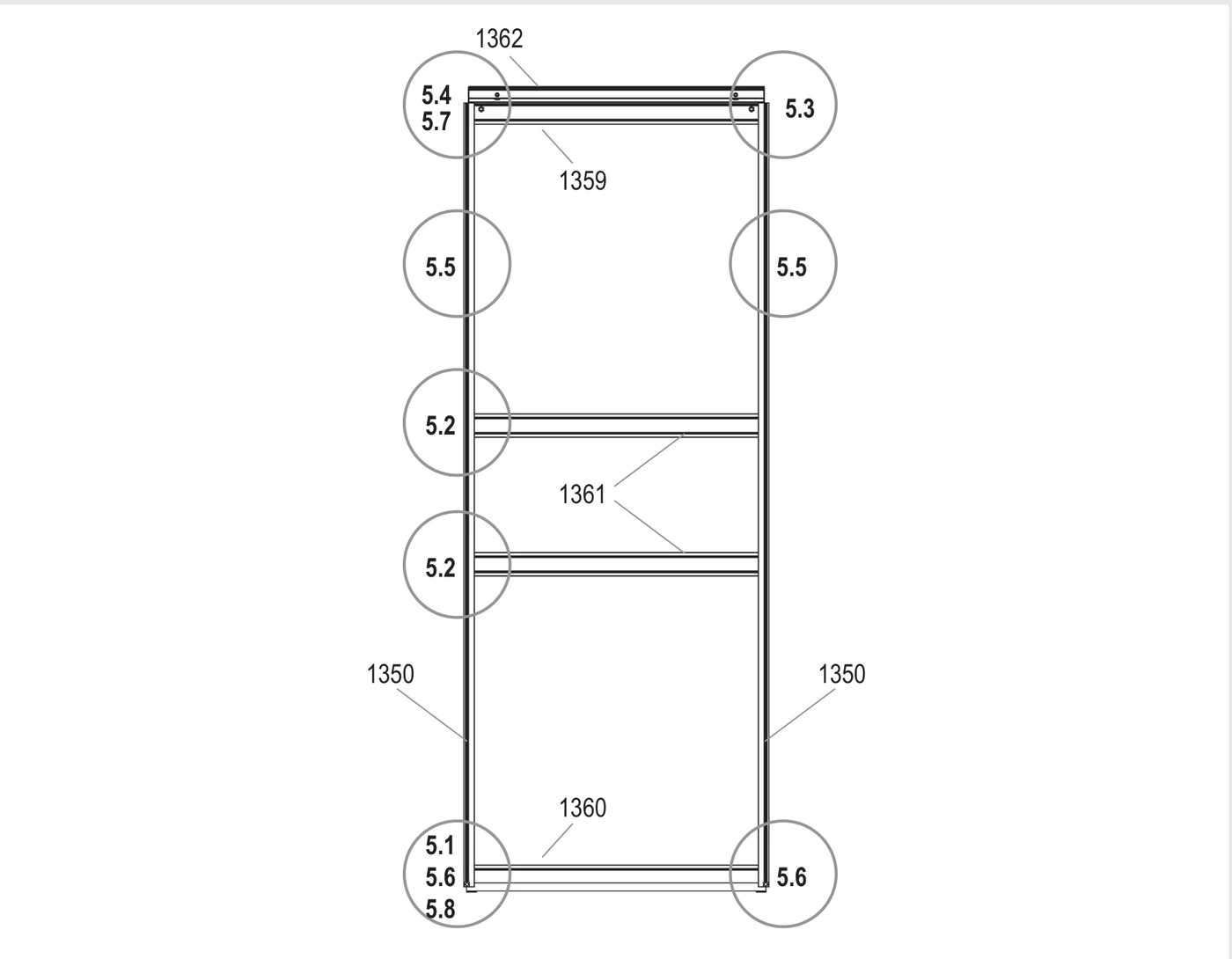

Step 5 drawing
Vitavia drawing 5. The circled numbers match the pictures below.

Installer tip

If the door binds or jumps the track, check that the frame is square before you force it. This is almost certainly the cause.

Watch out

Never stand the assembled door on gliders 1014. This damages them.

Detail 5.1
5.1

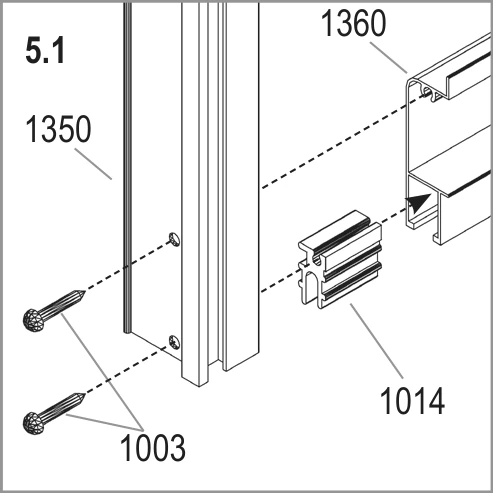

Push door glider 1014 onto each end of bottom door bar 1360. Screw side bars 1350 to bottom door bar 1360 with screws 1003.

Detail 5.2
5.2

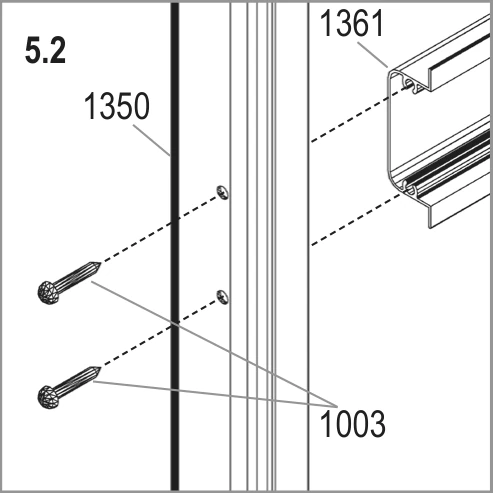

Screw middle bars 1361 between side bars 1350 with screws 1003.

Detail 5.3
5.3

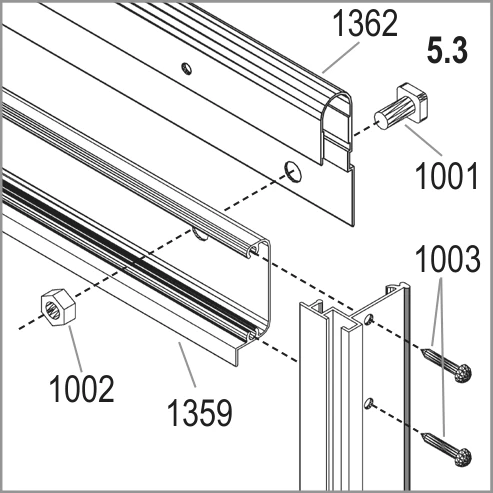

Bolt door bar 1362 to upper bar 1359 with bolt 1001 and nut 1002. Screw upper bar 1359 to side bars 1350 with screws 1003.

Detail 5.4
5.4

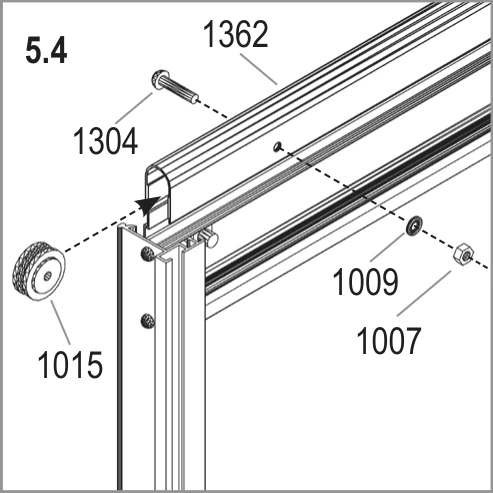

Fix the two door rollers 1015 to door bar 1362 with bolt 1304, washer 1009 and nut 1007.

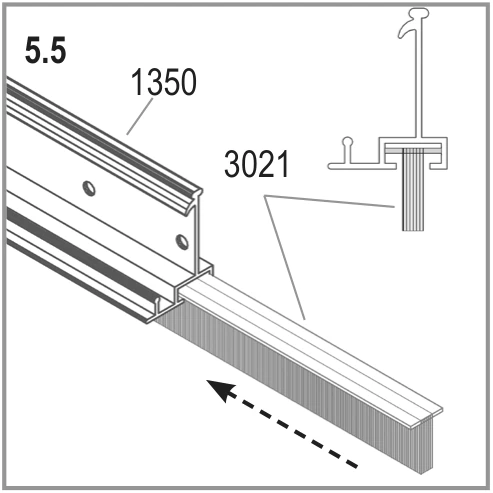

Detail 5.5
5.5Outside view

Slide door seals 3021 into both side bars 1350. Cut the seals to length.

Detail 5.6
5.6

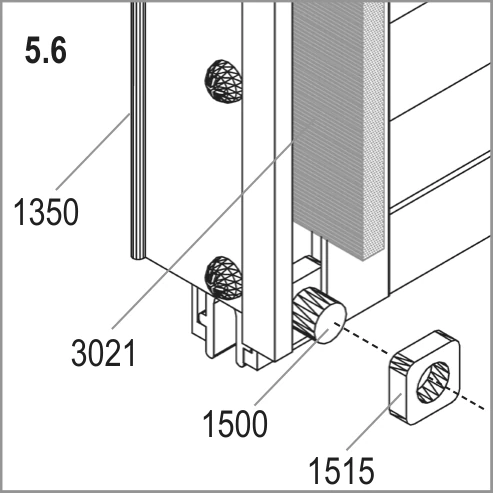

Slide bolt 1500 into the bottom of the door seal channel and fix it with nut 1515. This stops the seal sliding out.

Detail 5.7
5.7Outside view

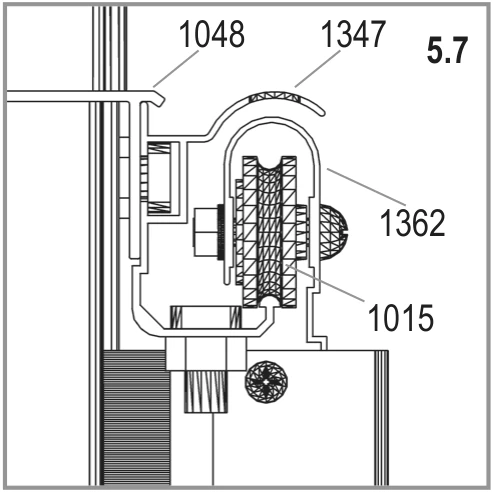

Lift the door and slide rollers 1015 into door runner bar 1347.

Detail 5.8
5.8Outside view

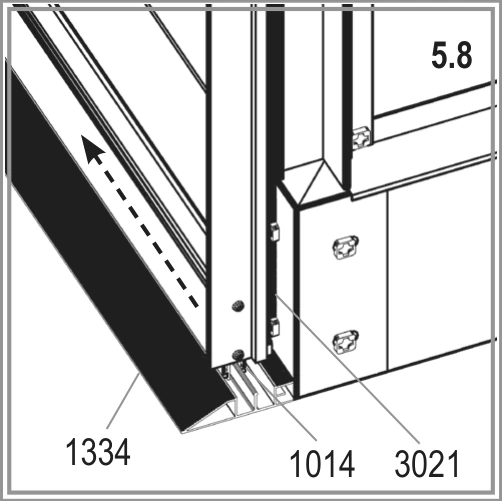

Check that door gliders 1014 run in bottom door runner bar 1334. Fit a nut and bolt into the end of door runner bar 1347 as a stop; adjust until the door slides freely.

6
Step 6

Build the roof vents

Build and fit both roof vents; the 6200 and 7500 each have 2.

You need

Part 1001
1001×8
Part 1001
1001×8
Part 1002
1002×8
Part 1002
1002×8
Part 1006
1006×12
Part 1006
1006×12
Part 1016
1016×4
Part 1016
1016×4
Part 1019
1019×2
Part 1019
1019×2
Part 1063
1063×2
Part 1063
1063×2
Part 1064
1064×2
Part 1064
1064×2
Part 1065
1065×4
Part 1065
1065×4
Part 1066
1066×2
Part 1066
1066×2
Part 1067
1067×2
Part 1067
1067×2

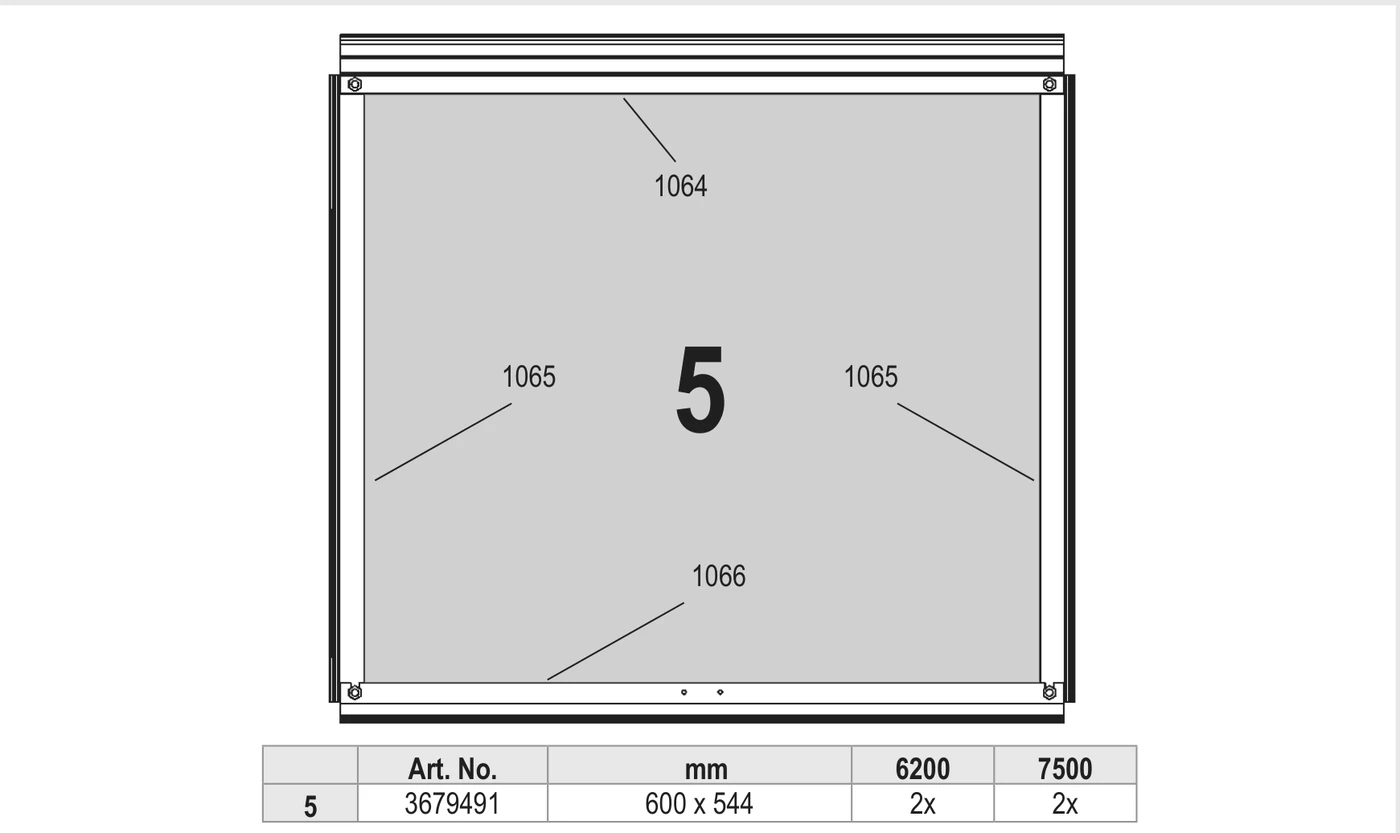

Step 6 drawing
Vitavia drawing 6. The circled numbers match the pictures below.

Installer tip

Fit vent sill 1063 flat edge up, with the grooved lip down towards the pane below. If that pane will not sit snugly, check the sill's position.

Detail 6.1
6.1

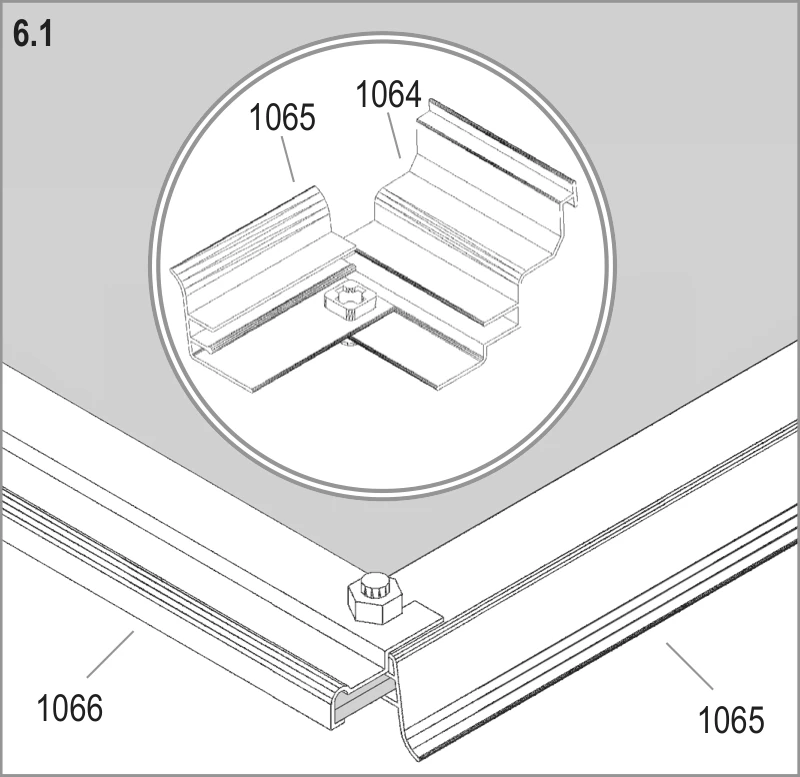

For glass up to 4 mm thick, join vent side bars 1065 and top bar 1064 as shown.

Detail 6.2
6.2

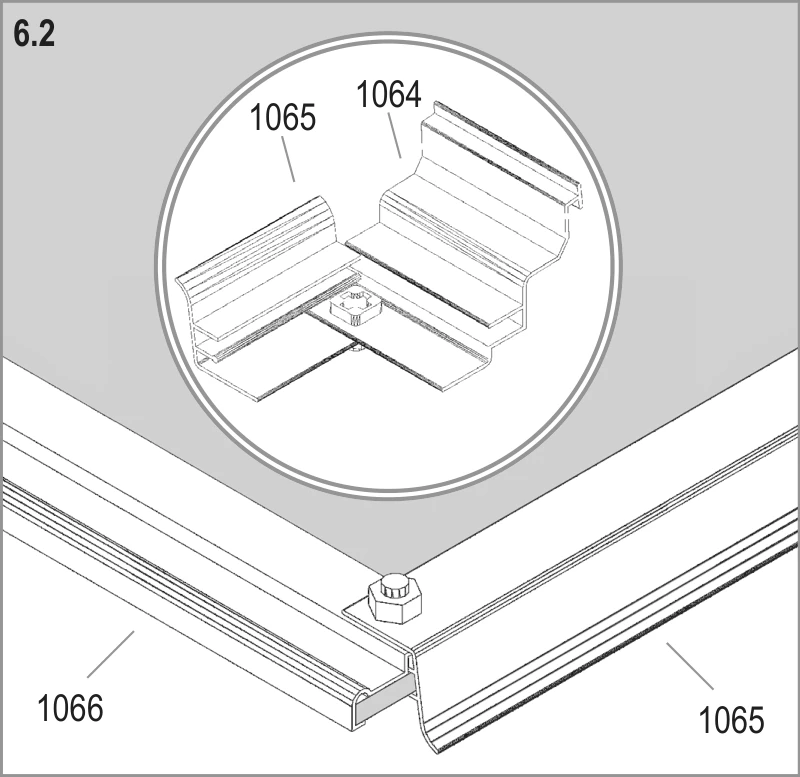

For glass 4 mm or thicker, join vent side bars 1065 and top bar 1064 as shown here instead.

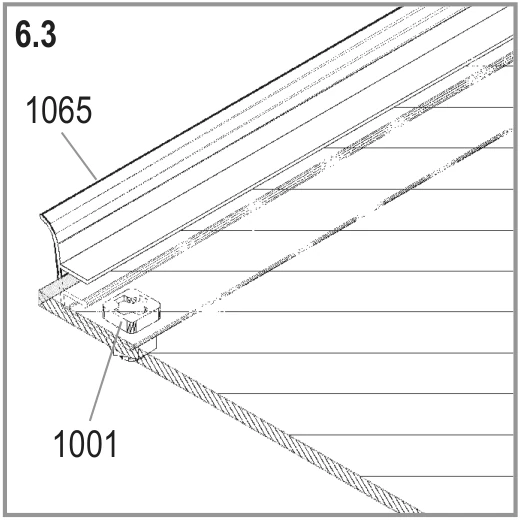

Detail 6.3
6.3Outside view

Put the bolts for bottom bar 1066 into the prepared holes, then slide the glass into side bars 1065. Fit bottom bar 1066 and check the vent is square before you tighten the bolts.

Detail 6.4
6.4Outside view

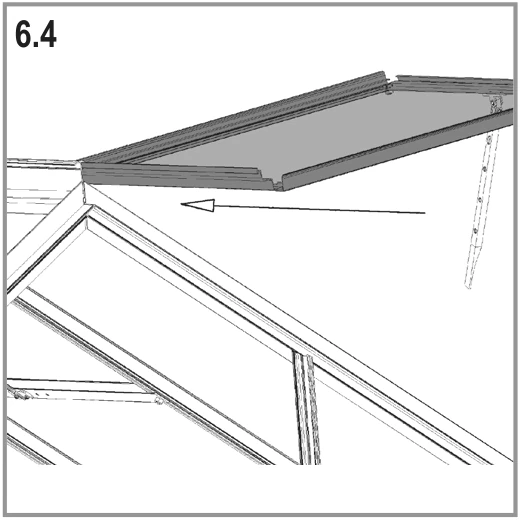

Hook the vent into the ridge bar from one end of the greenhouse.

Detail 6.5
6.5Outside view

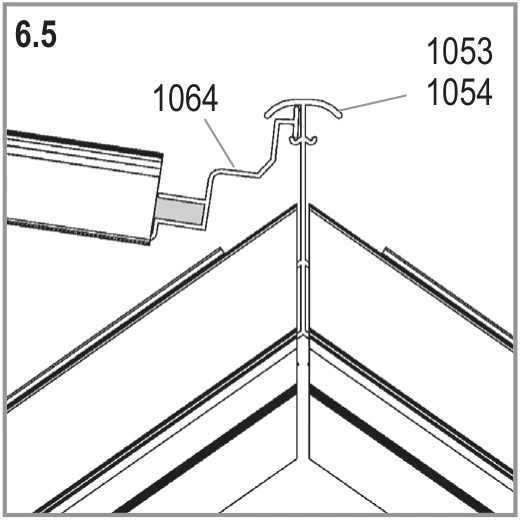

Hook vent top bar 1064 over your ridge bar (1053 or 1054), as shown.

Detail 6.6
6.6

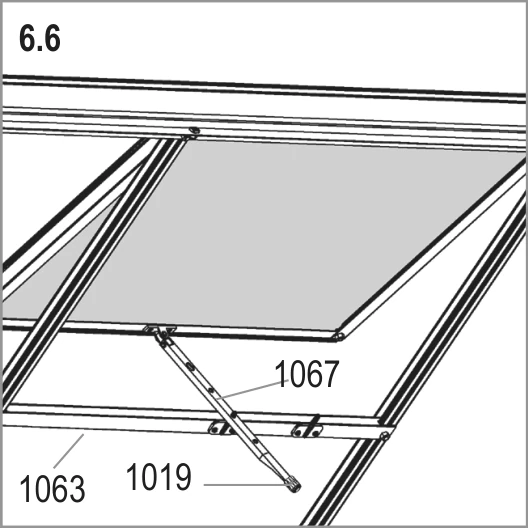

Slide the vent along to your chosen position. Push plastic cap 1019 onto the end of window opener 1067.

Detail 6.7
6.7

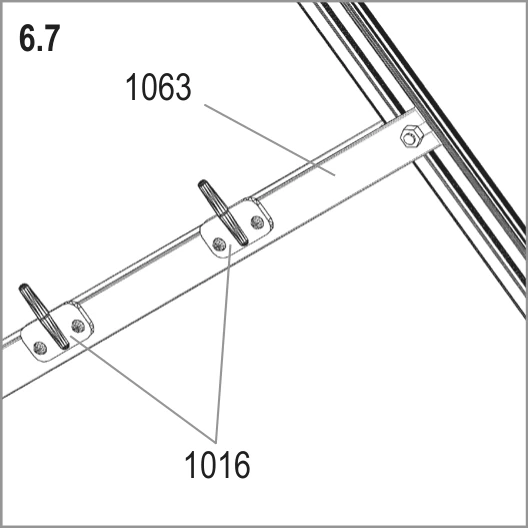

Fix vent sill 1063 to the extra bolts you left in the roof glazing bars.

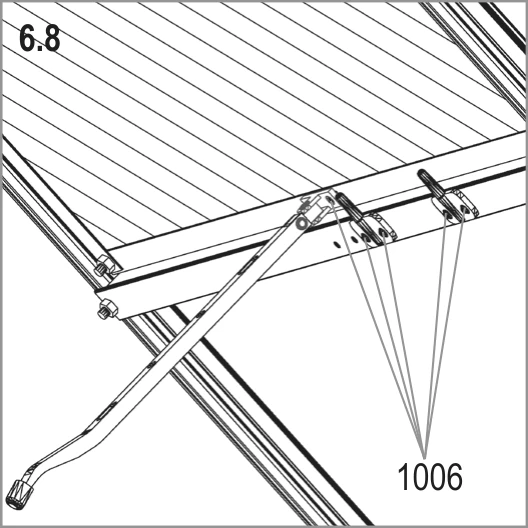

Detail 6.8
6.8

Screw window opener 1067 to vent bottom bar 1066 with screws 1006. Screw both window fixers 1016 onto vent sill 1063 with screws 1006.

7
Step 7

Fit the glazing

Fit the rubber glazing seal first, then glaze the roof before the walls.

Polycarbonate sheets

This step and its pane table cover horticultural glass. Your polycarbonate sheets are different sizes and use different fixings. We recommend you glaze using the fitting instructions Vitavia packs with your polycarbonate sheets.

Your toughened glass

Your toughened glass comes as full panes, listed in the table below. Use the plan below for pane positions, not the drawing above. Join your gable glass with plastic H profiles where glass meets glass, replacing glass retaining clips 1012. Fit each H strip with its longest arm inside and uppermost.

PaneSize (mm)62007500
1610 x 12101517
2610 x 1144810
3610 x 61044
4610 x 22811
4a610 x 34311
5600 x 54422
6610 x 450 x 2444
7610 x 234 x 2022
8610 x 43911
Total panes3842
Plastic H profiles66

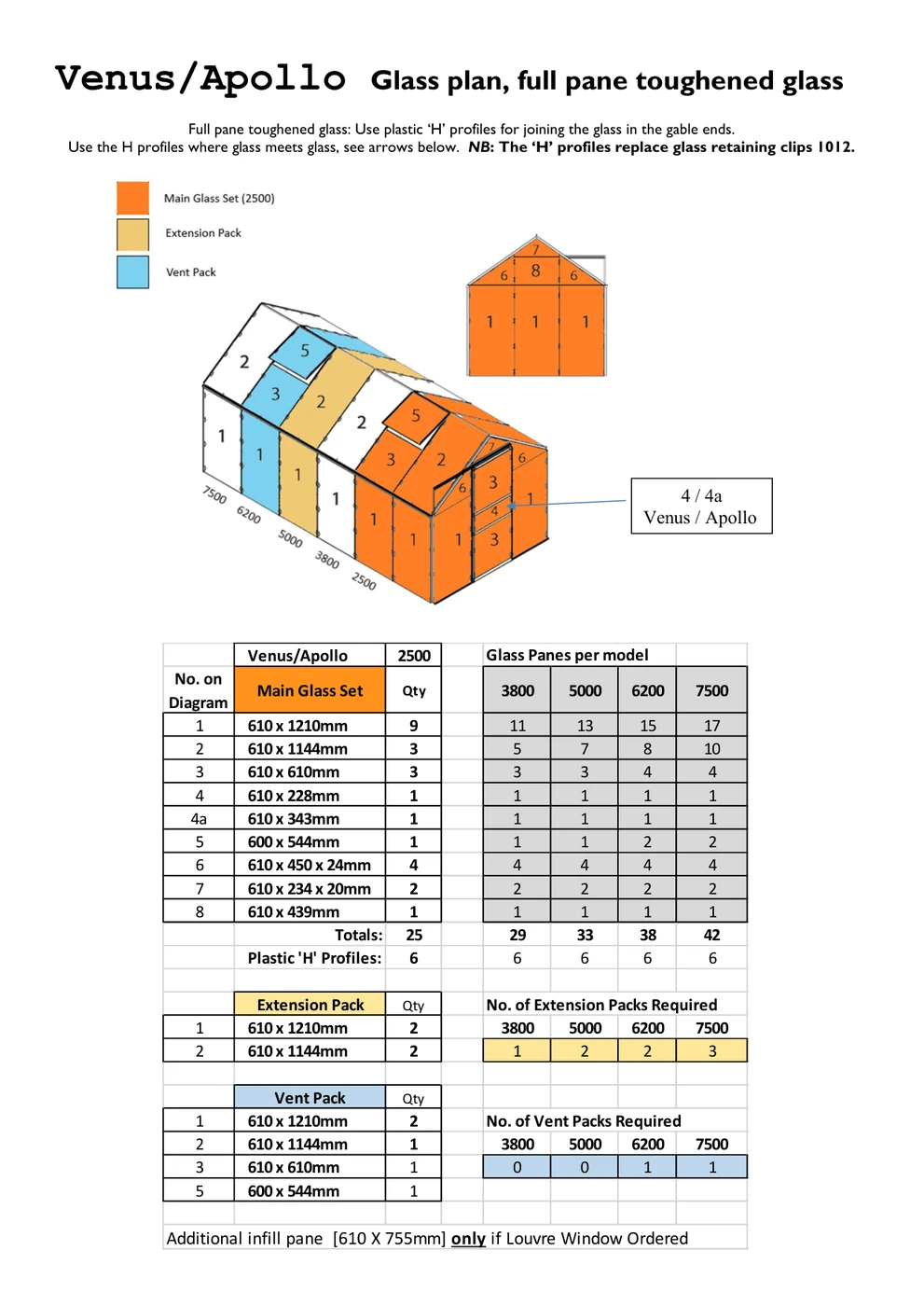

Vitavia toughened glass plan for the Apollo
Vitavia's toughened glass plan. Pane numbers match the table.

You need

Part 1011
1011×236
Part 1011
1011×268
Part 1012
1012×58
Part 1012
1012×66
Part 1020
1020×1
Part 1020
1020×1
Step 7 drawing
Vitavia drawing 7. The circled numbers match the pictures below.

Installer tip

Soak the whole reel of glazing seal in hot soapy water first so it softens and presses on more easily. Glaze the roof before the walls so you avoid leaning over fitted side glass.

Watch out

Never force a pane that will not seat. Check and correct the frame's squareness first; forcing glass cracks it.

Detail 7.3
7.3Outside view

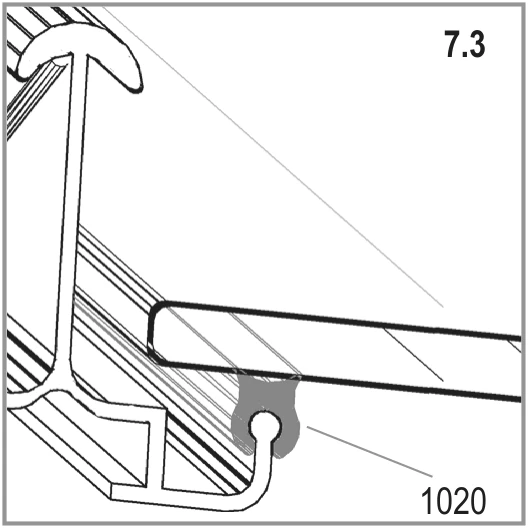

Press rubber glazing seal 1020 onto the aluminium profiles and cut it to length. Fit all the seal before you fit any glass.

Detail 7.2
7.2Outside view

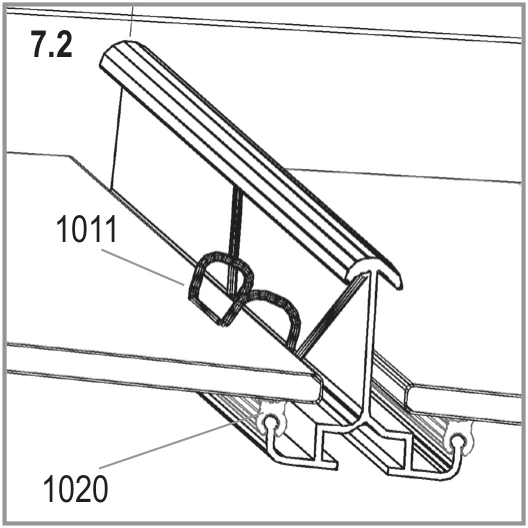

Start the roof glazing at the eave. Fix the first pane with glazing spring clips 1011.

Detail 7.1
7.1Outside view

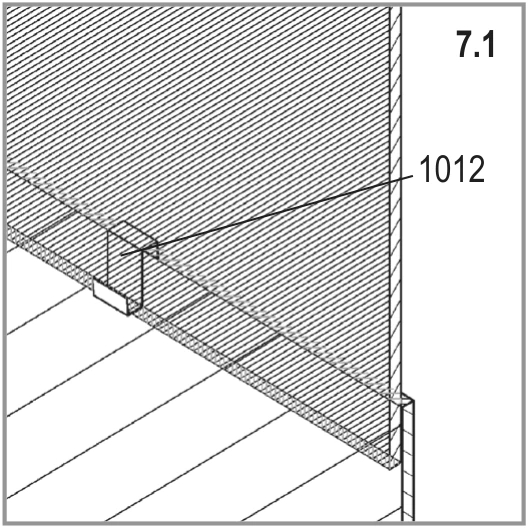

Overlap each next pane over the pane below it. Fit glass retaining clips 1012 between the panes to hold them.

Do this now

Start the side glazing at the bottom and work upwards. If you chose polycarbonate sheets, follow the instructions packed with them.

Horticultural glass for your greenhouse

PaneSize (mm)62007500
1610 x 6104248
2610 x 544810
3610 x 46711
4610 x 34311
5600 x 54422
6610 x 464/3844
7610 x 20/234/2022
Total6068

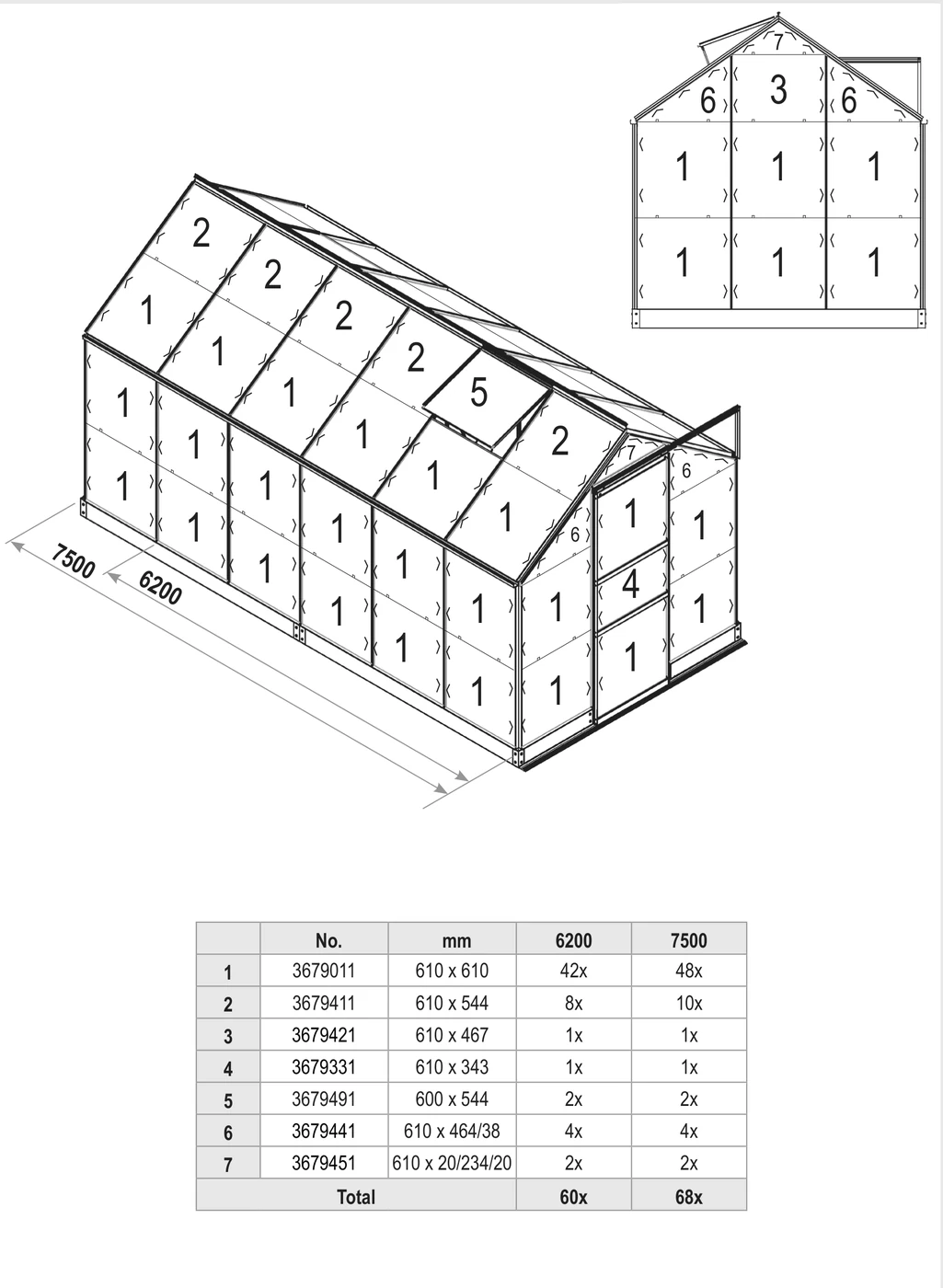

Pane numbers match the glazing layout in the drawing above.

Last jobs

Finish and look after it

Finish

  • Fill the anchor leg holes with concrete.
  • Fix the steel base to the foundation with screws and plugs, which are not supplied.
  • If you wish, seal the edges with neutral silicone, which is not supplied.
  • Stick the warning label inside the greenhouse.
  • Stick the model label onto door bar 1362. You will need it to order spare parts.
  • Keep this guide somewhere safe.

Looking after it

  • Shut the door and all vents in high winds.
  • Clear the roof or support it in heavy snow. Heat the greenhouse in winter.
  • Wash the greenhouse occasionally with a mild detergent that does not attack aluminium or the glazing clips.
  • Keep the upper and lower door tracks clean so grit does not build up.
  • Add the greenhouse to your home insurance and check local building rules about where you can put it.

Drawings reproduced from the Vitavia assembly instructions (Vitavia manual 062.01.1703 (Apollo 6200, 7500)). Greenhouse Stores, greenhousestores.co.uk.
