Assembly guide

Vitavia Ida

Sizes 900, 1300

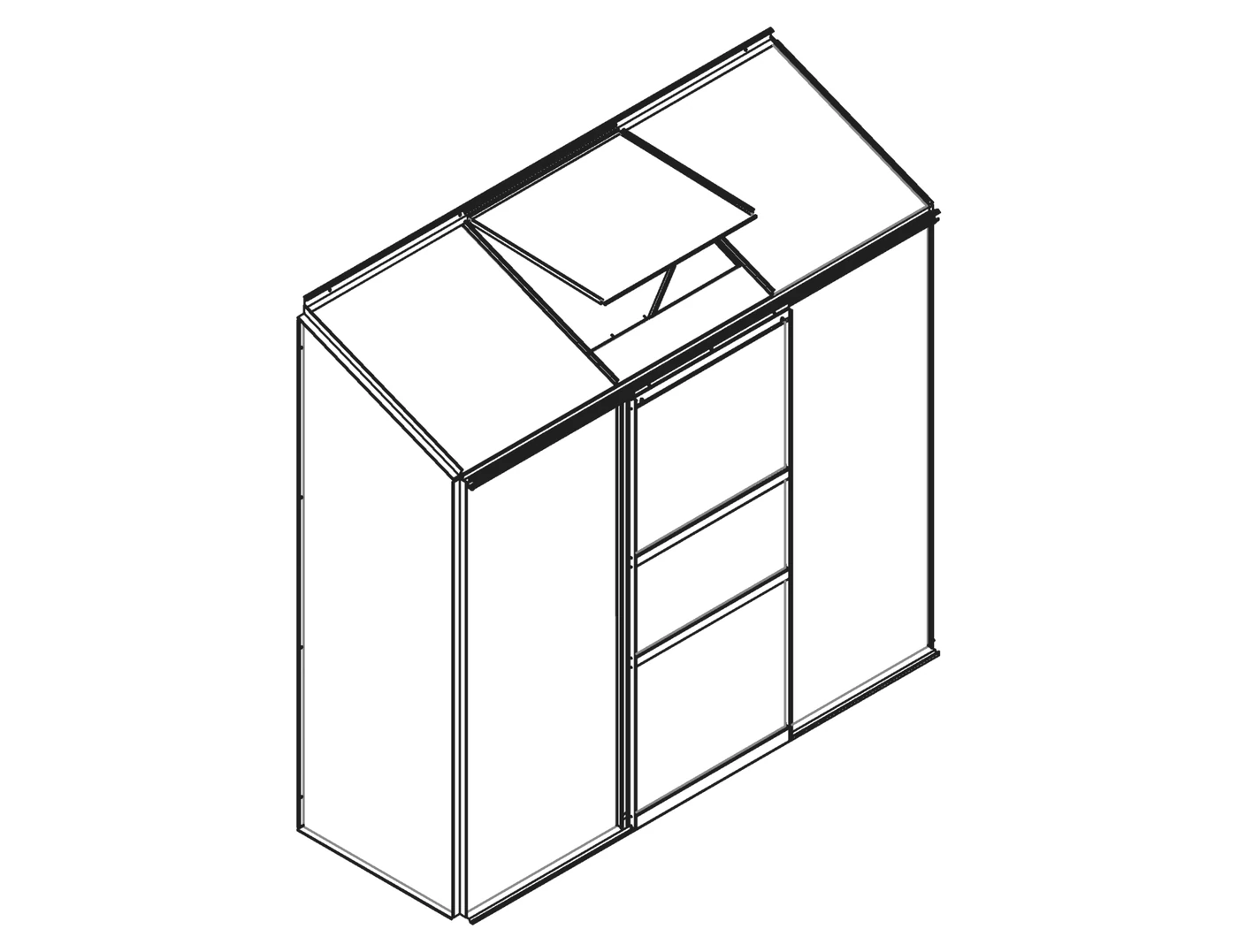

Vitavia Ida greenhouse
7steps, base first
2people needed
653 mm653 mm × 1300 mm1922 mmbase size (A × B)

Pick your size at the top. Quantities and drawings change to match.

The build at a glance

Drawings: Vitavia (Vitavia manual 003.02.1302 (Ida 900 and 1300, glass)). Words and layout: Greenhouse Stores, greenhousestores.co.uk. Keep this guide with your greenhouse.
Read this first

Before you start

Six golden rules

  1. Build frames loosely. Tighten only when the greenhouse stands square on its base, with both diagonals equal.
  2. Never overtighten nuts 1002. The maximum is 3 Nm.
  3. Fit extra bolts when instructed. Each roof glazing bar needs one for the roof vent.
  4. Before fixing the greenhouse to the house wall, check that the sides are perfectly vertical.
  5. Build with two people.
  6. Always anchor your greenhouse.

Get ready

  • Read the whole guide once before you start.
  • Gather flat/PH2 screwdrivers, 10 mm socket spanner/wrench, 10 mm combination spanner, knife, tape measure, spirit level. Set cordless drill adjustable torque low.
  • Wear gloves, safety glasses, sturdy shoes and a hat. Aluminium edges are sharp. Clear up broken glass straight away.
  • Open one bundle at a time and keep opened bundles apart. Mixed bundles are the main cause of lost-part searches.
  • Check every part against the parts check pages. Contact Greenhouse Stores before you begin if anything is missing.
  • Read single-frame drawings as views from inside the greenhouse. Read double-frame drawings as views from outside.
  • Choose a sunny spot with as much shelter from wind as possible.
Single frame: inside view
Double frame: outside view
Before step 1

Parts check

Open one bundle at a time. Tick each part as you find it. The number in green is how many your size should have.

Bars and profiles

Part 1020
1020
Glazing seal (reel)
2200027000 mm×11
Part 1059
1059
Upper bar
621621 mm×11
Part 1060
1060
Door bar
621621 mm×11
Part 1061
1061
621621 mm×22
Part 1062
1062
Door bar
613613 mm×11
Part 1063
1063
Window sill
635635 mm×11
Part 1064
1064
Vent top bar
602602 mm×11
Part 1065
1065
Vent side bar
520520 mm×22
Part 1066
1066
Vent bottom bar
602602 mm×11
Part 1067
1067
Window opener
295295 mm×11
Part 1092
1092
Corner plate
120120 mm×44
Part 2096
2096
619619 mm×12
Part 4021
4021
Door seal
14841484 mm×22
Part 4022
4022
Sill bar
614614 mm×22
Part 4036
4036
15061506 mm×22
Part 4041
4041
15061506 mm×12
Part 4046
4046
12401240 mm×1-
Part 4047
4047
18621862 mm×-1
Part 4050
4050
Ridge bar
12401240 mm×1-
Part 4051
4051
Ridge bar
18621862 mm×-1
Part 4055
4055
Roof glazing bar
655.5655.5 mm×12
Part 4058
4058
Side bar
14841484 mm×22
Part 4080
4080
Gable end bar
678.5678.5 mm×11
Part 4081
4081
Gable end bar
678.5678.5 mm×11
Part 4082
4082
Vertical wall bar
17541754 mm×11
Part 4083
4083
Vertical wall bar
17541754 mm×11
Part 4084
4084
Eaves door track
12401240 mm×1-
Part 4085
4085
Eaves door track
18621862 mm×-1
Part 4096
4096
596596 mm×22

Fixings and small parts

Part 1001
1001
Bolt
M6 x 12M6 x 12×4956
Part 1002
1002
Nut
M6M6×5057
Part 1003
1003
Screw
3.5 x 163.5 x 16×1616
Part 1004
1004
M4 x 16M4 x 16×22
Part 1006
1006
Screw
3.5 x 63.5 x 6×66
Part 1007
1007
Nut
M4M4×22
Part 1009
1009
Washer
Ø8/4Ø8/4×22
Part 1011
1011
Glazing spring clip
7070×7595
Part 1012
1012
Glass retaining clip
1111×2228
Part 1014
1014
Door glider
2020×22
Part 1015
1015
Door roller
Ø22Ø22×22
Part 1016
1016
Window fixer
4040×22
Part 1019
1019
Plastic cap
1515×11
Part 1111
1111
Door fixer
37.537.5×11
Part 1112
1112
Door fixer
7.47.4×11
Part 1113
1113
Door fixer
2525×11
Part 1500
1500
Bolt
M6 x 5M6 x 5×22
Part 1515
1515
Nut
M6M6×22
Part 2001
2001
Corner bolt
M6 x 12M6 x 12×11
Part 7395
7395
Washer
Ø12/6.5Ø12/6.5×56
0
Step 0

Prepare the base

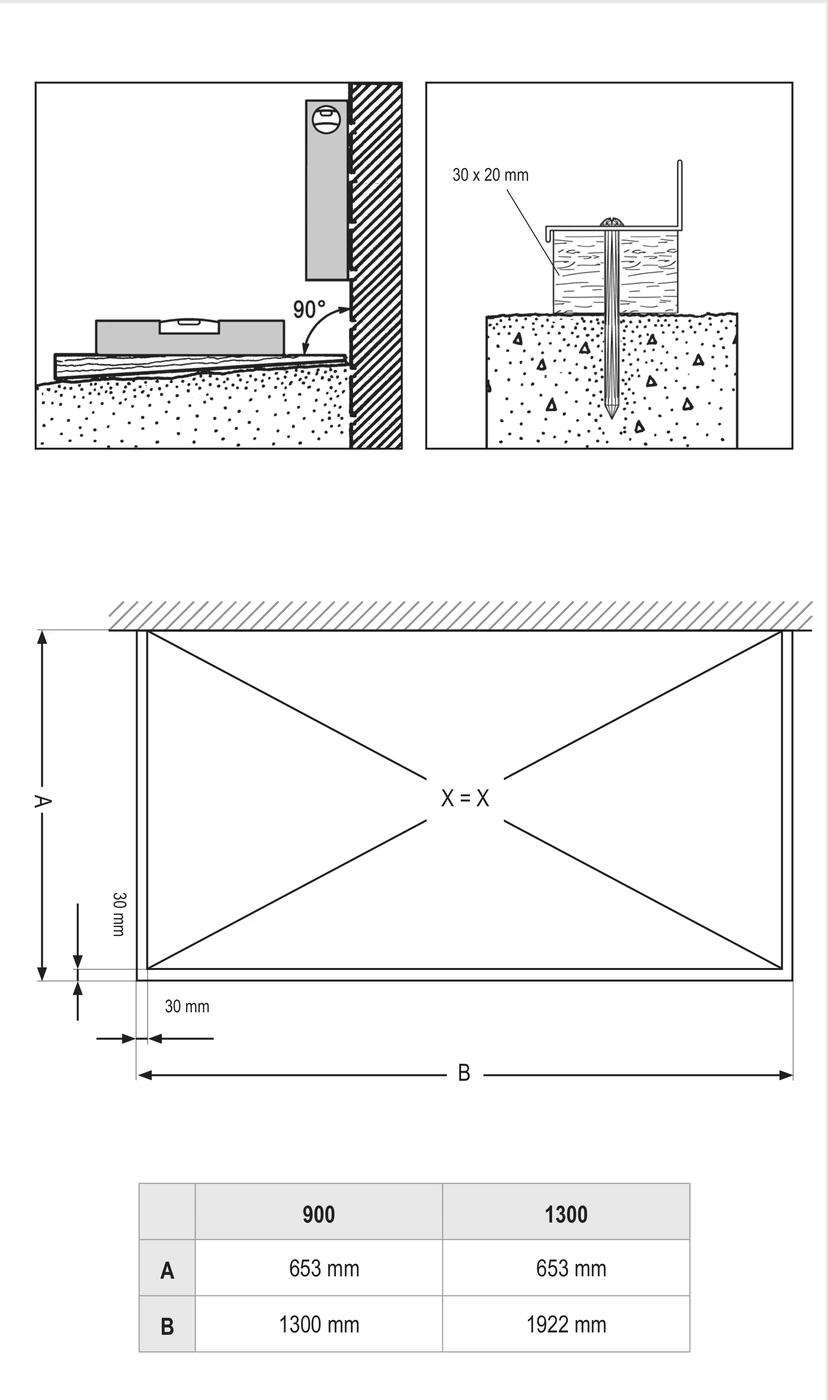

Start with a square, level base at 90 degrees to the house wall.

A B X = X
9001300
A653 mm653 mm
B1300 mm1922 mm
Step 0 drawing
Vitavia drawing 0. The circled numbers match the pictures below.

Installer tip

Use ground spikes or anchor legs on soil only. On concrete or paving, bolt down with suitable fixings; use one method, not both.

Watch out

If your base is not square and level, nothing above it will be. Glass will not fit an out-of-square frame.

0.1

Make your base exactly square and level at 90 degrees to the wall; check both diagonals match. A zinc-coated steel base is sold as an accessory.

0.2

Only for your own stone or concrete foundation, use this page's A and B sizes and extend below frost level. Fix treated timber at least 18 mm high and no more than 32 mm wide between the foundation and aluminium frame, with 50 mm bolts into the foundation, not supplied.

0.3

On very windy, exposed sites, drill through both the greenhouse bottom profile and the steel base. Bolt them together.

1
Step 1

Build the front wall

Build flat on the ground with every bolt loose, and loosely connect corner plates 1092 at both upper corners.

You need

Part 1001
1001×12
Part 1001
1001×16
Part 1002
1002×12
Part 1002
1002×16
Part 1092
1092×2
Part 1092
1092×2
Part 2096
2096×1
Part 2096
2096×2
Part 4036
4036×2
Part 4036
4036×2
Part 4041
4041×1
Part 4041
4041×2
Part 4046
4046×1
Part 4047
4047×1
Part 4084
4084×1
Part 4085
4085×1

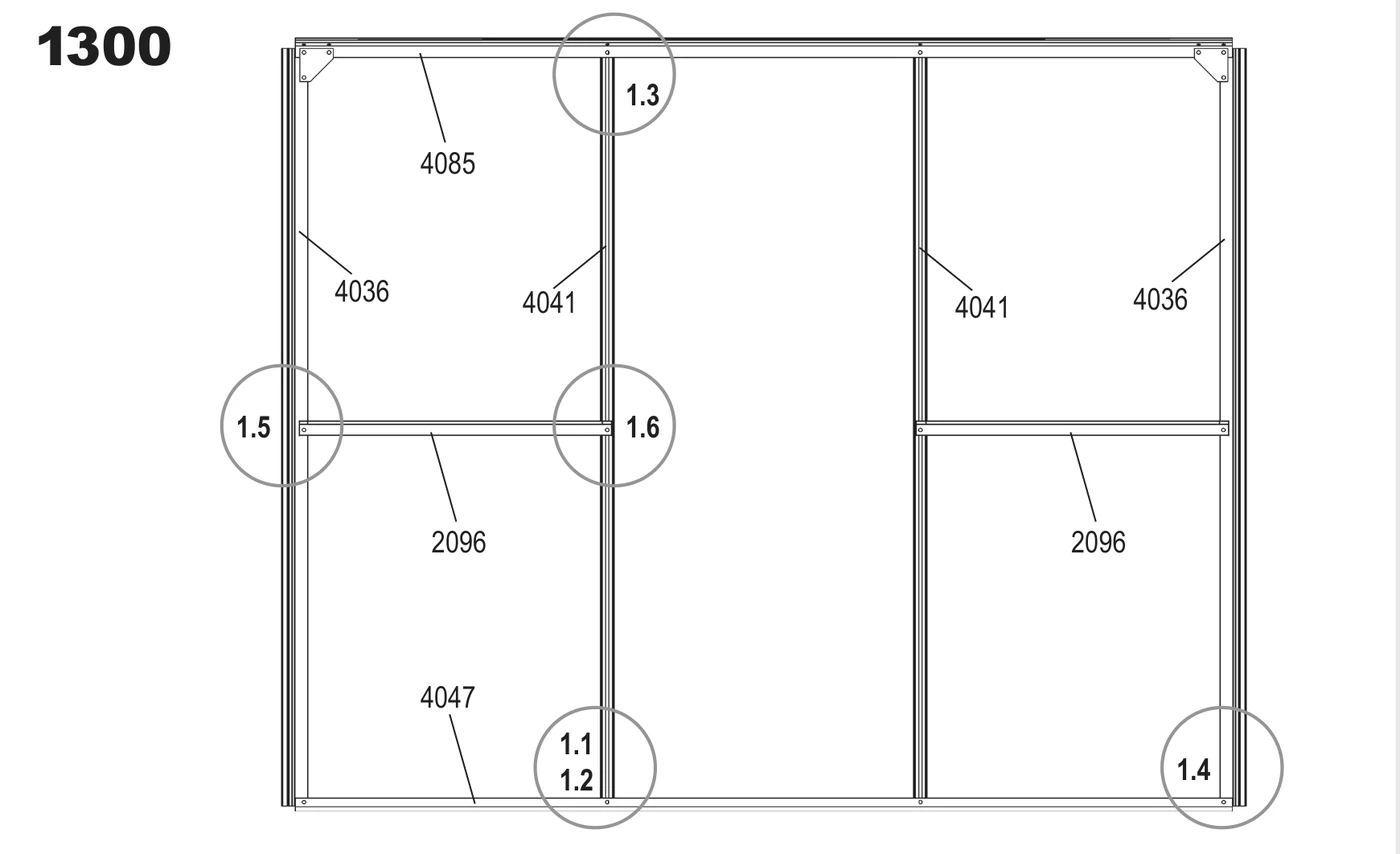

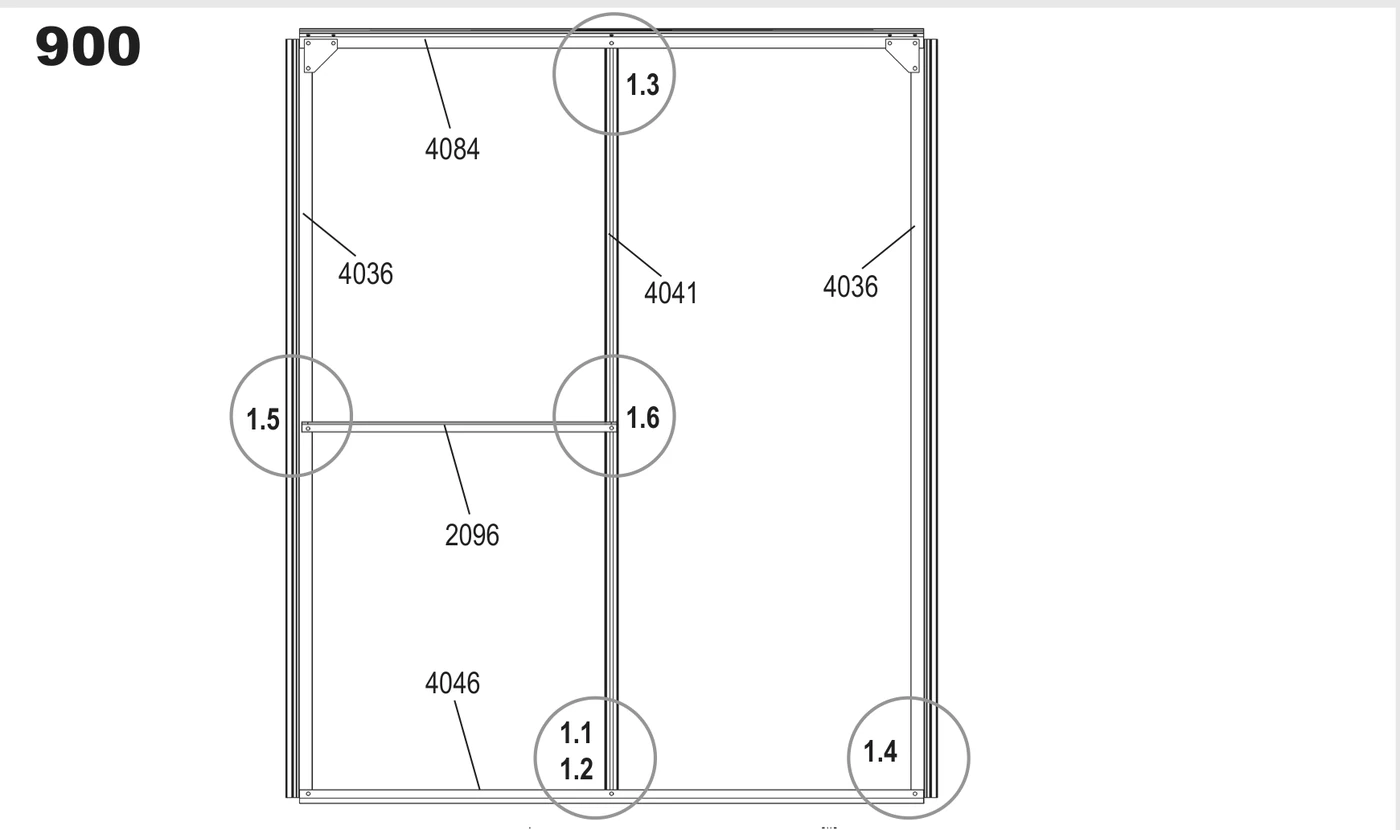

Step 1 drawing, 900Step 1 drawing, 1300
Vitavia drawing 1. The circled numbers match the pictures below.

Installer tip

We recommend laying the parts on a blanket or lawn to protect the finish. Leave every nut loose so the frame can flex when you square it in step 3.

Watch out

Use two bars 4041 and two bars 2096 for the 1300, or one of each for the 900. Follow your size's drawing.

Detail 1.1
1.1

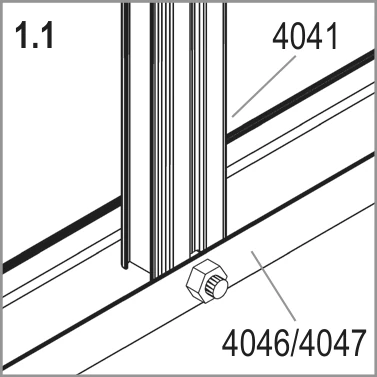

Bolt the bottom of bar 4041 to your bottom bar (4046 or 4047).

Detail 1.2
1.2Outside view

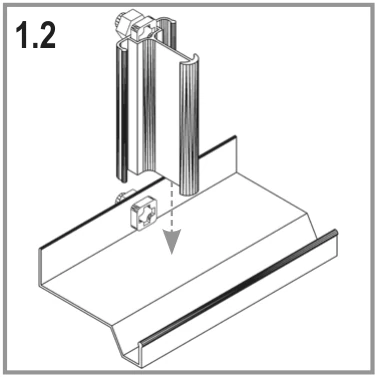

Slide a bolt into the channel of your bottom bar (4046 or 4047), as the arrow shows. Join bar 4041 as shown in this outside view.

Detail 1.3
1.3

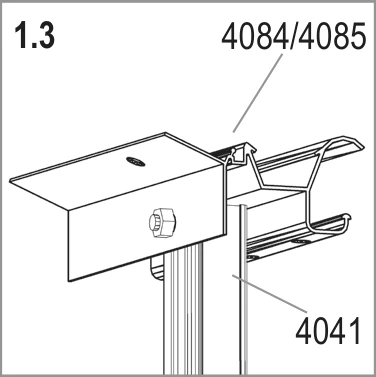

Bolt the top of bar 4041 to your eaves door track (4084 or 4085).

Detail 1.4
1.4

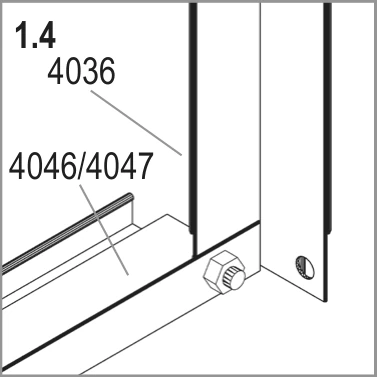

At each end, bolt bar 4036 to your bottom bar (4046 or 4047).

Detail 1.5
1.5

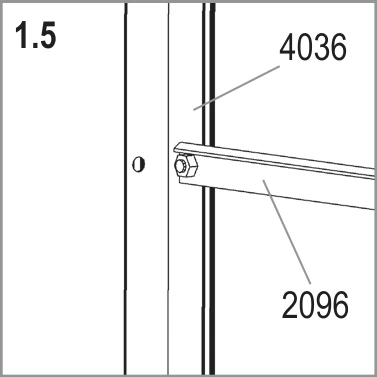

Bolt bar 2096 to bar 4036.

Detail 1.6
1.6

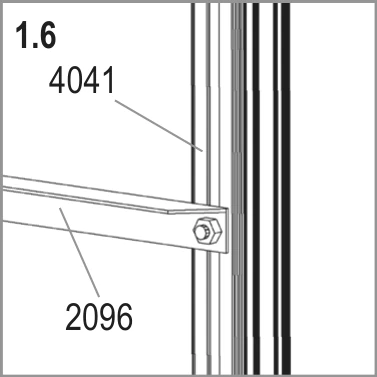

Bolt the other end of bar 2096 to bar 4041.

2
Step 2

Build ends and roof

Follow your size's drawing to connect the ends and roof, with all bolts still loose.

You need

Part 1001
1001×21
Part 1001
1001×24
Part 1002
1002×21
Part 1002
1002×24
Part 1092
1092×2
Part 1092
1092×2
Part 4022
4022×2
Part 4022
4022×2
Part 4050
4050×1
Part 4051
4051×1
Part 4055
4055×1
Part 4055
4055×2
Part 4096
4096×2
Part 4096
4096×2
Part 4080
4080×1
Part 4080
4080×1
Part 4081
4081×1
Part 4081
4081×1
Part 4082
4082×1
Part 4082
4082×1
Part 4083
4083×1
Part 4083
4083×1
Part 7395
7395×5
Part 7395
7395×6

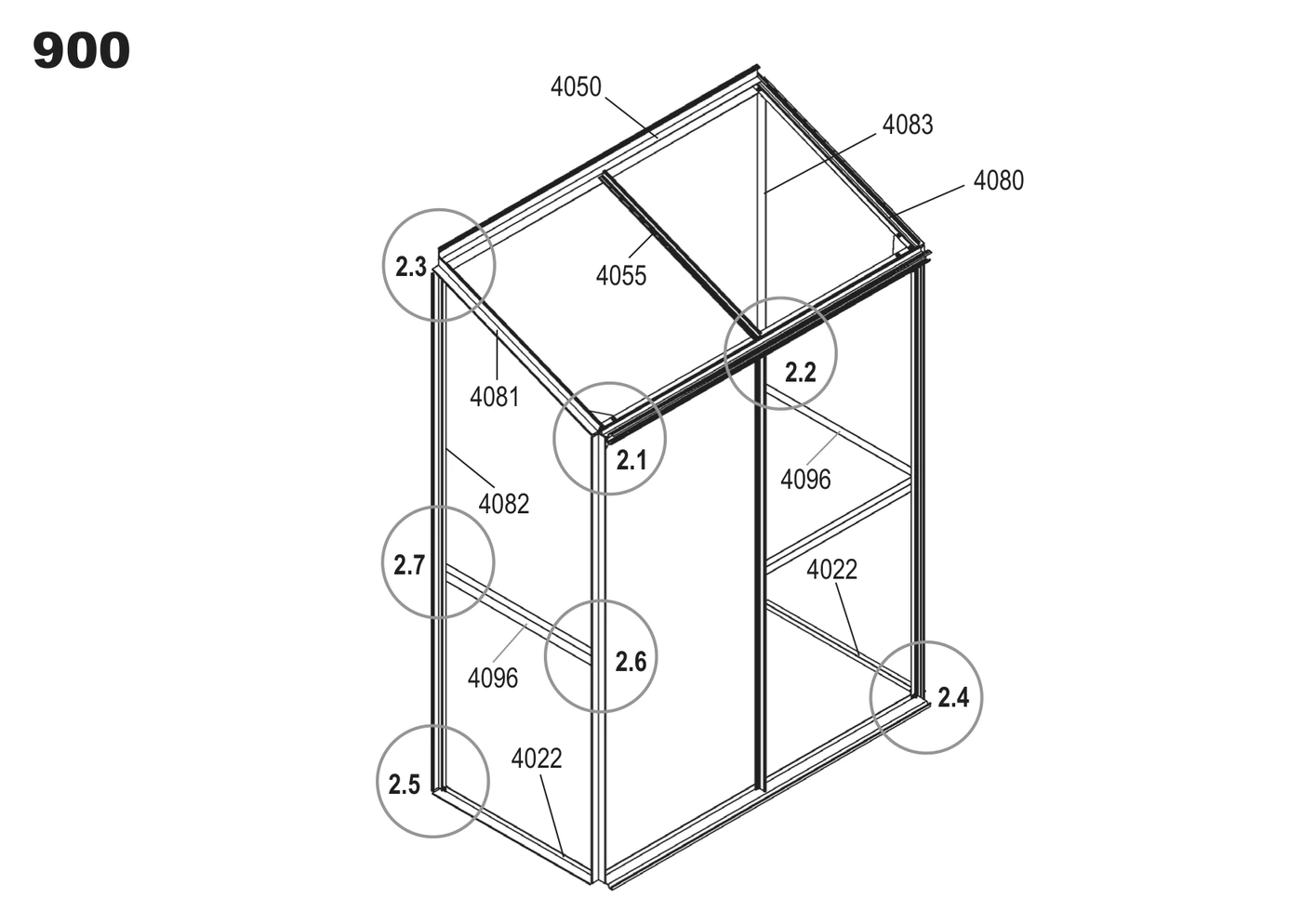

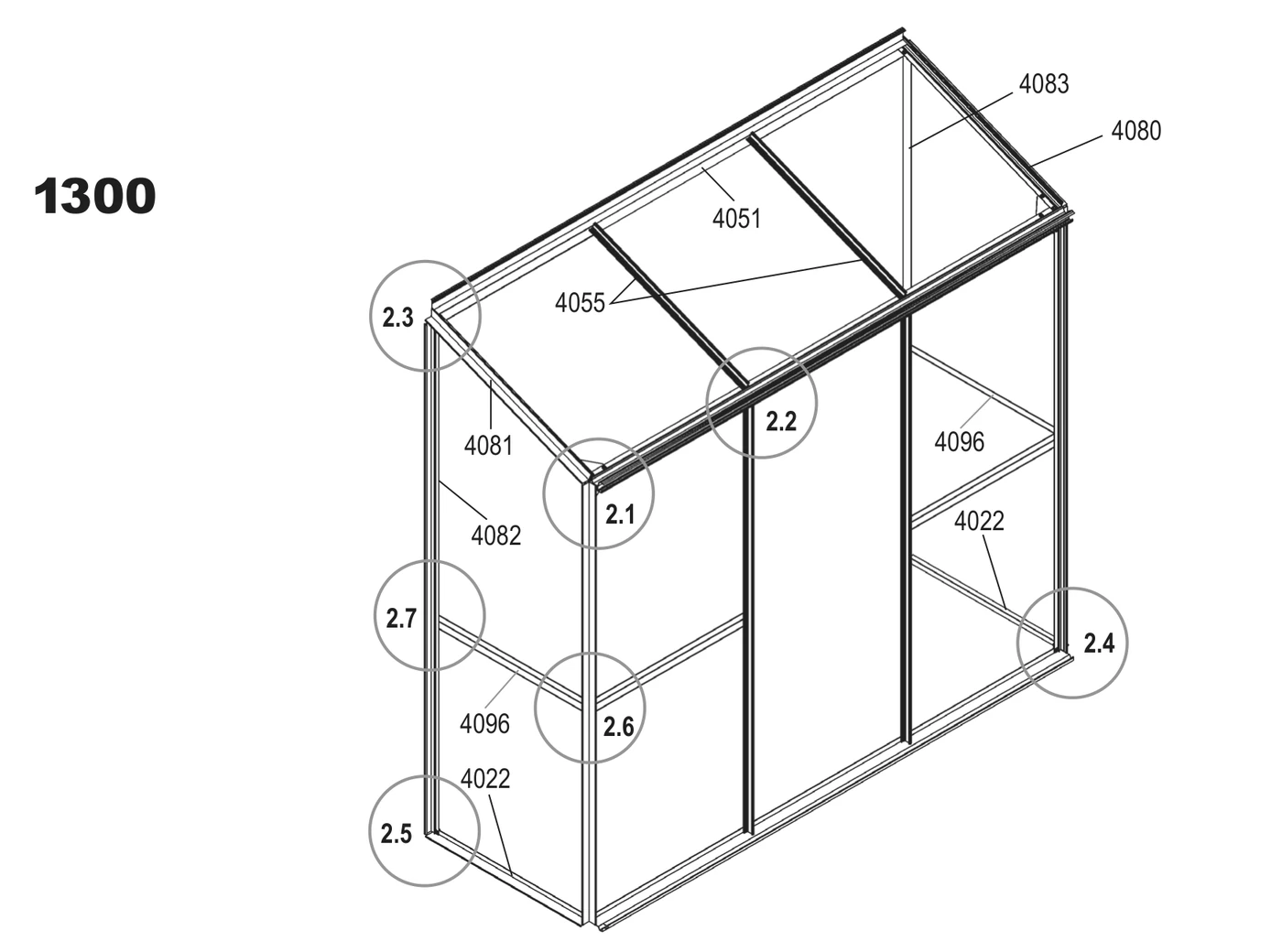

Step 2 drawing, 900Step 2 drawing, 1300
Vitavia drawing 2. The circled numbers match the pictures below.

Installer tip

Slide the extra bolt into each roof glazing bar 4055 before you fit the bar.

Watch out

Do not miss the extra bolt in each roof glazing bar 4055. You need it to fix the roof vent in step 5.

Detail 2.1
2.1

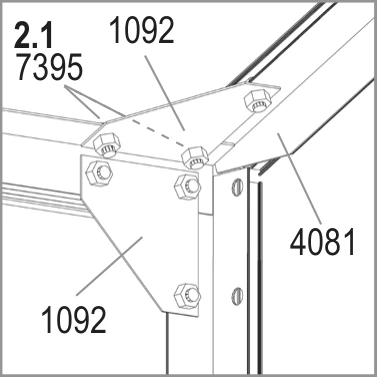

Connect gable end bars 4080 and 4081 to your eaves door track (4084 or 4085). Loosely fit corner plate 1092 above the eaves; use washers 7395 at every eaves door track connection.

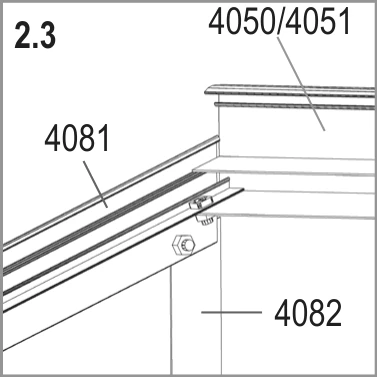

Detail 2.3
2.3

At the wall side, connect gable end bars 4080 and 4081 to vertical wall bars 4082 and 4083. Join them to your ridge bar (4050 or 4051) as shown.

Detail 2.4
2.4

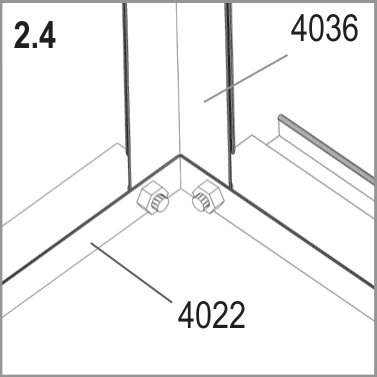

Bolt sill bar 4022 to bar 4036 at the front corner.

Detail 2.5
2.5

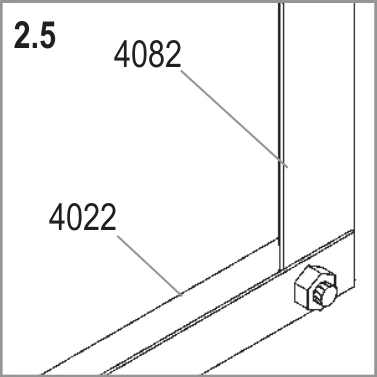

Bolt sill bar 4022 to vertical wall bar 4082 at the wall end.

Detail 2.6
2.6

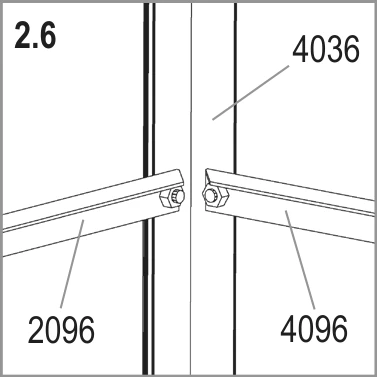

Bolt bar 4096 and bar 2096 to bar 4036 as shown.

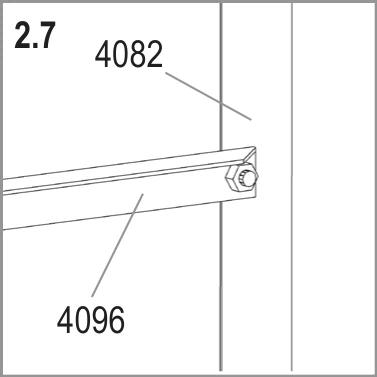

Detail 2.7
2.7

Bolt the other end of bar 4096 to vertical wall bar 4082.

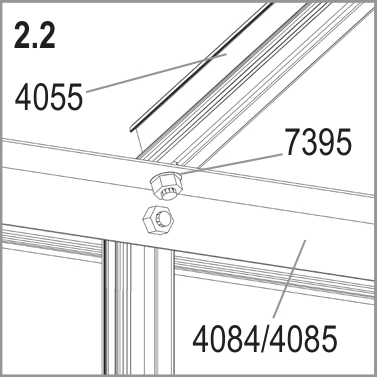

Detail 2.2
2.2

Fit roof glazing bars 4055 between your eaves door track (4084 or 4085) and ridge bar (4050 or 4051). Use washer 7395 at each eaves connection; insert one extra bolt per bar for the vent.

3
Step 3

Fix to the house wall

Work with two people to square the greenhouse on its base and fix its back to the house wall.

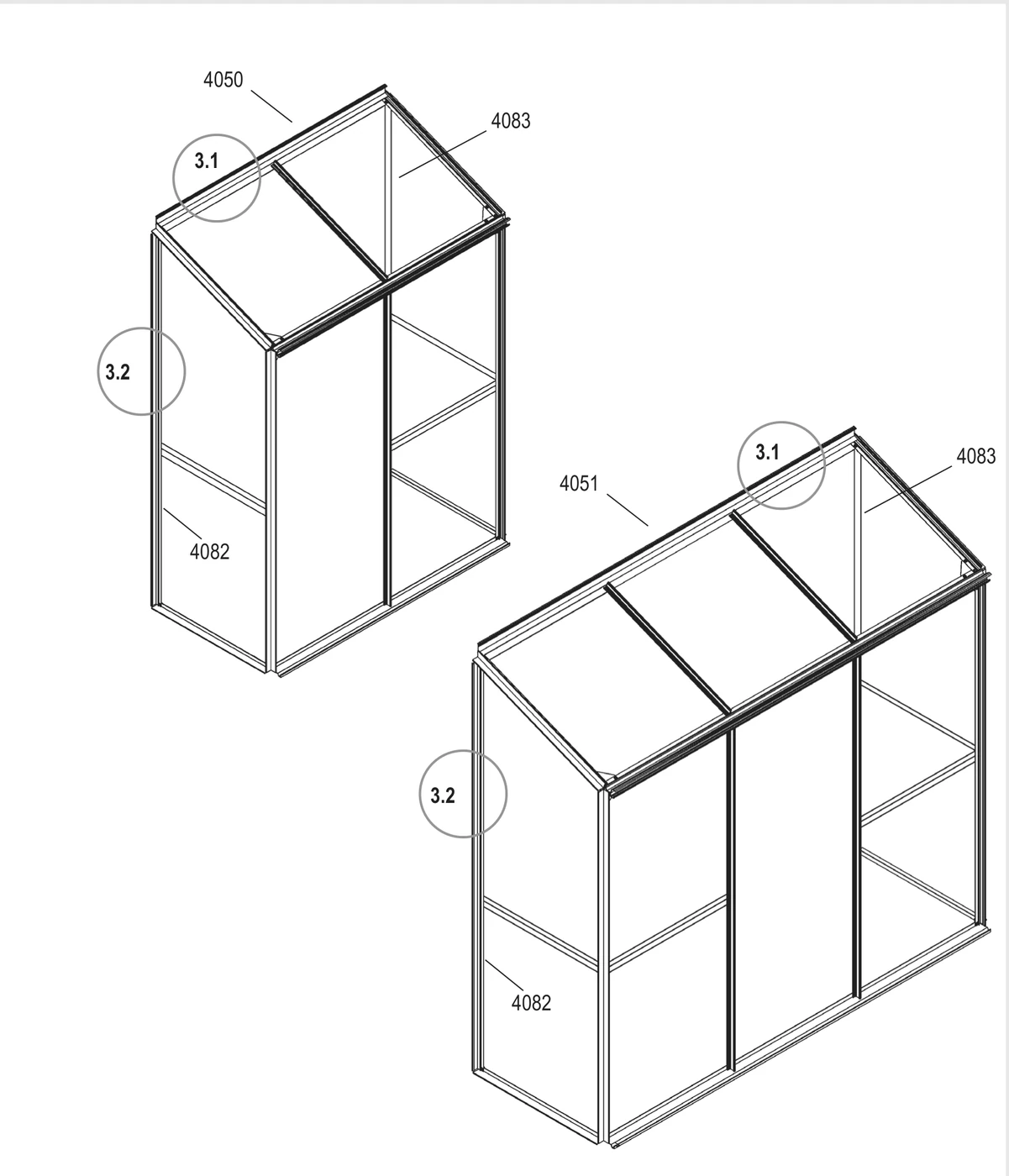

Step 3 drawing
Vitavia drawing 3. The circled numbers match the pictures below.

Installer tip

Check that the sides are perfectly vertical before you mark the holes on the wall.

Watch out

The wall plugs, screws and drill are not included.

Do this now

Put the greenhouse on your prepared base or foundation and connect it loosely. Adjust until completely square, check sides are perfectly vertical, then tighten all bolts to a maximum of 3 Nm.

Do this now

Mark the pre-drilled holes in vertical wall bars 4082 and 4083 and your ridge bar (4050 or 4051). Lift off the frame; drill 6 mm wall holes and insert 6 mm wall plugs.

Detail 3.1
3.1Outside view

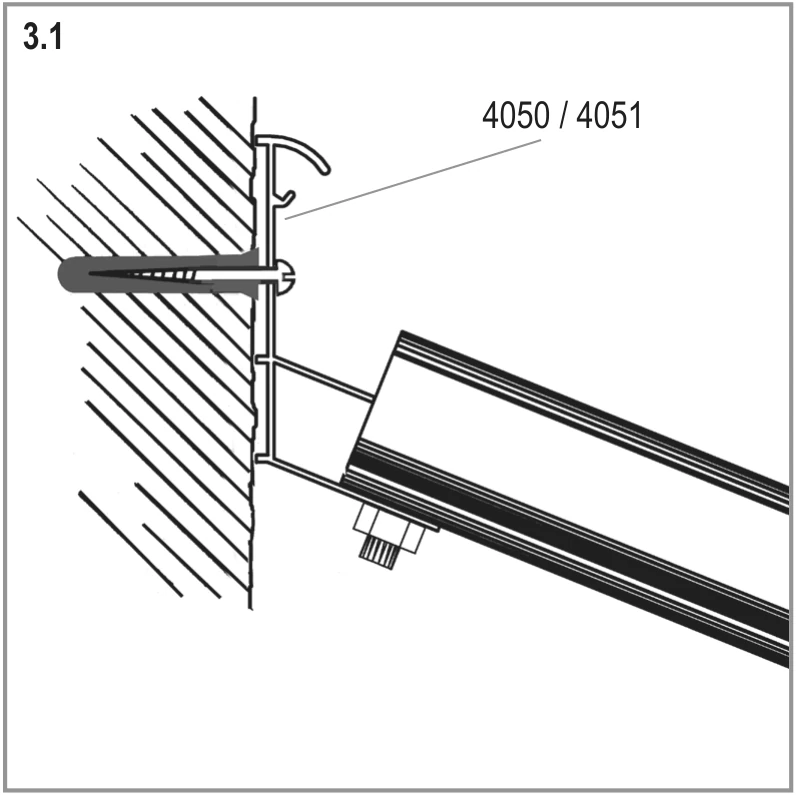

Put the frame back on the base. Screw your ridge bar (4050 or 4051) to the wall as shown.

Detail 3.2
3.2Outside view

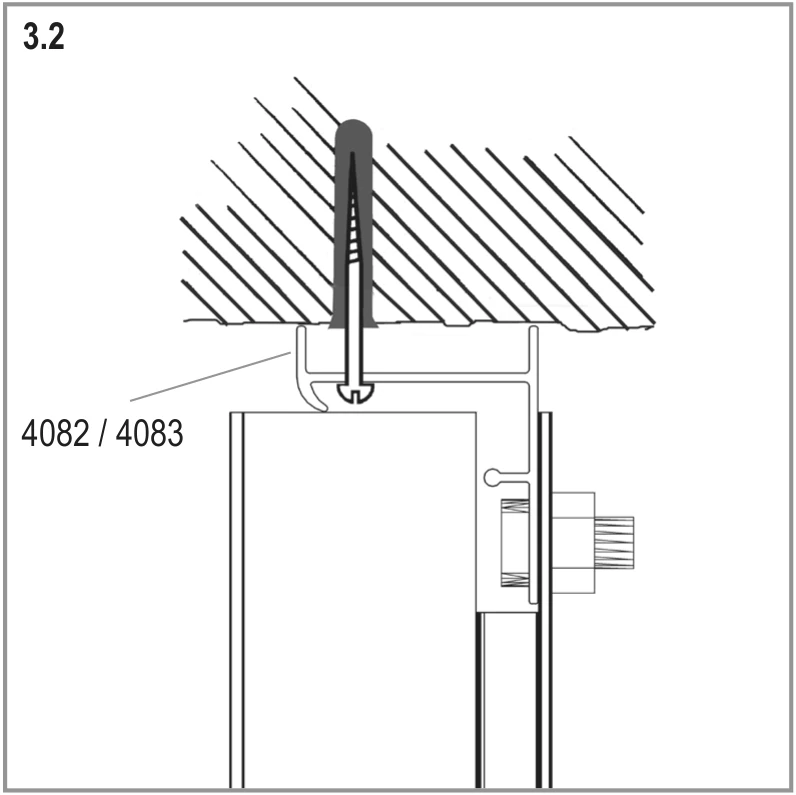

Screw vertical wall bars 4082 and 4083 to the wall as shown.

Do this now

Finally, fix the frame to the base.

4
Step 4

Build and hang the door

Assemble the sliding door, then fit it into the upper and lower tracks.

You need

Part 1001
1001×4
Part 1001
1001×4
Part 1002
1002×4
Part 1002
1002×4
Part 1003
1003×16
Part 1003
1003×16
Part 1004
1004×2
Part 1004
1004×2
Part 1007
1007×2
Part 1007
1007×2
Part 1009
1009×2
Part 1009
1009×2
Part 1014
1014×2
Part 1014
1014×2
Part 1015
1015×2
Part 1015
1015×2
Part 1059
1059×1
Part 1059
1059×1
Part 1060
1060×1
Part 1060
1060×1
Part 1061
1061×2
Part 1061
1061×2
Part 1062
1062×1
Part 1062
1062×1
Part 1111
1111×1
Part 1111
1111×1
Part 1112
1112×1
Part 1112
1112×1
Part 1113
1113×1
Part 1113
1113×1
Part 1500
1500×2
Part 1500
1500×2
Part 1515
1515×2
Part 1515
1515×2
Part 4021
4021×2
Part 4021
4021×2
Part 4058
4058×2
Part 4058
4058×2

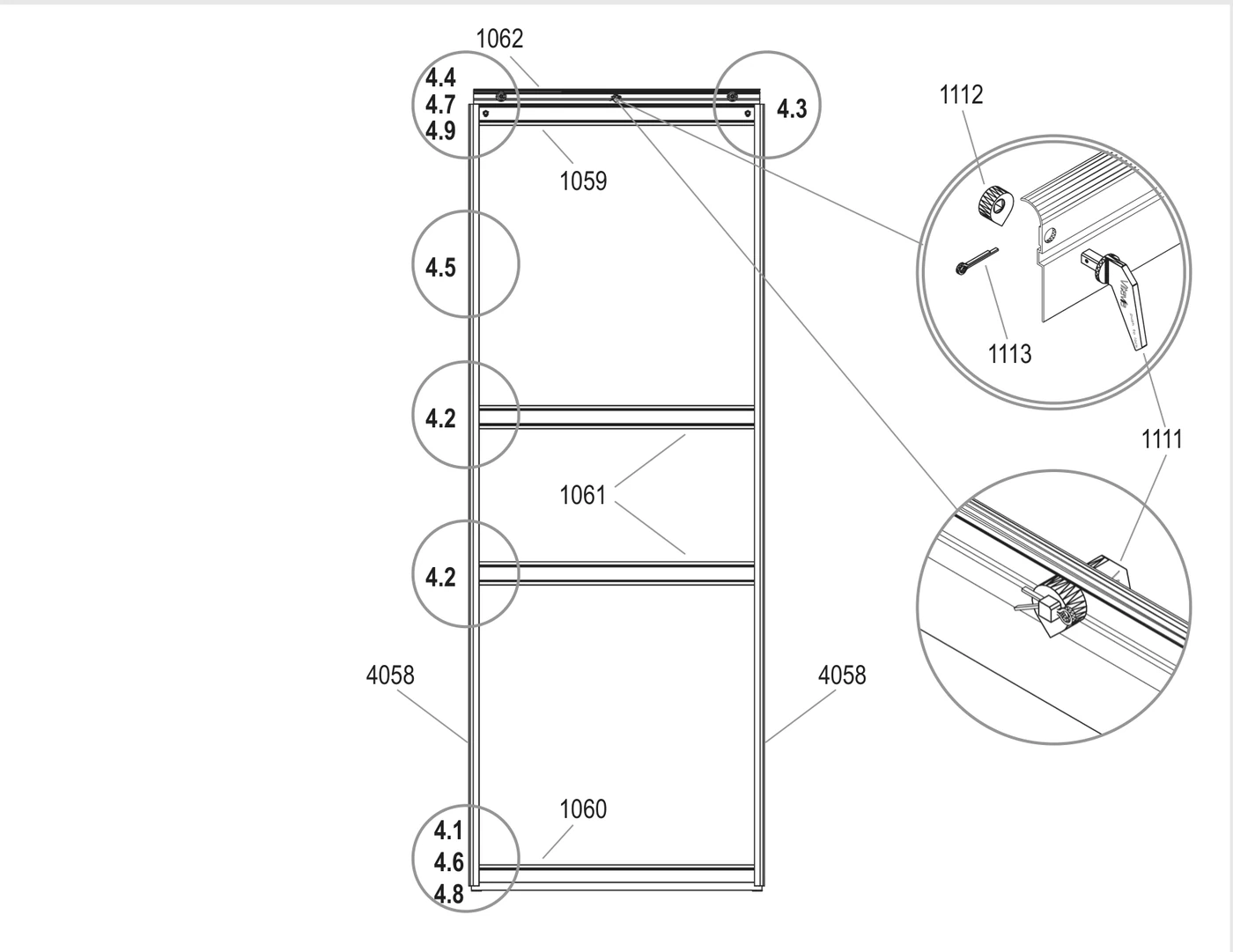

Step 4 drawing
Vitavia drawing 4. The circled numbers match the pictures below.

Installer tip

If the door binds or jumps the track, the frame is almost certainly not quite square. Check the frame before you force the door.

Watch out

Never stand the assembled door on its gliders 1014. This damages them.

Detail 4.1
4.1

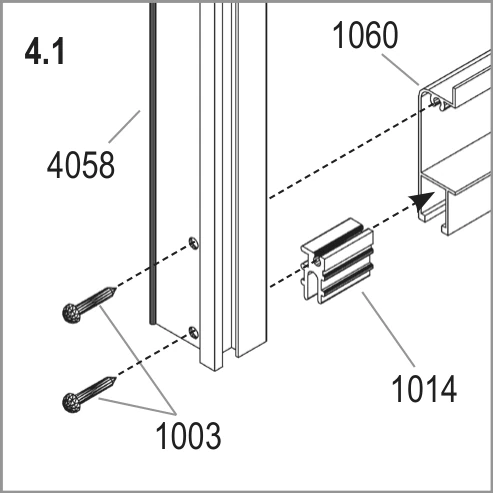

Push a door glider 1014 onto each end of door bar 1060. Screw side bar 4058 to it with screws 1003.

Detail 4.2
4.2

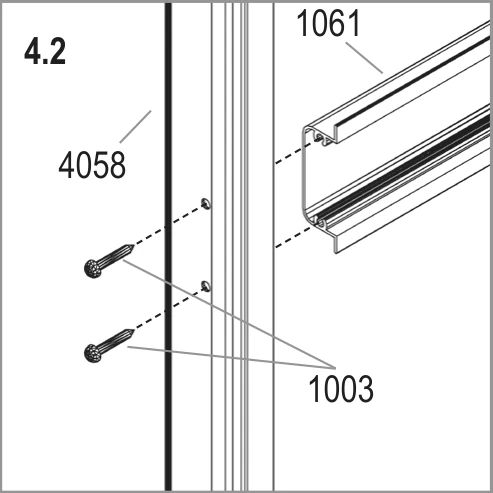

Screw the two bars 1061 to side bars 4058 with screws 1003.

Detail 4.3
4.3

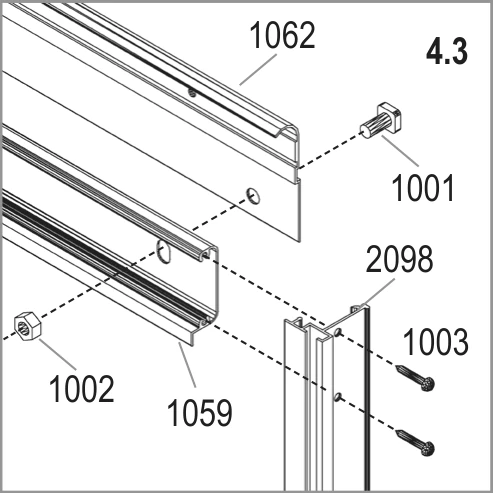

Bolt door bar 1062 to upper bar 1059 with bolt 1001 and nut 1002. Screw the side bar to it with screws 1003.

Detail 4.4
4.4

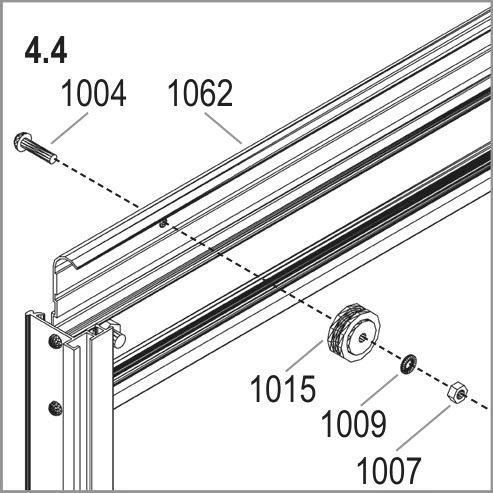

Fix the two door rollers 1015 to door bar 1062 with bolt 1004, washer 1009 and nut 1007.

Detail 4.5
4.5Outside view

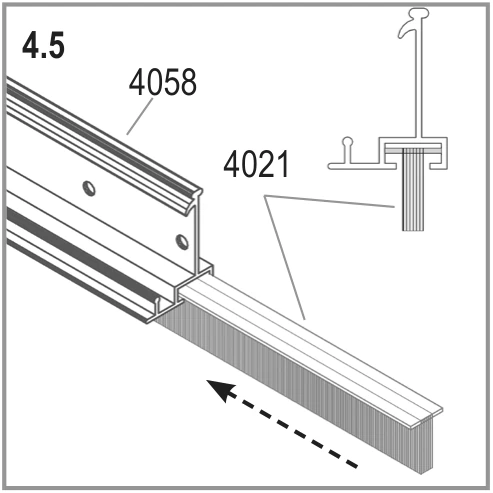

Slide a door seal 4021 into each side bar 4058.

Detail 4.6
4.6

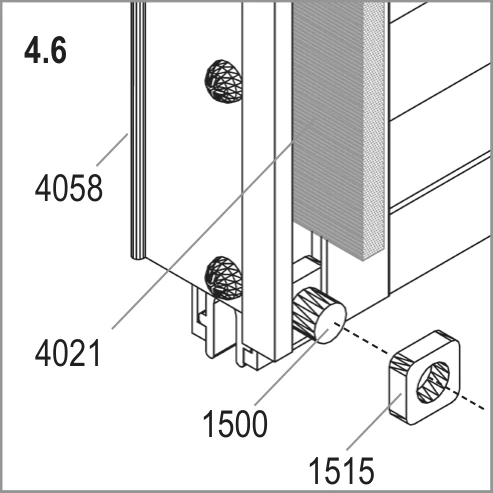

Slide bolt 1500 into the bottom of the channel that holds door seal 4021; fix it with nut 1515. Cut door seals 4021 to length.

Do this now

Connect door fixer parts 1111, 1112 and 1113 as shown in the door drawing.

Detail 4.7
4.7Outside view

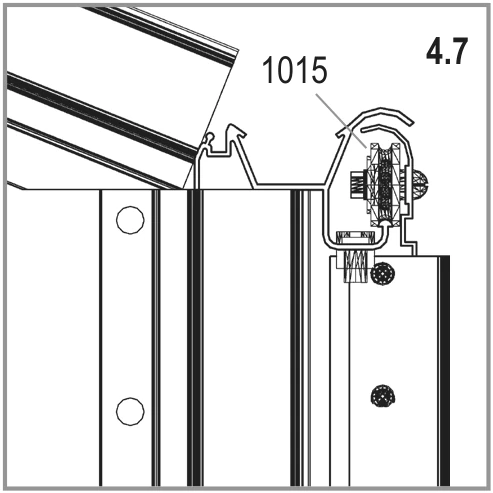

Lift the door and slide door rollers 1015 into your eaves door track (4084 or 4085).

Detail 4.8
4.8Outside view

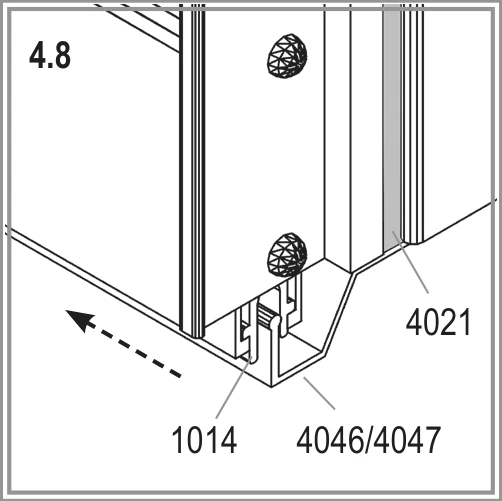

Check that door gliders 1014 also run in the bottom track of your bottom bar (4046 or 4047).

Do this now

With the door fitted, put a nut and bolt into both ends of your eaves door track (4084 or 4085). These are door stops; adjust the door until it slides freely.

5
Step 5

Build the roof vent

Assemble the vent around its glass, then hook it into your ridge bar.

You need

Part 1001
1001×4
Part 1001
1001×4
Part 1002
1002×5
Part 1002
1002×5
Part 1006
1006×6
Part 1006
1006×6
Part 1016
1016×2
Part 1016
1016×2
Part 1019
1019×1
Part 1019
1019×1
Part 1063
1063×1
Part 1063
1063×1
Part 1064
1064×1
Part 1064
1064×1
Part 1065
1065×2
Part 1065
1065×2
Part 1066
1066×1
Part 1066
1066×1
Part 1067
1067×1
Part 1067
1067×1
Part 2001
2001×1
Part 2001
2001×1

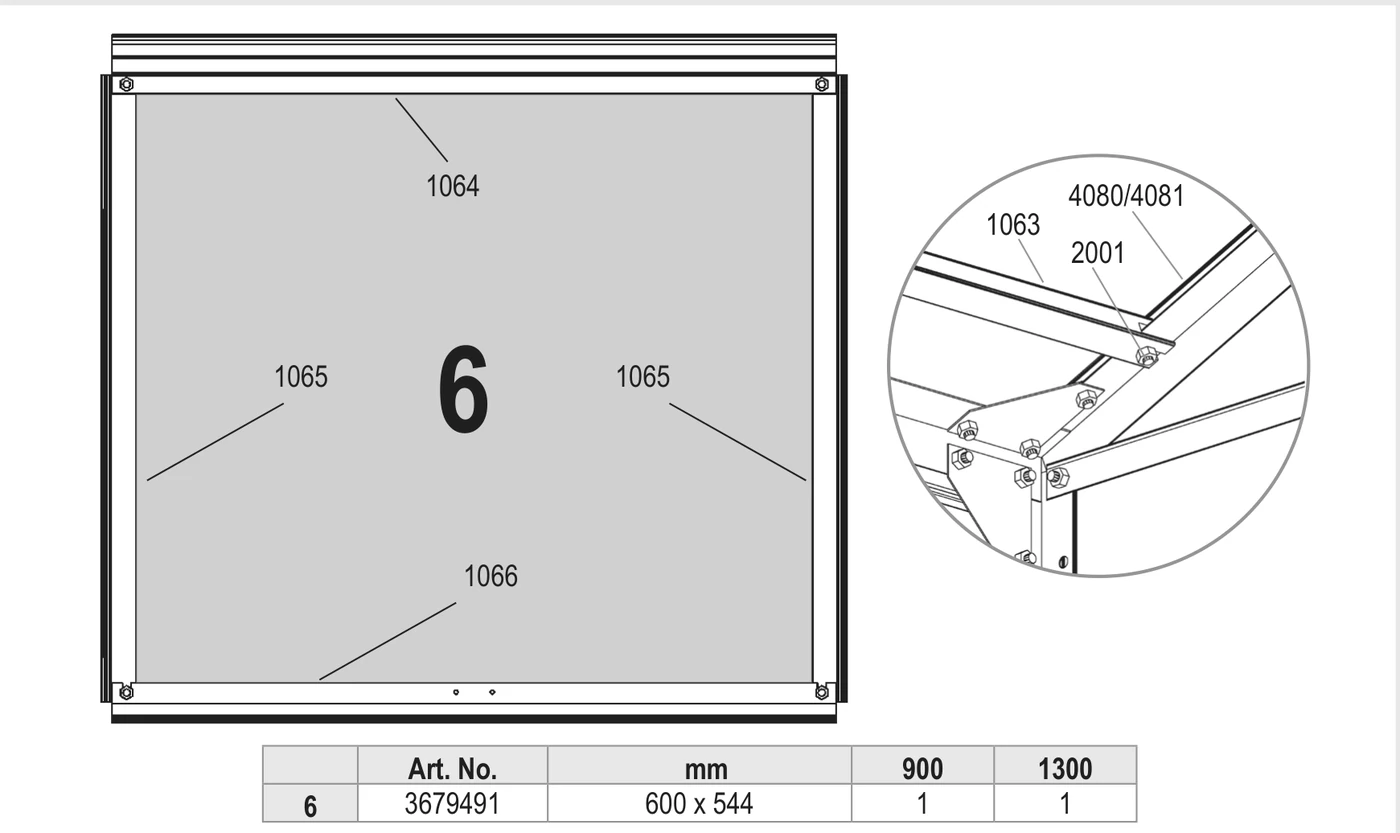

Step 5 drawing
Vitavia drawing 5. The circled numbers match the pictures below.

Installer tip

Fit window sill 1063 flat edge up, with its grooved lip facing down towards the pane below. If that pane will not sit snugly, recheck window sill 1063.

Watch out

On the Ida 1300, fit the vent in the middle section if you can. Use the extra roof glazing bar bolts there; bolt 2001 is not needed.

Detail 5.1
5.1

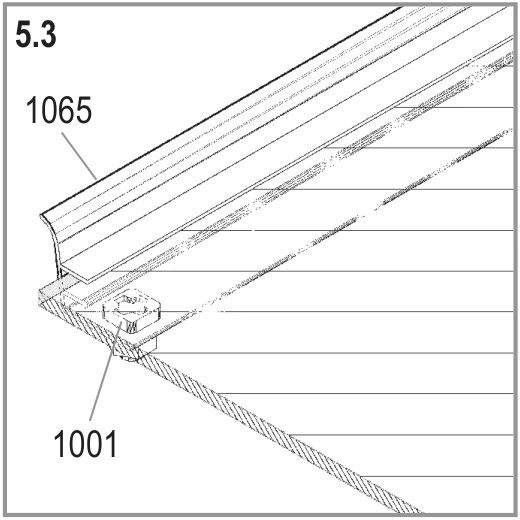

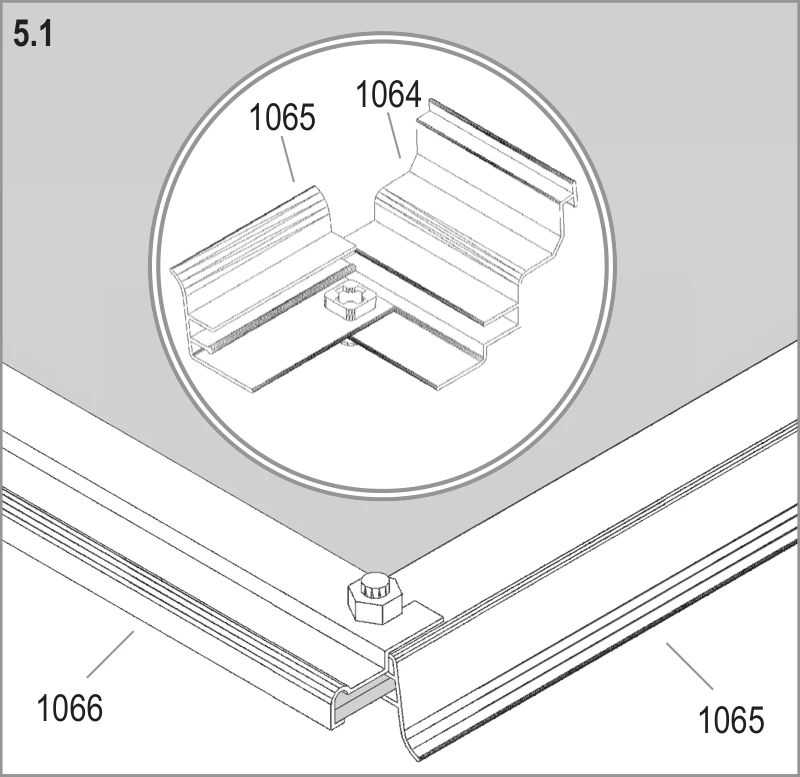

For glass up to 4 mm thick, join side bars 1065 and top bar 1064 as shown.

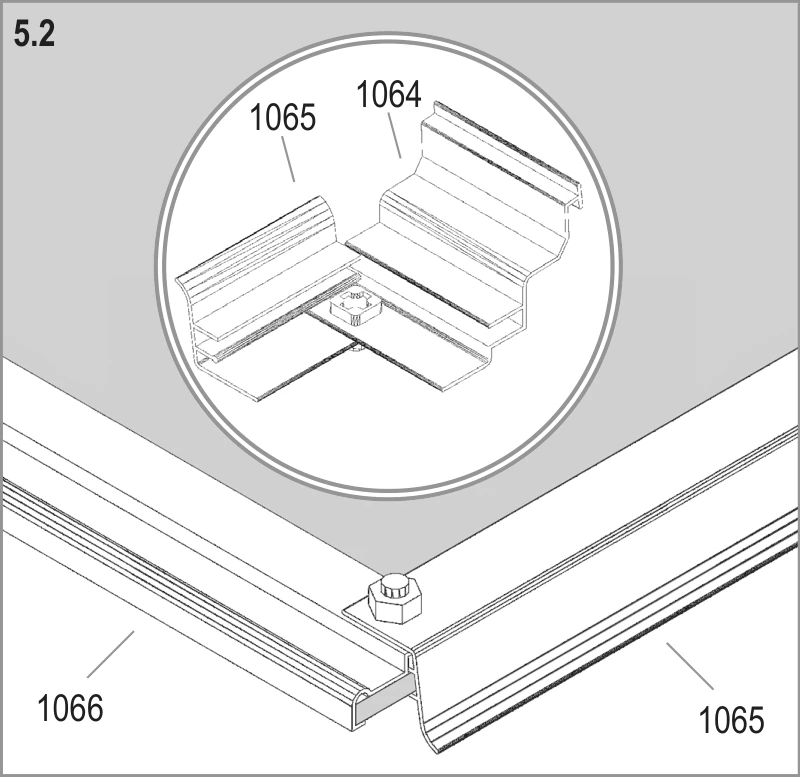

Detail 5.2
5.2

For glass 4 mm or thicker, join side bars 1065 and top bar 1064 as shown here instead.

Detail 5.3
5.3Outside view

Put bolts 1001 for bottom bar 1066 into the prepared holes; slide vent glass into side bar tracks 1065. Fit bottom bar 1066; check the vent is completely square before you tighten the bolts.

Detail 5.4

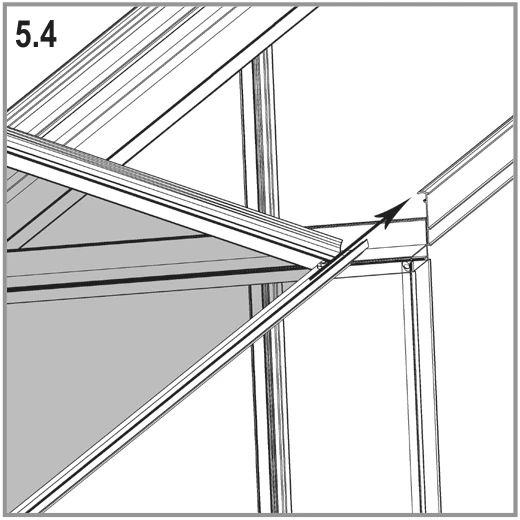

5.4Outside view

Hook the vent into the ridge bar from one end of the greenhouse.

Detail 5.5

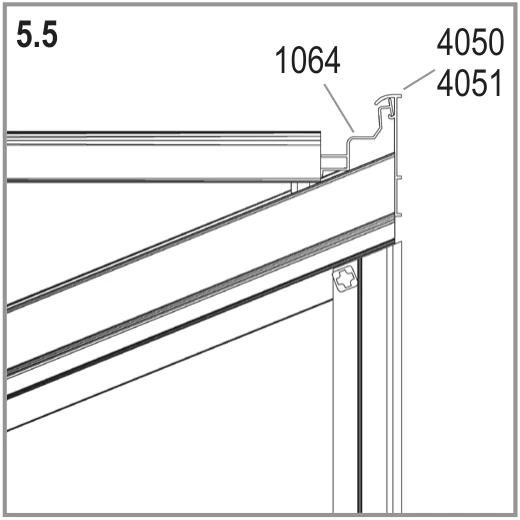

5.5Outside view

Hook vent top bar 1064 over your ridge bar (4050 or 4051).

Detail 5.6

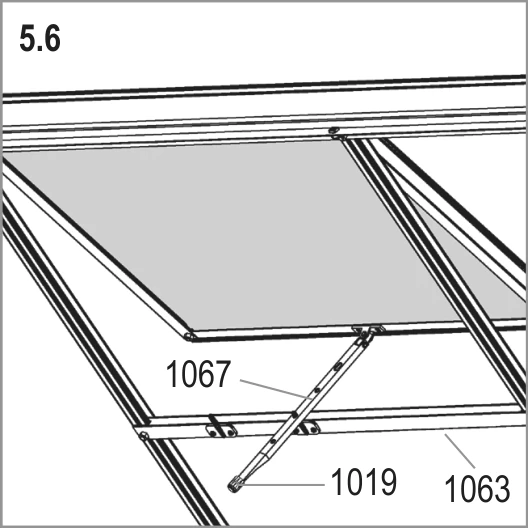

5.6Outside view

Slide the vent along to your chosen position. Push plastic cap 1019 over the end of window opener 1067.

Detail 5.7

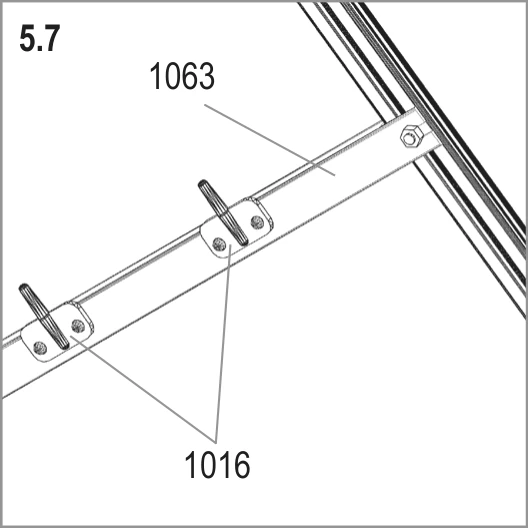

5.7Outside view

Fix window sill 1063 to each extra bolt in roof glazing bars 4055 and corner bar bolt 2001, as shown. Screw both window fixers 1016 onto window sill 1063 with screws 1006.

Detail 5.8

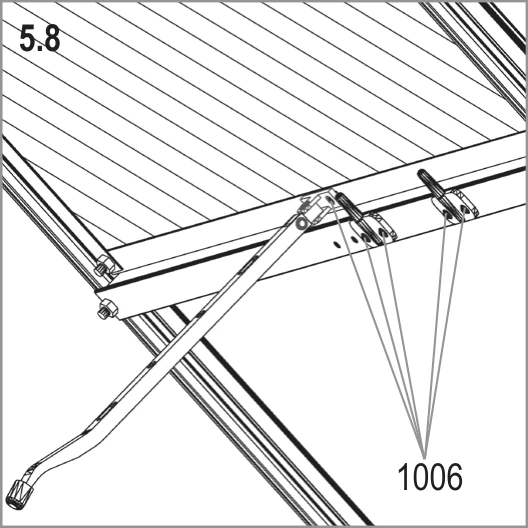

5.8Outside view

Screw window opener 1067 to vent bottom bar 1066 with screws 1006.

6
Step 6

Fit the glass

Fit the glazing seal before any glass, then work upwards with the panes.

Polycarbonate sheets

This step and its pane table cover horticultural glass. Your polycarbonate sheets are different sizes and use different fixings. We recommend you glaze using the fitting instructions Vitavia packs with your polycarbonate sheets.

Your toughened glass

Your toughened glass comes as full panes, listed in the table below. Use the plan below for pane positions, not the drawing above. Your plan shows plastic H strips joining the glass in the gable end. Check the table for how many you need.

PaneSize (mm)9001300
A610 x 150034
B610 x 67612
C610 x 50822
D600 x 54511
E610 x 30511
F610 x 12211
G610 x 257 x 1122
Total panes1113
Plastic H profiles22

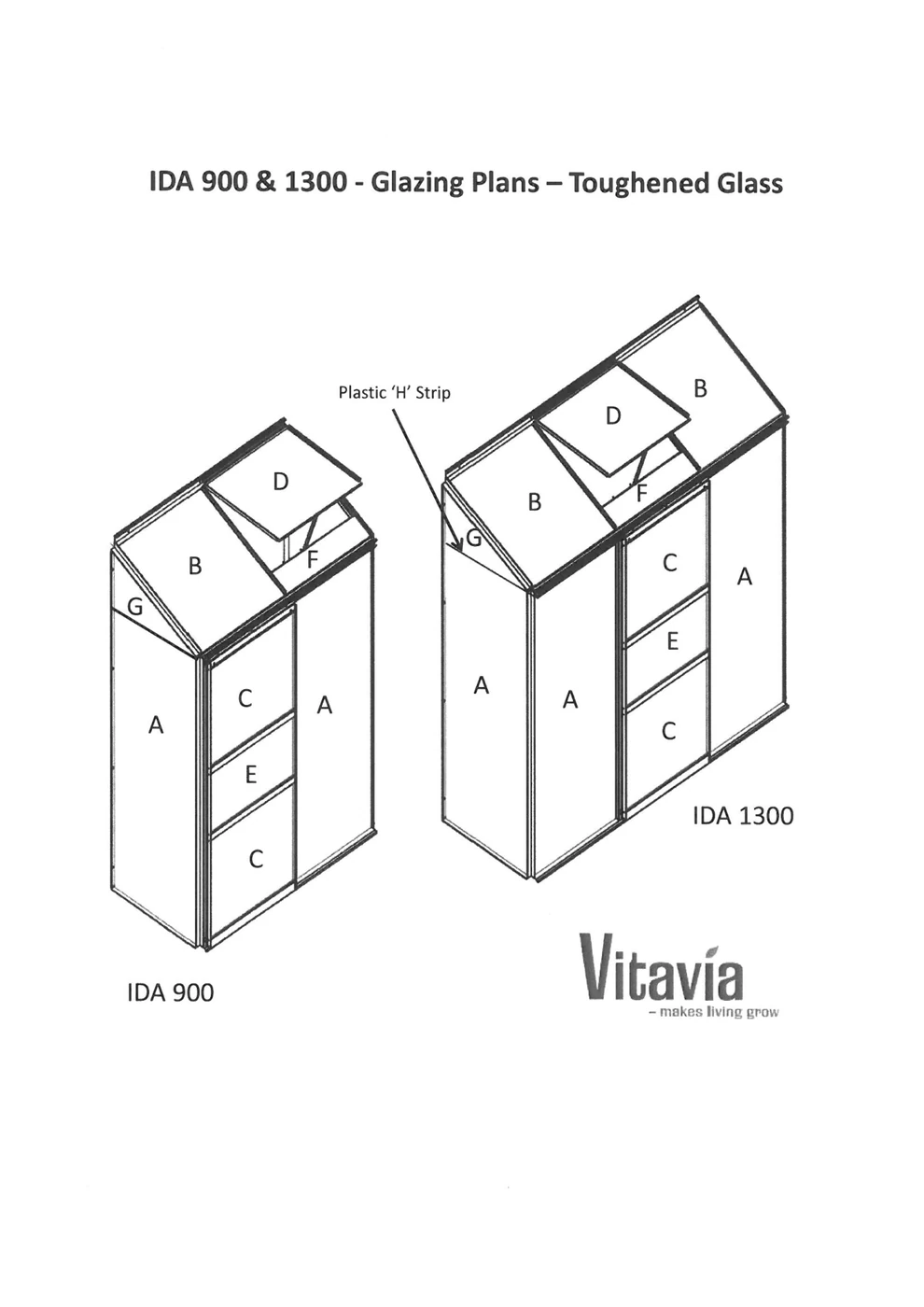

Vitavia toughened glass plan for the Ida
Vitavia's toughened glass plan. Pane numbers match the table.

You need

Part 1011
1011×70
Part 1011
1011×90
Part 1012
1012×18
Part 1012
1012×24
Part 1020
1020×1
Part 1020
1020×1

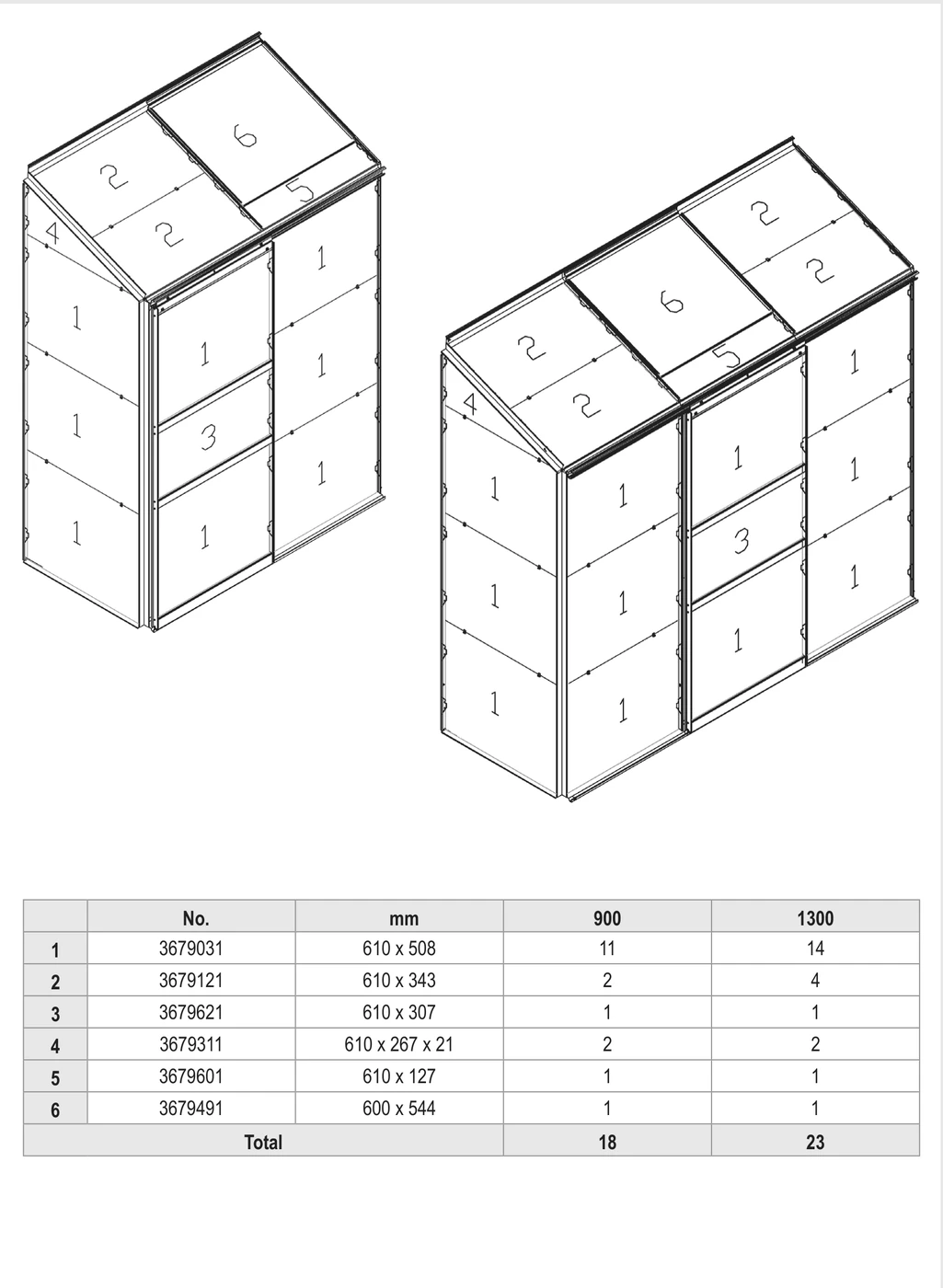

Step 6 drawing
Vitavia drawing 6. The circled numbers match the pictures below.

Installer tip

We recommend soaking the whole glazing seal reel in hot soapy water first; it softens and presses on more easily. Check the glazing layout: an oversized pane usually belongs in another opening.

Watch out

Never force a pane, as forcing glass cracks it. If it will not seat, correct the out-of-square frame first.

Do this now

Choose any front section for your door. Leave that section free of glass for now.

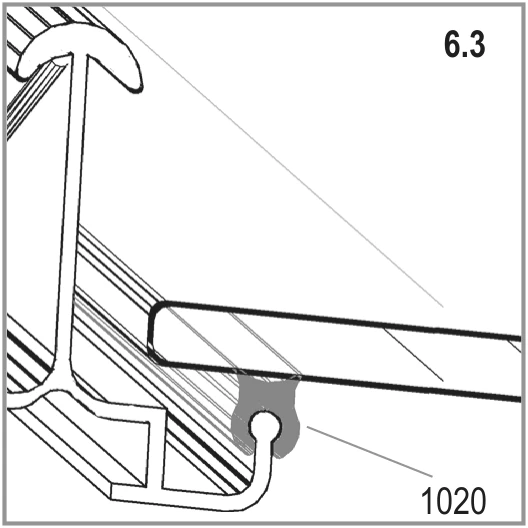

Detail 6.3
6.3Outside view

Press glazing seal 1020 onto the aluminium profiles and cut it to length. Do this before you fit any glass.

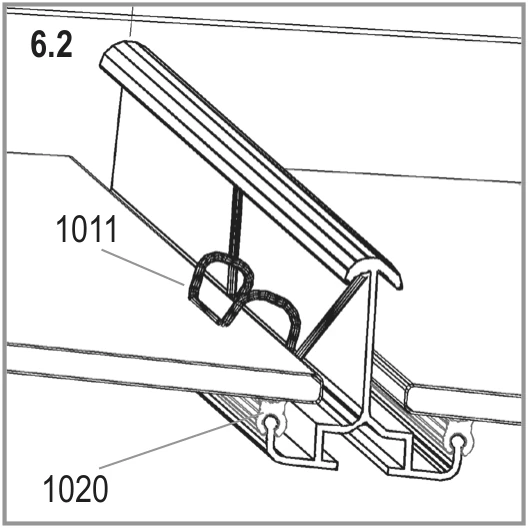

Detail 6.2
6.2Outside view

Start at the eave on the roof. Fix the first pane with glazing spring clips 1011.

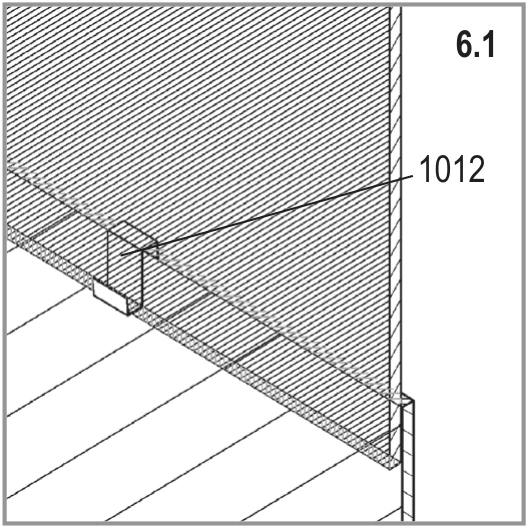

Detail 6.1
6.1Outside view

Place each next pane over the pane directly below it. Secure it with glass retaining clips 1012 between the panes.

Do this now

Start at the bottom of the sides and work upwards. If you chose polycarbonate sheets instead, follow the instructions packed with them.

Horticultural glass for your greenhouse

PaneSize (mm)9001300
1610 x 5081114
2610 x 34324
3610 x 30711
4610 x 267 x 2122
5610 x 12711
6600 x 54411
Total1823

Pane numbers match the glazing layout in the drawing above.

Last jobs

Finish and look after it

Finish

  • Anchor your greenhouse. This is not optional.
  • If you wish, seal the edges with neutral silicone, which is not supplied.
  • Stick the warning label inside your greenhouse.
  • Stick the model label onto door bar 1062. You need it to order spare parts.
  • Keep this guide somewhere safe.

Looking after it

  • Shut the door and roof vent in high winds.
  • Clear the roof or support it in heavy snow. Heat your greenhouse in winter.
  • Wash occasionally with a mild detergent that does not attack aluminium or the glass fixing clips.
  • Keep the upper and lower door tracks clean so grit does not build up.
  • Add your greenhouse to your home insurance. Check local building rules about where it can go.

Drawings reproduced from the Vitavia assembly instructions (Vitavia manual 003.02.1302 (Ida 900 and 1300, glass)). Greenhouse Stores, greenhousestores.co.uk.
