Assembly guide

Vitavia Venus

Sizes 2500, 3800, 5000

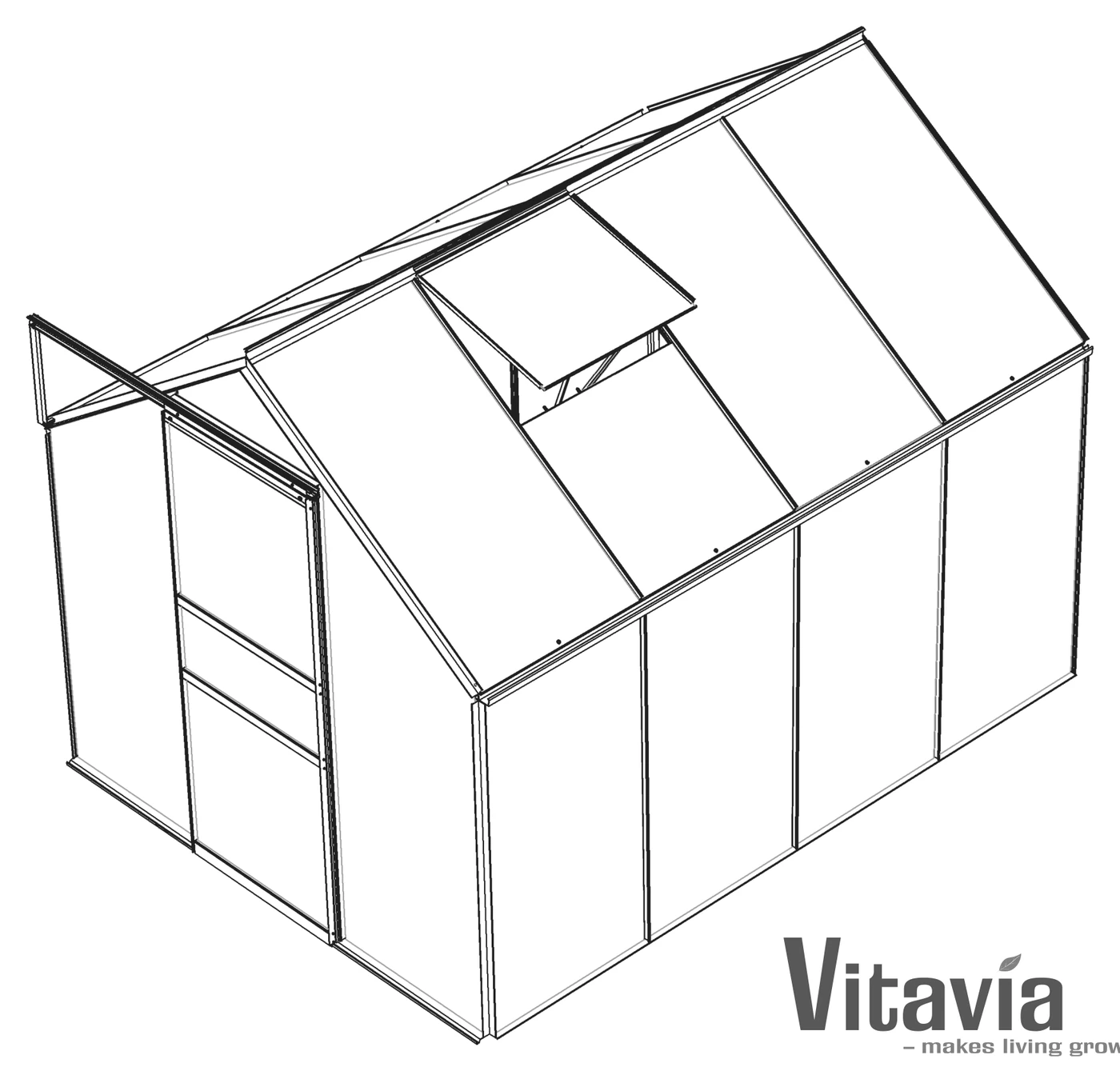

Vitavia Venus greenhouse
8steps, base first
2people needed
1300 mm1922 mm2544 mm × 1922 mm1922 mm1922 mmbase size (A × B)

Pick your size at the top. Quantities and drawings change to match.

The build at a glance

Drawings: Vitavia (Vitavia manual 041.01.1306 (Venus 2500, 3800, 5000)). Words and layout: Greenhouse Stores, greenhousestores.co.uk. Keep this guide with your greenhouse.
Read this first

Before you start

Six golden rules

  1. Build frames loose; tighten only when the whole greenhouse stands square on its base.
  2. Measure both diagonals; they must be equal.
  3. Never overtighten nuts 1002: maximum 3 Nm. Overtightening strips aluminium and cracks glass.
  4. Fit extra bolts when instructed; you cannot add them after bar ends are capped.
  5. Build with two people.
  6. Always anchor your greenhouse. An unanchored greenhouse can blow away.

Get ready

  • Read the whole guide once before you start.
  • Gather flat/PH2 screwdrivers, 10 mm socket spanner/wrench, 10 mm combination spanner, knife, tape measure, spirit level. Set cordless drill adjustable torque low.
  • Wear gloves, safety glasses, sturdy shoes and a hat. Aluminium edges are sharp. Clear up broken glass straight away.
  • Open one bundle at a time and keep opened bundles apart. Mixed bundles are the main cause of lost-part searches.
  • Check every part against the parts check pages. Contact Greenhouse Stores before you begin if anything is missing.
  • Read single-frame drawings as views from inside the greenhouse. Read double-frame drawings as views from outside.
  • Choose a sunny spot with as much shelter from wind as possible.
Single frame: inside view
Double frame: outside view
Before step 1

Parts check

Open one bundle at a time. Tick each part as you find it. The number in green is how many your size should have.

Bars and profiles

Part 1020
1020
Glazing seal (reel)
450005600067000 mm×111
Part 1021
1021
Door brush seal
161216121612 mm×222
Part 1050
1050
Ridge bar
124012401240 mm×1
Part 1051
1051
Ridge bar
186218621862 mm×1
Part 1052
1052
Ridge bar
248424842484 mm×1
Part 1063
1063
Vent sill
635635635 mm×111
Part 1064
1064
Vent top bar
602602602 mm×111
Part 1065
1065
Vent side bar
520520520 mm×222
Part 1066
1066
Vent bottom bar
602602602 mm×111
Part 1067
1067
Window opener
295295295 mm×111
Part 1322
1322
Sill bar
124012401240 mm×2
Part 1323
1323
Sill bar
186218621862 mm×131
Part 1324
1324
Sill bar
248424842484 mm×2
Part 1327
1327
Eave bar
124012401240 mm×2
Part 1328
1328
Eave bar
186218621862 mm×2
Part 1329
1329
Eave bar
248424842484 mm×2
Part 1332
1332
Side upright
121412141214 mm×246
Part 1333
1333
Diagonal brace
130413041304 mm×888
Part 1335
1335
Gable brace
185418541854 mm×111
Part 1336
1336
Corner bar
121412141214 mm×444
Part 1337
1337
Gable roof bar
115611561156 mm×111
Part 1338
1338
Gable roof bar
115611561156 mm×111
Part 1339
1339
Door gable roof bar
115611561156 mm×111
Part 1340
1340
Door gable roof bar
115611561156 mm×111
Part 1341
1341
Gable upright
1666.51666.51666.5 mm×111
Part 1342
1342
Gable upright
1666.51666.51666.5 mm×111
Part 1343
1343
Corner plate
170170170 mm×444
Part 1344
1344
Door post
165016501650 mm×111
Part 1345
1345
Door post
165016501650 mm×111
Part 1346
1346
Door gable bottom bar
186218621862 mm×111
Part 1347
1347
Door runner bar
125712571257 mm×111
Part 1348
1348
Door header bar
628.5628.5628.5 mm×111
Part 1349
1349
Door gable bar
600600600 mm×222
Part 1355
1355
Roof glazing bar
1132.51132.51132.5 mm×246
Part 1356
1356
Roof brace
255255255 mm×123
Part 1357
1357
Door runner support
393393393 mm×111
Part 1358
1358
Door side bar
161416141614 mm×222
Part 1359
1359
Door upper bar
621621621 mm×111
Part 1360
1360
Door bottom bar
621621621 mm×111
Part 1361
1361
Door middle bar
621621621 mm×222
Part 1362
1362
Door top bar
613613613 mm×111

Fixings and small parts

Part 1001
1001
Bolt
M6 x 12M6 x 12M6 x 12×90101112
Part 1002
1002
Nut
M6M6M6×92102113
Part 1003
1003
Screw
3.5 x 163.5 x 163.5 x 16×161616
Part 1005
1005
Bolt
M6 x 40M6 x 40M6 x 40×111
Part 1006
1006
Screw
3.5 x 63.5 x 63.5 x 6×666
Part 1007
1007
Nut
M4M4M4×222
Part 1009
1009
Washer
Ø8/4Ø8/4Ø8/4×222
Part 1011
1011
Glazing spring clip
707070×148180212
Part 1012
1012
Glass retaining clip
111111×384452
Part 1014
1014
Door glider
202020×222
Part 1015
1015
Door roller
Ø22Ø22Ø22×222
Part 1016
1016
Window fixer
404040×222
Part 1017
1017
End cap
464646×444
Part 1018
1018
End cap
43.743.743.7×888
Part 1019
1019
Plastic cap
151515×111
Part 1304
1304
Bolt
M4 x 18M4 x 18M4 x 18×222
Part 1310
1310
Spacer
30.430.430.4×111
Part 1500
1500
Bolt
M6 x 5M6 x 5M6 x 5×222
Part 1515
1515
Nut
M6M6M6×222
Part 2001
2001
Corner bolt
M6 x 12M6 x 12M6 x 12×1--
Part 6060
6060
Washer
Ø12/6Ø12/6Ø12/6×111
0
Step 0

Prepare your base

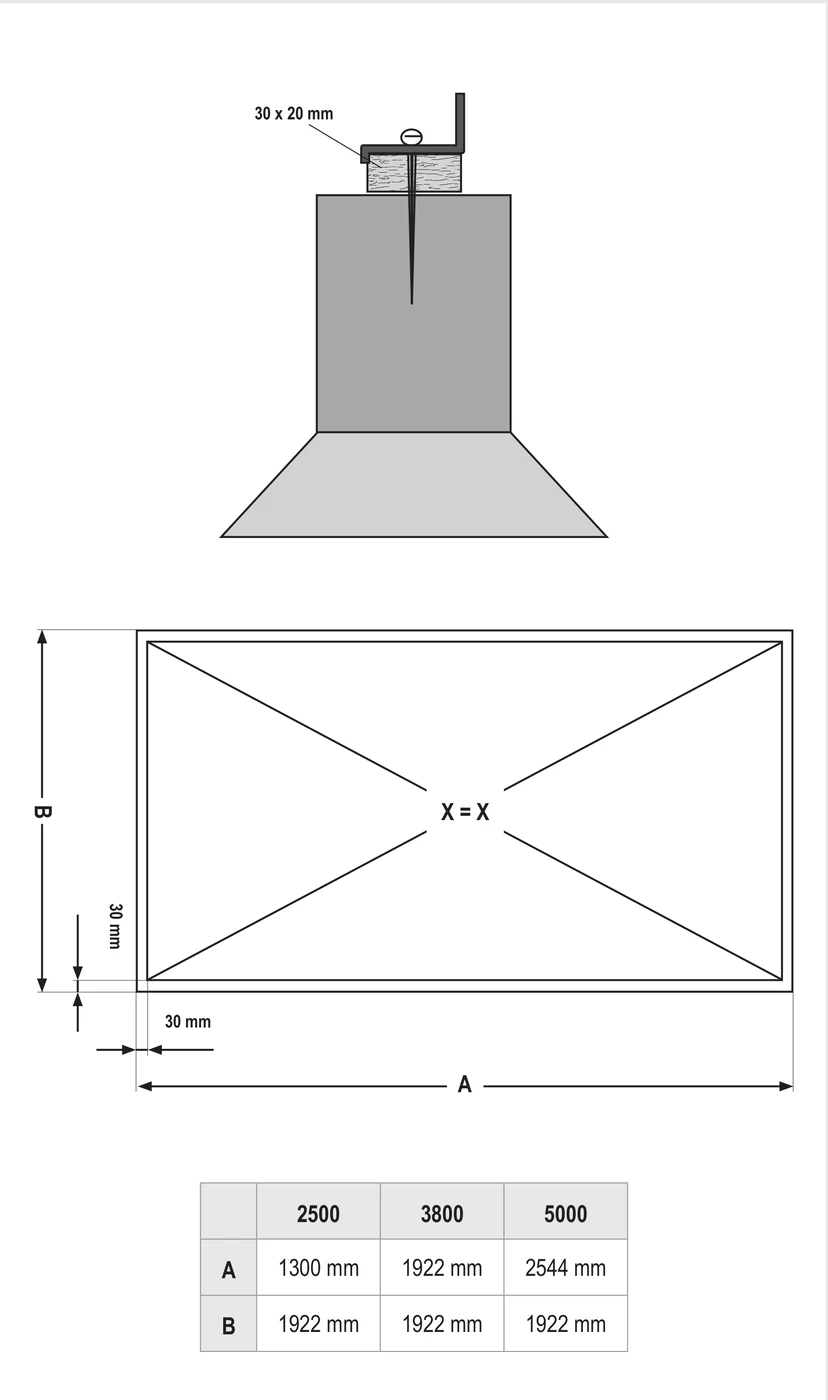

Start with an exactly square, level base; the accessory zinc-coated steel base is the easiest option.

A B X = X
250038005000
A1300 mm1922 mm2544 mm
B1922 mm1922 mm1922 mm
Step 0 drawing
Vitavia drawing 0. The circled numbers match the pictures below.

Installer tip

Use ground spikes or anchor legs only in soil. On concrete or paving, bolt down with suitable fixings; use one method, not both.

Watch out

Check the base before you continue. Glass will not fit a frame built on a base that is out of square or level.

0.1

Check that your base is exactly square and level. Measure both diagonals, marked X = X; they must match.

0.2

Only for self-built stone/concrete foundations: use page sizes A and B; build below frost level. Bolt treated timber (minimum height 18 mm, maximum width 32 mm) between foundation and aluminium frame. Use 50 mm foundation bolts (not supplied).

0.3

On very windy, exposed sites, drill through both the greenhouse bottom profile and steel base. Bolt them together.

1
Step 1

Build both side frames

Build two identical side frames flat on the ground, with every nut loose.

You need

Part 1001
1001×4
Part 1001
1001×8
Part 1001
1001×12
Part 1002
1002×4
Part 1002
1002×8
Part 1002
1002×12
Part 1322
1322×2
Part 1323
1323×2
Part 1324
1324×2
Part 1327
1327×2
Part 1328
1328×2
Part 1329
1329×2
Part 1332
1332×2
Part 1332
1332×4
Part 1332
1332×6

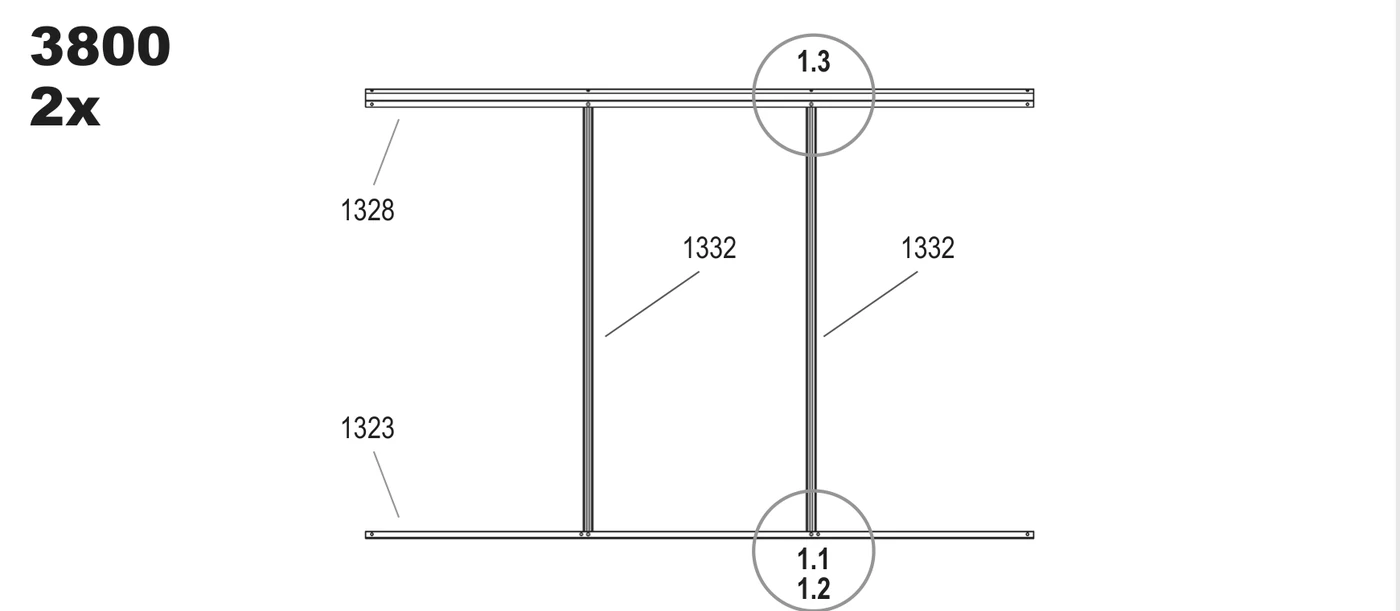

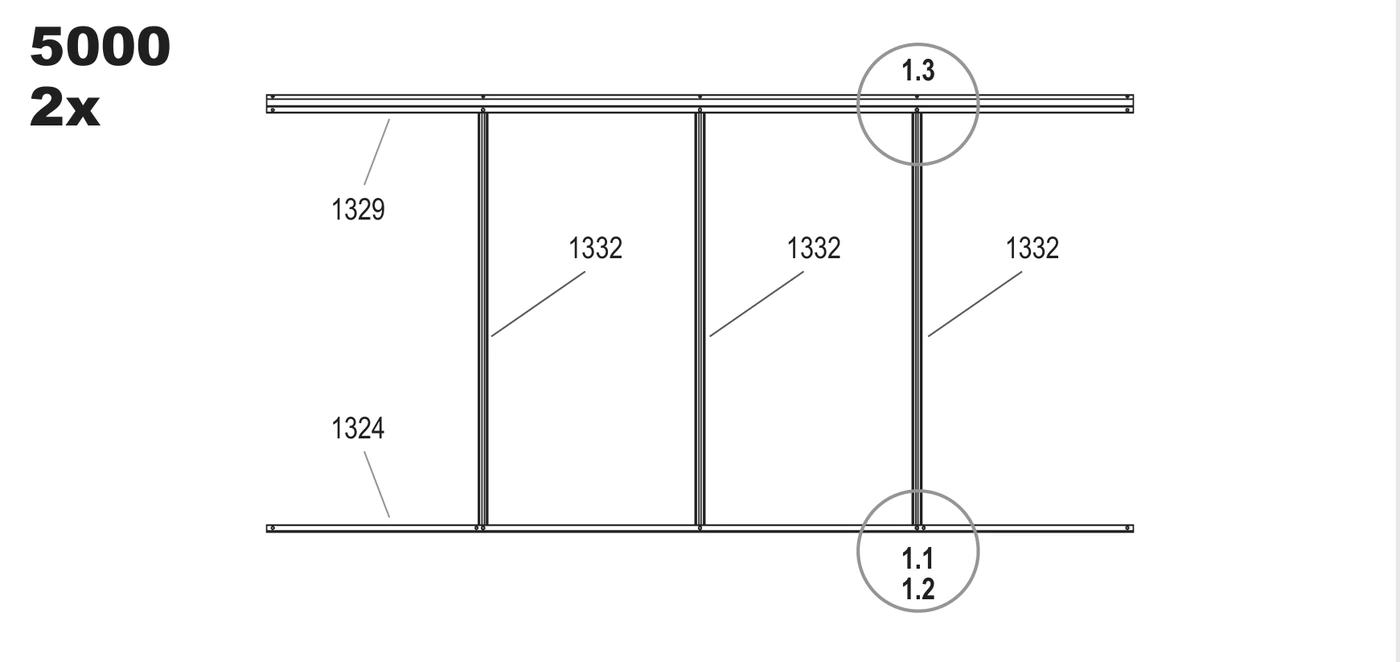

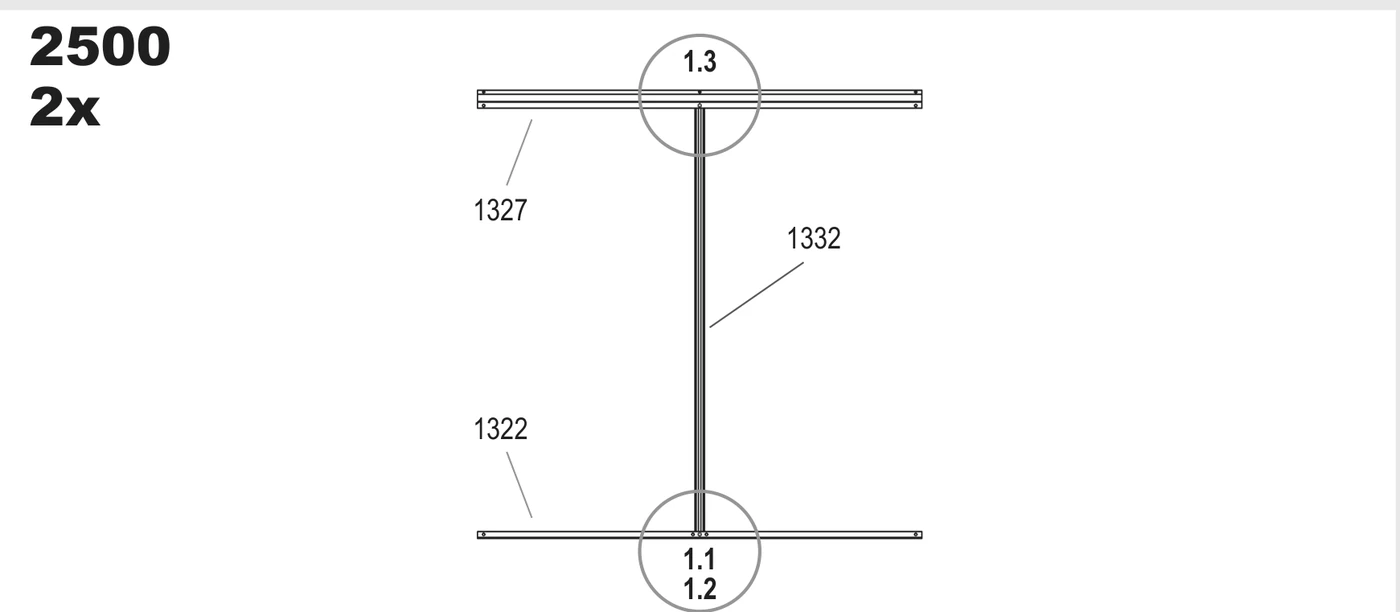

Step 1 drawing, 2500Step 1 drawing, 3800Step 1 drawing, 5000
Vitavia drawing 1. The circled numbers match the pictures below.

Installer tip

Lay parts on a blanket or lawn to protect the finish. Leave every nut loose so the frames can flex during step 4.

Watch out

Use the correct number of uprights 1332 per side: 1 for 2500, 2 for 3800, 3 for 5000.

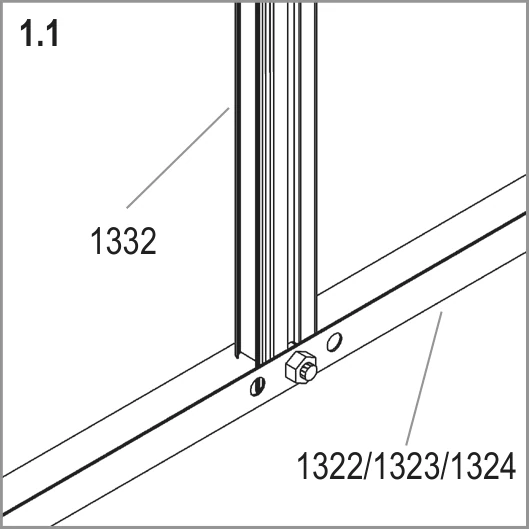

Detail 1.1
1.1

Bolt the bottom of each upright 1332 to your sill bar (1322, 1323 or 1324).

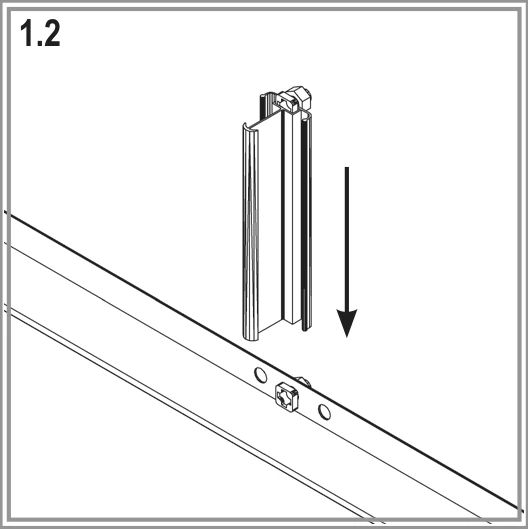

Detail 1.2
1.2Outside view

Slide bolts 1001 into the bar channel through its open end, then align them with the holes. Insert them before you close the bar end.

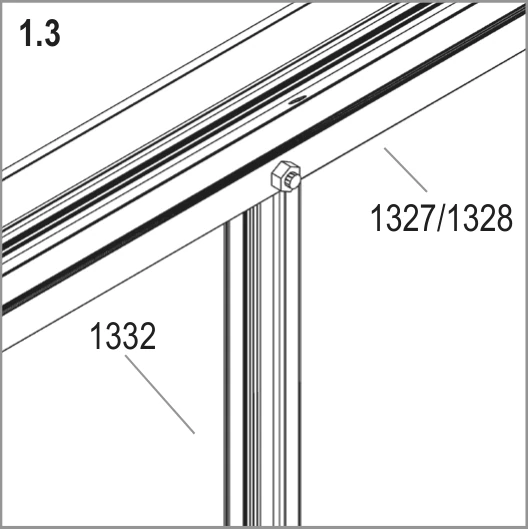

Detail 1.3
1.3

Bolt the top of each upright 1332 to your eave bar (1327, 1328 or 1329).

2
Step 2

Build the back gable

Build the plain back gable flat on the ground, and leave the nuts loose.

You need

Part 1001
1001×18
Part 1001
1001×18
Part 1001
1001×18
Part 1002
1002×18
Part 1002
1002×18
Part 1002
1002×18
Part 1323
1323×1
Part 1323
1323×1
Part 1323
1323×1
Part 1333
1333×2
Part 1333
1333×2
Part 1333
1333×2
Part 1335
1335×1
Part 1335
1335×1
Part 1335
1335×1
Part 1336
1336×2
Part 1336
1336×2
Part 1336
1336×2
Part 1337
1337×1
Part 1337
1337×1
Part 1337
1337×1
Part 1338
1338×1
Part 1338
1338×1
Part 1338
1338×1
Part 1341
1341×1
Part 1341
1341×1
Part 1341
1341×1
Part 1342
1342×1
Part 1342
1342×1
Part 1342
1342×1
Part 1343
1343×2
Part 1343
1343×2
Part 1343
1343×2

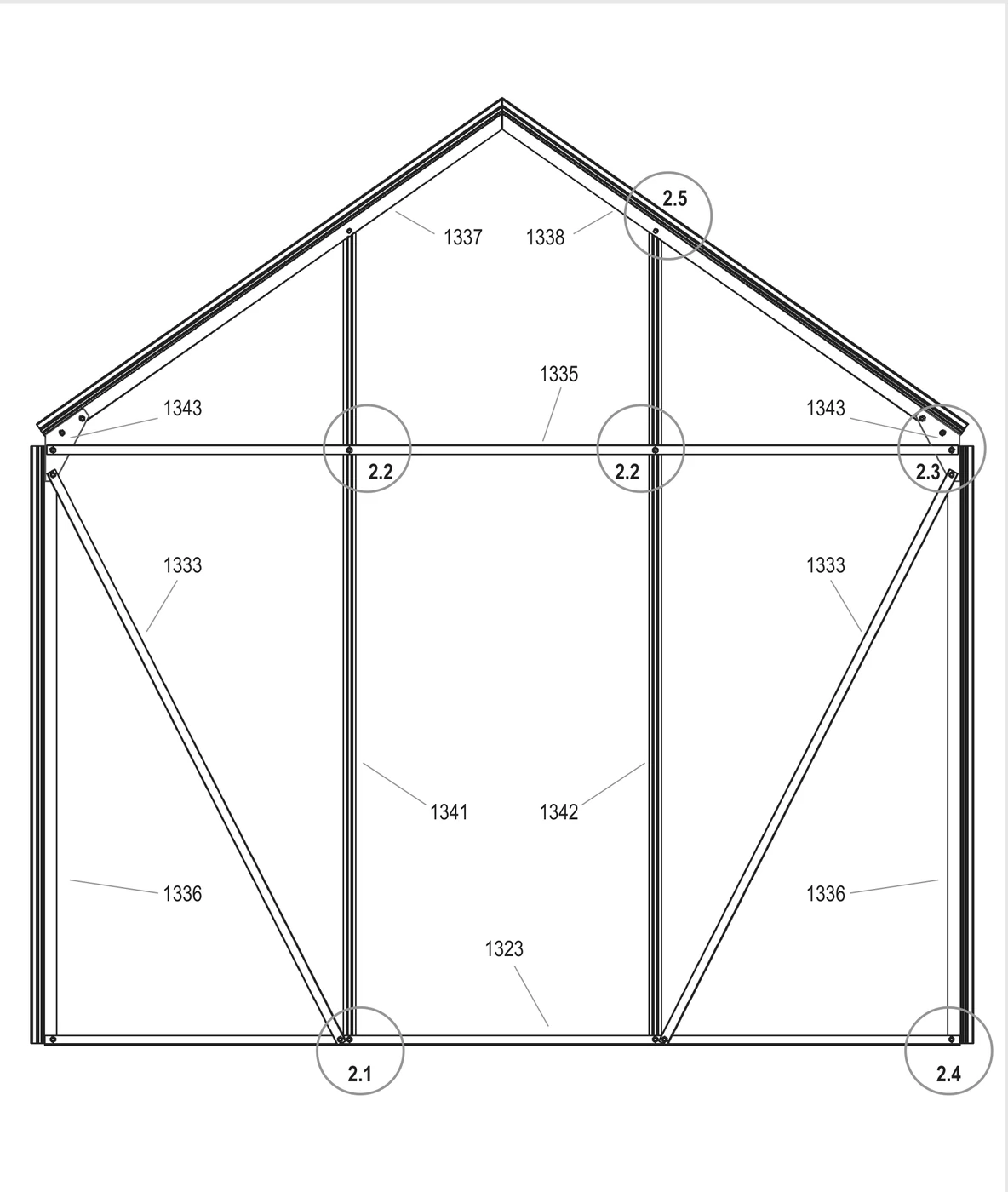

Step 2 drawing
Vitavia drawing 2. The circled numbers match the pictures below.

Installer tip

Build from the bottom upwards. Slide each extra bolt into its channel before you fit the bar above it.

Watch out

Do not miss the two extra bolts for brace 1335. Insert them before the bar ends are capped.

Detail 2.1

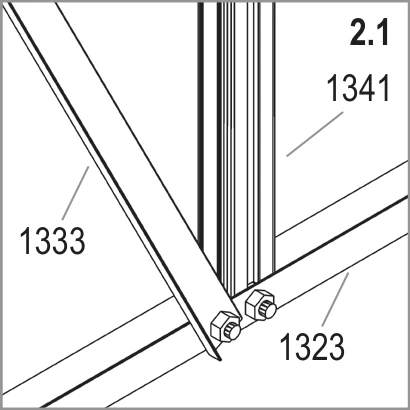

2.1

Bolt the bottom of upright 1341 and diagonal brace 1333 to sill bar 1323.

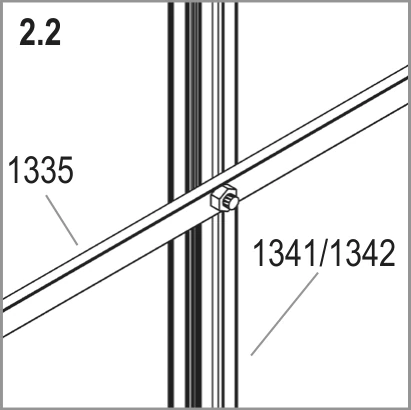

Detail 2.2
2.2

Insert one extra bolt into upright 1341 and one into upright 1342 for horizontal brace 1335. Bolt brace 1335 across both uprights.

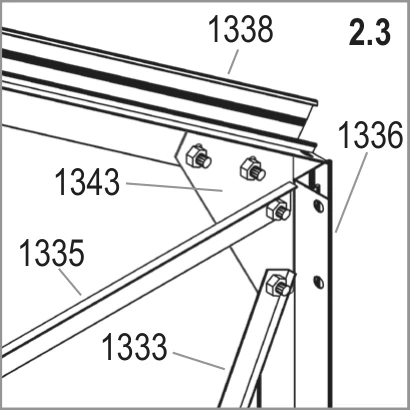

Detail 2.3
2.3

At each top corner, use corner plate 1343 to join corner bar 1336 and roof bar 1338. Include brace 1335 and diagonal brace 1333 in this joint.

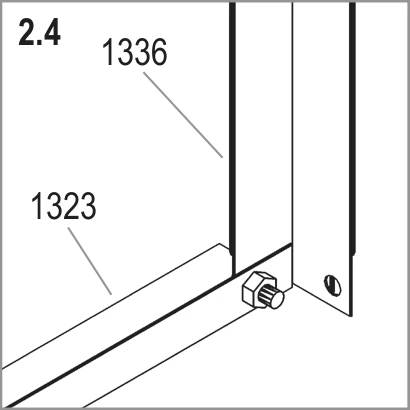

Detail 2.4
2.4

At each bottom corner, bolt corner bar 1336 to sill bar 1323.

Detail 2.5

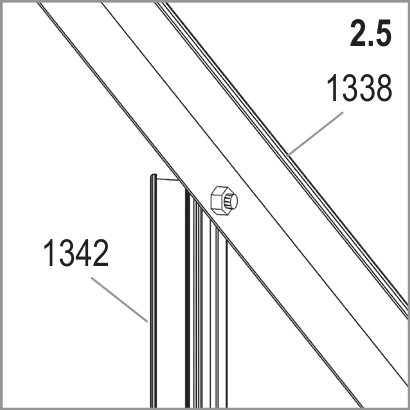

2.5

Bolt the top of upright 1342 to roof bar 1338.

3
Step 3

Build the door gable

Build the front door gable flat on the ground, and leave the nuts loose.

You need

Part 1001
1001×20
Part 1001
1001×20
Part 1001
1001×20
Part 1002
1002×20
Part 1002
1002×20
Part 1002
1002×20
Part 1333
1333×2
Part 1333
1333×2
Part 1333
1333×2
Part 1336
1336×2
Part 1336
1336×2
Part 1336
1336×2
Part 1339
1339×1
Part 1339
1339×1
Part 1339
1339×1
Part 1340
1340×1
Part 1340
1340×1
Part 1340
1340×1
Part 1343
1343×2
Part 1343
1343×2
Part 1343
1343×2
Part 1344
1344×1
Part 1344
1344×1
Part 1344
1344×1
Part 1345
1345×1
Part 1345
1345×1
Part 1345
1345×1
Part 1346
1346×1
Part 1346
1346×1
Part 1346
1346×1
Part 1347
1347×1
Part 1347
1347×1
Part 1347
1347×1
Part 1348
1348×1
Part 1348
1348×1
Part 1348
1348×1
Part 1349
1349×2
Part 1349
1349×2
Part 1349
1349×2

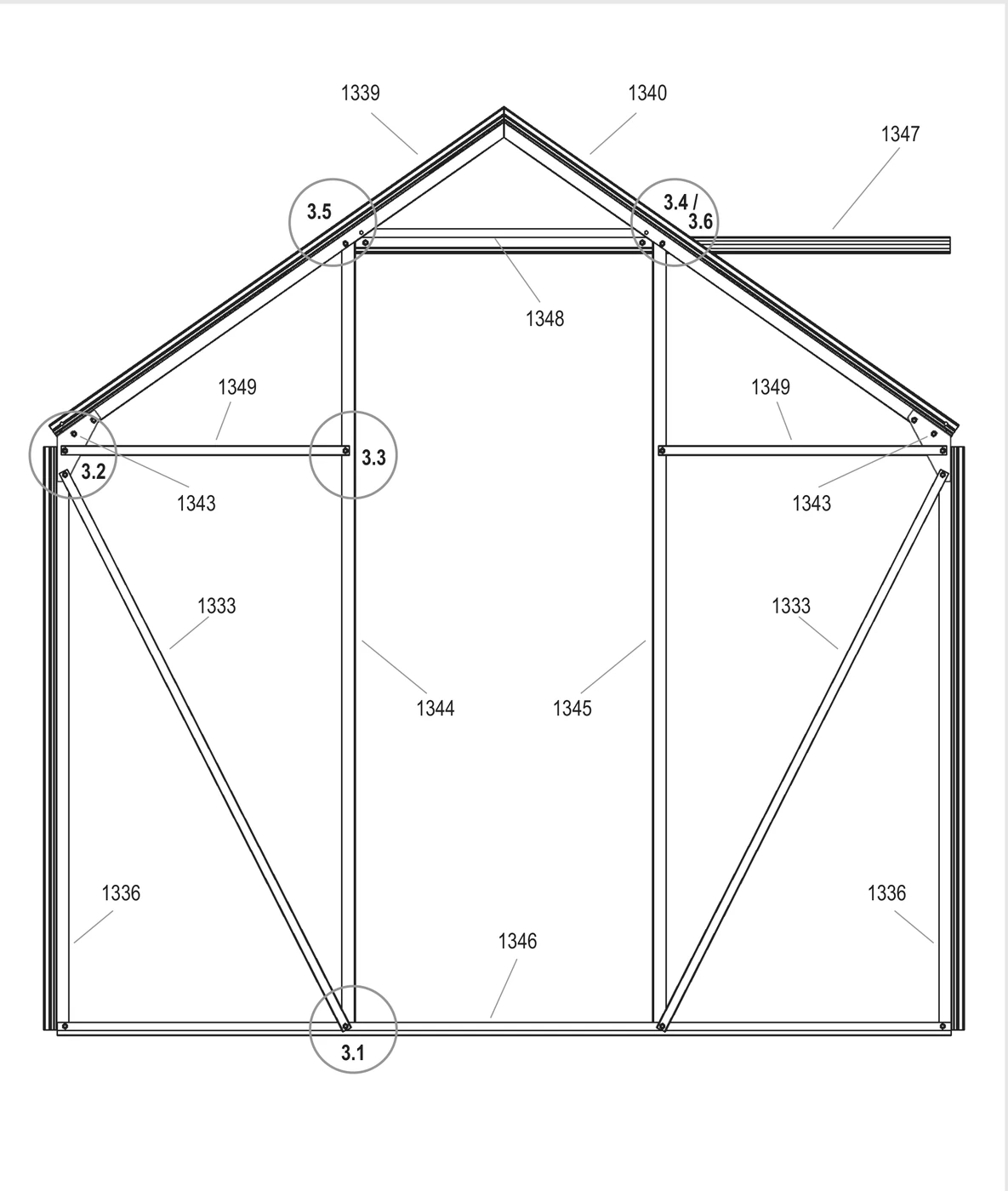

Step 3 drawing
Vitavia drawing 3. The circled numbers match the pictures below.

Installer tip

Choose the door direction now, usually towards your path and away from the prevailing wind. Changing it later means taking the gable apart.

Watch out

If parts will not align, check for bars fitted upside down or back to front. Do not force them.

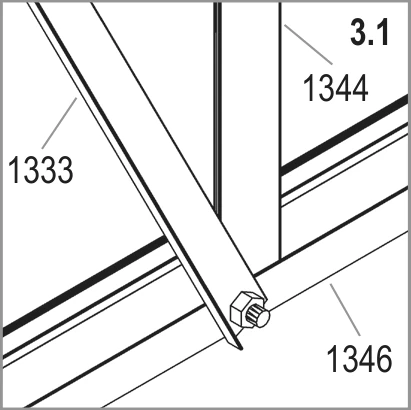

Detail 3.1
3.1

Bolt door post 1344 and diagonal brace 1333 to bottom bar 1346.

Detail 3.2

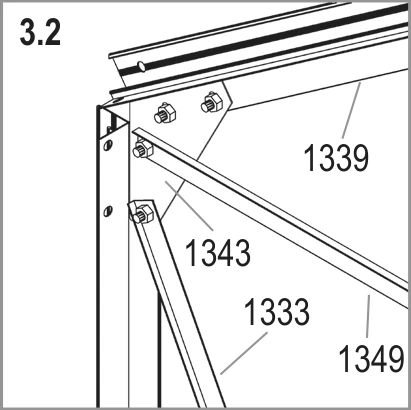

3.2

At each top corner, use corner plate 1343 to join roof bar 1339, bar 1349 and diagonal brace 1333.

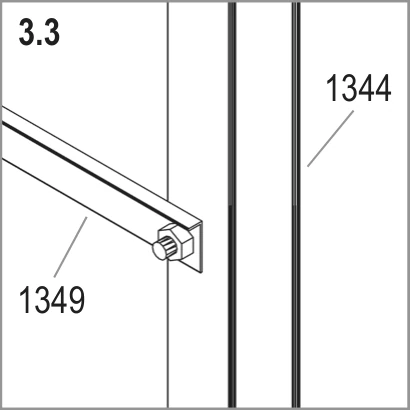

Detail 3.3
3.3

Bolt bar 1349 to door post 1344.

Detail 3.4

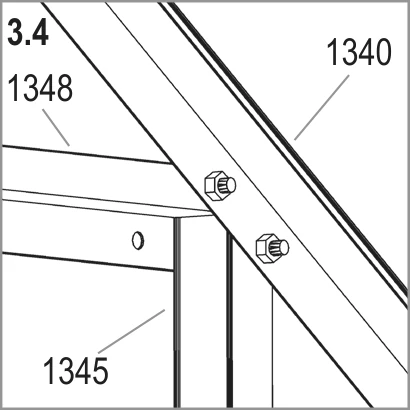

3.4

Bolt roof bar 1340 to door header bar 1348 and door post 1345.

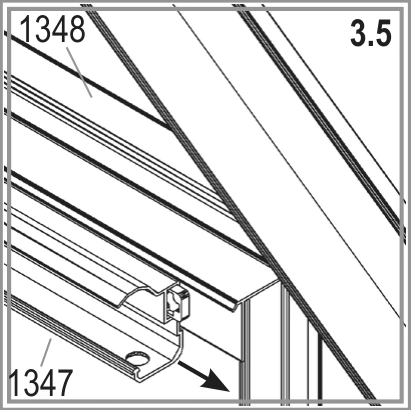

Detail 3.5
3.5Outside view

Work from outside for this drawing. Slide door runner bar 1347 onto header bar 1348, then join loosely with two nuts and bolts.

Detail 3.6

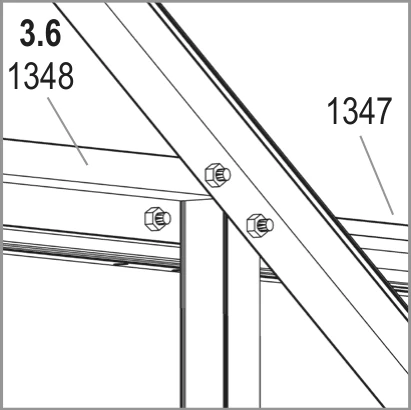

3.6

Align door runner bar 1347 to the left or right for your chosen door opening direction.

4
Step 4

Join and stand the frame

Work with two people to join the frames and stand the greenhouse up.

You need

Part 1001
1001×32
Part 1001
1001×39
Part 1001
1001×45
Part 1002
1002×33
Part 1002
1002×40
Part 1002
1002×46
Part 1005
1005×1
Part 1005
1005×1
Part 1005
1005×1
Part 1017
1017×4
Part 1017
1017×4
Part 1017
1017×4
Part 1018
1018×8
Part 1018
1018×8
Part 1018
1018×8
Part 1050
1050×1
Part 1051
1051×1
Part 1052
1052×1
Part 1310
1310×1
Part 1310
1310×1
Part 1310
1310×1
Part 1333
1333×4
Part 1333
1333×4
Part 1333
1333×4
Part 1355
1355×2
Part 1355
1355×4
Part 1355
1355×6
Part 1356
1356×1
Part 1356
1356×2
Part 1356
1356×3
Part 1357
1357×1
Part 1357
1357×1
Part 1357
1357×1
Part 6060
6060×1
Part 6060
6060×1
Part 6060
6060×1

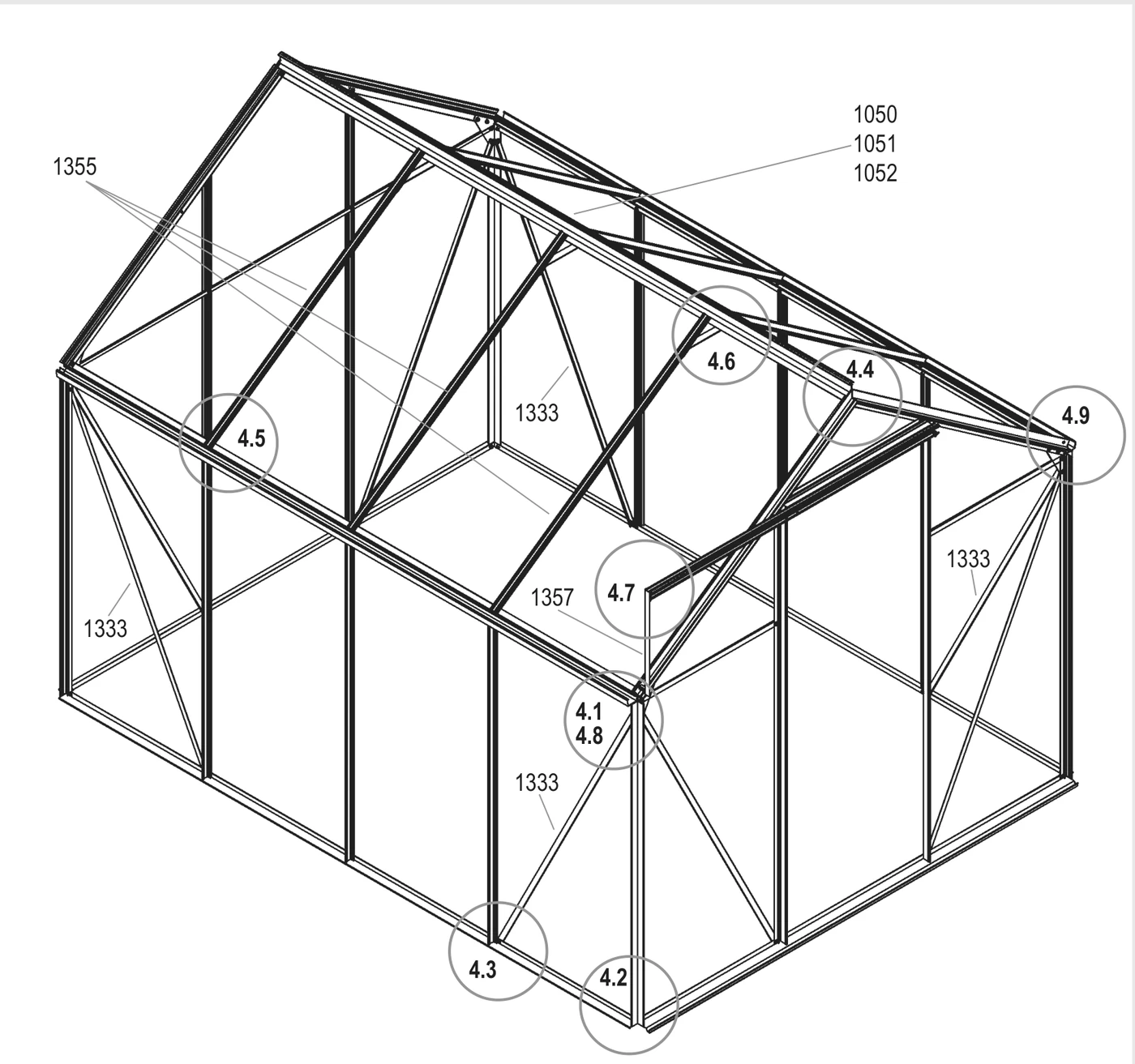

Step 4 drawing
Vitavia drawing 4. The circled numbers match the pictures below.

Installer tip

Count extra roof bolts on your drawing before you fit any end cap. The number depends on greenhouse size and vent position.

Watch out

Do not tighten anything until the greenhouse is on its base and square. Once the glass is in, you cannot adjust it.

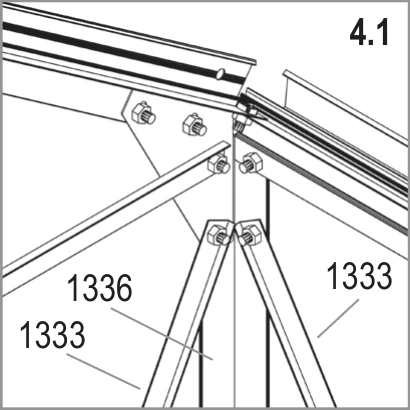

Detail 4.1
4.1

Bolt the side frames to the gable ends at the top corners.

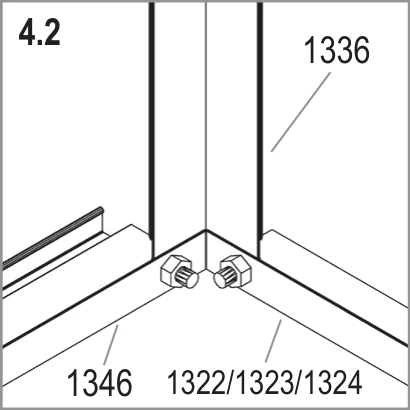

Detail 4.2
4.2

Bolt the side frames and gable ends together at the bottom corners.

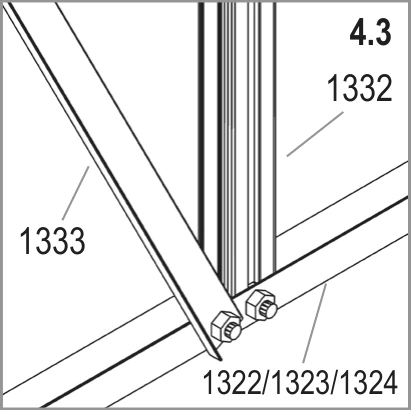

Detail 4.3
4.3

Fit diagonal side brace 1333 at each corner, between the eave bar and sill bar.

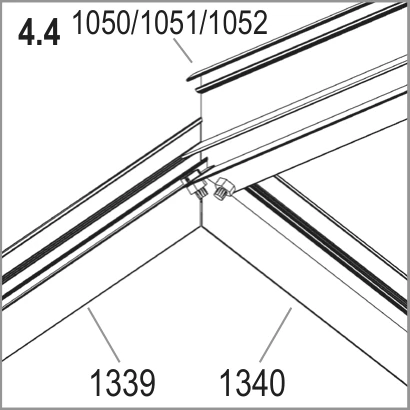

Detail 4.4
4.4

Bolt your ridge bar (1050, 1051 or 1052) to the top of both gable ends.

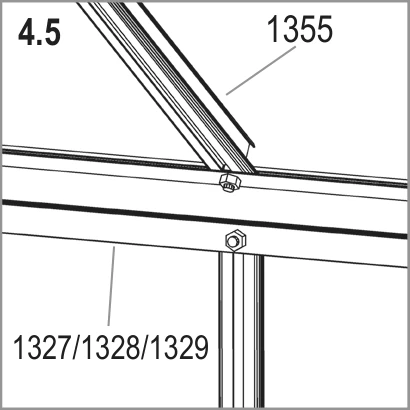

Detail 4.5
4.5

Bolt roof glazing bars 1355 to the eave bar.

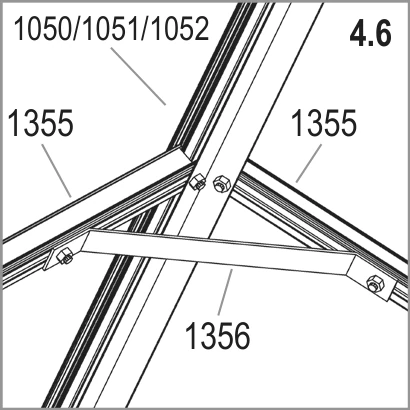

Detail 4.6
4.6

Bolt glazing bars 1355 to ridge; insert an extra bolt into each for roof brace 1356, then fit braces 1356. Insert an extra bolt into each of the 2 glazing bars at the vent position.

Do this now

Place the greenhouse on its prepared base and bolt it down loosely. Adjust until completely square; measure corner to corner as you did with the base. Only then tighten all bolts, maximum 3 Nm.

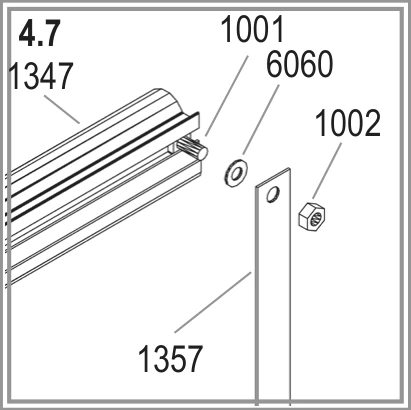

Detail 4.7
4.7Outside view

Work from outside. Fit door runner support 1357 to door runner bar 1347 with bolt 1001, washer 6060 and nut 1002.

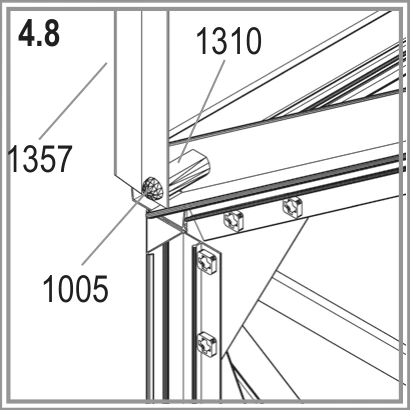

Detail 4.8
4.8Outside view

Work from outside. Fix the other end of support 1357 to the gable with bolt 1005 and spacer 1310.

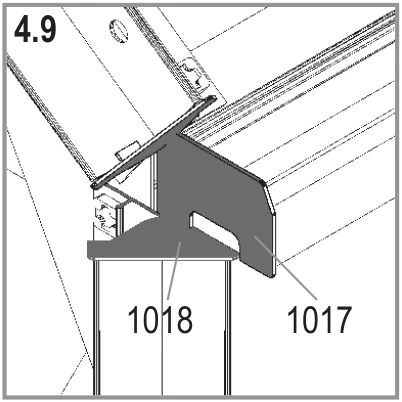

Detail 4.9
4.9Outside view

Press end caps 1017 and 1018 onto the open profile ends.

5
Step 5

Build and hang the door

Assemble the sliding door, then hang it in the runner and check it slides freely.

You need

Part 1001
1001×3
Part 1001
1001×3
Part 1001
1001×3
Part 1002
1002×3
Part 1002
1002×3
Part 1002
1002×3
Part 1003
1003×16
Part 1003
1003×16
Part 1003
1003×16
Part 1007
1007×2
Part 1007
1007×2
Part 1007
1007×2
Part 1009
1009×2
Part 1009
1009×2
Part 1009
1009×2
Part 1014
1014×2
Part 1014
1014×2
Part 1014
1014×2
Part 1015
1015×2
Part 1015
1015×2
Part 1015
1015×2
Part 1021
1021×2
Part 1021
1021×2
Part 1021
1021×2
Part 1304
1304×2
Part 1304
1304×2
Part 1304
1304×2
Part 1358
1358×2
Part 1358
1358×2
Part 1358
1358×2
Part 1359
1359×1
Part 1359
1359×1
Part 1359
1359×1
Part 1360
1360×1
Part 1360
1360×1
Part 1360
1360×1
Part 1361
1361×2
Part 1361
1361×2
Part 1361
1361×2
Part 1362
1362×1
Part 1362
1362×1
Part 1362
1362×1
Part 1500
1500×2
Part 1500
1500×2
Part 1500
1500×2
Part 1515
1515×2
Part 1515
1515×2
Part 1515
1515×2

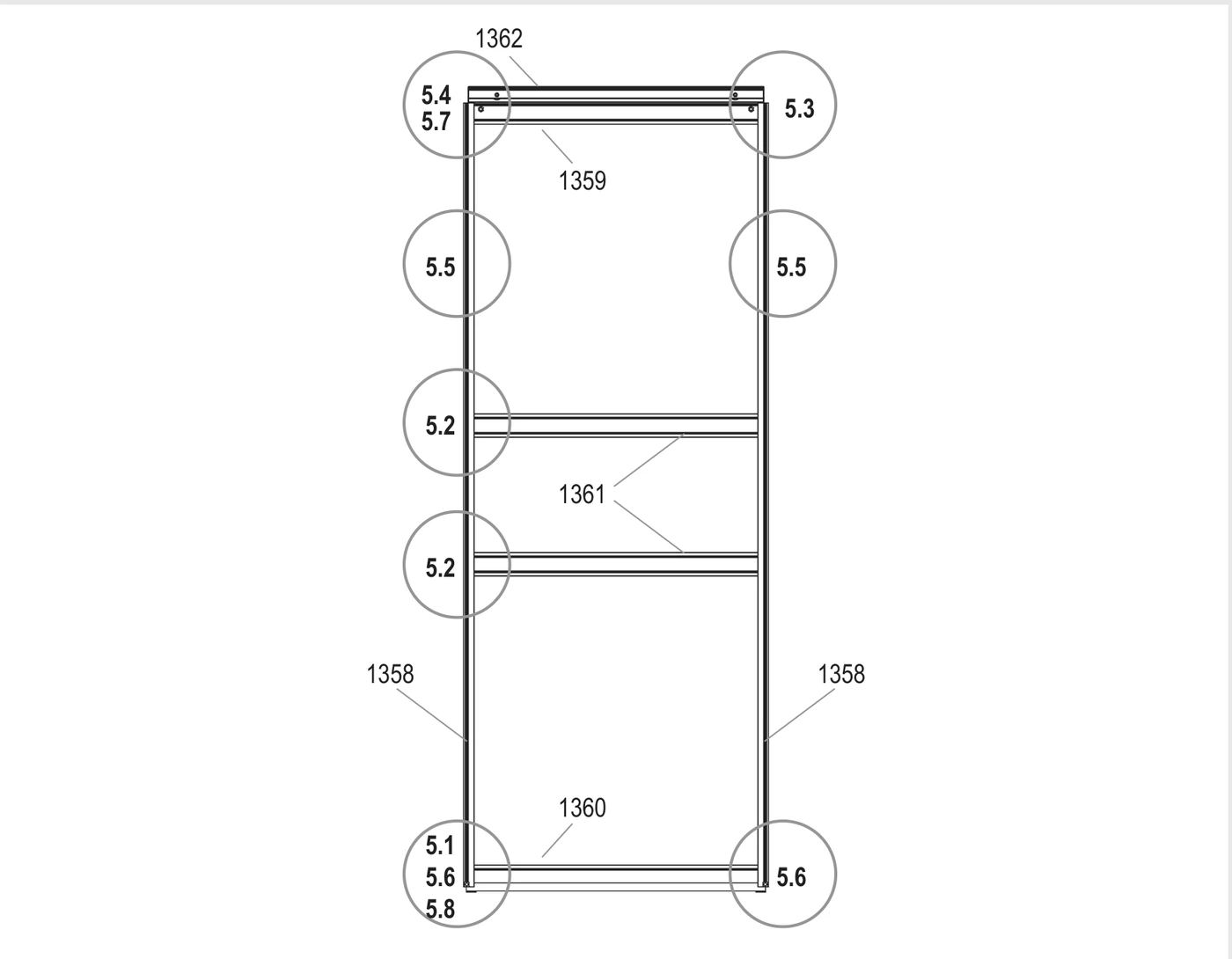

Step 5 drawing
Vitavia drawing 5. The circled numbers match the pictures below.

Installer tip

If the door binds or jumps the track, check that the frame is square. Do not force the door.

Watch out

Never stand the assembled door on gliders 1014. This damages them.

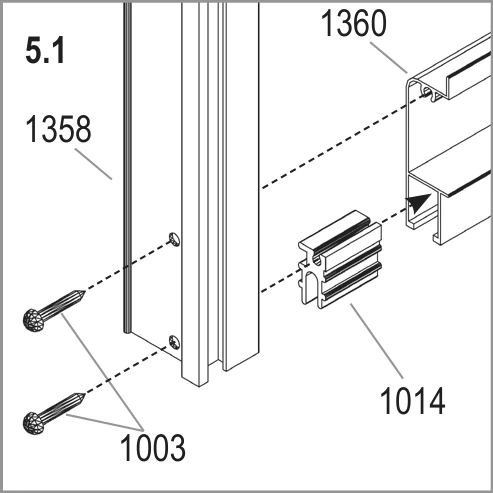

Detail 5.1
5.1

Push door glider 1014 onto each end of bottom door bar 1360. Screw side bars 1358 to it with screws 1003.

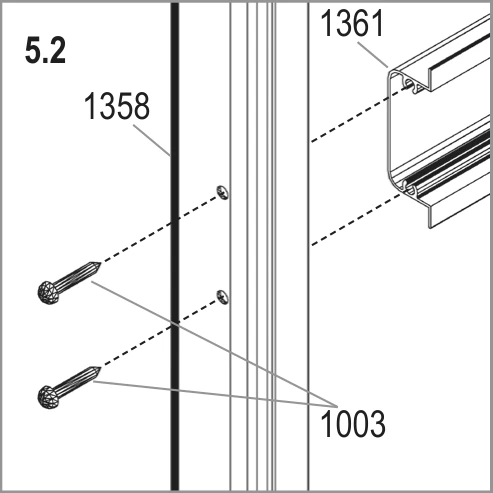

Detail 5.2
5.2

Screw middle bars 1361 between side bars 1358 with screws 1003.

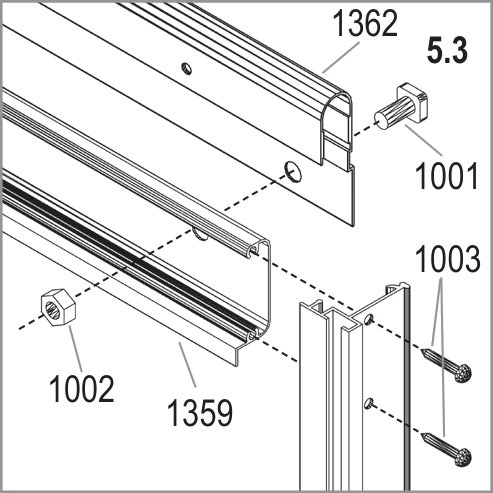

Detail 5.3
5.3

Bolt door top bar 1362 to upper bar 1359 with bolt 1001 and nut 1002. Screw upper bar 1359 to side bars 1358 with screws 1003.

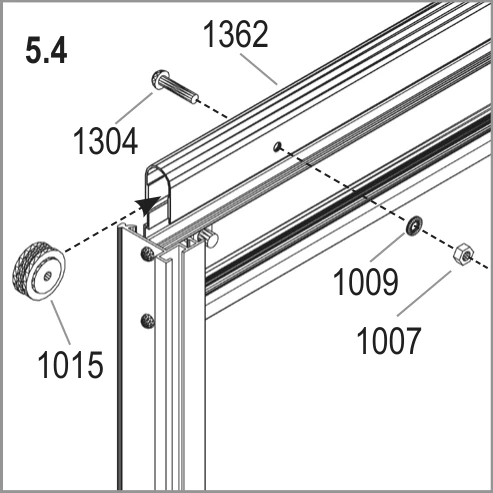

Detail 5.4
5.4

Fix the two door rollers 1015 to top bar 1362 with bolt 1304, washer 1009 and nut 1007.

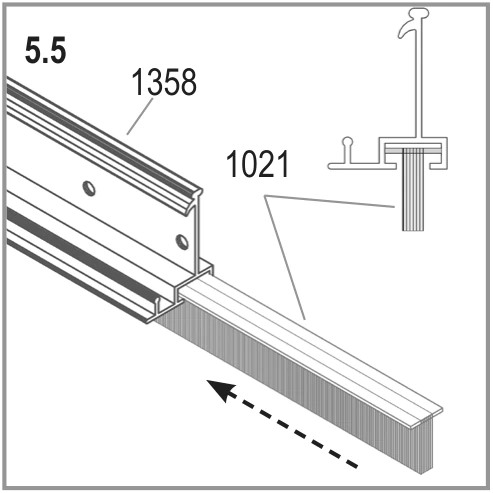

Detail 5.5
5.5Outside view

Slide brush seals 1021 into both side bars 1358. Cut the seals to length.

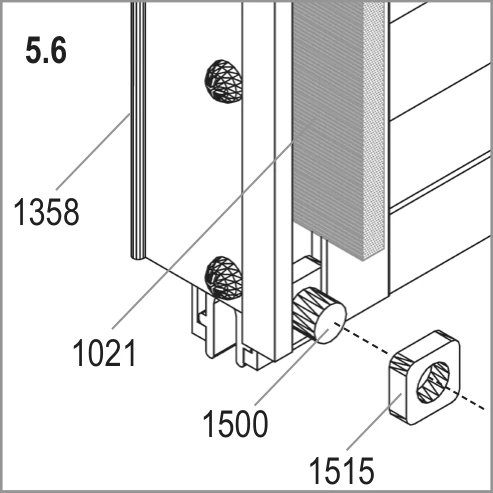

Detail 5.6
5.6

Slide bolt 1500 into the bottom of the brush seal channel, then fix it with nut 1515. This stops the seal sliding out.

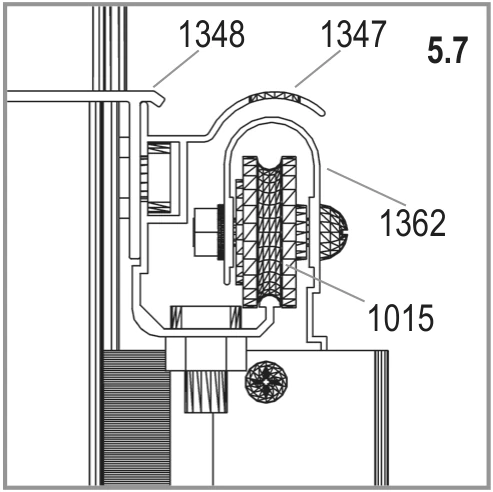

Detail 5.7
5.7Outside view

Lift the door and hang rollers 1015 in door runner bar 1347.

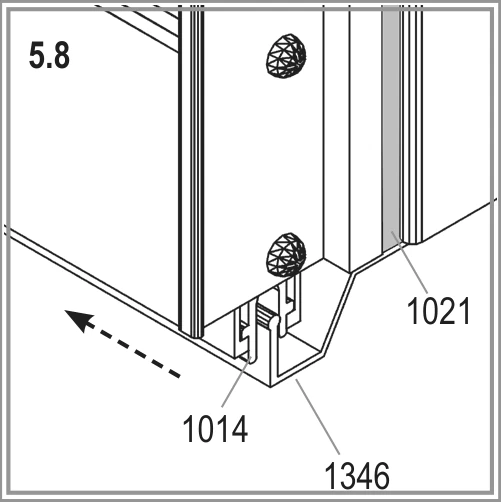

Detail 5.8
5.8Outside view

Check gliders 1014 run in bar 1346's bottom track; fit a nut and bolt into runner bar 1347's end as a stop. Adjust the door until it slides freely.

6
Step 6

Fit the roof vent

Build the roof vent to the drawing for your glass thickness, then fit it to the roof.

You need

Part 1001
1001×4
Part 1001
1001×4
Part 1001
1001×4
Part 1002
1002×5
Part 1002
1002×4
Part 1002
1002×4
Part 1006
1006×6
Part 1006
1006×6
Part 1006
1006×6
Part 1016
1016×2
Part 1016
1016×2
Part 1016
1016×2
Part 1019
1019×1
Part 1019
1019×1
Part 1019
1019×1
Part 1063
1063×1
Part 1063
1063×1
Part 1063
1063×1
Part 1064
1064×1
Part 1064
1064×1
Part 1064
1064×1
Part 1065
1065×2
Part 1065
1065×2
Part 1065
1065×2
Part 1066
1066×1
Part 1066
1066×1
Part 1066
1066×1
Part 1067
1067×1
Part 1067
1067×1
Part 1067
1067×1
Part 2001
2001×1

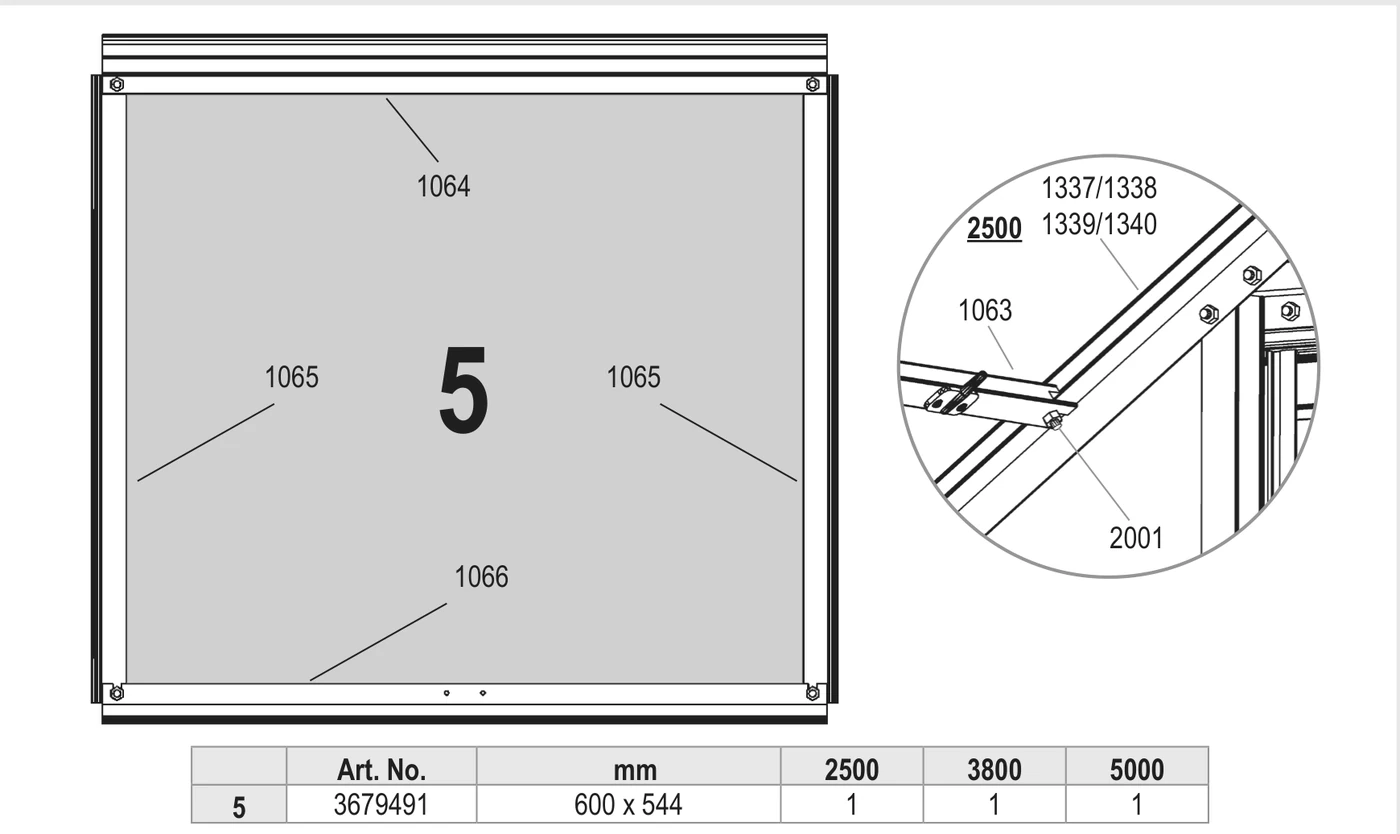

Step 6 drawing
Vitavia drawing 6. The circled numbers match the pictures below.

Installer tip

Fit vent sill 1063, the slam bar, flat edge up, grooved lip down towards the pane below. Recheck its position if that pane will not sit snugly.

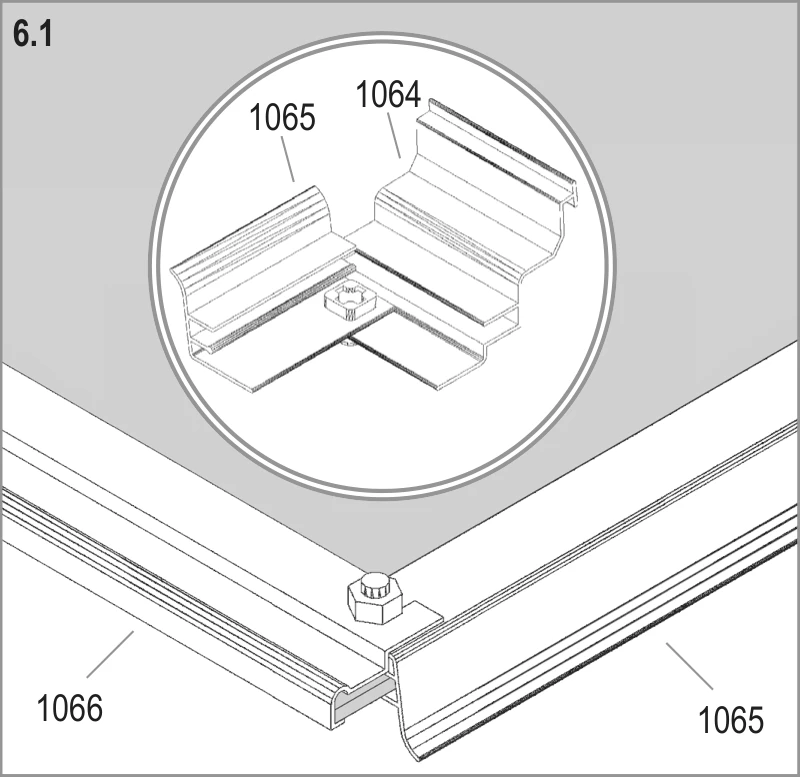

Detail 6.1
6.1

For glass up to 4 mm thick, join vent side bars 1065 and top bar 1064 as this drawing shows.

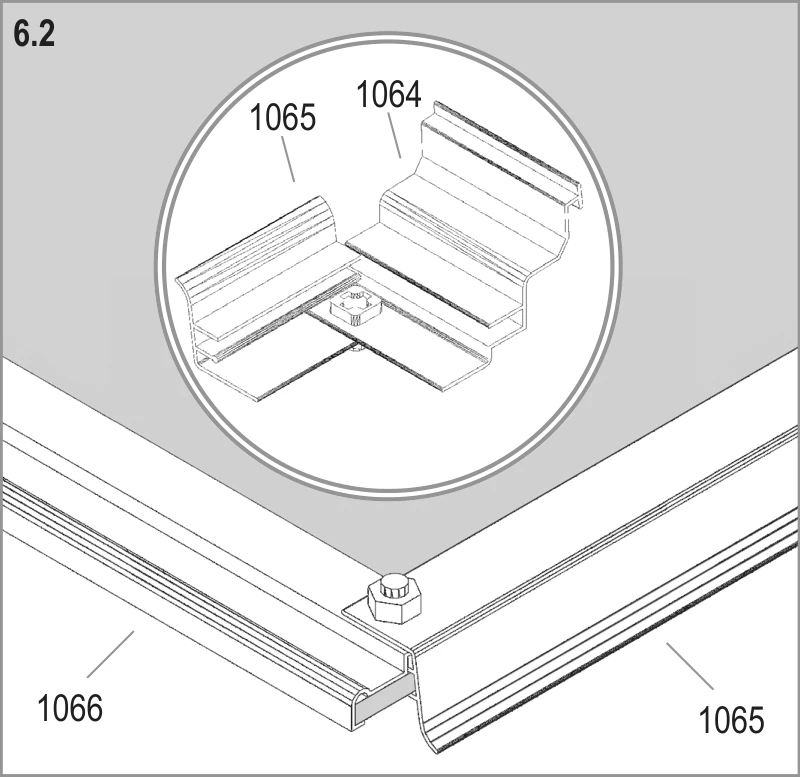

Detail 6.2
6.2

For glass 4 mm or thicker, join vent side bars 1065 and top bar 1064 as this drawing shows instead.

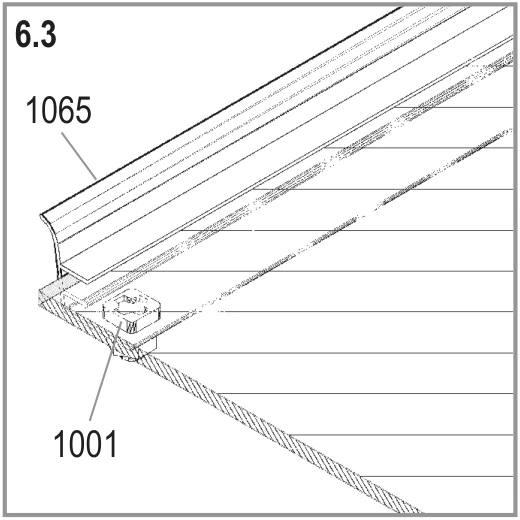

Detail 6.3
6.3Outside view

Insert bolts for bottom bar 1066 into prepared holes, then slide glass into side bars 1065's tracks. Fit bottom bar 1066; check the vent is square before you tighten.

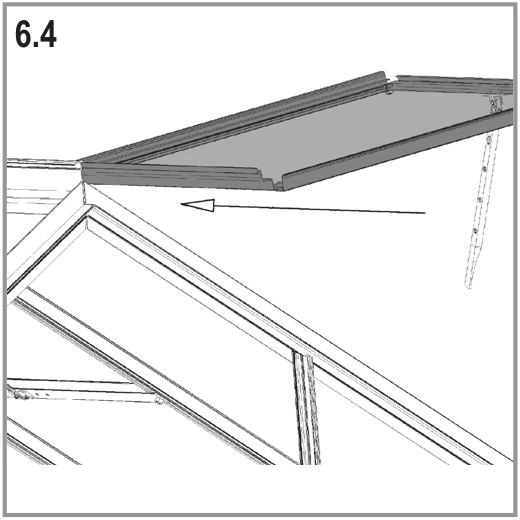

Detail 6.4
6.4Outside view

Hook the vent into the ridge bar from one end of the greenhouse.

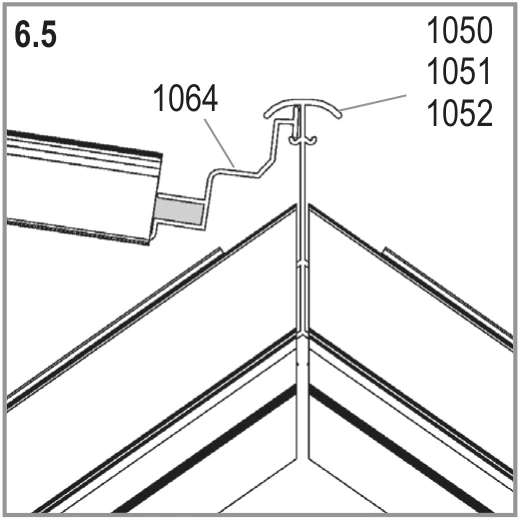

Detail 6.5
6.5Outside view

Check that vent top bar 1064 hooks over your ridge bar (1050, 1051 or 1052).

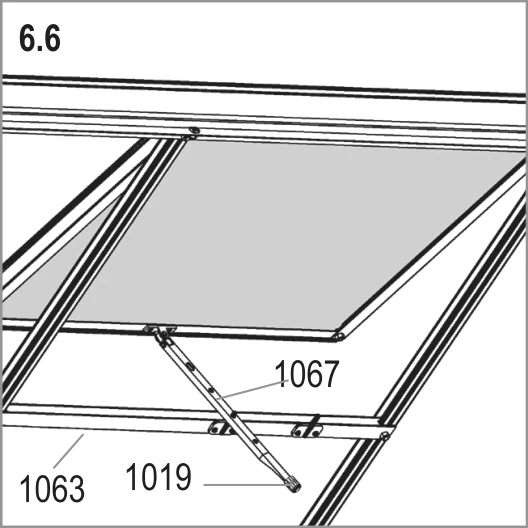

Detail 6.6
6.6

Slide the vent to your chosen position. Push plastic cap 1019 onto the end of window opener 1067.

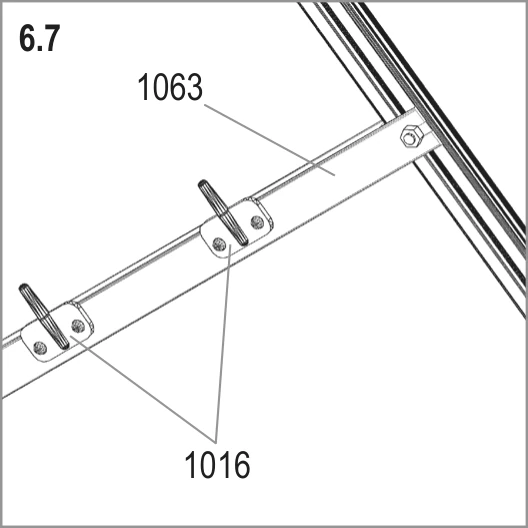

Detail 6.7
6.7

Fix vent sill 1063 to the extra bolts in the roof glazing bars. For a corner vent, use bolt 2001 instead of 1001 on the corner bar.

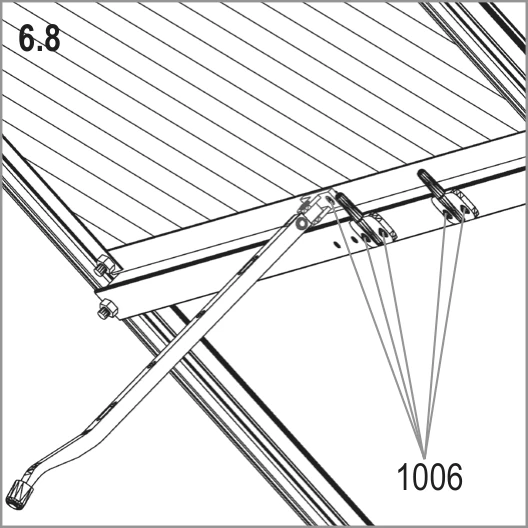

Detail 6.8
6.8

Screw window opener 1067 to vent bottom bar 1066 with screws 1006. Screw both window fixers 1016 onto vent sill 1063 with screws 1006.

7
Step 7

Fit the glazing

Fit the glazing seals first, then glaze the roof before the walls.

Polycarbonate sheets

This step and its pane table cover horticultural glass. Your polycarbonate sheets are different sizes and use different fixings. We recommend you glaze using the fitting instructions Vitavia packs with your polycarbonate sheets.

Your toughened glass

Your toughened glass comes as full panes, listed in the table below. Use the plan below for pane positions, not the drawing above. Join your gable glass with plastic H profiles where glass meets glass, replacing glass retaining clips 1012. Fit each H strip with its longest arm inside and uppermost.

PaneSize (mm)250038005000
1610 x 121091113
2610 x 1144357
3610 x 610333
4610 x 228111
4a610 x 343111
5600 x 544111
6610 x 450 x 24444
7610 x 234 x 20222
8610 x 439111
Total panes252933
Plastic H profiles666

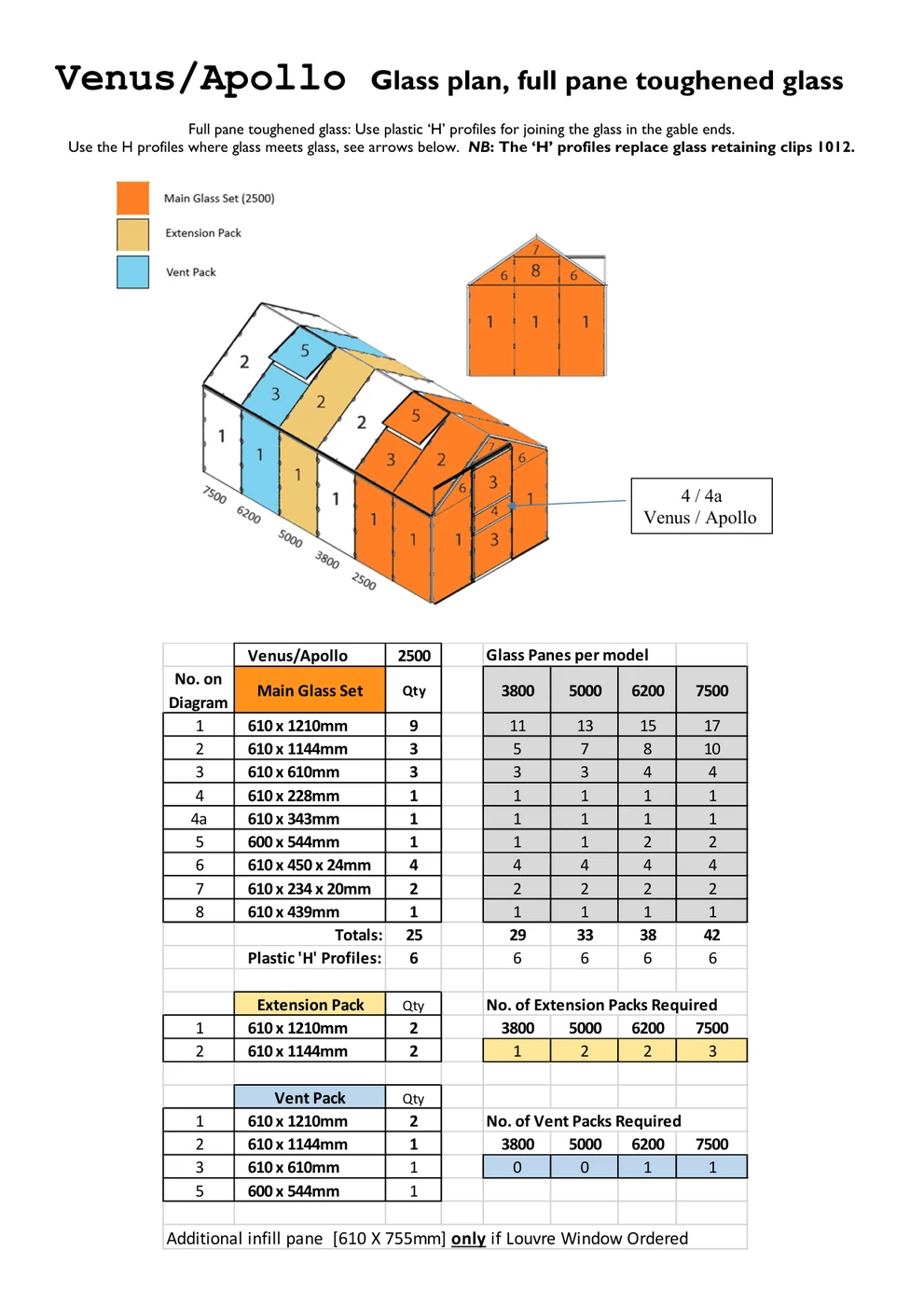

Vitavia toughened glass plan for the Venus
Vitavia's toughened glass plan. Pane numbers match the table.

You need

Part 1011
1011×144
Part 1011
1011×176
Part 1011
1011×208
Part 1012
1012×36
Part 1012
1012×44
Part 1012
1012×52
Part 1020
1020×1
Part 1020
1020×1
Part 1020
1020×1

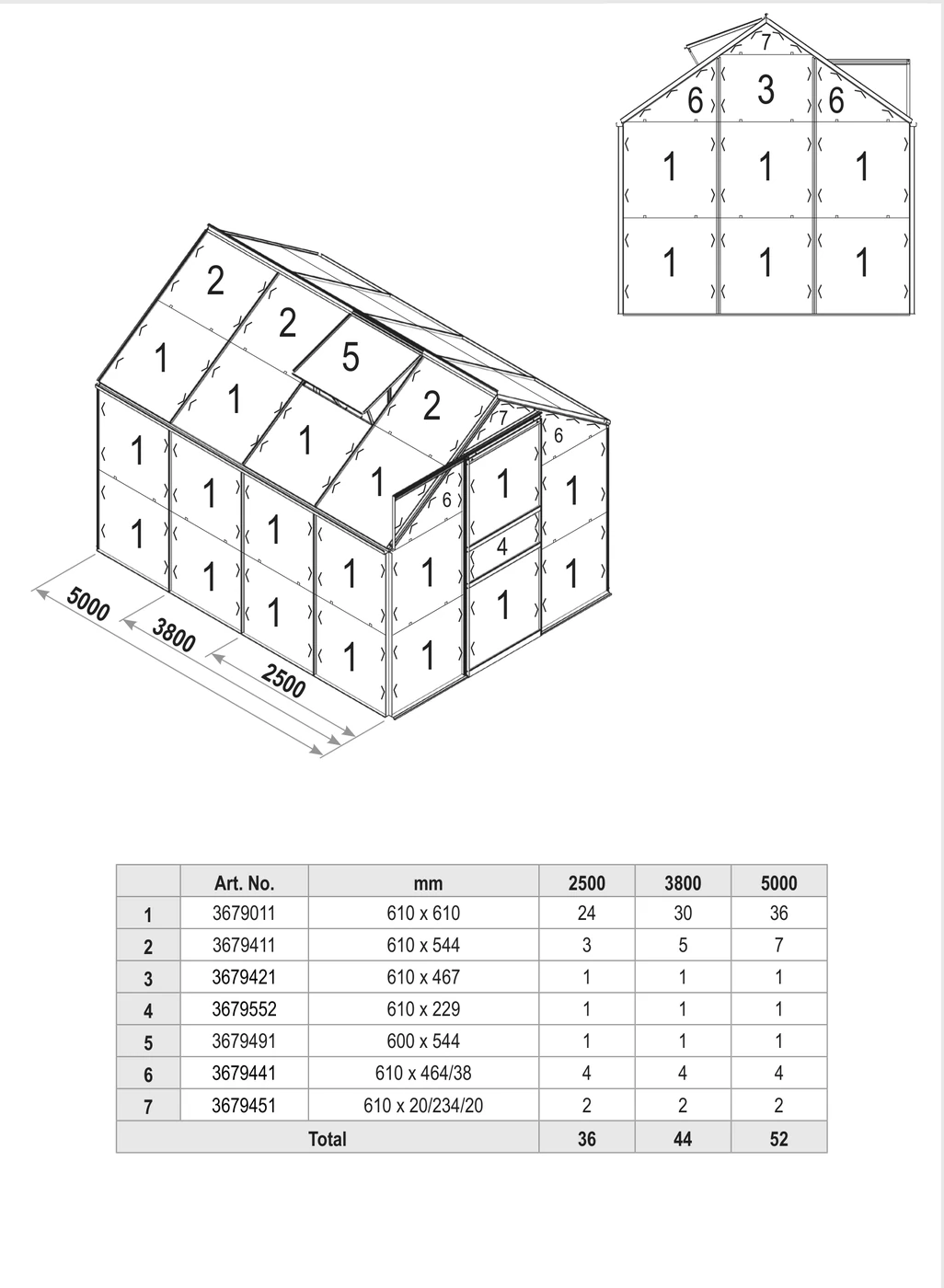

Step 7 drawing
Vitavia drawing 7. The circled numbers match the pictures below.

Installer tip

We recommend a hot soapy water soak for the whole seal reel first; it softens and presses on more easily. Glaze the roof before the walls to avoid leaning over fitted side glass.

Watch out

Never force a pane into place. If it will not seat, correct the frame's squareness first; forcing glass cracks it.

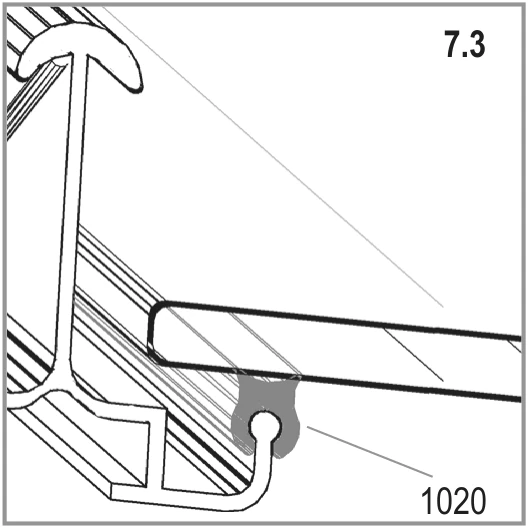

Detail 7.3
7.3Outside view

Press rubber glazing seal 1020 onto the aluminium profiles. Cut it to length.

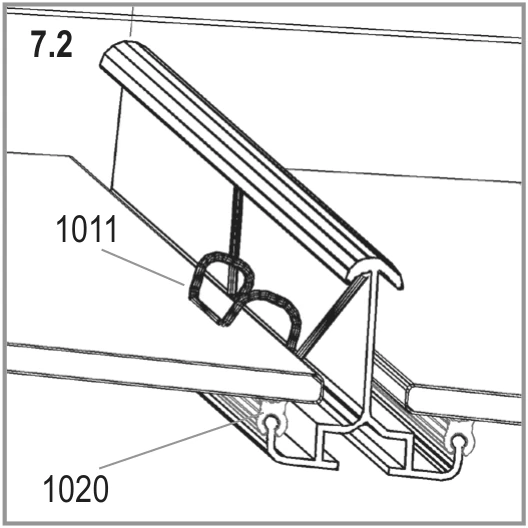

Detail 7.2
7.2Outside view

Start the roof glazing at the eave. Fix the first pane with glazing spring clips 1011.

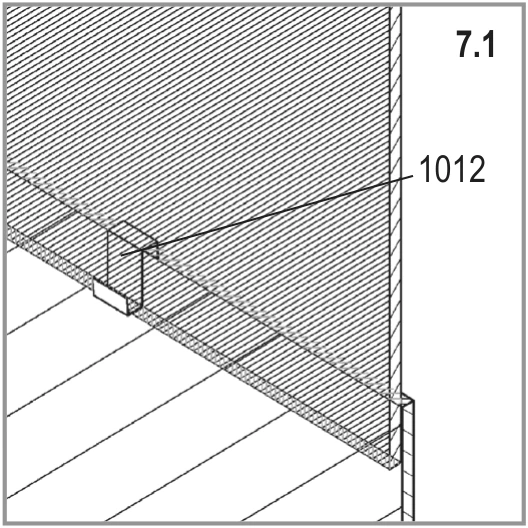

Detail 7.1
7.1Outside view

Each next pane overlaps the pane below and is held by retaining clips 1012 between the panes.

Do this now

On the sides, start from the bottom and work up. If you chose polycarbonate sheets instead of glass, follow the instructions packed with the sheets.

Horticultural glass for your greenhouse

PaneSize (mm)250038005000
1610 x 610243036
2610 x 544357
3610 x 467111
4610 x 229111
5600 x 544111
6610 x 464/38444
7610 x 20/234/20222
Total364452

Pane numbers match the glazing layout in the drawing above.

Last jobs

Finish and look after it

Finish

  • Anchor your greenhouse. This is not optional.
  • Seal the edges with neutral silicone if you wish. Silicone is not supplied.
  • Stick the warning label inside the greenhouse.
  • Stick the model label onto door top bar 1362. You need it to order spare parts.
  • Keep this guide somewhere safe.

Looking after it

  • Shut the door and vent in high winds.
  • Clear the roof or support it in heavy snow. Heat the greenhouse in winter.
  • Wash occasionally with a mild detergent that does not attack aluminium or the glazing clips.
  • Keep the door tracks clean to prevent grit build-up.
  • Add the greenhouse to your home insurance. Check local building rules about its position.

Drawings reproduced from the Vitavia assembly instructions (Vitavia manual 041.01.1306 (Venus 2500, 3800, 5000)). Greenhouse Stores, greenhousestores.co.uk.
