Greenhouse Stores Vitavia Jupiter assembly guide
Your size:
Assembly guide

Vitavia Jupiter

Sizes 6700, 8300, 9900, 11500

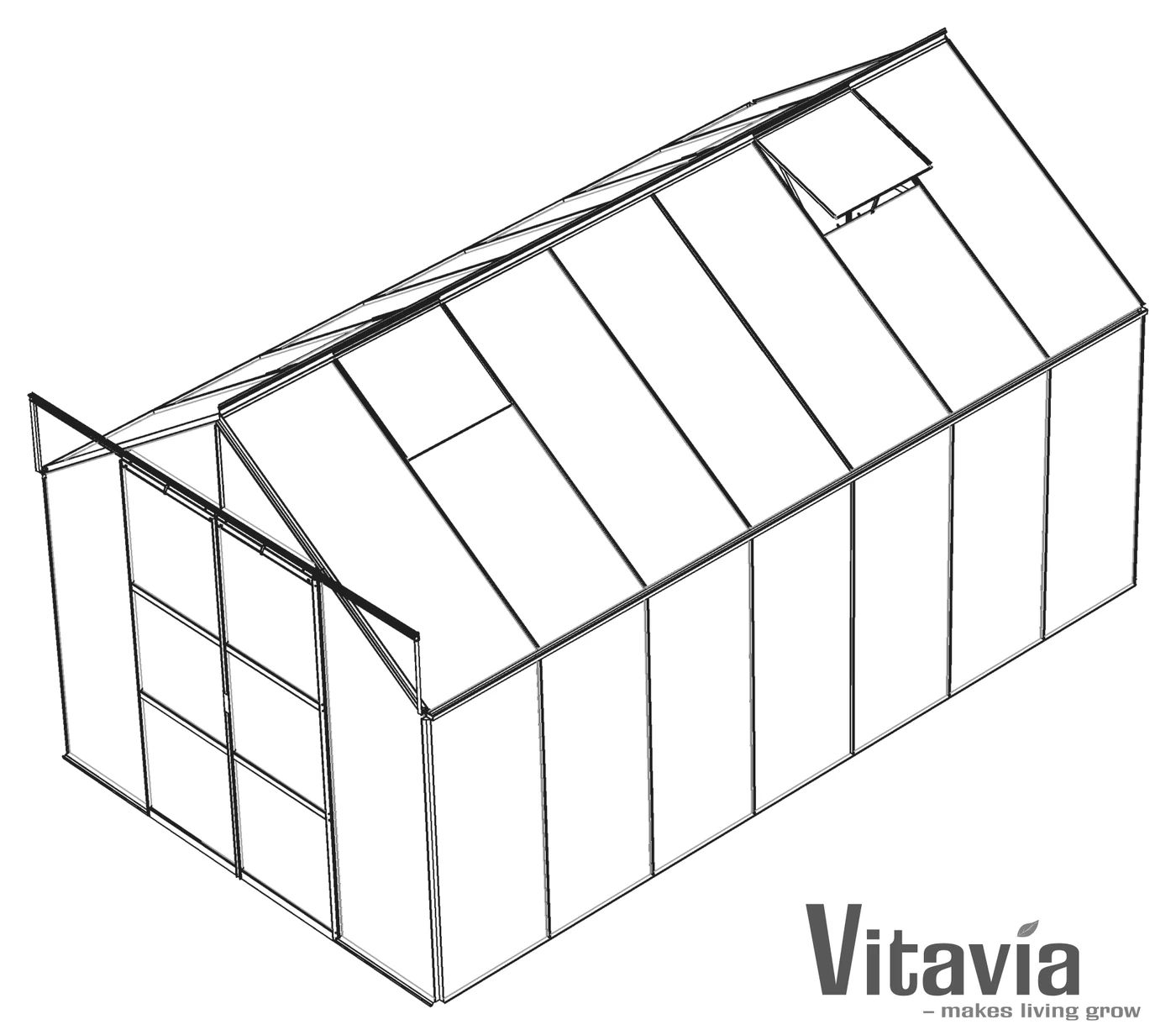

Vitavia Jupiter greenhouse
9steps, base first
2people needed
2544 mm3166 mm3788 mm4410 mm × 2544 mm2544 mm2544 mm2544 mmbase size (A × B)

Pick your size at the top. Quantities and drawings change to match.

The build at a glance

Drawings: Vitavia (Vitavia manual 001.02.1208 (Jupiter, printed as Uranus)). Words and layout: Greenhouse Stores, greenhousestores.co.uk. Keep this guide with your greenhouse.
Read this first

Before you start

Six golden rules

  1. Build frames loose; tighten only when the whole greenhouse stands square on its base.
  2. Measure both diagonals; they must be equal.
  3. Never overtighten nuts 1002: maximum 3 Nm. Overtightening strips aluminium and cracks glass.
  4. Fit extra bolts when instructed; you cannot add them after bar ends are capped.
  5. Build with two people.
  6. Always anchor your greenhouse. An unanchored greenhouse can blow away.

Get ready

  • Read the whole guide once before you start.
  • Gather flat/PH2 screwdrivers, 10 mm socket spanner/wrench, 10 mm combination spanner, knife, tape measure, spirit level. Set cordless drill adjustable torque low.
  • Wear gloves, safety glasses, sturdy shoes and a hat. Aluminium edges are sharp. Clear up broken glass straight away.
  • Open one bundle at a time and keep opened bundles apart. Mixed bundles are the main cause of lost-part searches.
  • Check every part against the parts check pages. Contact Greenhouse Stores before you begin if anything is missing.
  • Read single-frame drawings as views from inside the greenhouse. Read double-frame drawings as views from outside.
  • Choose a sunny spot with as much shelter from wind as possible.
Single frame: inside view
Double frame: outside view
Before step 1

Parts check

Open one bundle at a time. Tick each part as you find it. The number in green is how many your size should have.

Bars and profiles

Part 1020
1020
Glazing seal (reel)
95000105000115000125000 mm×1111
Part 1043
1043
170170170170 mm×4444
Part 1047
1047
Door runner bar
1257125712571257 mm×2222
Part 1059
1059
Upper bar
621621621621 mm×2222
Part 1060
1060
Door bar
621621621621 mm×2222
Part 1061
1061
621621621621 mm×4444
Part 1062
1062
Door top bar
613613613613 mm×2222
Part 1063
1063
Vent sill
635635635635 mm×2444
Part 1064
1064
Vent top bar
602602602602 mm×2444
Part 1065
1065
Vent side bar
520520520520 mm×4888
Part 1066
1066
Vent bottom bar
602602602602 mm×2444
Part 1067
1067
Window opener
295295295295 mm×2444
Part 1092
1092
Corner plate
120120120120 mm×12121212
Part 2005
2005
100100100100 mm×1111
Part 2021
2021
Door brush seal
1923192319231923 mm×2222
Part 2022
2022
2484248424842484 mm×3111
Part 2023
2023
3106310631063106 mm×2
Part 2024
2024
3728372837283728 mm×2
Part 2025
2025
4350435043504350 mm×2
Part 2027
2027
2484248424842484 mm×2
Part 2028
2028
3106310631063106 mm×2
Part 2029
2029
3728372837283728 mm×2
Part 2030
2030
4350435043504350 mm×2
Part 2033
2033
Cross brace
1898189818981898 mm×10101010
Part 2035
2035
Cross brace
2476247624762476 mm×1111
Part 2036
2036
1511151115111511 mm×4444
Part 2039
2039
1535153515351535 mm×2222
Part 2040
2040
1535153515351535 mm×2222
Part 2041
2041
Vertical bar
1963196319631963 mm×2222
Part 2042
2042
Vertical bar
1963196319631963 mm×2222
Part 2043
2043
Door runner support
416416416416 mm×2222
Part 2046
2046
Bottom track
2484248424842484 mm×1111
Part 2048
2048
Horizontal bar
1318131813181318 mm×1111
Part 2050
2050
Ridge bar
2484248424842484 mm×1
Part 2051
2051
Ridge bar
3106310631063106 mm×1
Part 2052
2052
Ridge bar
3728372837283728 mm×1
Part 2053
2053
Ridge bar
4350435043504350 mm×1
Part 2054
2054
1318131813181318 mm×1111
Part 2055
2055
Glazing bar
1511151115111511 mm×12162024
Part 2056
2056
Corner brace
255255255255 mm×681012
Part 2057
2057
Roof brace
1184118411841184 mm×3456
Part 2058
2058
Door side bar (outside)
1923192319231923 mm×2222
Part 2075
2075
1575157515751575 mm×1111
Part 2076
2076
1575157515751575 mm×1111
Part 2089
2089
619619619619 mm×1111
Part 2090
2090
619619619619 mm×1111
Part 2091
2091
175175175175 mm×2222
Part 2094
2094
426426426426 mm×1111
Part 2096
2096
619619619619 mm×2222
Part 2098
2098
Door side bar (inside, right)
1923192319231923 mm×1111
Part 2099
2099
Door side bar (inside, left)
1923192319231923 mm×1111
Part 2100
2100
425425425425 mm×2222
Part 2101
2101
Vertical bar
1963196319631963 mm×1111

Fixings and small parts

Part 1001
1001
Bolt
M6 x 12M6 x 12M6 x 12M6 x 12×218242260277
Part 1002
1002
Nut
M6M6M6M6×221245263280
Part 1003
1003
Screw
3.5 x 163.5 x 163.5 x 163.5 x 16×32323232
Part 1004
1004
Bolt
M4 x 16M4 x 16M4 x 16M4 x 16×4444
Part 1005
1005
Bolt
M6 x 40M6 x 40M6 x 40M6 x 40×2222
Part 1006
1006
Screw
3.5 x 63.5 x 63.5 x 63.5 x 6×12242424
Part 1007
1007
Nut
M4M4M4M4×4444
Part 1009
1009
Washer
Ø8/4Ø8/4Ø8/4Ø8/4×4444
Part 1010
1010
Spacer
32323232×2222
Part 1011
1011
Glazing spring clip
70707070×348396444492
Part 1012
1012
Glass retaining clip
11111111×126142158174
Part 1014
1014
Door glider
20202020×4444
Part 1015
1015
Door roller
Ø22Ø22Ø22Ø22×4444
Part 1017
1017
End cap
46464646×4444
Part 1018
1018
End cap
43.743.743.743.7×8888
Part 1019
1019
Plastic cap
15151515×2444
Part 1111
1111
Door fixer
37.537.537.537.5×2222
Part 1112
1112
Door fixer
7.47.47.47.4×2222
Part 1113
1113
Door fixer
25252525×2222
Part 1500
1500
Bolt
M6 x 5M6 x 5M6 x 5M6 x 5×2222
Part 1515
1515
Nut
M6M6M6M6×2222
Part 2001
2001
Corner bolt
M6 x 12M6 x 12M6 x 12M6 x 12×1111
Part 2006
2006
10101010×2222
Part 2016
2016
Window fixer
40404040×4888
Part 2092
2092
37373737×2666
Part 2093
2093
56565656×3111
Part 5001
5001
40404040×1111
Part 5002
5002
40404040×1111
Part 6060
6060
Washer
Ø12/6Ø12/6Ø12/6Ø12/6×2222
0
Step 0

Prepare your base

Start with an exactly square, level base before you assemble the greenhouse.

A B X = X
67008300990011500
A2544 mm3166 mm3788 mm4410 mm
B2544 mm2544 mm2544 mm2544 mm

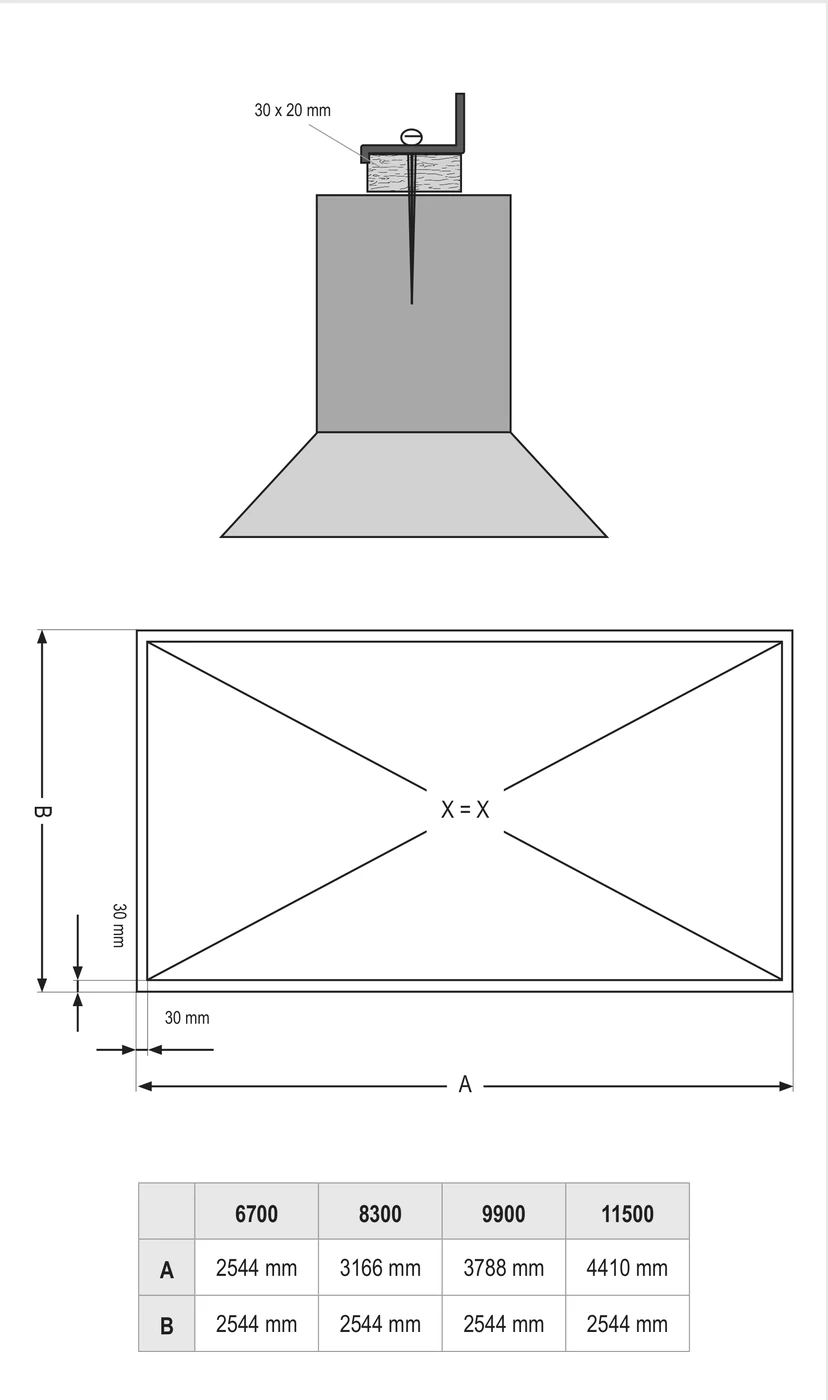

Step 0 drawing
Vitavia drawing 0. The circled numbers match the pictures below.

Installer tip

Use ground spikes or anchor legs only in soil. On concrete or paving, bolt down with suitable fixings; use one method, not both.

Watch out

The Jupiter is big; an uneven or unsquare base leaves the frame misaligned, and the glass will not fit. Check both diagonals twice.

0.1

Use an exactly square, level base; the accessory zinc-coated steel base is the easiest option. Measure both diagonals, shown as X = X, and check they match.

0.2

For stone or concrete foundations, use page dimensions A and B; extend below frost level. Fit treated timber, minimum 18 mm high, maximum 32 mm wide, beneath aluminium; secure with 50 mm bolts, not supplied.

0.3

On very windy, exposed sites, drill through the greenhouse bottom profile and the steel base. Bolt them together.

1
Step 1

Build both side frames

Build two identical sides flat on the ground; use drawing 1A for 6700/8300 or 1B for 9900/11500.

You need

Part 1001
1001×40
Part 1001
1001×48
Part 1001
1001×54
Part 1001
1001×60
Part 1002
1002×40
Part 1002
1002×48
Part 1002
1002×54
Part 1002
1002×60
Part 1092
1092×4
Part 1092
1092×4
Part 1092
1092×4
Part 1092
1092×4
Part 2022
2022×2
Part 2023
2023×2
Part 2027
2027×2
Part 2028
2028×2
Part 2033
2033×4
Part 2033
2033×4
Part 2033
2033×4
Part 2033
2033×4
Part 2055
2055×6
Part 2055
2055×8
Part 2055
2055×10
Part 2055
2055×12
Part 2056
2056×6
Part 2056
2056×4
Part 2056
2056×10
Part 2056
2056×12
Part 2092
2092×4
Part 2092
2092×4
Part 2092
2092×4
Part 2093
2093×2
Part 2024
2024×2
Part 2025
2025×2
Part 2029
2029×2
Part 2030
2030×2

Installer tip

Lay the parts on a blanket or lawn to protect the finish. Leave every nut loose so the frames can flex during step 4.

Watch out

Fit all extra bolts now; the Jupiter needs several per side. You cannot add them once the bar ends are closed.

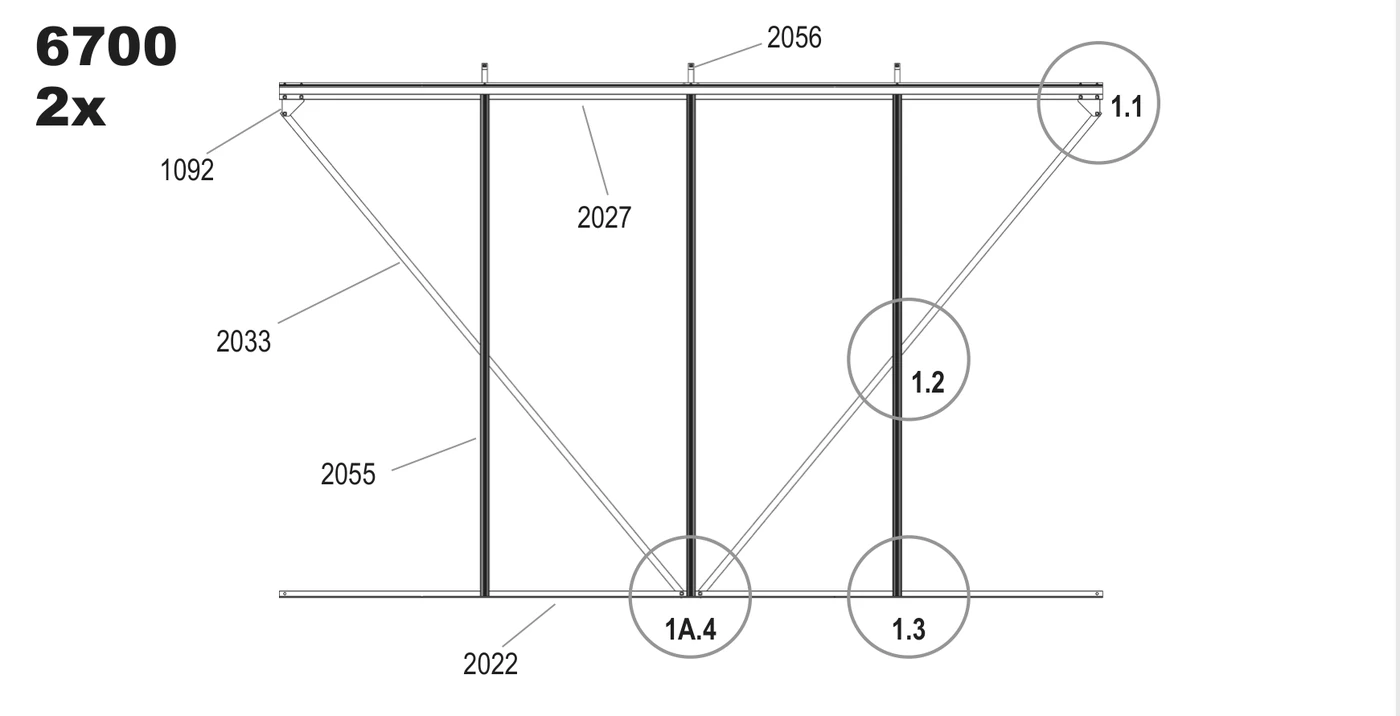

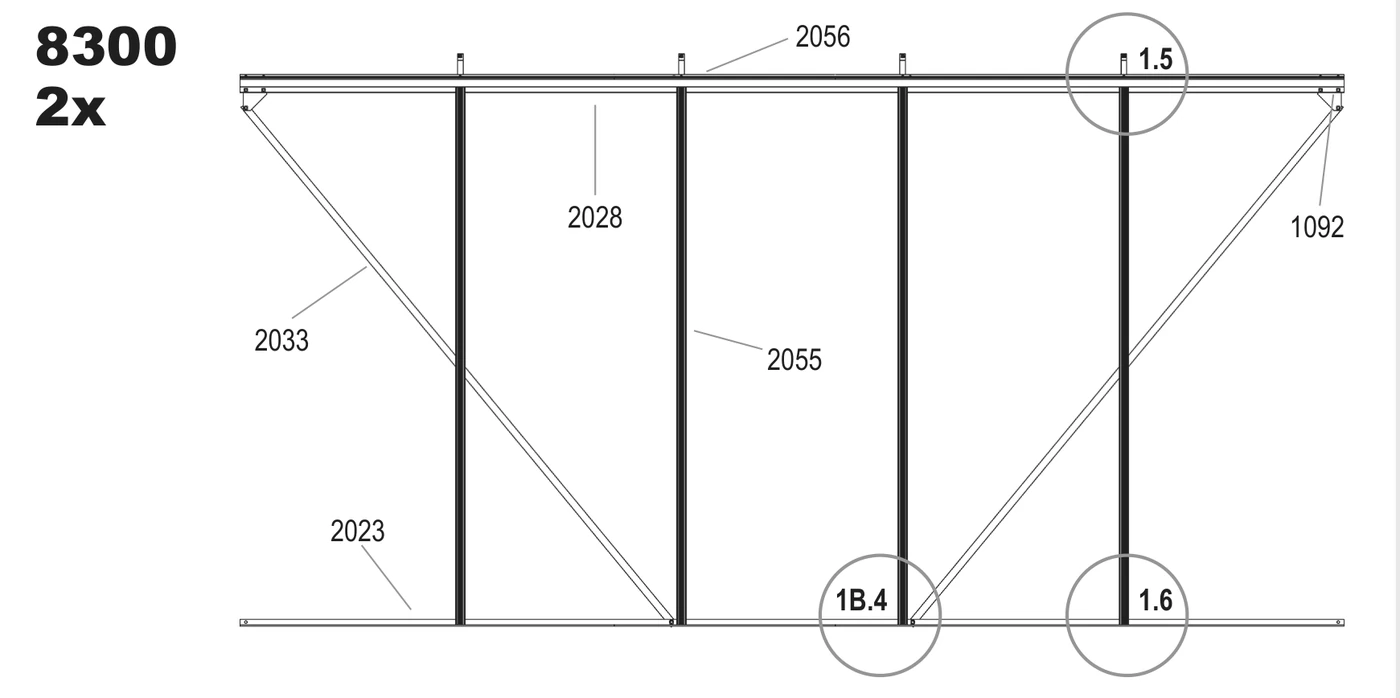

Step 1A drawing, 6700Step 1A drawing, 8300
Vitavia drawing 1A. The circled numbers match the pictures below.

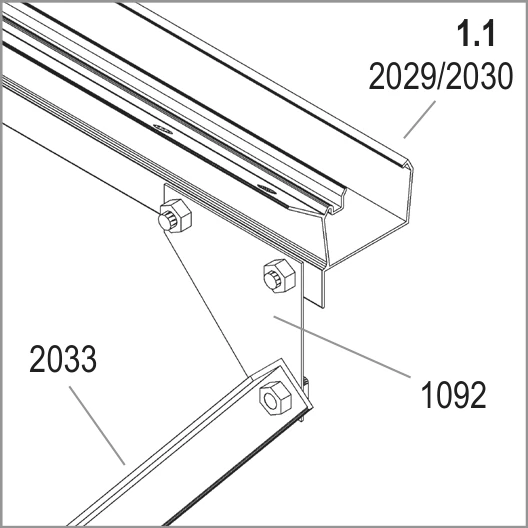

Detail 1.1
1.1

Loosely fit corner plate 1092 where cross brace 2033 meets your eave bar (2027, 2028, 2029 or 2030). Leave its bolts loose for the gable connections in step 4.

Detail 1.2

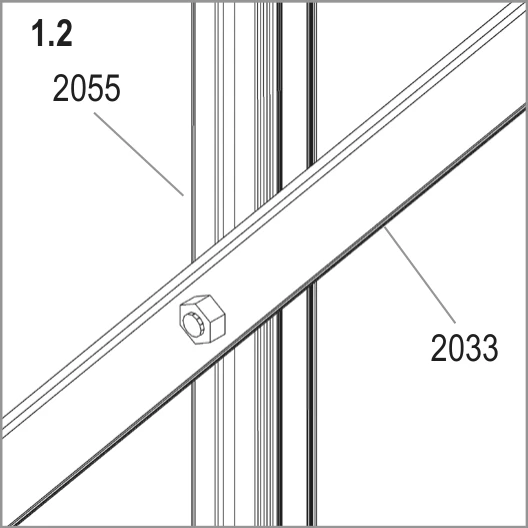

1.2

Slide one extra bolt into each of the two outer uprights 2055. Leave these ready to connect cross brace 2033.

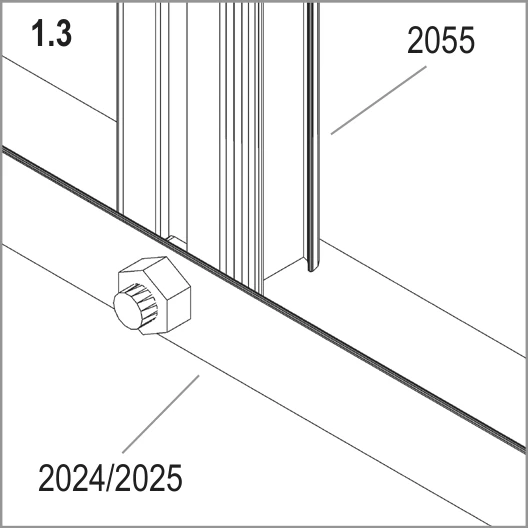

Detail 1.3
1.3

Bolt each upright 2055 at the bottom to your sill bar (2022, 2023, 2024 or 2025).

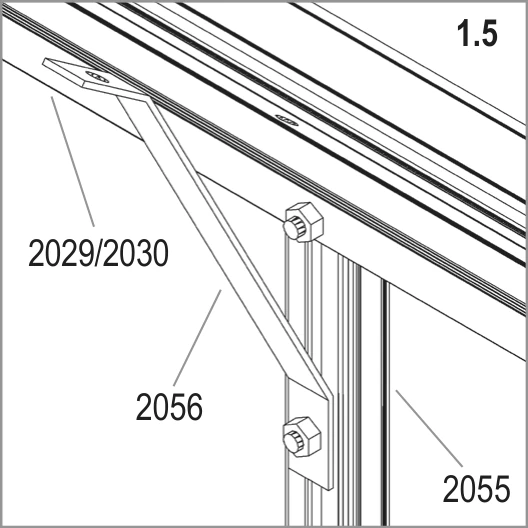

Detail 1A.4
1A.4

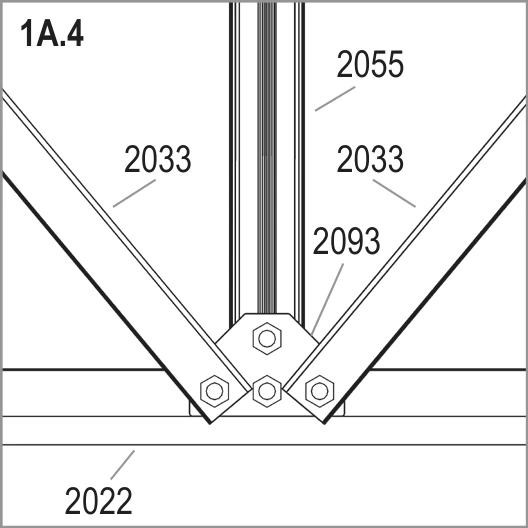

For the 6700 or 8300, join cross braces 2033 and upright 2055 to your sill bar (2022 or 2023). Use connector plate 2093 or 2092 as shown.

Detail 1.5
1.5

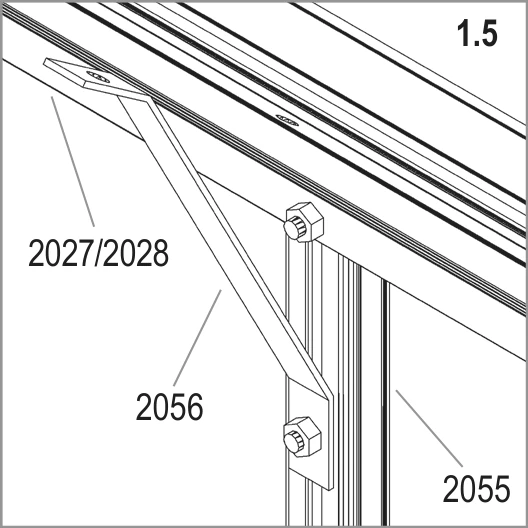

Slide an extra bolt into each upright 2055 now. Leave it ready for corner brace 2056, which runs between the eave bar and upright.

Detail 1.6
1.6Outside view

Slide the bolts into the sill bar channel through its open end, as the arrow shows. Do this before you close the bar end.

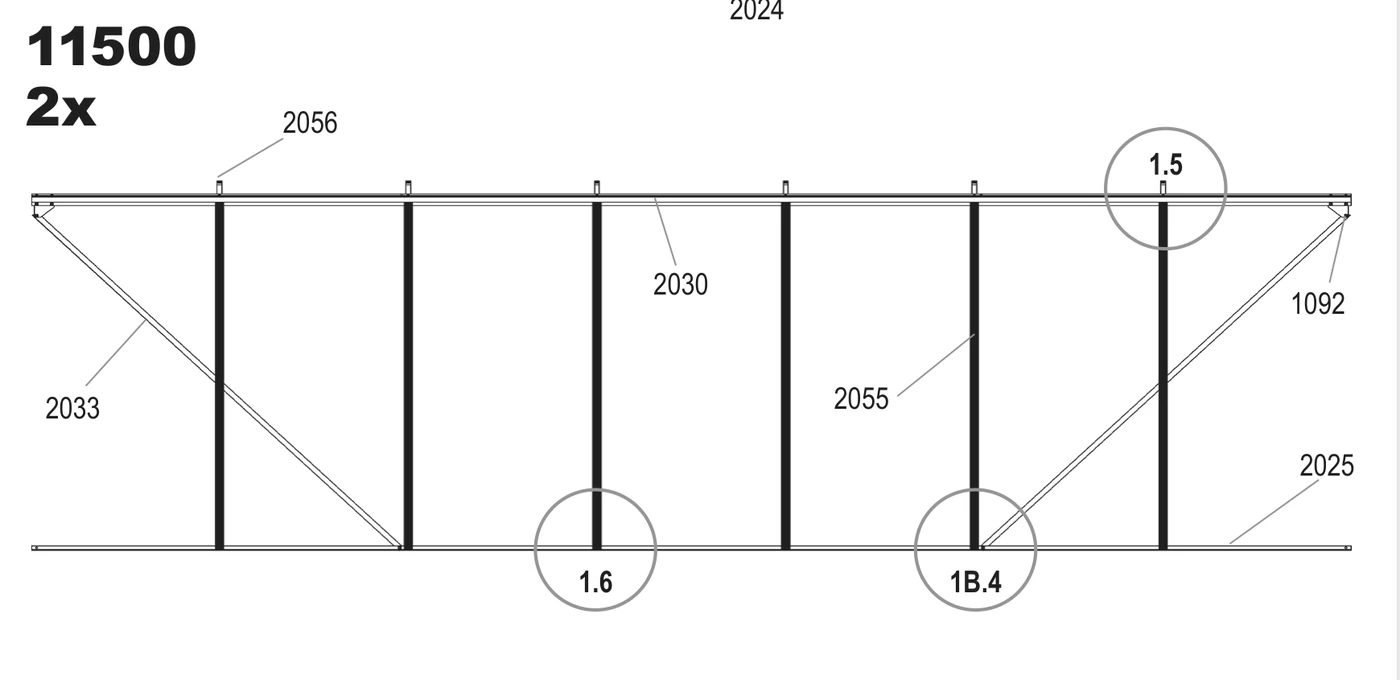

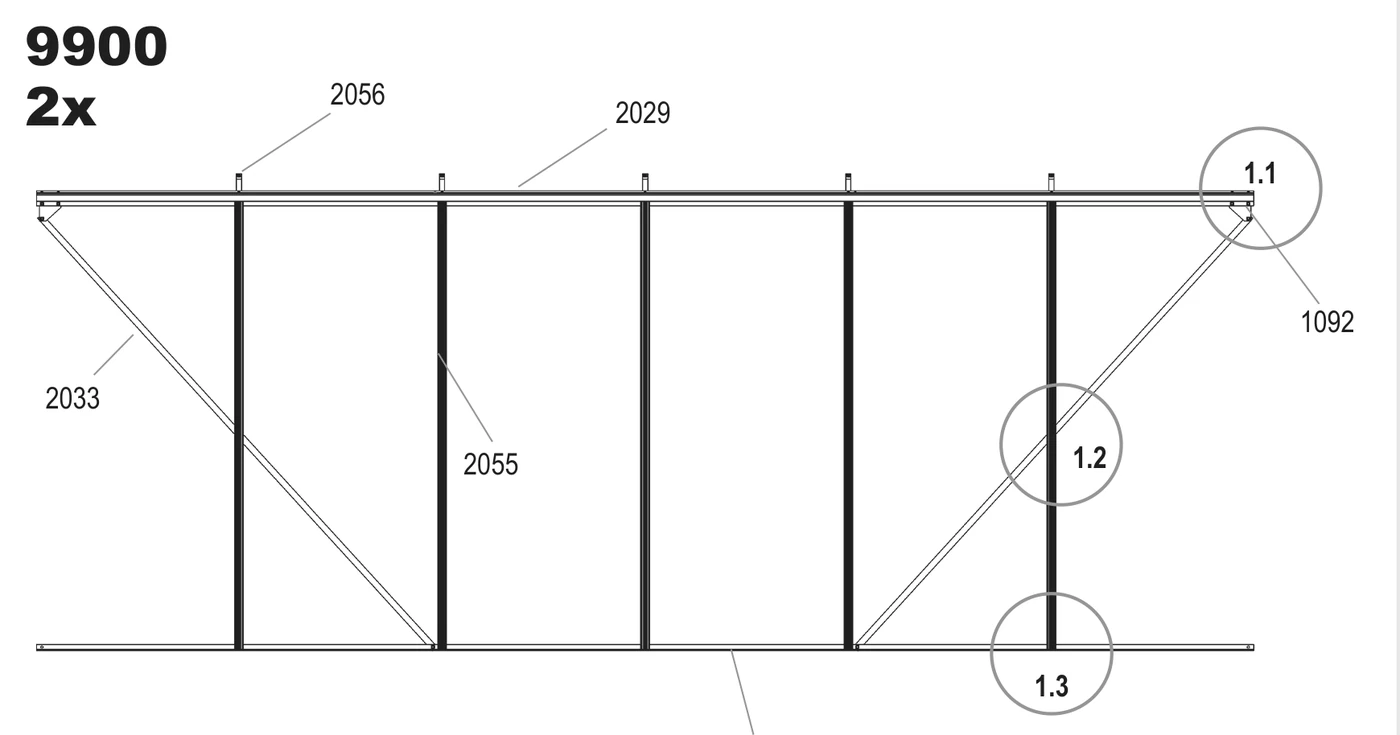

Step 1B drawing, 9900Step 1B drawing, 11500
Vitavia drawing 1B. The circled numbers match the pictures below.
Detail 1.1
1.1

Loosely fit corner plate 1092 where cross brace 2033 meets your eave bar (2027, 2028, 2029 or 2030). Leave its bolts loose for the gable connections in step 4.

Detail 1.2
1.2

Slide one extra bolt into each of the two outer uprights 2055. Leave these ready to connect cross brace 2033.

Detail 1.3
1.3

Bolt each upright 2055 at the bottom to your sill bar (2022, 2023, 2024 or 2025).

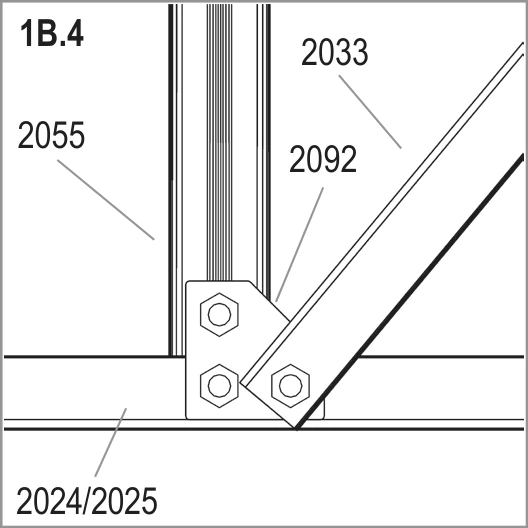

Detail 1B.4
1B.4

For the 9900 or 11500, join cross brace 2033 and upright 2055 to your sill bar (2024 or 2025). Use connector plate 2092 as shown.

Detail 1.5
1.5

Slide an extra bolt into each upright 2055 now. Leave it ready for corner brace 2056, which runs between the eave bar and upright.

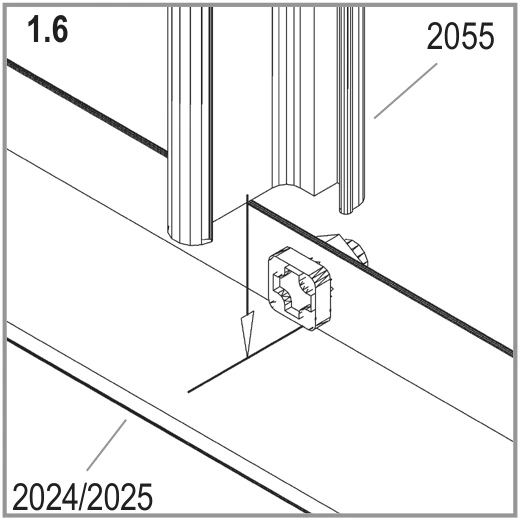

Detail 1.6
1.6Outside view

Slide the bolts into the sill bar channel through its open end, as the arrow shows. Do this before you close the bar end.

2
Step 2

Build the back gable

Assemble the plain back gable flat on the ground, with all nuts loose.

You need

Part 1001
1001×31
Part 1001
1001×31
Part 1001
1001×31
Part 1001
1001×31
Part 1002
1002×31
Part 1002
1002×31
Part 1002
1002×31
Part 1002
1002×31
Part 1043
1043×2
Part 1043
1043×2
Part 1043
1043×2
Part 1043
1043×2
Part 2022
2022×1
Part 2022
2022×1
Part 2022
2022×1
Part 2022
2022×1
Part 2033
2033×2
Part 2033
2033×2
Part 2033
2033×2
Part 2033
2033×2
Part 2035
2035×1
Part 2035
2035×1
Part 2035
2035×1
Part 2035
2035×1
Part 2036
2036×2
Part 2036
2036×2
Part 2036
2036×2
Part 2036
2036×2
Part 2039
2039×1
Part 2039
2039×1
Part 2039
2039×1
Part 2039
2039×1
Part 2040
2040×1
Part 2040
2040×1
Part 2040
2040×1
Part 2040
2040×1
Part 2041
2041×1
Part 2041
2041×1
Part 2041
2041×1
Part 2041
2041×1
Part 2042
2042×1
Part 2042
2042×1
Part 2042
2042×1
Part 2042
2042×1
Part 2054
2054×1
Part 2054
2054×1
Part 2054
2054×1
Part 2054
2054×1
Part 2091
2091×1
Part 2091
2091×1
Part 2091
2091×1
Part 2091
2091×1
Part 2093
2093×1
Part 2093
2093×1
Part 2093
2093×1
Part 2093
2093×1
Part 2100
2100×1
Part 2100
2100×1
Part 2100
2100×1
Part 2100
2100×1
Part 2101
2101×1
Part 2101
2101×1
Part 2101
2101×1
Part 2101
2101×1

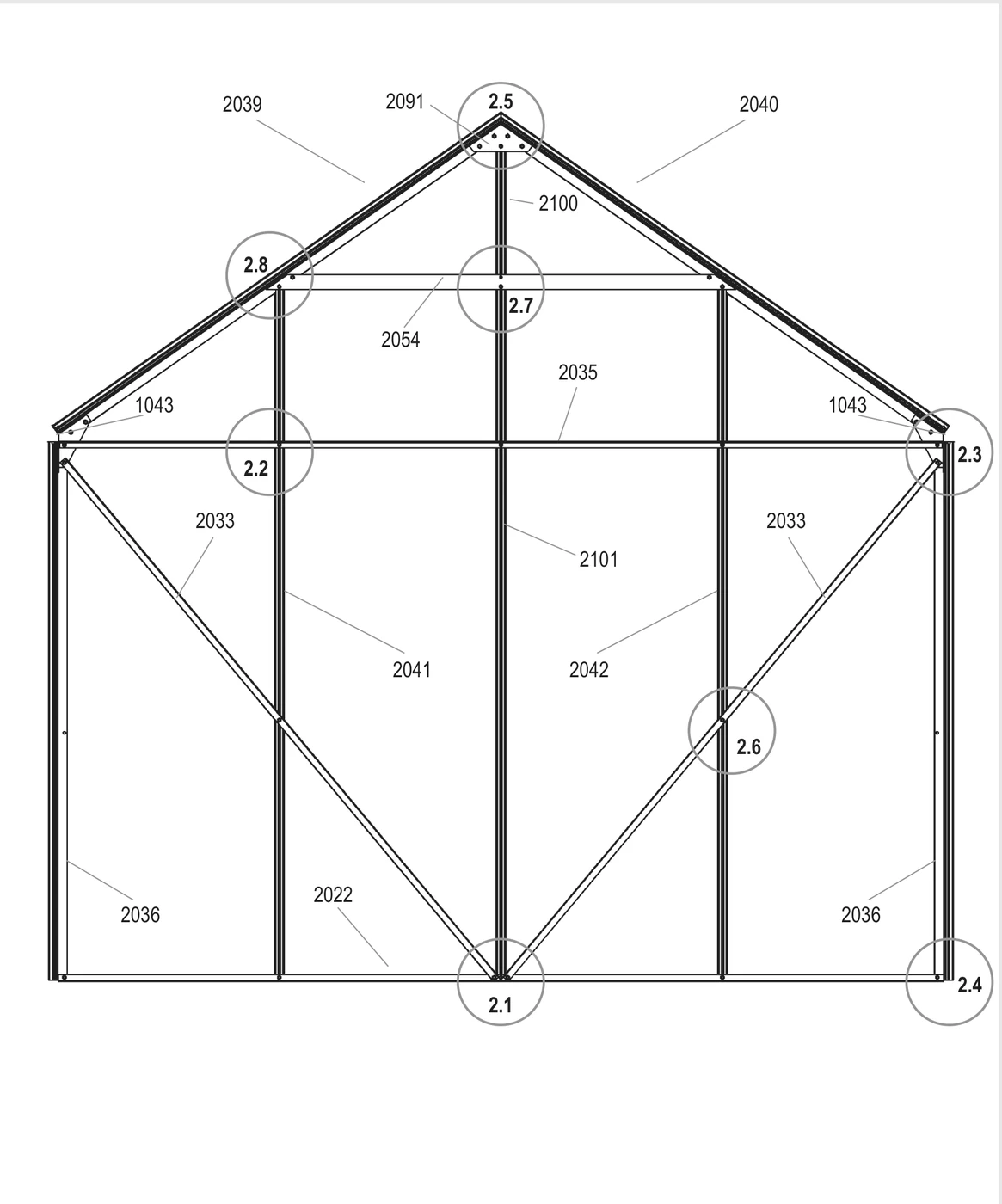

Step 2 drawing
Vitavia drawing 2. The circled numbers match the pictures below.

Installer tip

Build upwards from the bottom. Slide each extra bolt into its channel before you fit the bar above.

Watch out

Insert the extra bolts now. Without them, you must take the gable apart to fit the cross braces in step 4.

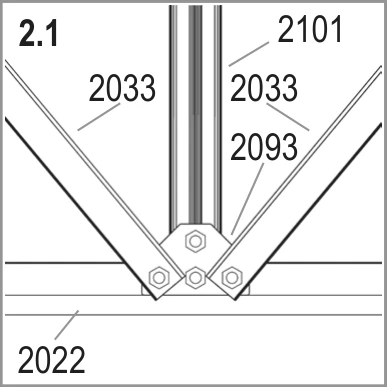

Detail 2.1
2.1

Join upright 2101 and both cross braces 2033 to sill bar 2022 at the bottom centre. Use connector plate 2093.

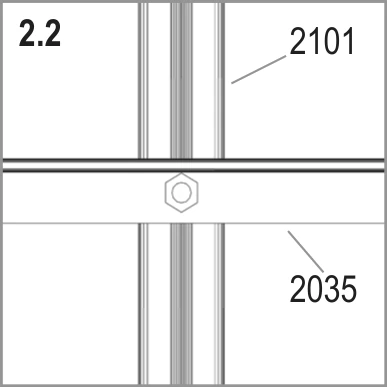

Detail 2.2
2.2

Bolt cross brace 2035 across upright 2101. Insert two extra bolts into each upright 2041 and 2042 for the cross braces, and one into upright 2101.

Detail 2.3
2.3

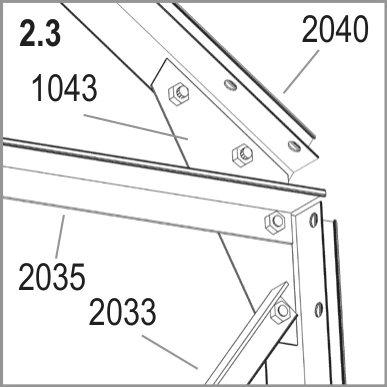

Join roof bar 2040, cross brace 2035 and cross brace 2033 at each top corner. Use corner plate 1043.

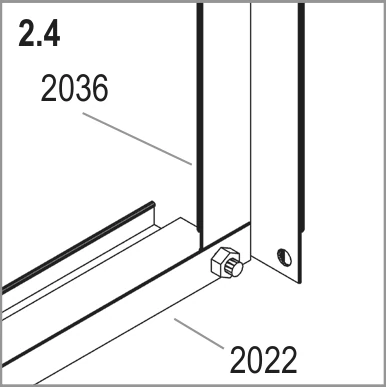

Detail 2.4
2.4

Bolt corner bar 2036 to sill bar 2022 at each bottom corner.

Detail 2.5
2.5

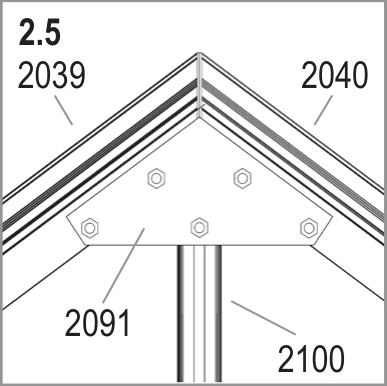

Join roof bars 2039 and 2040 to the top of upright 2100 at the peak. Use apex plate 2091.

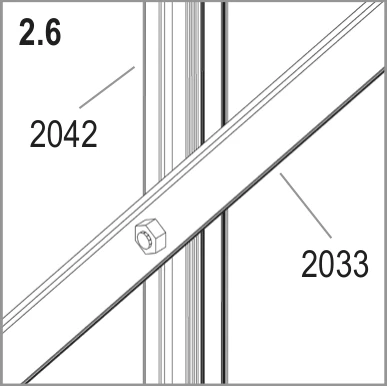

Detail 2.6
2.6

Bolt cross brace 2033 across upright 2042.

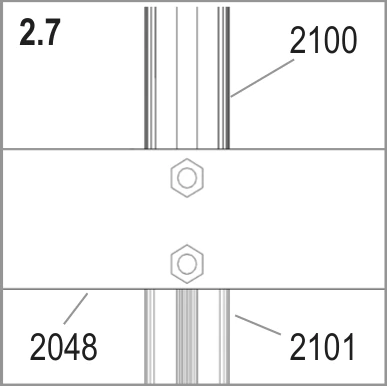

Detail 2.7
2.7

Join uprights 2100 and 2101 to horizontal bar 2048 with two bolts.

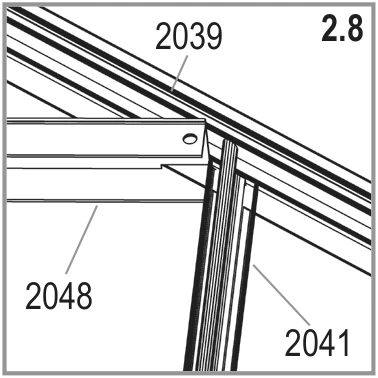

Detail 2.8
2.8Outside view

Join horizontal bar 2048 to upright 2041 under roof bar 2039, as shown.

3
Step 3

Build the door gable

Assemble the front door gable flat on the ground, with all nuts loose.

You need

Part 1001
1001×39
Part 1001
1001×39
Part 1001
1001×39
Part 1001
1001×39
Part 1002
1002×39
Part 1002
1002×39
Part 1002
1002×39
Part 1002
1002×39
Part 1043
1043×2
Part 1043
1043×2
Part 1043
1043×2
Part 1043
1043×2
Part 1047
1047×2
Part 1047
1047×2
Part 1047
1047×2
Part 1047
1047×2
Part 2036
2036×2
Part 2036
2036×2
Part 2036
2036×2
Part 2036
2036×2
Part 2039
2039×1
Part 2039
2039×1
Part 2039
2039×1
Part 2039
2039×1
Part 2040
2040×1
Part 2040
2040×1
Part 2040
2040×1
Part 2040
2040×1
Part 2041
2041×1
Part 2041
2041×1
Part 2041
2041×1
Part 2041
2041×1
Part 2042
2042×1
Part 2042
2042×1
Part 2042
2042×1
Part 2042
2042×1
Part 2046
2046×1
Part 2046
2046×1
Part 2046
2046×1
Part 2046
2046×1
Part 2048
2048×1
Part 2048
2048×1
Part 2048
2048×1
Part 2048
2048×1
Part 2075
2075×1
Part 2075
2075×1
Part 2075
2075×1
Part 2075
2075×1
Part 2076
2076×1
Part 2076
2076×1
Part 2076
2076×1
Part 2076
2076×1
Part 2089
2089×1
Part 2089
2089×1
Part 2089
2089×1
Part 2089
2089×1
Part 2090
2090×1
Part 2090
2090×1
Part 2090
2090×1
Part 2090
2090×1
Part 2091
2091×1
Part 2091
2091×1
Part 2091
2091×1
Part 2091
2091×1
Part 2092
2092×2
Part 2092
2092×2
Part 2092
2092×2
Part 2092
2092×2
Part 2094
2094×1
Part 2094
2094×1
Part 2094
2094×1
Part 2094
2094×1
Part 2096
2096×2
Part 2096
2096×2
Part 2096
2096×2
Part 2096
2096×2
Part 2100
2100×1
Part 2100
2100×1
Part 2100
2100×1
Part 2100
2100×1
Part 5001
5001×1
Part 5001
5001×1
Part 5001
5001×1
Part 5001
5001×1
Part 5002
5002×1
Part 5002
5002×1
Part 5002
5002×1
Part 5002
5002×1

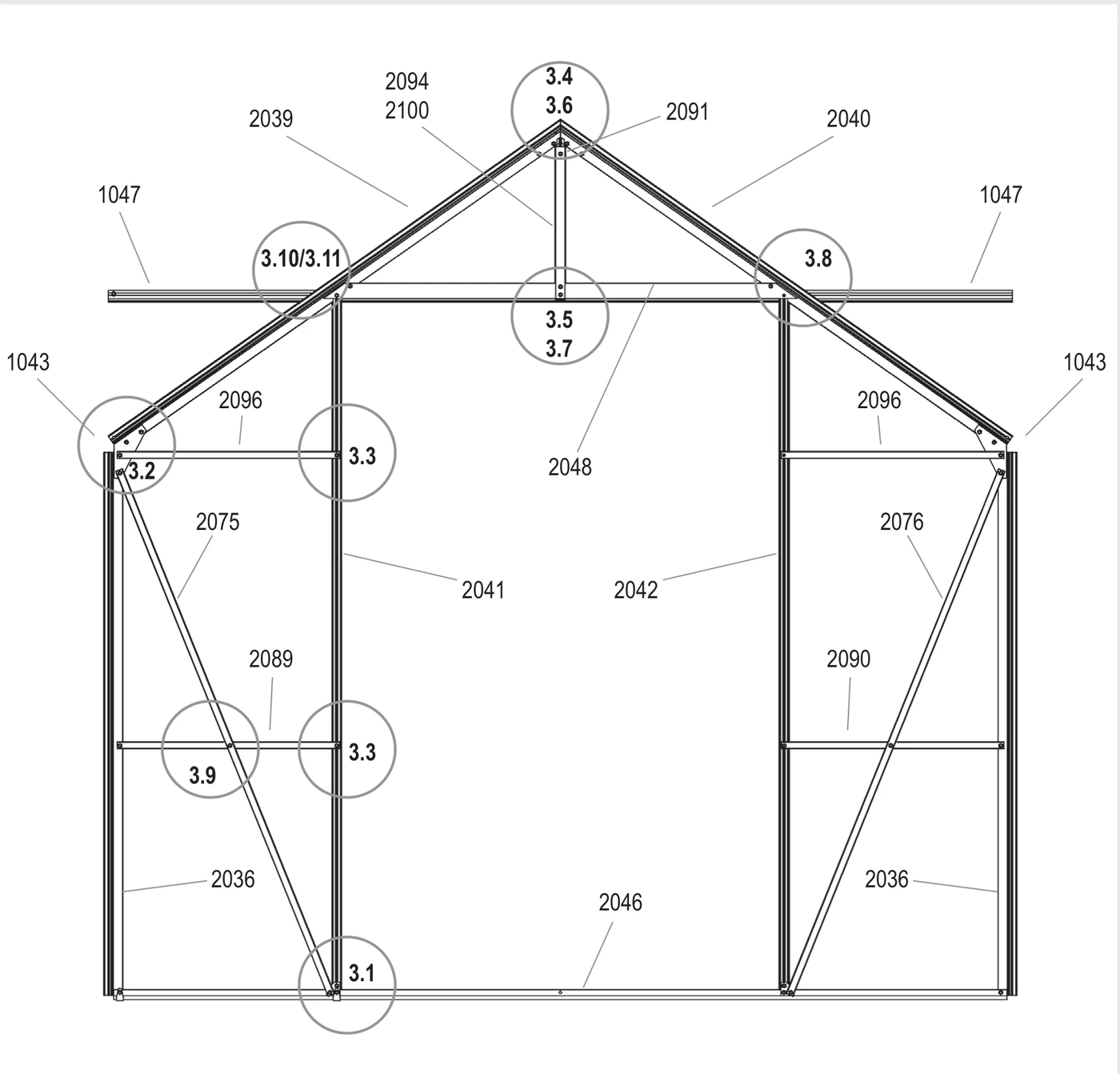

Step 3 drawing
Vitavia drawing 3. The circled numbers match the pictures below.

Installer tip

The Jupiter has two sliding doors that meet in the middle. Each door runner bar 1047 carries one door.

Watch out

If parts do not line up, check for bars fitted upside down or back to front. Do not force them.

Detail 3.1
3.1

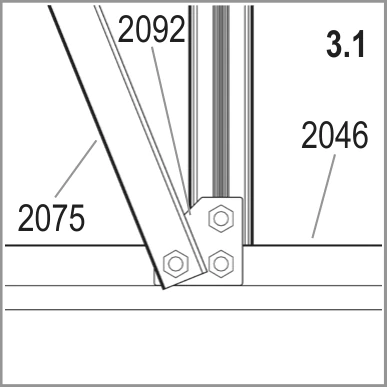

Join door post 2046 and brace 2075 at the bottom with connector plate 2092.

Detail 3.2
3.2

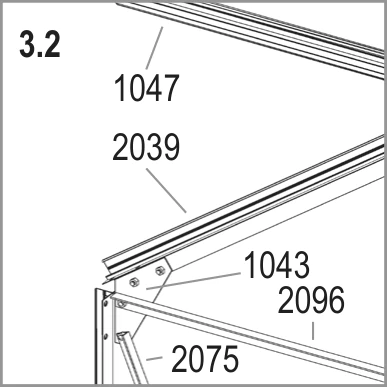

Join roof bar 2039, bar 2096 and brace 2075 at each top corner. Use corner plate 1043.

Detail 3.3
3.3

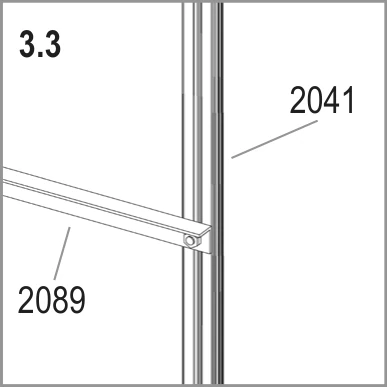

Bolt bar 2089 to upright 2041. Insert two extra bolts into each upright 2041 and 2042, as on the back gable.

Detail 3.4
3.4

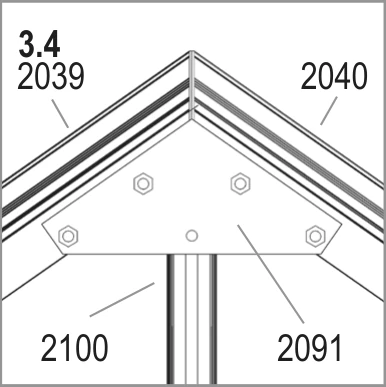

Join roof bars 2039 and 2040 to the top of upright 2100 at the peak. Use apex plate 2091.

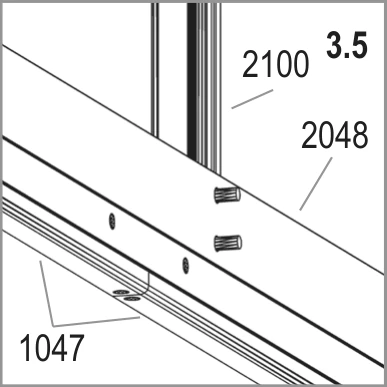

Detail 3.5
3.5

Position both door runner bars 1047 along horizontal bar 2048, below upright 2100.

Detail 3.6
3.6

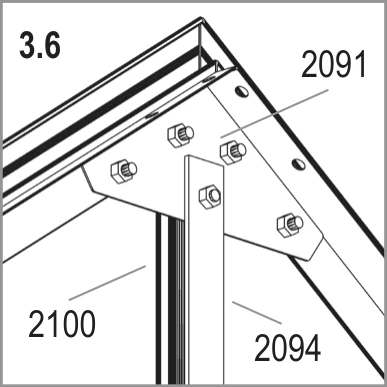

Join upright 2100 and bar 2094 with apex plate 2091, as shown.

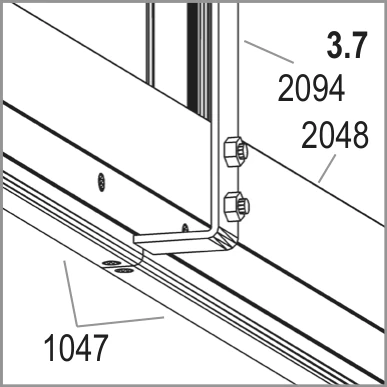

Detail 3.7
3.7

Bolt bar 2094 to horizontal bar 2048, with door runner bar 1047 below.

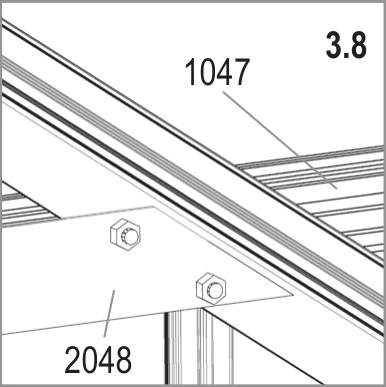

Detail 3.8
3.8

Join horizontal bar 2048 and door runner bar 1047 as shown.

Detail 3.9
3.9

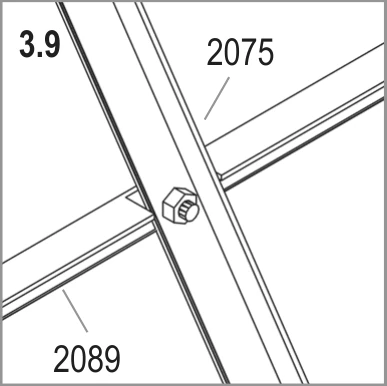

Bolt brace 2075 where it crosses bar 2089.

Detail 3.10
3.10

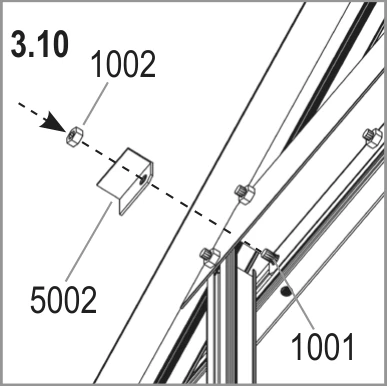

Connect part 5002 with bolt 1001 and nut 1002, as shown.

Detail 3.11
3.11

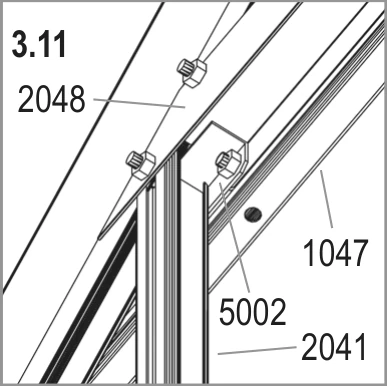

Join part 5002 to door runner bar 1047 at upright 2041 and horizontal bar 2048. Connect parts 5001 and 5002 with a nut and bolt.

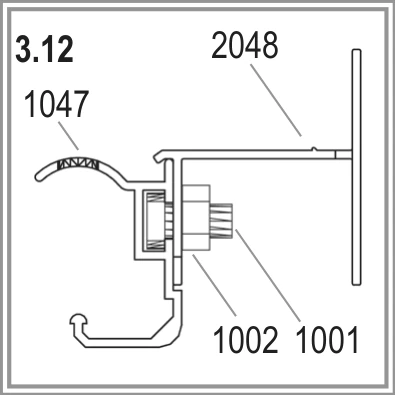

Detail 3.12
3.12Outside view

Work from the outside and loosely connect each door runner bar 1047 to horizontal bar 2048. Use two nuts 1002 and two bolts 1001 for each.

4
Step 4

Join and stand the frame

Work with another person to join and stand the frame, using drawing 4A before drawing 4B.

You need

Part 1001
1001×76
Part 1001
1001×82
Part 1001
1001×92
Part 1001
1001×102
Part 1002
1002×78
Part 1002
1002×84
Part 1002
1002×94
Part 1002
1002×104
Part 1005
1005×2
Part 1005
1005×2
Part 1005
1005×2
Part 1005
1005×2
Part 1010
1010×2
Part 1010
1010×2
Part 1010
1010×2
Part 1010
1010×2
Part 1092
1092×8
Part 1092
1092×8
Part 1092
1092×8
Part 1092
1092×8
Part 2043
2043×2
Part 2043
2043×2
Part 2043
2043×2
Part 2043
2043×2
Part 2050
2050×1
Part 2051
2051×1
Part 2052
2052×1
Part 2053
2053×1
Part 6060
6060×2
Part 6060
6060×2
Part 6060
6060×2
Part 6060
6060×2
Part 1017
1017×4
Part 1017
1017×4
Part 1017
1017×4
Part 1017
1017×4
Part 1018
1018×8
Part 1018
1018×8
Part 1018
1018×8
Part 1018
1018×8
Part 2033
2033×4
Part 2033
2033×4
Part 2033
2033×4
Part 2033
2033×4
Part 2055
2055×6
Part 2055
2055×8
Part 2055
2055×10
Part 2055
2055×12
Part 2057
2057×3
Part 2057
2057×4
Part 2057
2057×5
Part 2057
2057×6

Installer tip

Count the circled extra bolts on every roof bar before you fit any end caps. Quantities depend on greenhouse size.

Watch out

Keep all bolts loose until the greenhouse is square on its base, so you do not fix a twist. You cannot adjust the frame once the glass is fitted.

Step 4A drawing

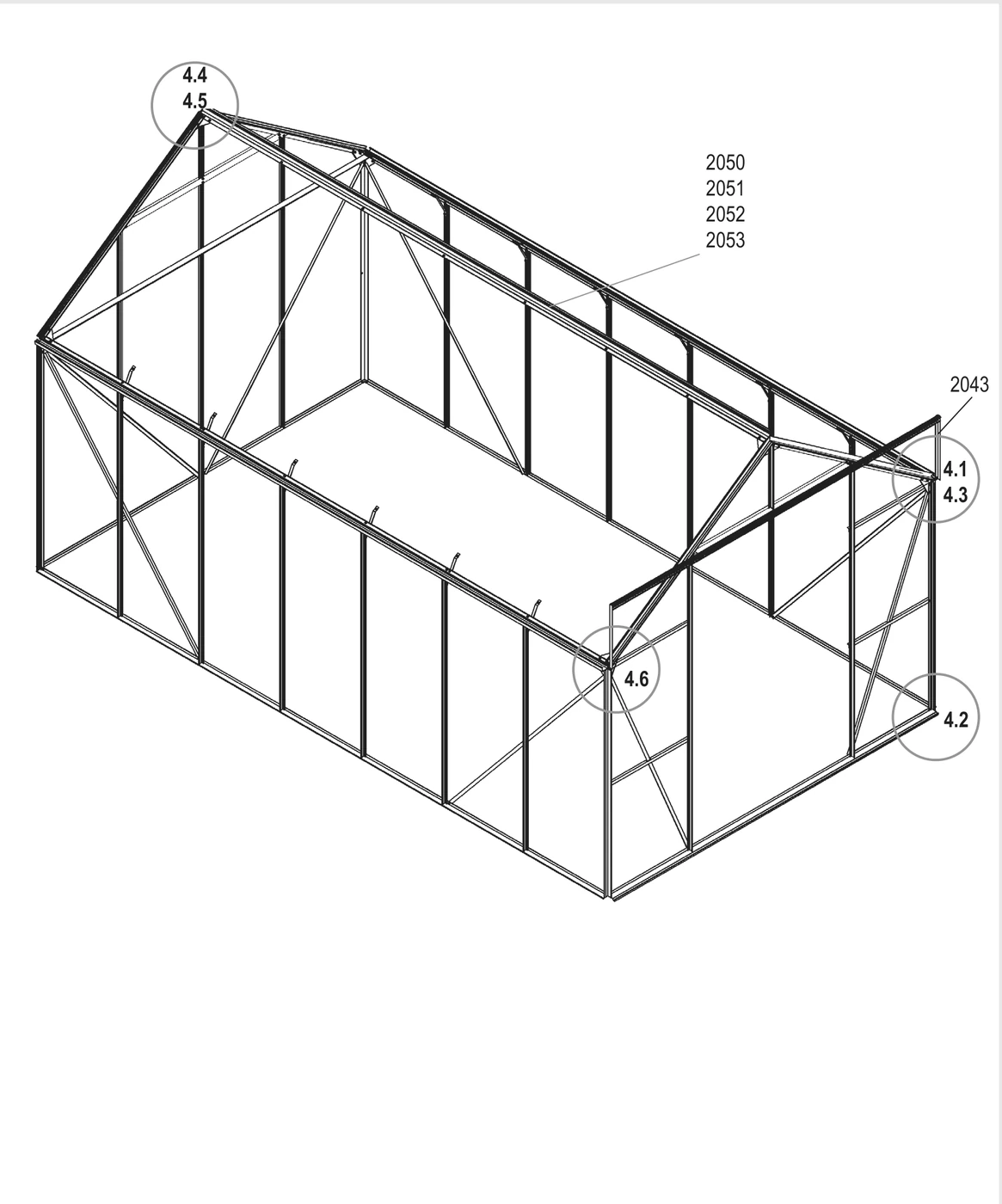

Vitavia drawing 4A. The circled numbers match the pictures below.
Detail 4.1
4.1

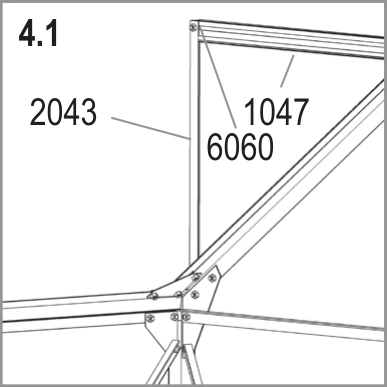

Fit door runner support 2043 to door runner bar 1047 with washer 6060.

Detail 4.2
4.2

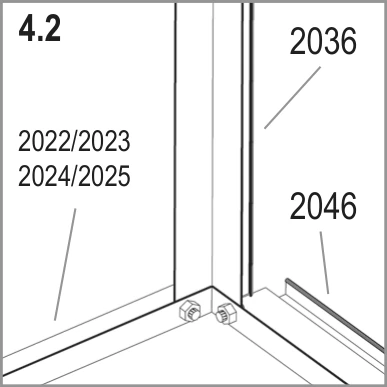

Bolt the side frames to the gable ends at the bottom corners. Join your sill bar to corner bar 2036 and door post 2046 as shown.

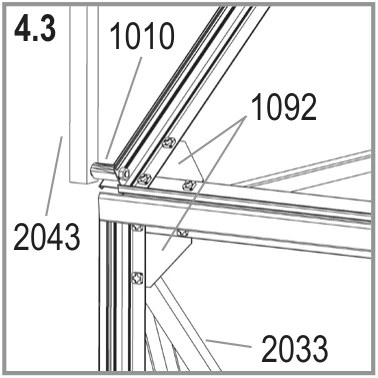

Detail 4.3
4.3Outside view

Loosely connect corner plate 1092 above the eaves. Position spacer 1010 and support 2043 at this corner, with cross brace 2033 below.

Detail 4.4
4.4

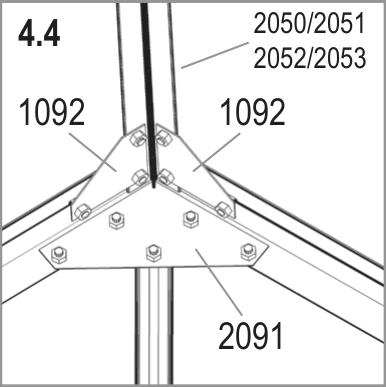

Fit your ridge bar (2050, 2051, 2052 or 2053). Fix corner plates 1092 to the gable ends at the peak, beside apex plate 2091.

Detail 4.5
4.5Outside view

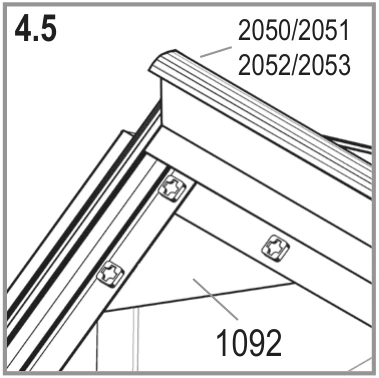

Fit corner plate 1092 under the ridge bar at each gable end, as shown.

Detail 4.6
4.6Outside view

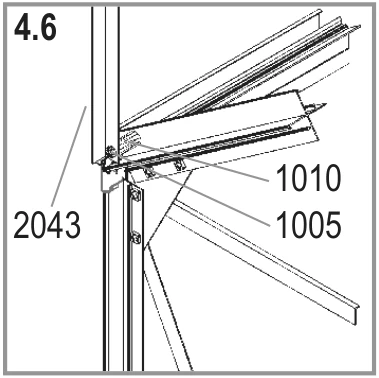

Fix door runner support 2043 to the gable end with bolt 1005 and spacer 1010.

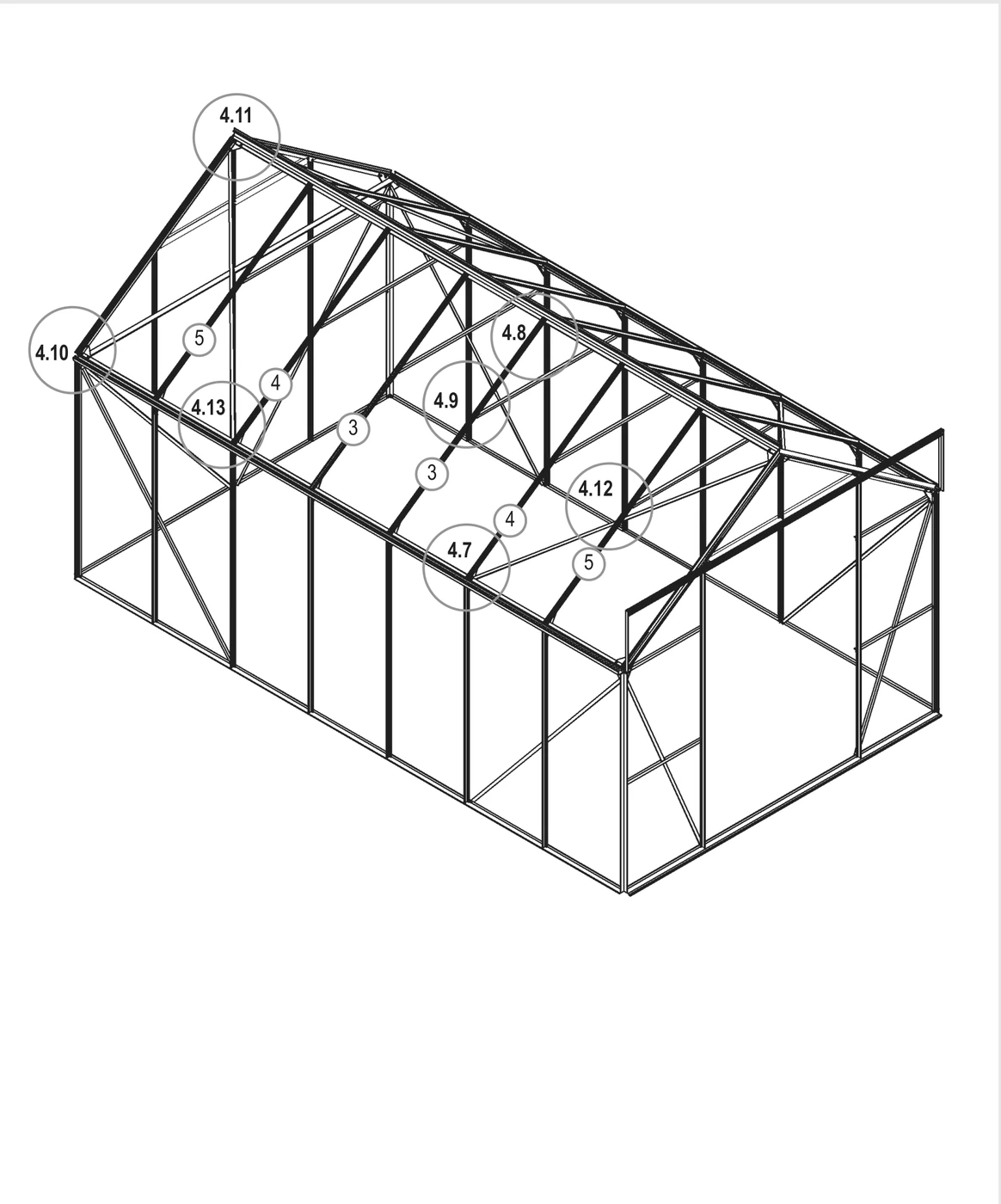

Step 4B drawing
Vitavia drawing 4B. The circled numbers match the pictures below.
Detail 4.7
4.7

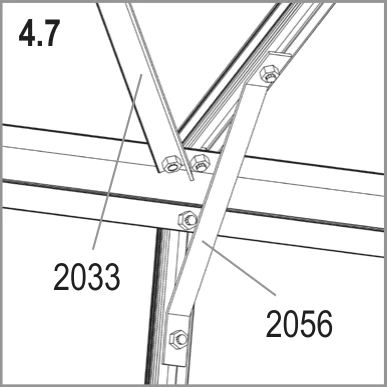

Connect corner braces 2056 and cross braces 2033 as shown in drawing 4B.

Detail 4.8
4.8

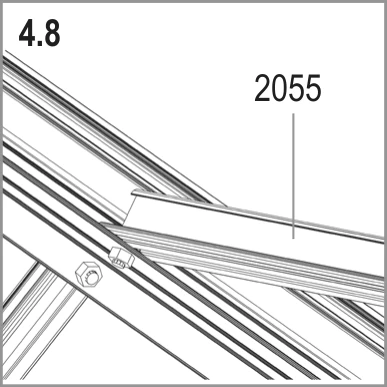

Bolt roof glazing bars 2055 between the eaves and ridge bar; insert extra bolts as you go. Read the circled bolt quantities on each bar from both ends.

Detail 4.9
4.9

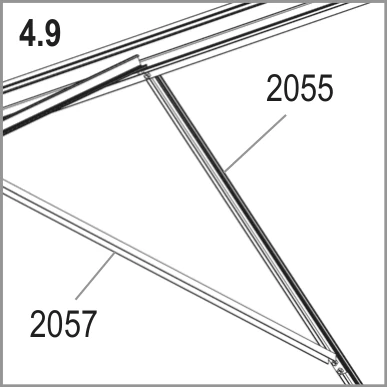

Connect roof braces 2057 to roof glazing bars 2055.

Detail 4.11
4.11

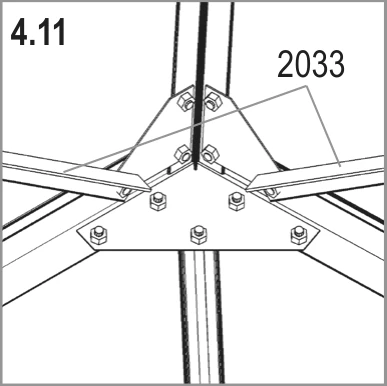

Connect cross braces 2033 at the gable peak, as shown.

Detail 4.12
4.12

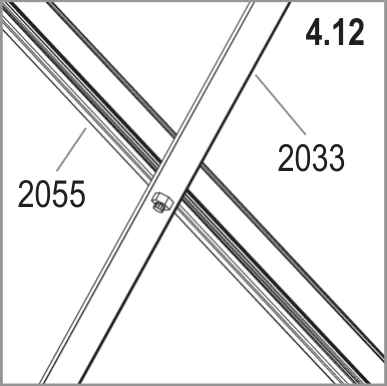

Bolt cross brace 2033 where it crosses roof glazing bar 2055.

Detail 4.13

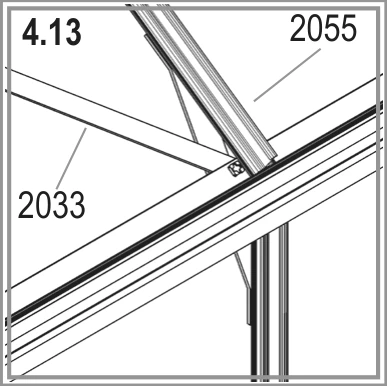

4.13Outside view

Work from the outside and connect cross brace 2033 to roof glazing bar 2055, as shown.

Do this now

Place the greenhouse on your prepared base and bolt it down loosely. Adjust until both corner-to-corner diagonals match, then tighten all bolts to a maximum of 3 Nm.

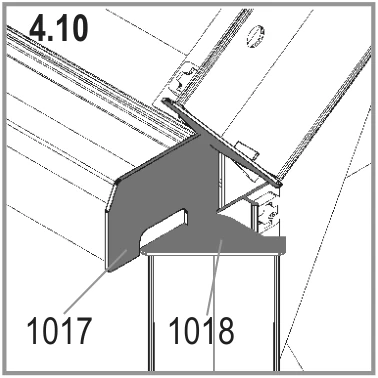

Detail 4.10
4.10Outside view

Press end caps 1017 and 1018 onto the open profile ends.

5R
Step 5R

Fit the right-hand door

Build and hang the right-hand door first; the Jupiter has two sliding doors.

You need

Part 1001
1001×2
Part 1001
1001×2
Part 1001
1001×2
Part 1001
1001×2
Part 1002
1002×2
Part 1002
1002×2
Part 1002
1002×2
Part 1002
1002×2
Part 1003
1003×16
Part 1003
1003×16
Part 1003
1003×16
Part 1003
1003×16
Part 1004
1004×2
Part 1004
1004×2
Part 1004
1004×2
Part 1004
1004×2
Part 1007
1007×2
Part 1007
1007×2
Part 1007
1007×2
Part 1007
1007×2
Part 1009
1009×2
Part 1009
1009×2
Part 1009
1009×2
Part 1009
1009×2
Part 1014
1014×2
Part 1014
1014×2
Part 1014
1014×2
Part 1014
1014×2
Part 1015
1015×2
Part 1015
1015×2
Part 1015
1015×2
Part 1015
1015×2
Part 1059
1059×1
Part 1059
1059×1
Part 1059
1059×1
Part 1059
1059×1
Part 1060
1060×1
Part 1060
1060×1
Part 1060
1060×1
Part 1060
1060×1
Part 1061
1061×2
Part 1061
1061×2
Part 1061
1061×2
Part 1061
1061×2
Part 1062
1062×1
Part 1062
1062×1
Part 1062
1062×1
Part 1062
1062×1
Part 1111
1111×1
Part 1111
1111×1
Part 1111
1111×1
Part 1111
1111×1
Part 1112
1112×1
Part 1112
1112×1
Part 1112
1112×1
Part 1112
1112×1
Part 1113
1113×1
Part 1113
1113×1
Part 1113
1113×1
Part 1113
1113×1
Part 1500
1500×1
Part 1500
1500×1
Part 1500
1500×1
Part 1500
1500×1
Part 1515
1515×1
Part 1515
1515×1
Part 1515
1515×1
Part 1515
1515×1
Part 2005
2005×1
Part 2005
2005×1
Part 2005
2005×1
Part 2005
2005×1
Part 2006
2006×2
Part 2006
2006×2
Part 2006
2006×2
Part 2006
2006×2
Part 2021
2021×1
Part 2021
2021×1
Part 2021
2021×1
Part 2021
2021×1
Part 2058
2058×1
Part 2058
2058×1
Part 2058
2058×1
Part 2058
2058×1
Part 2098
2098×1
Part 2098
2098×1
Part 2098
2098×1
Part 2098
2098×1

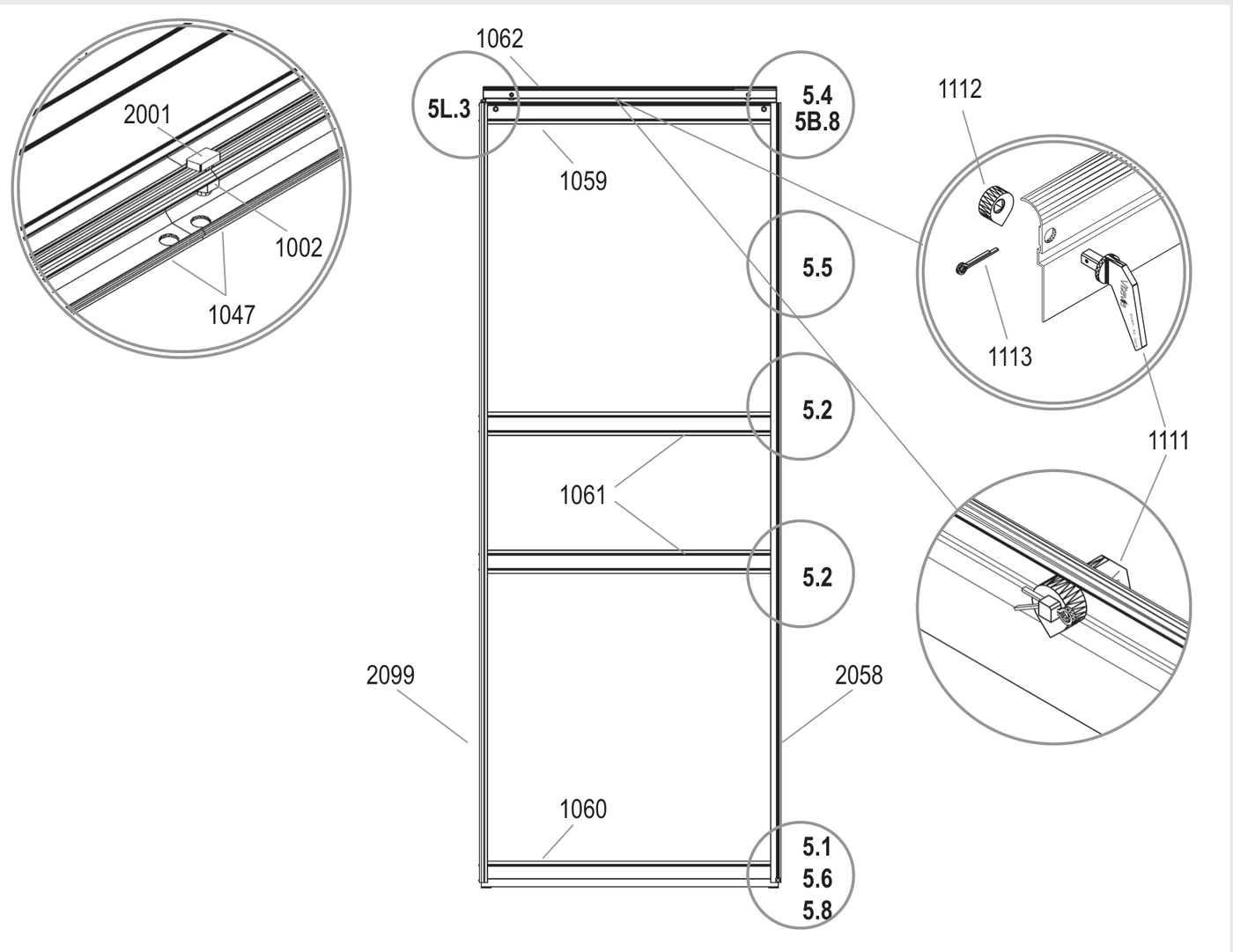

Step 5R drawing

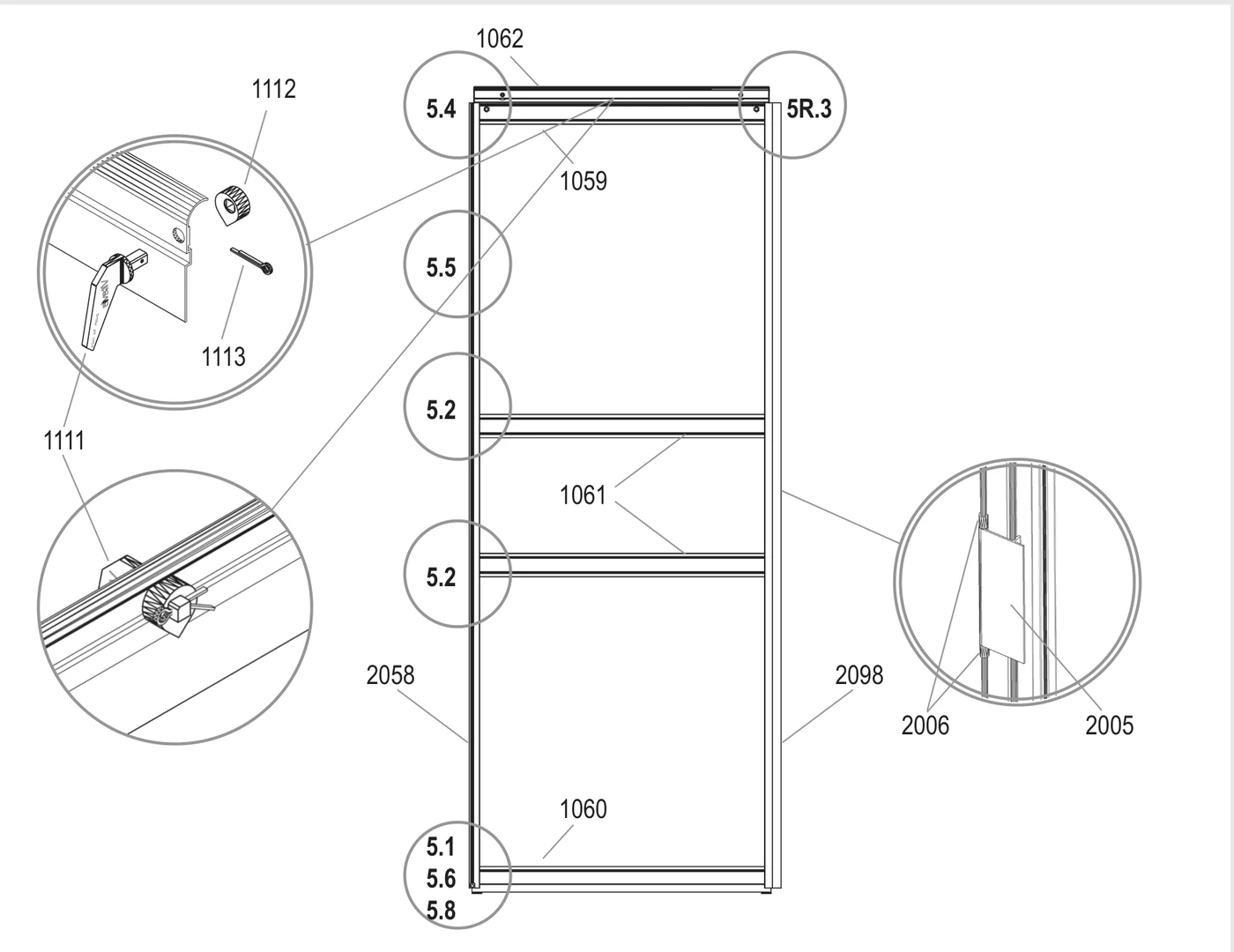

Vitavia drawing 5R. The circled numbers match the pictures below.

Installer tip

If the door binds or jumps its track, the frame is almost certainly not square. Check the frame before you force the door.

Watch out

Never stand the assembled door on gliders 1014; this damages them. Use inside side bar 2098 for the right-hand door and 2099 for the left-hand door.

Detail 5.1
5.1

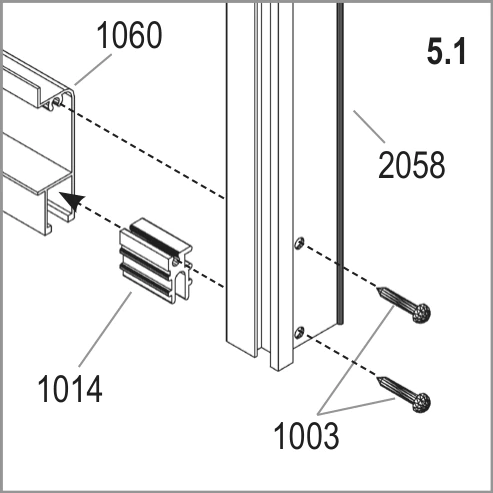

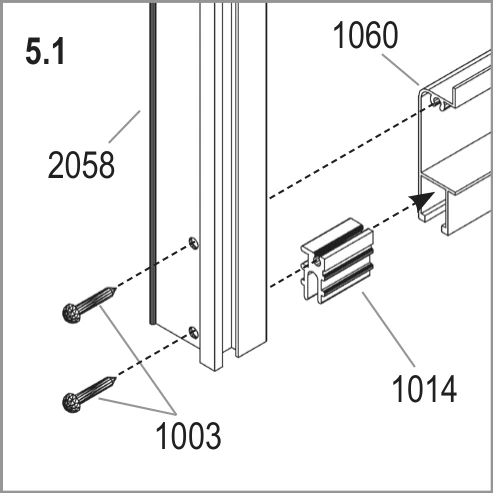

Push a door glider 1014 onto each end of bottom door bar 1060. Screw outside side bar 2058 to it with screws 1003.

Detail 5.2
5.2

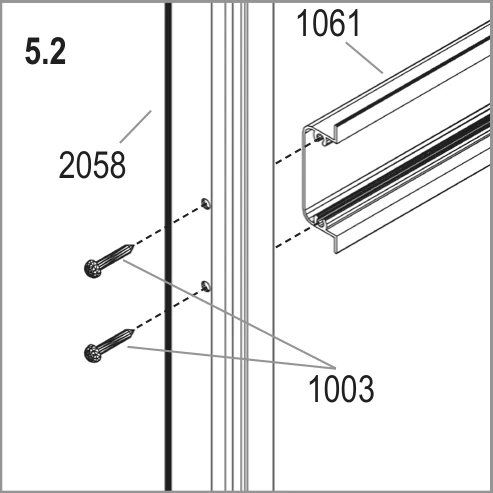

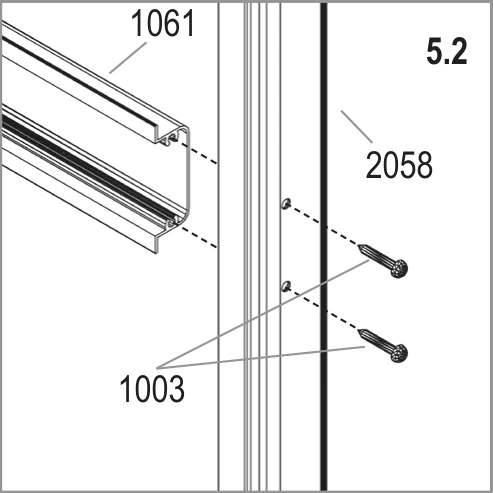

Screw middle bar 1061 to the side bars with screws 1003.

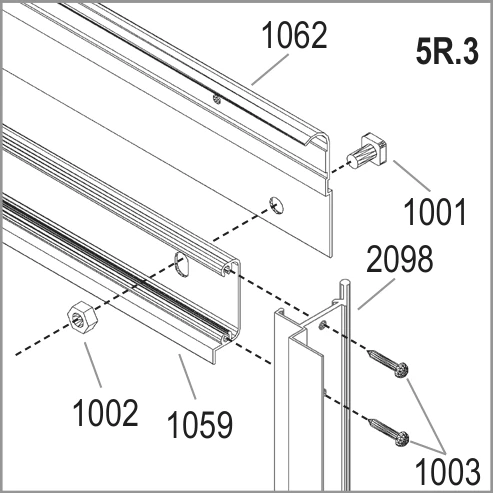

Detail 5R.3
5R.3

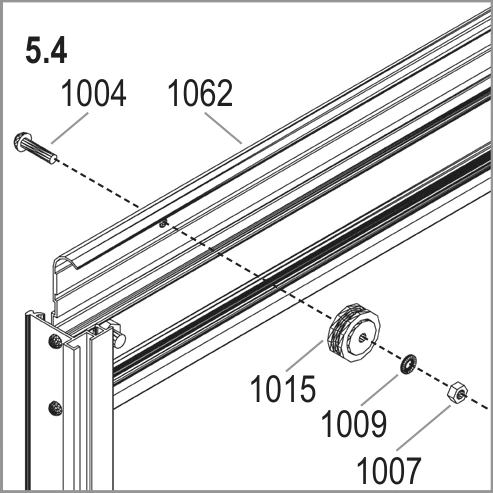

Bolt door top bar 1062 to upper bar 1059 with bolt 1001 and nut 1002. Screw inside side bar 2098 on with screws 1003.

Detail 5.4
5.4

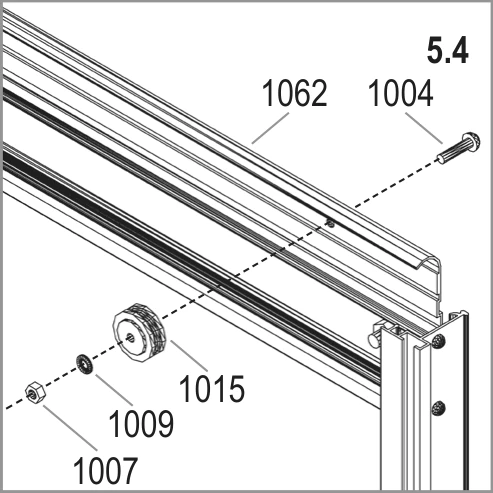

Fix both door rollers 1015 to top bar 1062 with bolt 1004, washer 1009 and nut 1007.

Detail 5.5
5.5Outside view

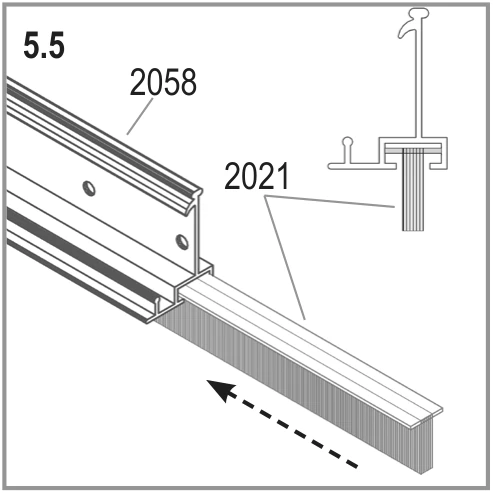

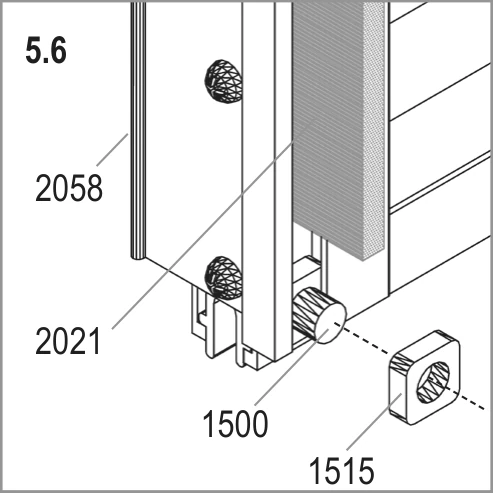

Slide brush seal 2021 into outside side bar 2058. Cut the seal to length.

Detail 5.6
5.6

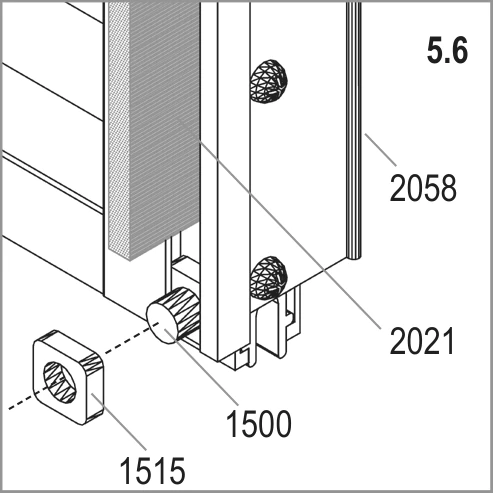

Slide bolt 1500 into the bottom of the brush seal channel and secure it with nut 1515. This stops the seal sliding out.

Do this now

Loosen door runner supports 2043 before you hang the door.

Detail 5.7
5.7Outside view

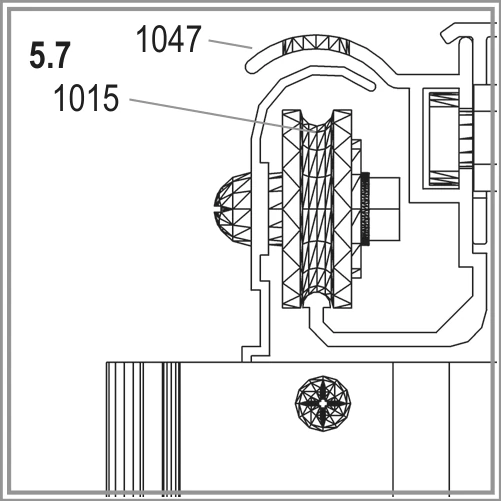

Work from the outside, lift the door and hang rollers 1015 in door runner bar 1047.

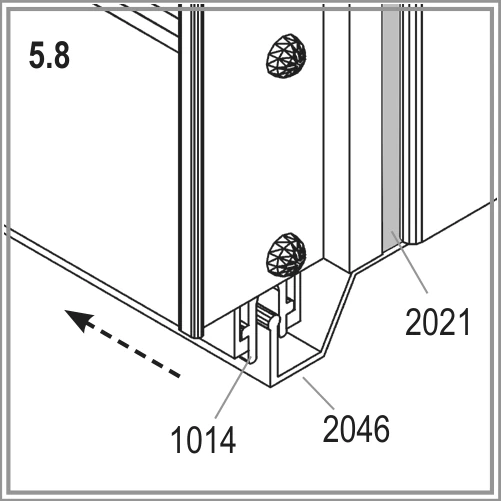

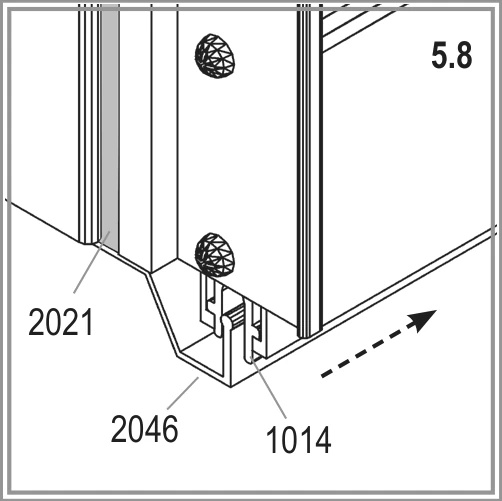

Detail 5.8
5.8Outside view

Check from the outside that door gliders 1014 also run in the bottom track of bar 2046.

5L
Step 5L

Fit the left-hand door

Build and hang the second door, then adjust both doors together.

You need

Part 1001
1001×2
Part 1001
1001×2
Part 1001
1001×2
Part 1001
1001×2
Part 1002
1002×2
Part 1002
1002×2
Part 1002
1002×2
Part 1002
1002×2
Part 1003
1003×16
Part 1003
1003×16
Part 1003
1003×16
Part 1003
1003×16
Part 1004
1004×2
Part 1004
1004×2
Part 1004
1004×2
Part 1004
1004×2
Part 1007
1007×2
Part 1007
1007×2
Part 1007
1007×2
Part 1007
1007×2
Part 1009
1009×2
Part 1009
1009×2
Part 1009
1009×2
Part 1009
1009×2
Part 1014
1014×2
Part 1014
1014×2
Part 1014
1014×2
Part 1014
1014×2
Part 1015
1015×2
Part 1015
1015×2
Part 1015
1015×2
Part 1015
1015×2
Part 1059
1059×1
Part 1059
1059×1
Part 1059
1059×1
Part 1059
1059×1
Part 1060
1060×1
Part 1060
1060×1
Part 1060
1060×1
Part 1060
1060×1
Part 1061
1061×2
Part 1061
1061×2
Part 1061
1061×2
Part 1061
1061×2
Part 1062
1062×1
Part 1062
1062×1
Part 1062
1062×1
Part 1062
1062×1
Part 1111
1111×1
Part 1111
1111×1
Part 1111
1111×1
Part 1111
1111×1
Part 1112
1112×1
Part 1112
1112×1
Part 1112
1112×1
Part 1112
1112×1
Part 1113
1113×1
Part 1113
1113×1
Part 1113
1113×1
Part 1113
1113×1
Part 1500
1500×1
Part 1500
1500×1
Part 1500
1500×1
Part 1500
1500×1
Part 1515
1515×1
Part 1515
1515×1
Part 1515
1515×1
Part 1515
1515×1
Part 2001
2001×1
Part 2001
2001×1
Part 2001
2001×1
Part 2001
2001×1
Part 2021
2021×1
Part 2021
2021×1
Part 2021
2021×1
Part 2021
2021×1
Part 2058
2058×1
Part 2058
2058×1
Part 2058
2058×1
Part 2058
2058×1
Part 2099
2099×1
Part 2099
2099×1
Part 2099
2099×1
Part 2099
2099×1
Step 5L drawing
Vitavia drawing 5L. The circled numbers match the pictures below.

Installer tip

Hang the left-hand door as you hung the right-hand door. Adjust both together until they meet and slide freely.

Watch out

Never stand an assembled door on gliders 1014; this damages them.

Detail 5.1
5.1

Push a door glider 1014 onto each end of bottom door bar 1060. Screw outside side bar 2058 to it with screws 1003.

Detail 5.2
5.2

Screw middle bar 1061 to the side bars with screws 1003.

Detail 5L.3
5L.3

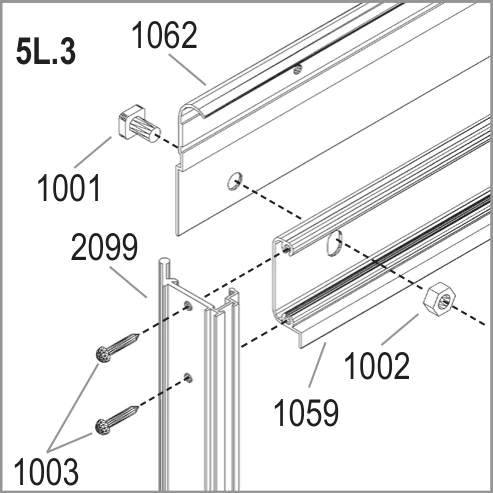

Bolt door top bar 1062 to upper bar 1059 with bolt 1001 and nut 1002. Screw inside side bar 2099 on with screws 1003.

Detail 5.4
5.4

Fix both door rollers 1015 to top bar 1062 with bolt 1004, washer 1009 and nut 1007.

Detail 5.5
5.5Outside view

Slide brush seal 2021 into outside side bar 2058. Cut the seal to length.

Detail 5.6
5.6

Slide bolt 1500 into the bottom of the brush seal channel and secure it with nut 1515. This stops the seal sliding out.

Detail 5.7
5.7Outside view

Work from the outside, lift the door and hang rollers 1015 in door runner bar 1047.

Detail 5.8
5.8Outside view

Check from the outside that door gliders 1014 also run in the bottom track of bar 2046.

Do this now

Connect door fixers 1111, 1112, 1113 as shown; insert bolt 2001 at the join between runner bars 1047. Fit nut-and-bolt stops at both runner ends; adjust both doors until they slide freely.

6
Step 6

Fit the roof vents

Build two roof vents for the 6700, or four for the 8300, 9900 and 11500.

You need

Part 1001
1001×8
Part 1001
1001×16
Part 1001
1001×16
Part 1001
1001×16
Part 1002
1002×8
Part 1002
1002×16
Part 1002
1002×16
Part 1002
1002×16
Part 1006
1006×12
Part 1006
1006×24
Part 1006
1006×24
Part 1006
1006×24
Part 1019
1019×2
Part 1019
1019×4
Part 1019
1019×4
Part 1019
1019×4
Part 1063
1063×2
Part 1063
1063×4
Part 1063
1063×4
Part 1063
1063×4
Part 1064
1064×2
Part 1064
1064×4
Part 1064
1064×4
Part 1064
1064×4
Part 1065
1065×4
Part 1065
1065×8
Part 1065
1065×8
Part 1065
1065×8
Part 1066
1066×2
Part 1066
1066×4
Part 1066
1066×4
Part 1066
1066×4
Part 1067
1067×2
Part 1067
1067×4
Part 1067
1067×4
Part 1067
1067×4
Part 2016
2016×4
Part 2016
2016×8
Part 2016
2016×8
Part 2016
2016×8

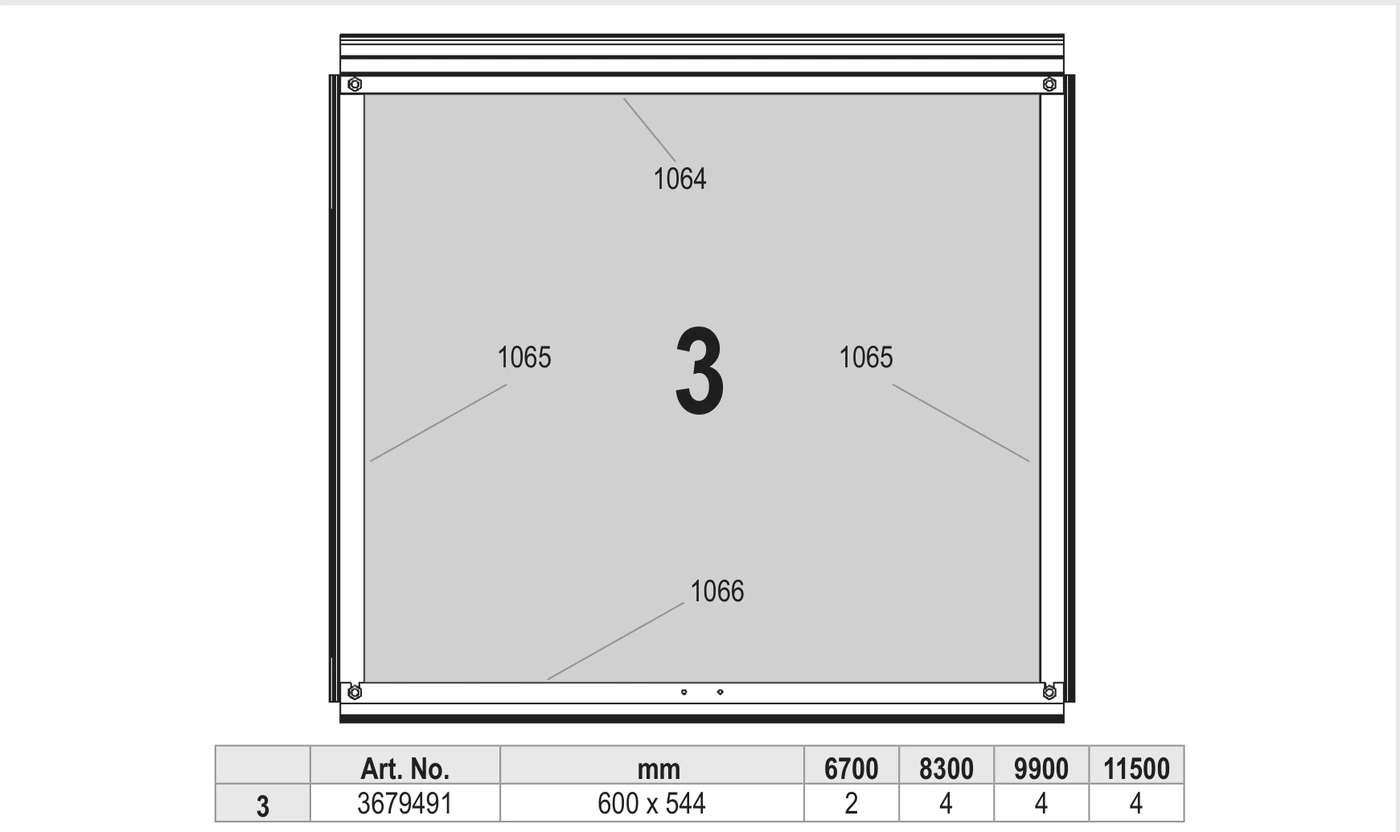

Step 6 drawing
Vitavia drawing 6. The circled numbers match the pictures below.

Installer tip

Fit the slam bar, vent sill 1063, flat edge up, with its grooved lip facing down towards the pane below. Recheck its position if that pane will not sit snugly.

Detail 6.1
6.1

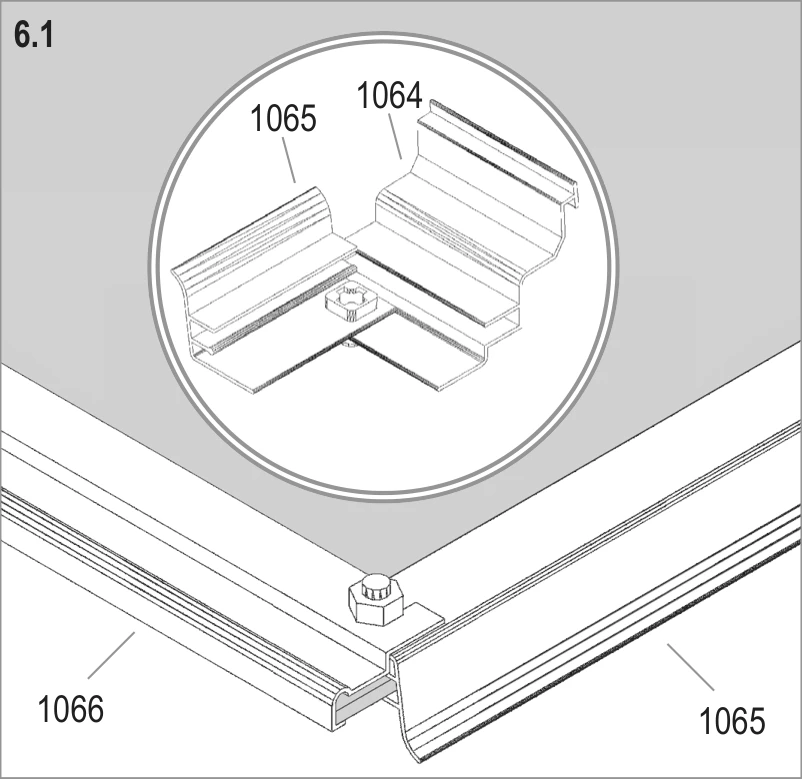

For glass up to 4 mm thick, join vent side bars 1065 and top bar 1064 as shown here.

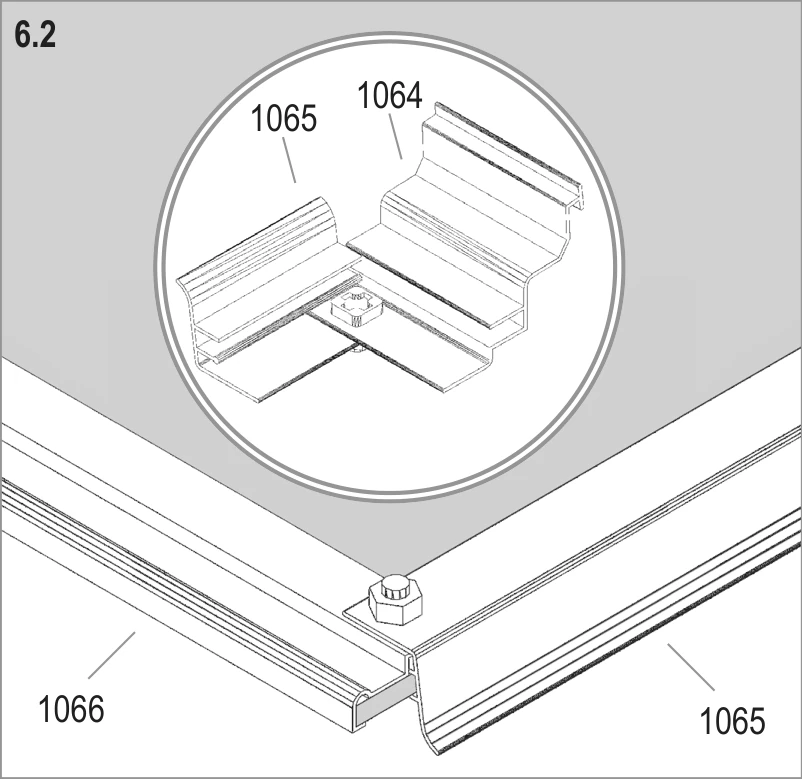

Detail 6.2
6.2

For glass 4 mm or thicker, join vent side bars 1065 and top bar 1064 as shown here instead.

Detail 6.3
6.3Outside view

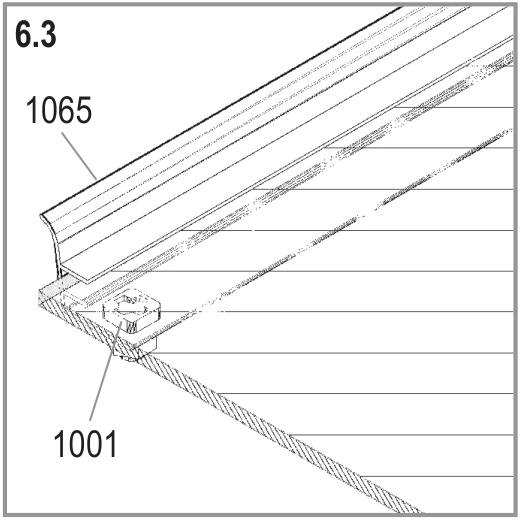

Insert bolts for bottom bar 1066 into the prepared holes; slide the glass into side bar tracks 1065. Fit bottom bar 1066 and check the vent is square before you tighten the bolts.

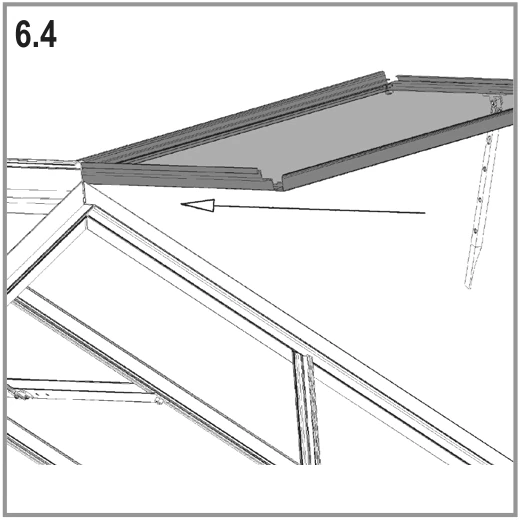

Detail 6.4
6.4Outside view

Hook the vent into the ridge bar from one end of the greenhouse.

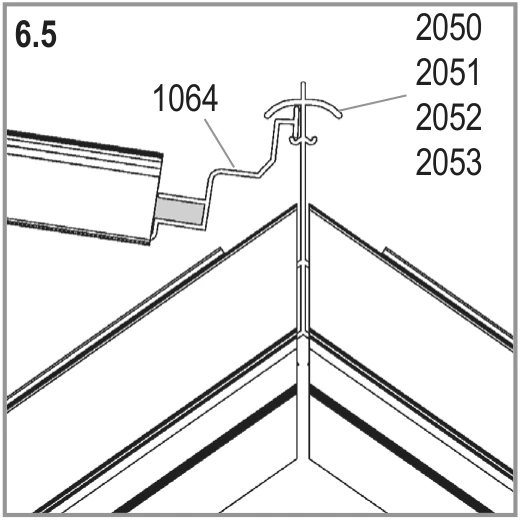

Detail 6.5
6.5Outside view

Hook vent top bar 1064 over your ridge bar (2050, 2051, 2052 or 2053).

Detail 6.6
6.6

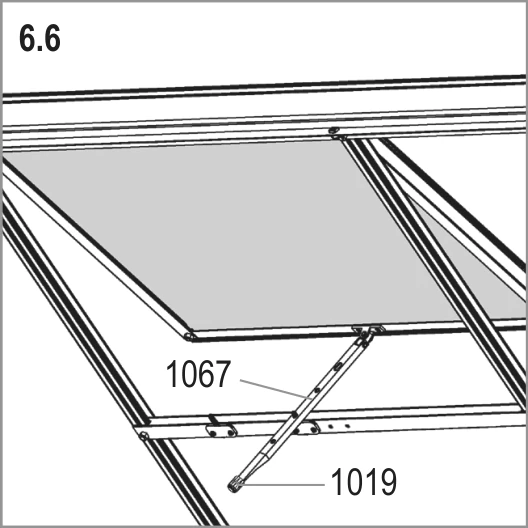

Slide the vent to your chosen position. Push plastic cap 1019 onto the end of window opener 1067.

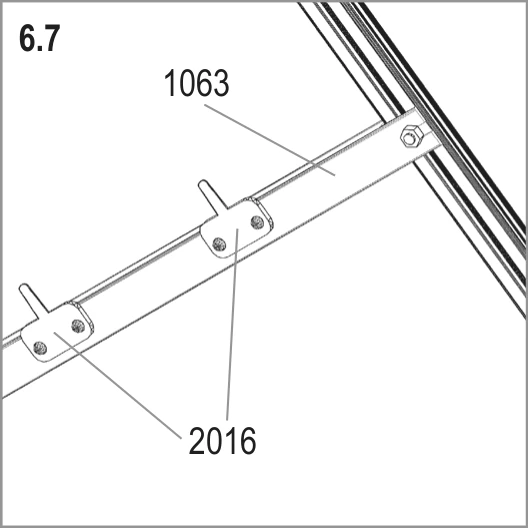

Detail 6.7
6.7

Fix vent sill 1063 to the extra bolts in the roof bars. Screw both window fixers 2016 onto vent sill 1063 with screws 1006.

Detail 6.8
6.8

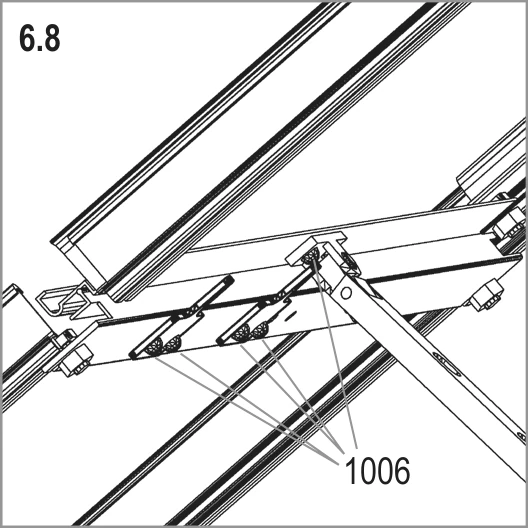

Screw window opener 1067 to vent bottom bar 1066 with screws 1006.

7
Step 7

Fit the glazing

Fit the rubber seal before any glass, then work upwards from the bottom.

Polycarbonate sheets

This step and its pane table cover horticultural glass. Your polycarbonate sheets are different sizes and use different fixings. We recommend you glaze using the fitting instructions Vitavia packs with your polycarbonate sheets.

Your toughened glass

Your toughened glass comes as full panes, listed in the table below. Use the plan below for pane positions, not the drawing above. Join your gable glass with plastic H profiles where glass meets glass, replacing glass retaining clips 1012. Fit each H strip with its longest arm inside and uppermost.

PaneSize (mm)67008300990011500
1610 x 150714161820
2610 x 152466810
3610 x 9852444
4600 x 5442444
5610 x 6104444
6600 x 434 x 84444
7610 x 451 x 274444
8610 x 5402222
8a610 x 5882222
9610 x 4472222
Total panes42485256
Plastic H profiles6666

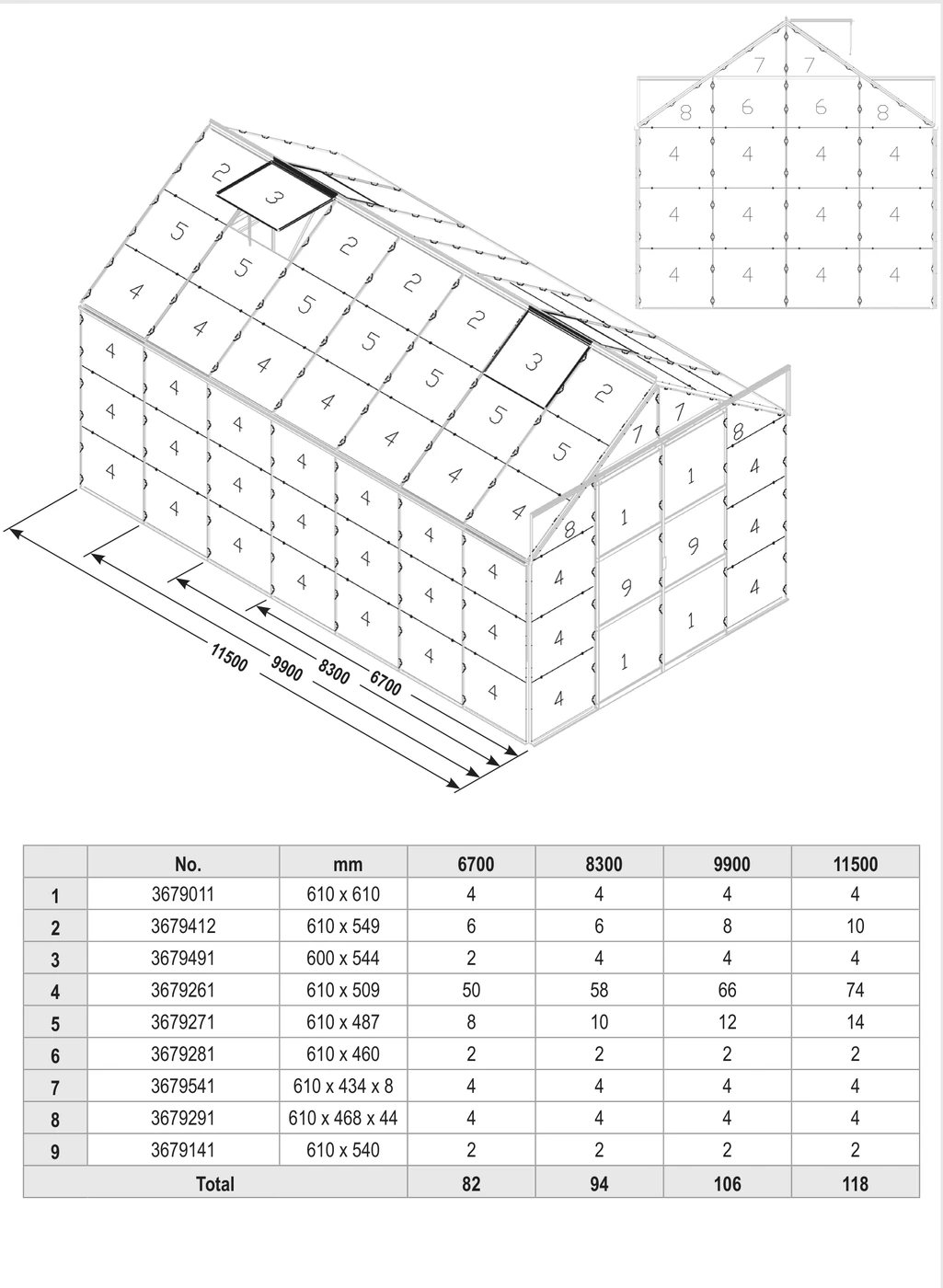

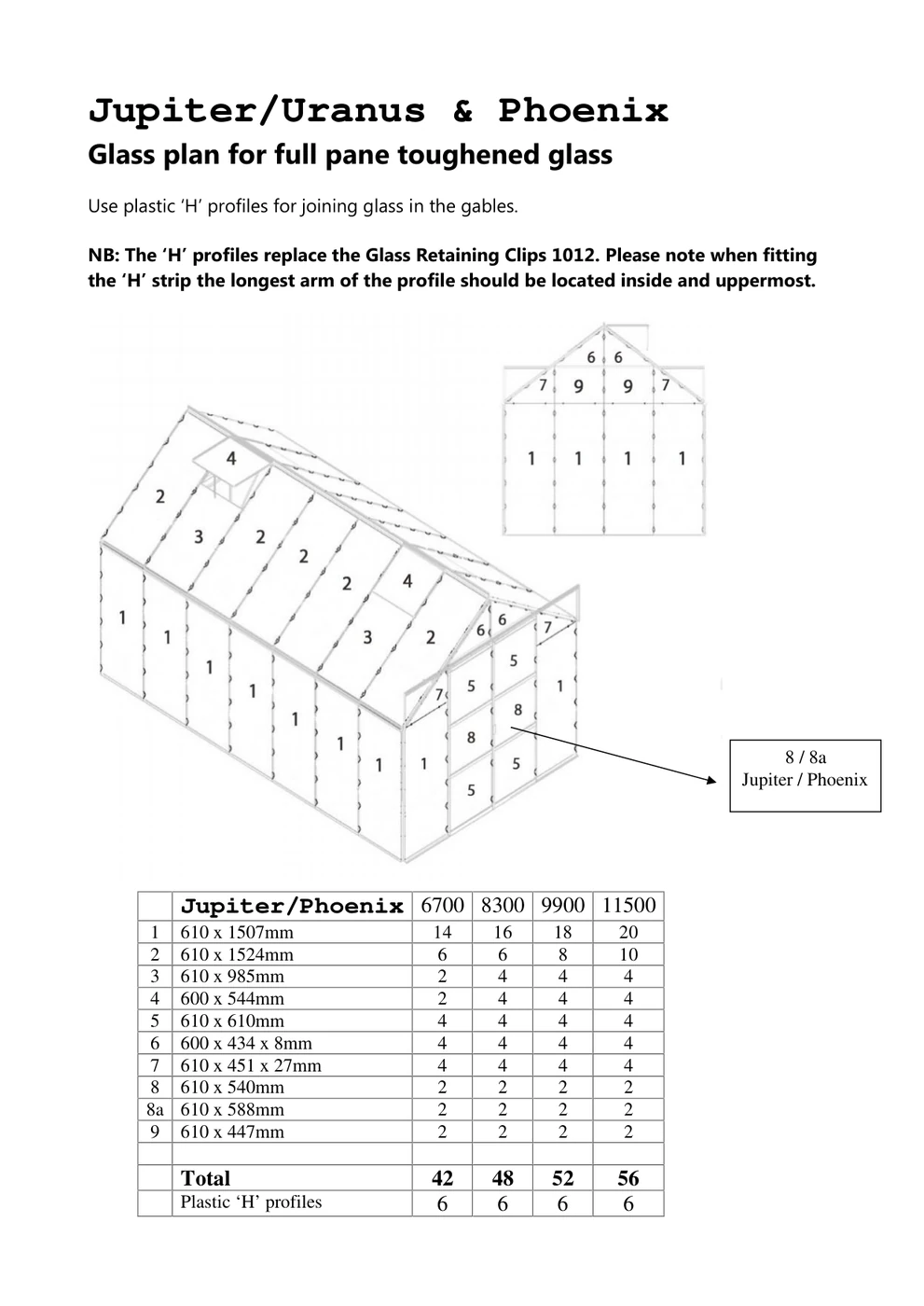

Vitavia toughened glass plan for the Jupiter
Vitavia's toughened glass plan. Pane numbers match the table.

You need

Part 1011
1011×328
Part 1011
1011×368
Part 1011
1011×416
Part 1011
1011×464
Part 1012
1012×126
Part 1012
1012×142
Part 1012
1012×158
Part 1012
1012×174
Part 1020
1020×1
Part 1020
1020×1
Part 1020
1020×1
Part 1020
1020×1
Step 7A drawing
Vitavia drawing 7A. The circled numbers match the pictures below.

Installer tip

We recommend soaking the whole seal reel in hot soapy water first; it softens and presses on more easily. Check the glazing layout if a pane looks too big; it usually belongs elsewhere.

Watch out

Never force a pane; this cracks glass. If it will not seat, correct the unsquare frame first.

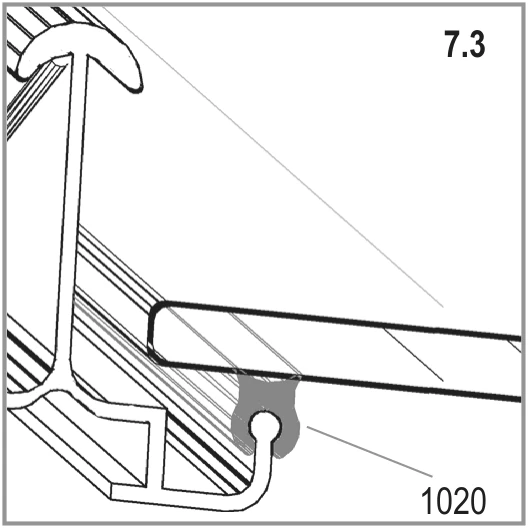

Detail 7.3
7.3Outside view

Before you fit any glass, press rubber glazing seal 1020 onto the aluminium profiles. Cut it to length.

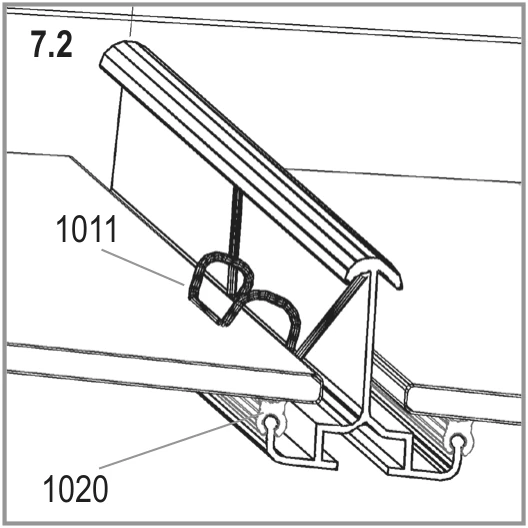

Detail 7.2
7.2Outside view

Start roof glazing at the eave. Fix the first pane with glazing spring clips 1011.

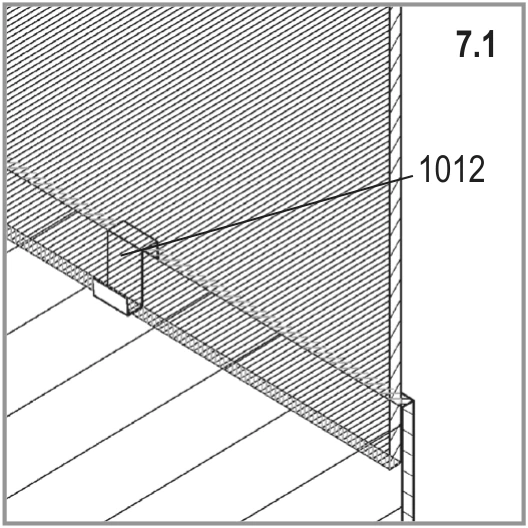

Detail 7.1
7.1Outside view

Overlap each next pane over the pane below. Fit glass retaining clips 1012 between the panes to hold them.

Do this now

Start side glazing at the bottom and work upwards. For polycarbonate sheets, follow the instructions packed with the sheets.

Horticultural glass for your greenhouse

PaneSize (mm)67008300990011500
1610 x 6104444
2610 x 54966810
3600 x 5442444
4610 x 50950586674
5610 x 4878101214
6610 x 4602222
7610 x 434 x 84444
8610 x 468 x 444444
9610 x 5402222
Total8294106118

Pane numbers match the glazing layout in the drawing above.

Last jobs

Finish and look after it

Finish

  • Anchor the greenhouse; this is not optional. A greenhouse this size catches a lot of wind.
  • Seal the edges with neutral silicone if you wish. Silicone is not supplied.
  • Stick the warning label inside the greenhouse.
  • Stick the model label onto door top bar 1062. You will need it to order spare parts.
  • Keep this guide somewhere safe.

Looking after it

  • Shut both doors and all vents in high winds.
  • Clear the roof or support it in heavy snow. Heat the greenhouse in winter.
  • Wash the greenhouse occasionally with a mild detergent that does not attack aluminium or the glazing clips.
  • Keep the upper and lower door tracks clean so grit does not build up.
  • Add the greenhouse to your home insurance. Check local building rules about where you can put it.

Drawings reproduced from the Vitavia assembly instructions (Vitavia manual 001.02.1208 (Jupiter, printed as Uranus)). Greenhouse Stores, greenhousestores.co.uk.
