Greenhouse Stores Vitavia Venus assembly guide
Your size:
Assembly guide

Vitavia Venus

Sizes 6200, 7500

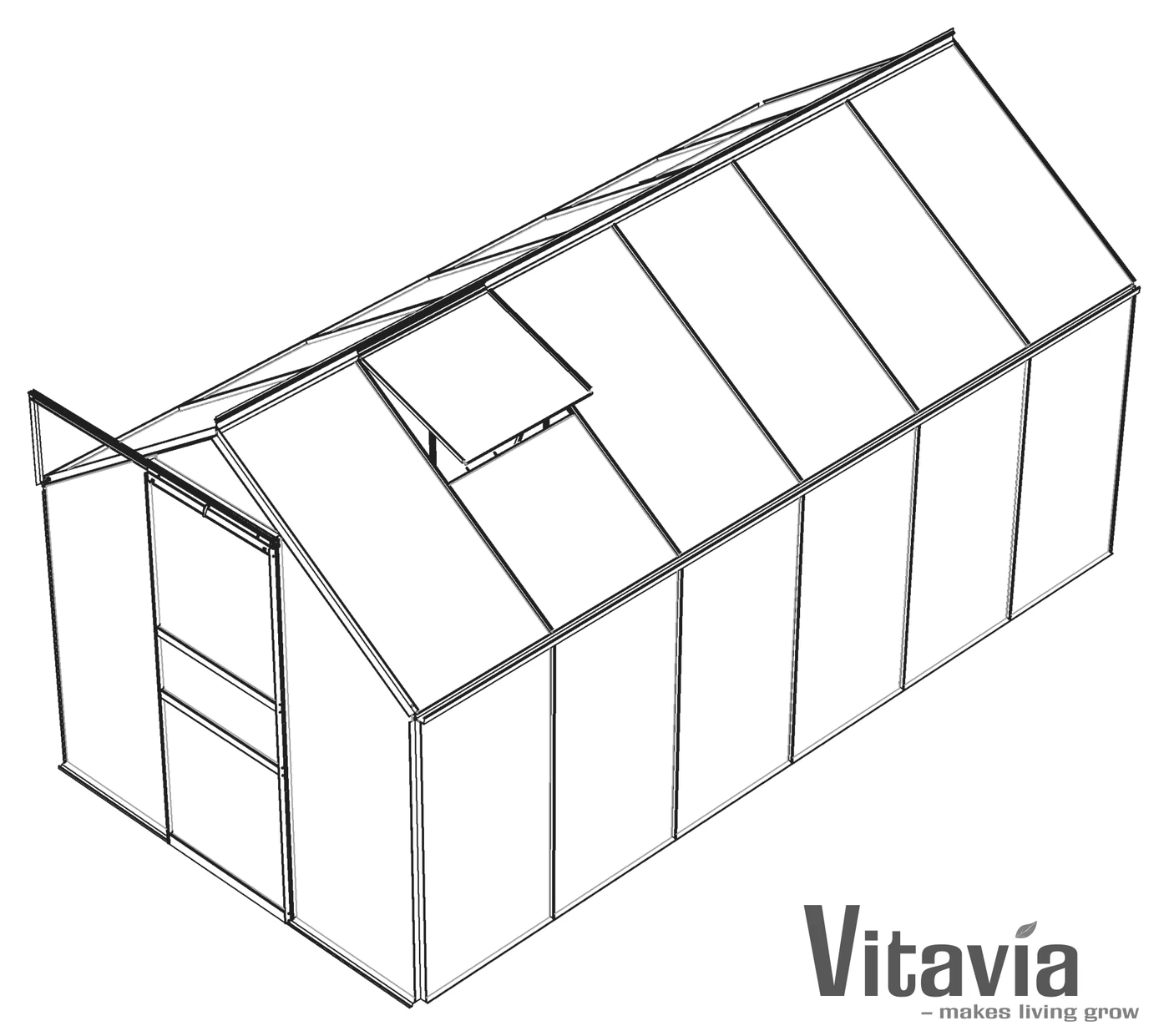

Vitavia Venus greenhouse
8steps, base first
2people needed
3166 mm3788 mm × 1922 mm1922 mmbase size (A × B)

Pick your size at the top. Quantities and drawings change to match.

The build at a glance

Drawings: Vitavia (Vitavia manual 005.01.1306 (Venus 6200, 7500)). Words and layout: Greenhouse Stores, greenhousestores.co.uk. Keep this guide with your greenhouse.
Read this first

Before you start

Six golden rules

  1. Build frames loose; tighten only when the whole greenhouse stands square on its base.
  2. Measure both diagonals; they must be equal.
  3. Never overtighten nuts 1002: maximum 3 Nm. Overtightening strips aluminium and cracks glass.
  4. Fit extra bolts when instructed; you cannot add them after bar ends are capped.
  5. Build with two people.
  6. Always anchor your greenhouse. An unanchored greenhouse can blow away.

Get ready

  • Read the whole guide once before you start.
  • Gather flat/PH2 screwdrivers, 10 mm socket spanner/wrench, 10 mm combination spanner, knife, tape measure, spirit level. Set cordless drill adjustable torque low.
  • Wear gloves, safety glasses, sturdy shoes and a hat. Aluminium edges are sharp. Clear up broken glass straight away.
  • Open one bundle at a time and keep opened bundles apart. Mixed bundles are the main cause of lost-part searches.
  • Check every part against the parts check pages. Contact Greenhouse Stores before you begin if anything is missing.
  • Read single-frame drawings as views from inside the greenhouse. Read double-frame drawings as views from outside.
  • Choose a sunny spot with as much shelter from wind as possible.
Single frame: inside view
Double frame: outside view
Before step 1

Parts check

Open one bundle at a time. Tick each part as you find it. The number in green is how many your size should have.

Bars and profiles

Part 1020
1020
Glazing seal (reel)
7400084000 mm×11
Part 1021
1021
Door seal
16121612 mm×22
Part 1032
1032
12141214 mm×810
Part 1035
1035
Brace
18541854 mm×11
Part 1036
1036
12141214 mm×44
Part 1037
1037
11541154 mm×11
Part 1038
1038
11541154 mm×11
Part 1039
1039
11541154 mm×11
Part 1040
1040
11541154 mm×11
Part 1041
1041
Vertical bar
16651665 mm×11
Part 1042
1042
Vertical bar
16651665 mm×11
Part 1043
1043
170170 mm×44
Part 1044
1044
Vertical bar
16501650 mm×11
Part 1045
1045
Vertical bar
16501650 mm×11
Part 1046
1046
18621862 mm×11
Part 1047
1047
Door runner bar
12571257 mm×11
Part 1049
1049
599599 mm×22
Part 1053
1053
Ridge bar
31063106 mm×1-
Part 1054
1054
Ridge bar
37283728 mm×-1
Part 1056
1056
Roof brace
255255 mm×45
Part 1057
1057
Door runner support
390390 mm×11
Part 1058
1058
Side bar
16121612 mm×22
Part 1059
1059
Upper bar
621621 mm×11
Part 1060
1060
Door bar
621621 mm×11
Part 1061
1061
621621 mm×22
Part 1062
1062
Door bar
613613 mm×11
Part 1063
1063
Vent sill
635635 mm×22
Part 1064
1064
Vent top bar
602602 mm×22
Part 1065
1065
Vent side bar
520520 mm×44
Part 1066
1066
Vent bottom bar
602602 mm×22
Part 1067
1067
Window opener
295295 mm×22
Part 1325
1325
Sill bar
31063106 mm×2-
Part 1326
1326
Sill bar
37283728 mm×-2
Part 1330
1330
Eave bar
31063106 mm×2-
Part 1331
1331
Eave bar
37283728 mm×-2
Part 2056
2056
Corner brace
255255 mm×-10
Part 5022
5022
18621862 mm×11
Part 5549
5549
Side brace
13041304 mm×88

Fixings and small parts

Part 1001
1001
Bolt
M6 x 12M6 x 12×130163
Part 1002
1002
Nut
M6M6×131164
Part 1003
1003
Screw
3.5 x 163.5 x 16×1616
Part 1004
1004
M4 x 16M4 x 16×22
Part 1005
1005
Bolt
M6 x 40M6 x 40×11
Part 1006
1006
Screw
3.5 x 63.5 x 6×1212
Part 1007
1007
Nut
M4M4×22
Part 1009
1009
Washer
Ø8/4Ø8/4×22
Part 1010
1010
Spacer
3232×11
Part 1011
1011
Glazing spring clip
7070×240272
Part 1012
1012
Glass retaining clip
1111×6068
Part 1013
1013
Clip
2020×22
Part 1014
1014
Door glider
2020×22
Part 1015
1015
Door roller
Ø22Ø22×22
Part 1016
1016
Window fixer
4040×44
Part 1017
1017
End cap
4646×44
Part 1018
1018
End cap
43.743.7×88
Part 1019
1019
Plastic cap
1515×22
Part 1048
1048
Horizontal bar
630,5630,5×11
Part 1055
1055
Roof glazing bar
1132,51132,5×810
Part 1111
1111
Door fixer
37,537,5×11
Part 1112
1112
Door fixer
7,47,4×11
Part 1113
1113
Door fixer
2525×11
Part 1500
1500
Bolt
M6 x 5M6 x 5×22
Part 1515
1515
Nut
M6M6×22
Part 6060
6060
Washer
Ø12/6Ø12/6×11
0
Step 0

Prepare your base

Start with an exactly square, level base.

A B X = X
62007500
A3166 mm3788 mm
B1922 mm1922 mm

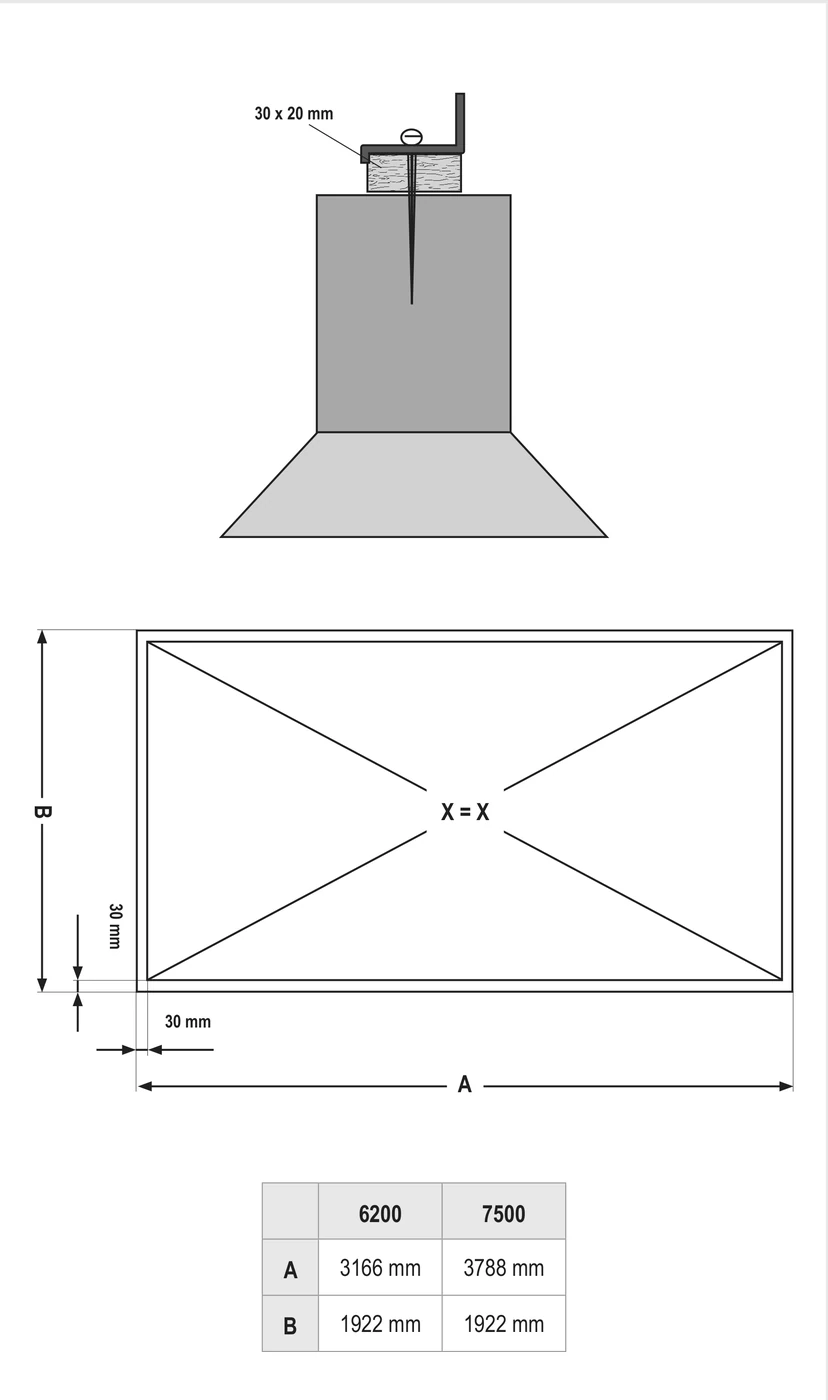

Step 0 drawing
Vitavia drawing 0. The circled numbers match the pictures below.

Installer tip

Use ground spikes or anchor legs on soil only. On concrete or paving, bolt down with suitable fixings; use one method, not both.

Watch out

An uneven or unsquare base leaves the frame uneven or unsquare too. Glass will not fit a frame that is out of square.

0.1

Make your base exactly square and level; the accessory zinc-coated steel base is the easiest option. Measure both diagonals and check they match, as shown by X = X.

0.2

For homemade stone or concrete foundations only, use this page's A and B sizes. Fit treated timber between foundation and aluminium frame: minimum 18 mm high, maximum 32 mm wide; attach with 50 mm bolts (not supplied). The foundation must go down below frost level.

0.3

On a very windy, exposed site, drill through both the greenhouse bottom profile and the steel base. Bolt them together.

1
Step 1

Build both side frames

Build two identical side frames flat on the ground, with every bolt loose.

You need

Part 1001
1001×16
Part 1001
1001×30
Part 1002
1002×16
Part 1002
1002×30
Part 1032
1032×8
Part 1032
1032×10
Part 1325
1325×2
Part 1326
1326×2
Part 1330
1330×2
Part 1331
1331×2
Part 2056
2056×10

Installer tip

Lay the parts on a blanket or lawn to protect the finish. Leave every nut loose so the frame can flex when you join it in step 4.

Watch out

Check your upright count: the 6200 has 4 uprights 1032 per side. The 7500 has 5 per side.

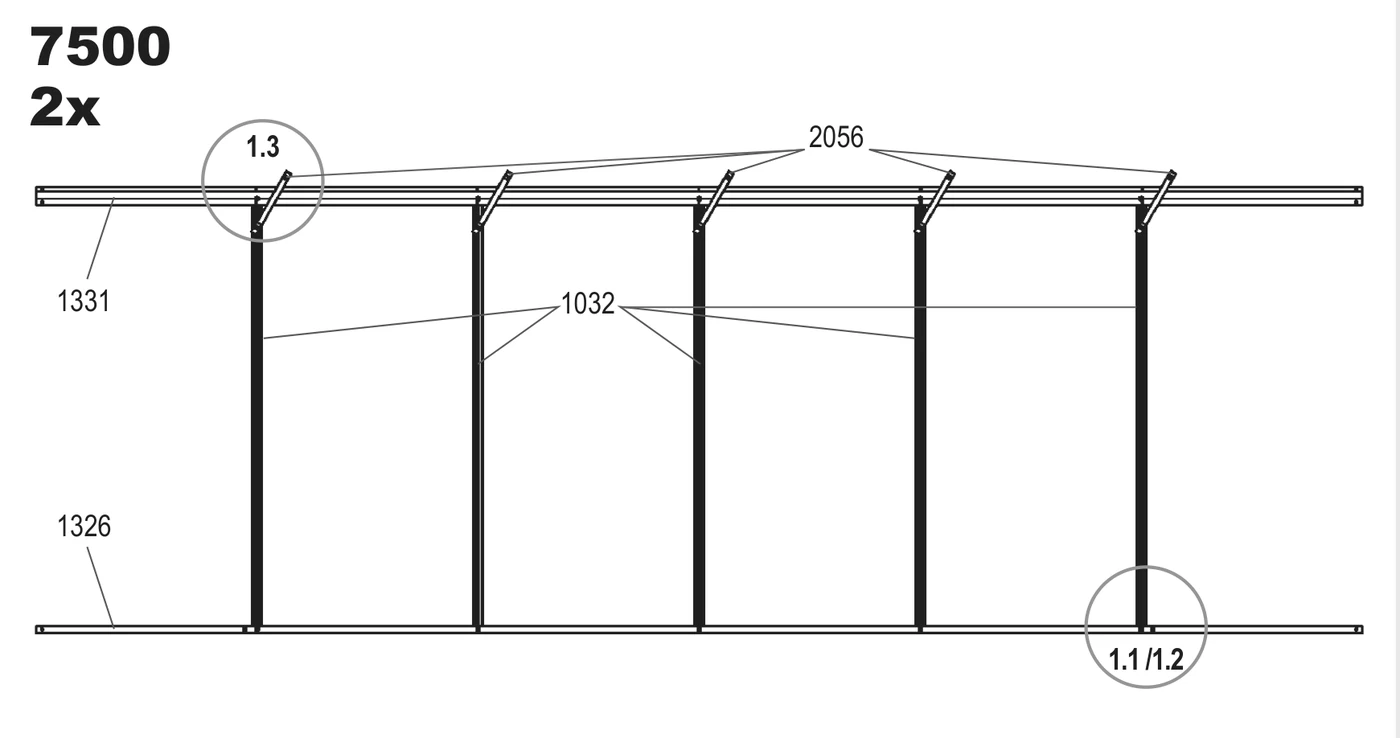

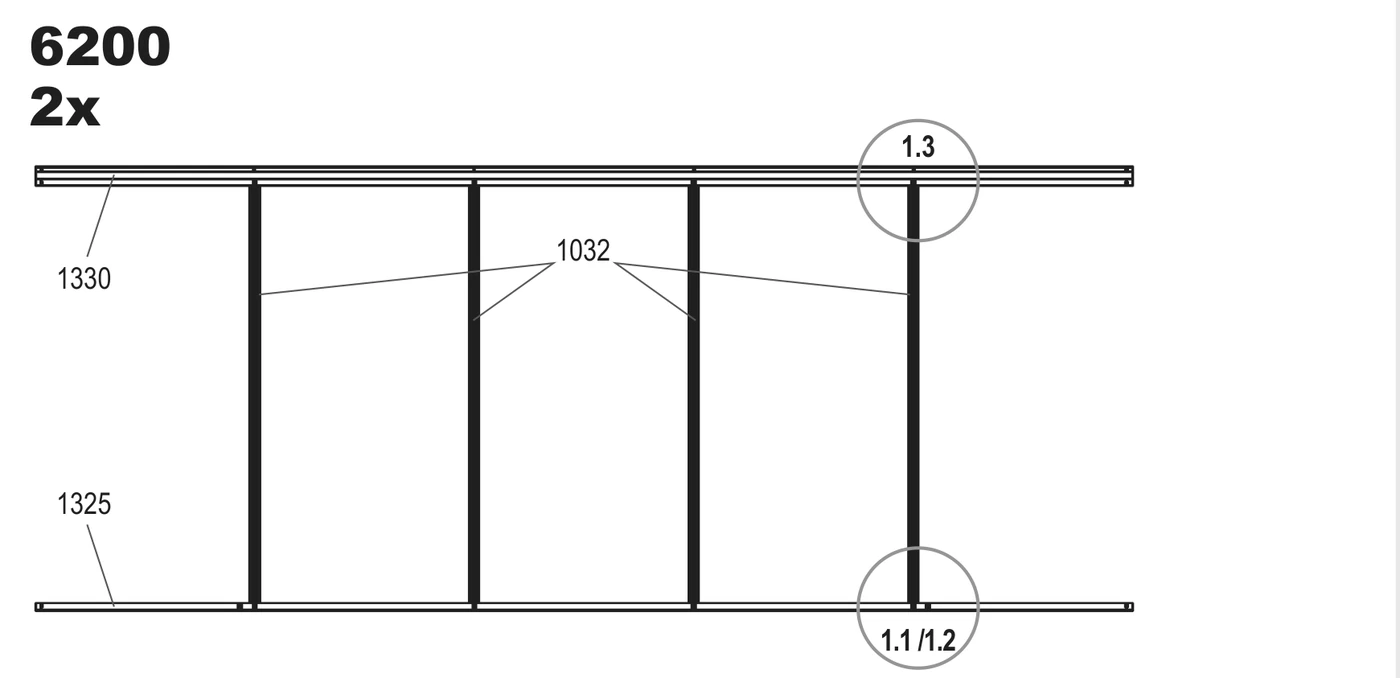

Step 1 drawing, 6200Step 1 drawing, 7500
Vitavia drawing 1. The circled numbers match the pictures below.
Detail 1.1
1.1

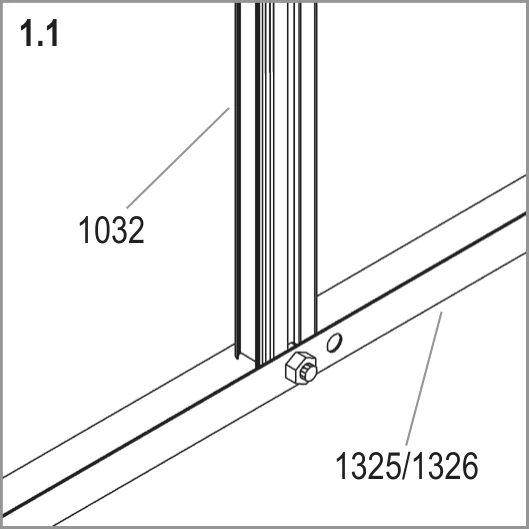

Bolt the bottom of each upright 1032 to your sill bar (1325 or 1326).

Detail 1.2

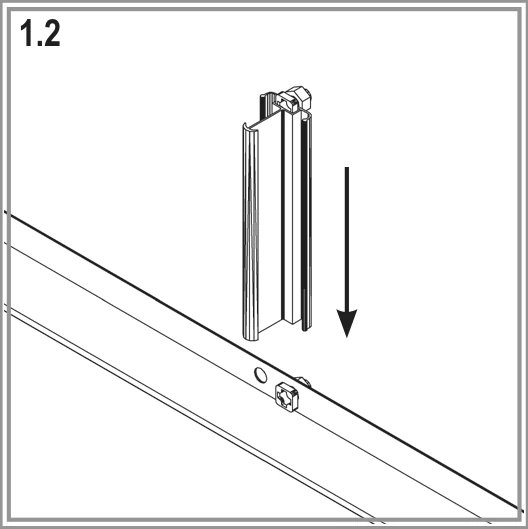

1.2Outside view

Slide the bolts into the bar's channel through its open end, then line them up with the hole. Insert them before you close off the end.

Detail (6200) 1.3
(6200) 1.3

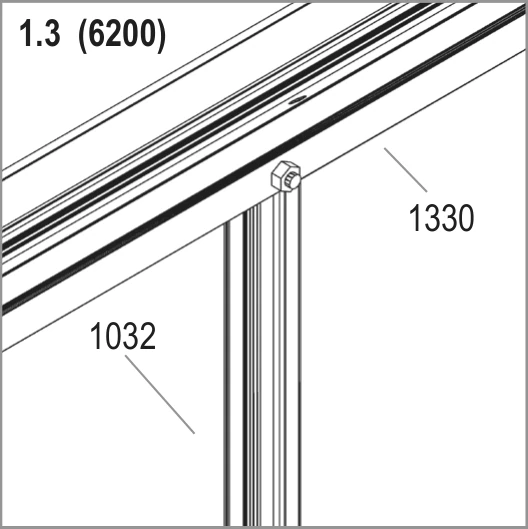

Bolt the top of each upright 1032 to eave bar 1330.

Step 1 drawing, 6200Step 1 drawing, 7500
Vitavia drawing 1. The circled numbers match the pictures below.
Detail 1.1
1.1

Bolt the bottom of each upright 1032 to your sill bar (1325 or 1326).

Detail 1.2
1.2Outside view

Slide the bolts into the bar's channel through its open end, then line them up with the hole. Insert them before you close off the end.

Detail (7500) 1.3
(7500) 1.3

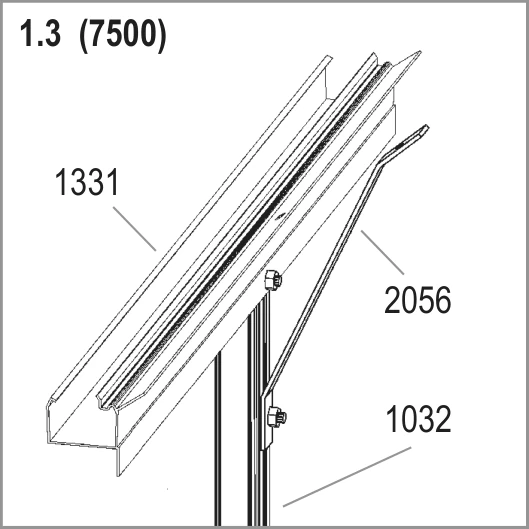

Bolt the top of each upright 1032 to eave bar 1331. Connect a corner brace 2056 between eave bar 1331 and each upright 1032, as shown.

2
Step 2

Build the back gable

Build the plain back gable flat on the ground, with the bolts loose.

You need

Part 1001
1001×18
Part 1001
1001×18
Part 1002
1002×18
Part 1002
1002×18
Part 1035
1035×1
Part 1035
1035×1
Part 1036
1036×2
Part 1036
1036×2
Part 1037
1037×1
Part 1037
1037×1
Part 1038
1038×1
Part 1038
1038×1
Part 1041
1041×1
Part 1041
1041×1
Part 1042
1042×1
Part 1042
1042×1
Part 1043
1043×2
Part 1043
1043×2
Part 5022
5022×1
Part 5022
5022×1
Part 5549
5549×2
Part 5549
5549×2
Step 2 drawing

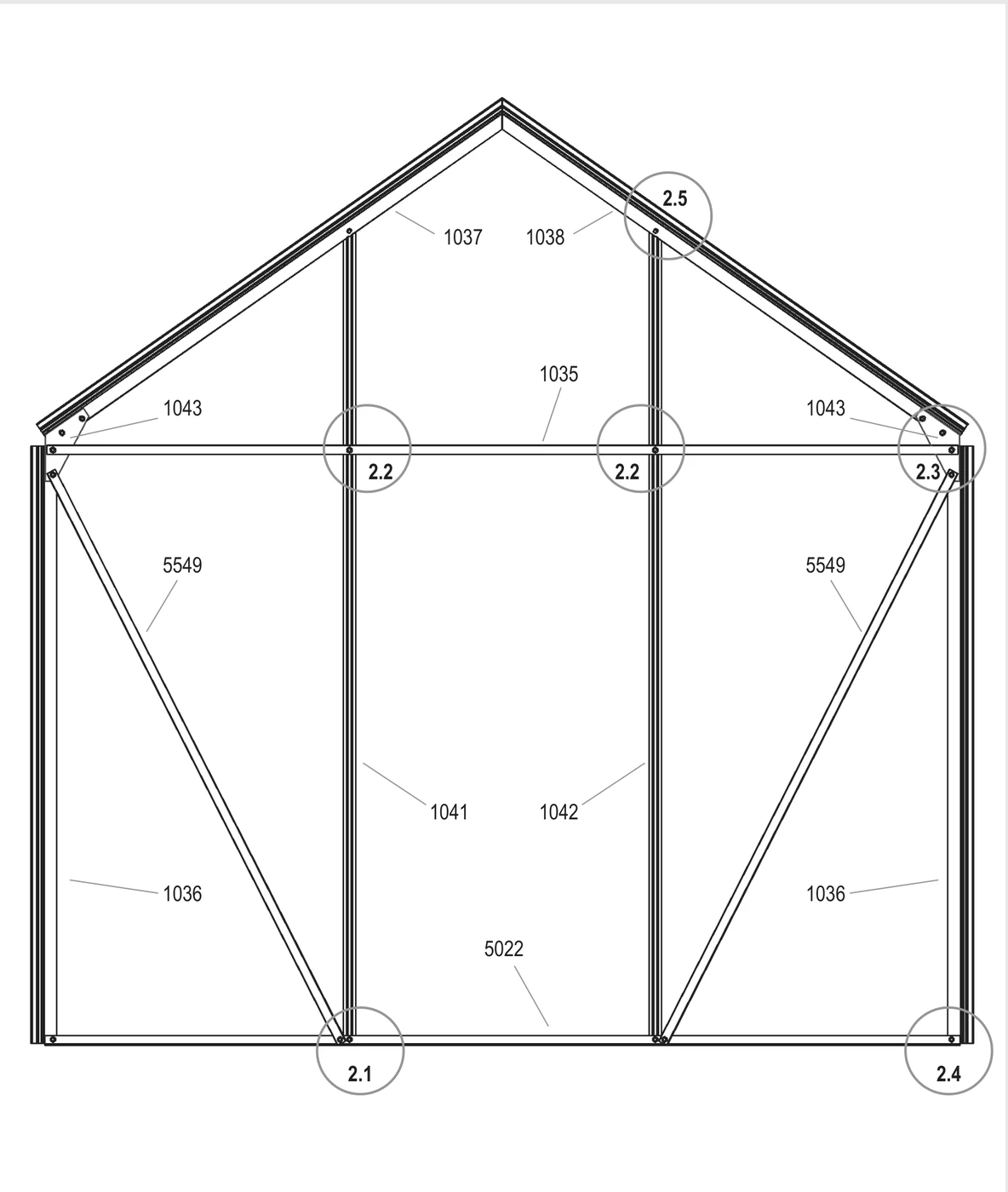

Vitavia drawing 2. The circled numbers match the pictures below.

Installer tip

Build upwards from the bottom. Slide each extra bolt into its channel before you fit the bar above it.

Watch out

Do not miss the extra bolts for brace 1035. Insert them before the bar ends are capped.

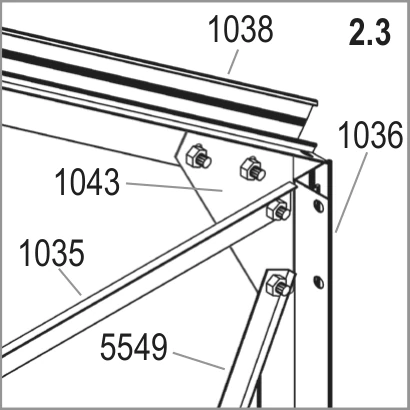

Detail 2.1
2.1

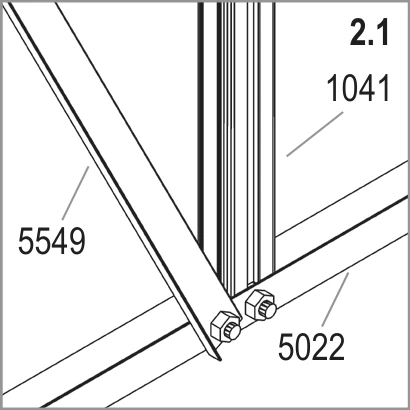

Bolt the bottom of upright 1041 and side brace 5549 to sill bar 5022.

Detail 2.2
2.2

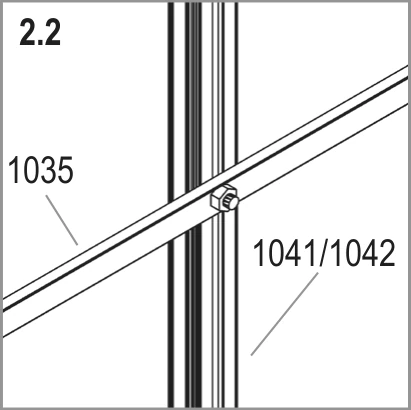

Insert one extra bolt into each upright 1041 and 1042 for brace 1035. Bolt brace 1035 across these uprights.

Detail 2.3
2.3

At each top corner, join corner bar 1036, roof bar 1038, brace 1035 and side brace 5549 with corner plate 1043.

Detail 2.4
2.4

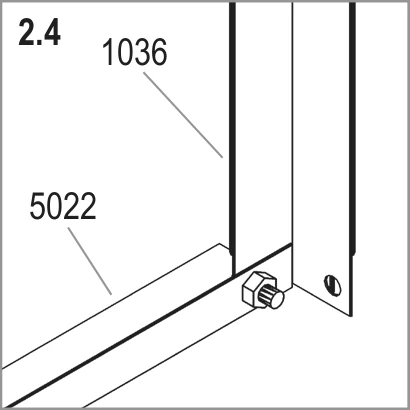

Bolt corner bar 1036 to sill bar 5022 at each bottom corner.

Detail 2.5
2.5

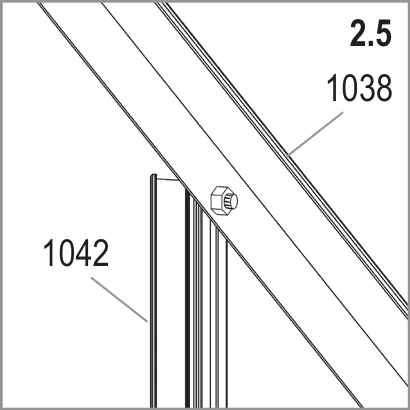

Bolt the top of upright 1042 to roof bar 1038.

3
Step 3

Build the door gable

Build the front door gable flat on the ground, with the bolts loose.

You need

Part 1001
1001×20
Part 1001
1001×20
Part 1002
1002×20
Part 1002
1002×20
Part 1013
1013×2
Part 1013
1013×2
Part 1036
1036×2
Part 1036
1036×2
Part 1039
1039×1
Part 1039
1039×1
Part 1040
1040×1
Part 1040
1040×1
Part 1043
1043×2
Part 1043
1043×2
Part 1044
1044×1
Part 1044
1044×1
Part 1045
1045×1
Part 1045
1045×1
Part 1046
1046×1
Part 1046
1046×1
Part 1047
1047×1
Part 1047
1047×1
Part 1048
1048×1
Part 1048
1048×1
Part 1049
1049×2
Part 1049
1049×2
Part 5549
5549×2
Part 5549
5549×2

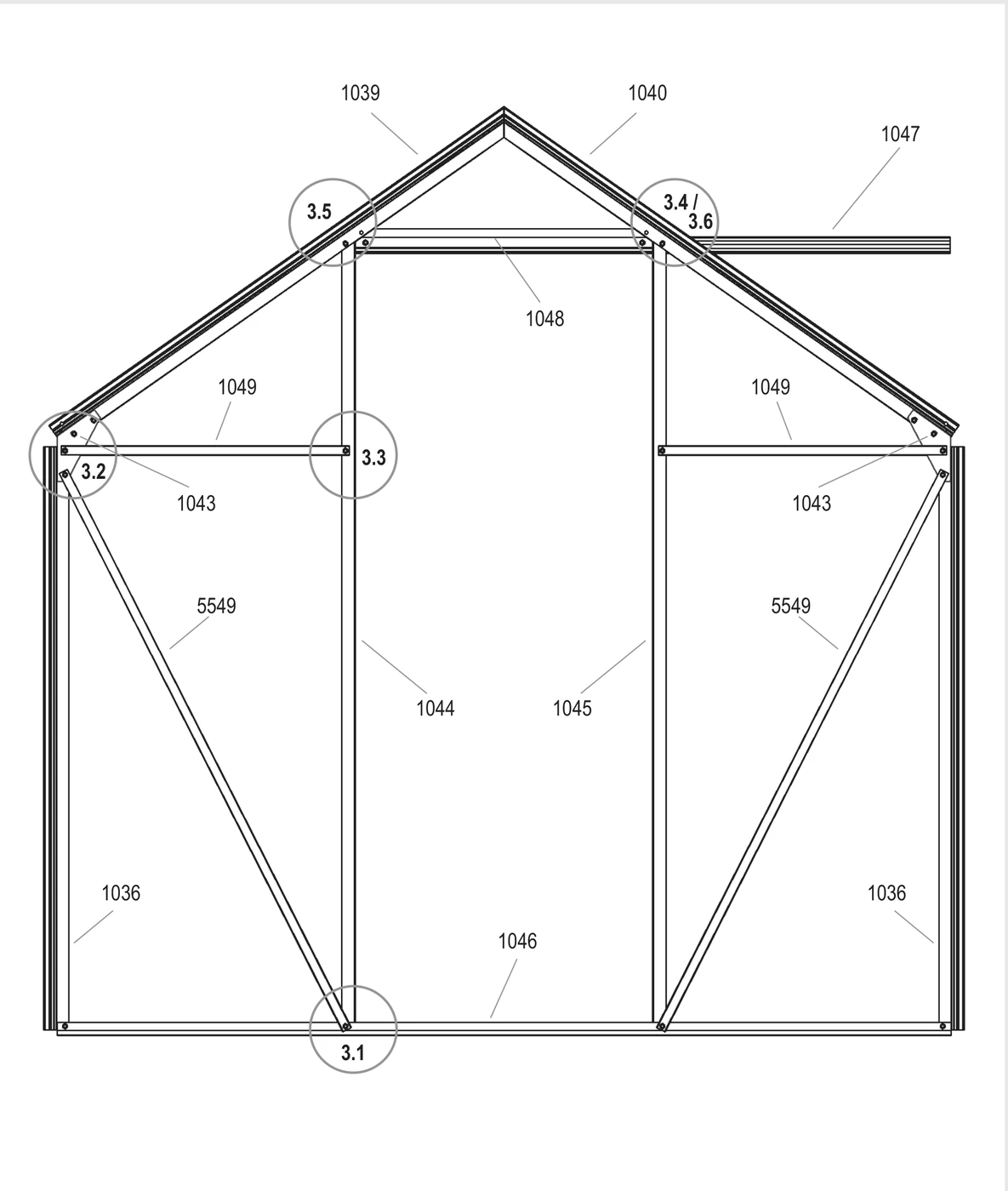

Step 3 drawing
Vitavia drawing 3. The circled numbers match the pictures below.

Installer tip

Choose your door's opening direction now and line up door runner bar 1047 to the left or right. Changing it later means taking the gable apart.

Watch out

If parts will not line up, check for upside-down or back-to-front bars before you force anything.

Detail 3.1
3.1

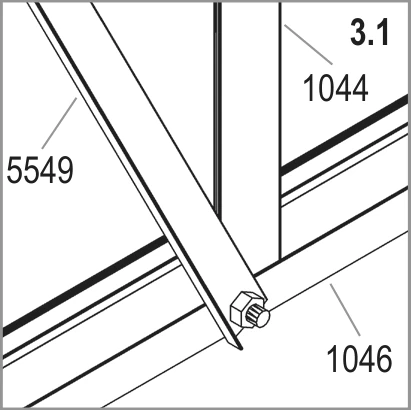

Bolt vertical bar 1044 and side brace 5549 to bottom bar 1046.

Detail 3.2
3.2

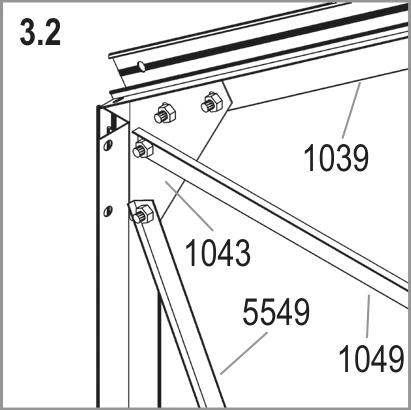

At each top corner, join roof bar 1039, bar 1049 and side brace 5549 with corner plate 1043.

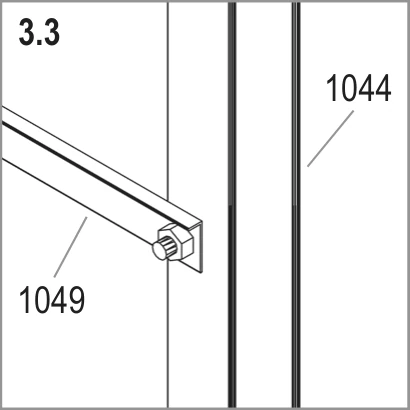

Detail 3.3
3.3

Bolt bar 1049 to vertical bar 1044.

Detail 3.4
3.4

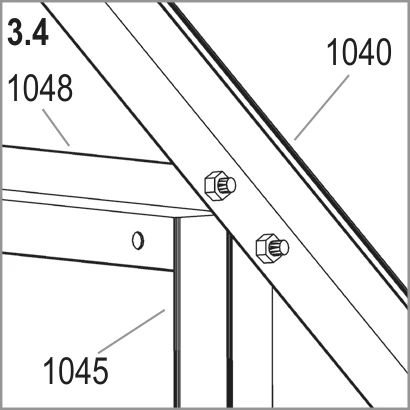

Bolt roof bar 1040 to horizontal bar 1048 and vertical bar 1045.

Detail 3.5
3.5Outside view

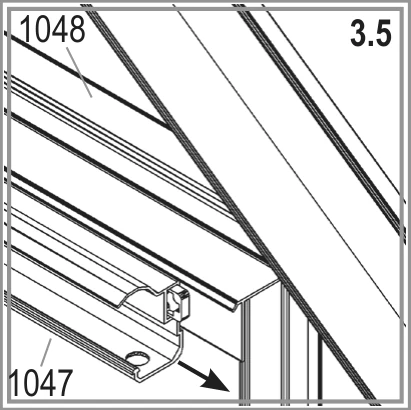

Connect door runner bar 1047 to horizontal bar 1048 from the outside. Use two nuts and bolts and leave them loose.

Detail 3.6
3.6

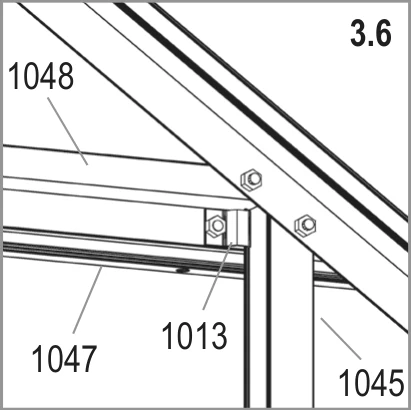

Fix clip 1013 with a bolt as shown to strengthen the frame. Make sure its edge overlaps and holds vertical bar 1044 or 1045.

4
Step 4

Join and stand the frame

Work with another person to join the frames and stand the greenhouse up.

You need

Part 1001
1001×53
Part 1001
1001×69
Part 1002
1002×54
Part 1002
1002×70
Part 1005
1005×1
Part 1005
1005×1
Part 1010
1010×1
Part 1010
1010×1
Part 1017
1017×4
Part 1017
1017×4
Part 1018
1018×8
Part 1018
1018×8
Part 1053
1053×1
Part 1054
1054×1
Part 1055
1055×8
Part 1055
1055×10
Part 1056
1056×4
Part 1056
1056×5
Part 1057
1057×1
Part 1057
1057×1
Part 5549
5549×4
Part 5549
5549×4
Part 6060
6060×1
Part 6060
6060×1

Installer tip

Count the extra roof bar bolts on your drawing before you fit any end cap. The number depends on your greenhouse size and vent position.

Watch out

Leave everything loose until the greenhouse is on its base and square. You cannot adjust it once the glass is in.

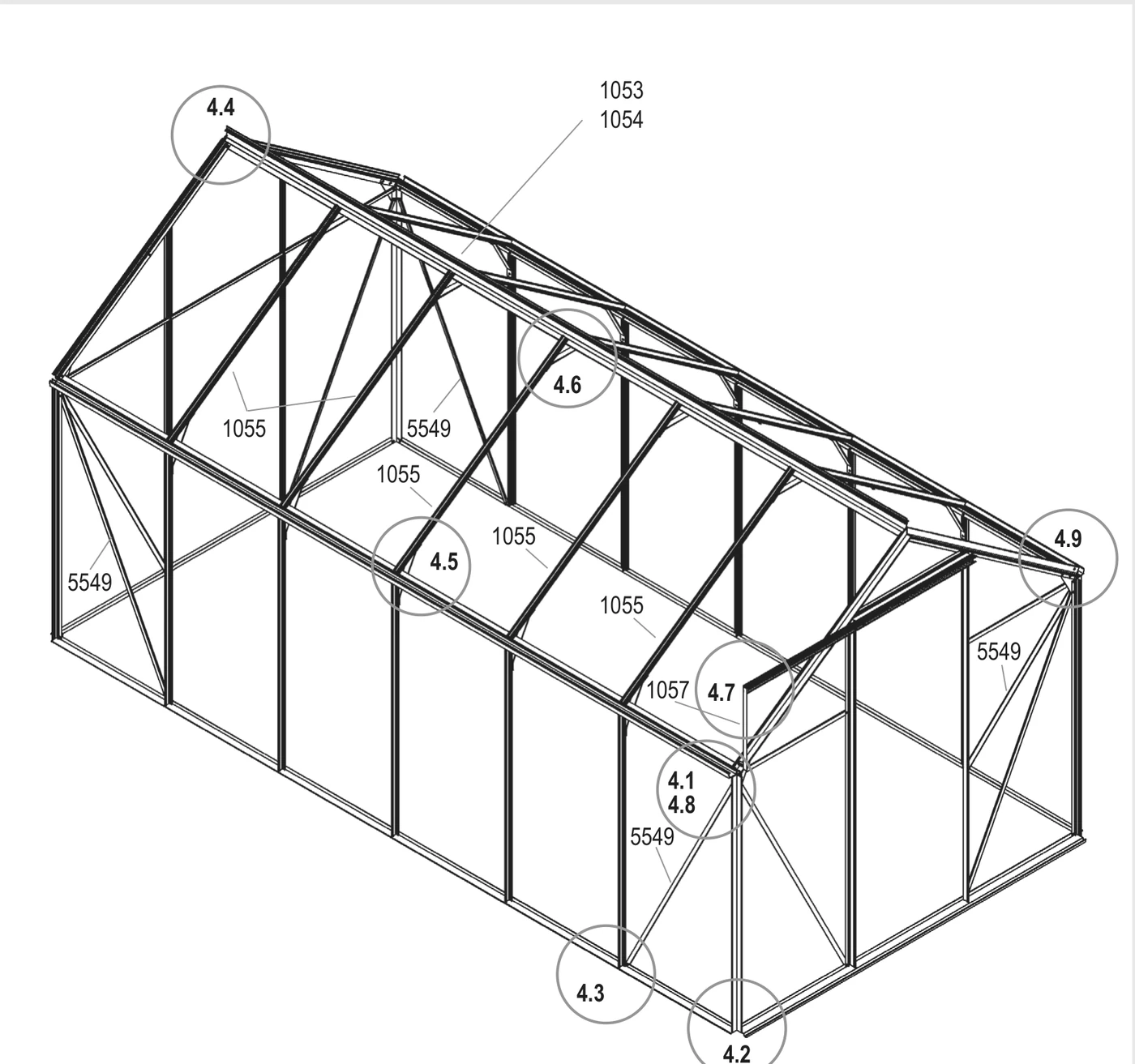

Step 4 drawing
Vitavia drawing 4. The circled numbers match the pictures below.

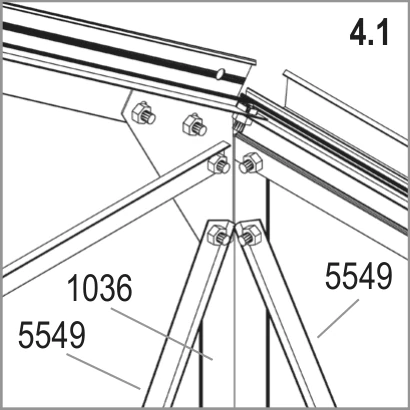

Detail 4.1
4.1

Bolt the side frames to the gable ends at the top corners. Position side brace 5549 between the eave and sill bars, as shown.

Detail 4.2
4.2

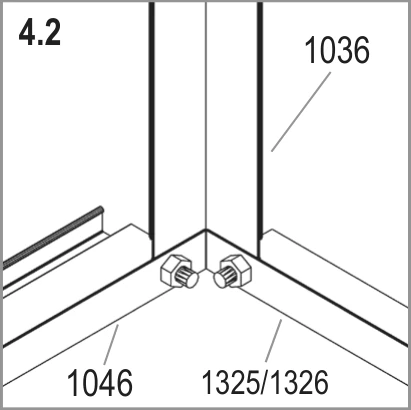

Bolt the side frames to the gable ends at the bottom corners. Join your sill bar (1325 or 1326), corner bar 1036 and bottom bar 1046 as shown.

Detail 4.3
4.3

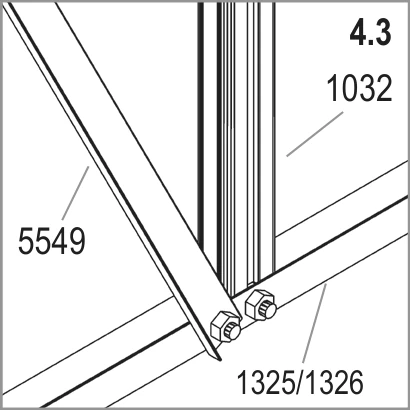

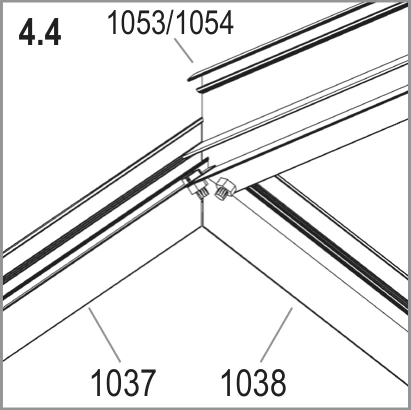

Fit side brace 5549 at each corner, between the eave bar and sill bar, as shown.

Detail 4.4
4.4

Bolt your ridge bar (1053 or 1054) to the top of both gable ends.

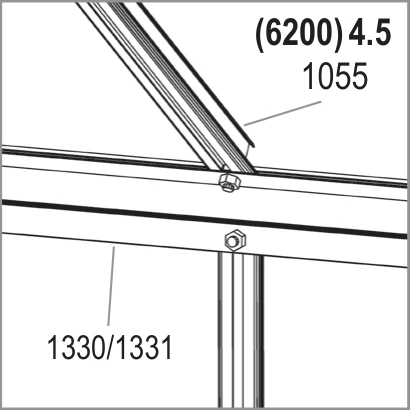

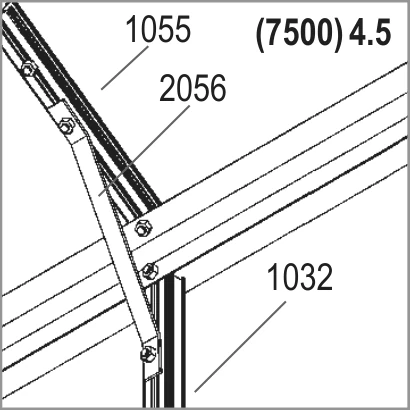

Detail (6200) 4.5
(6200) 4.5

Bolt roof glazing bars 1055 to your eave bar (1330).

Detail 4.6
4.6

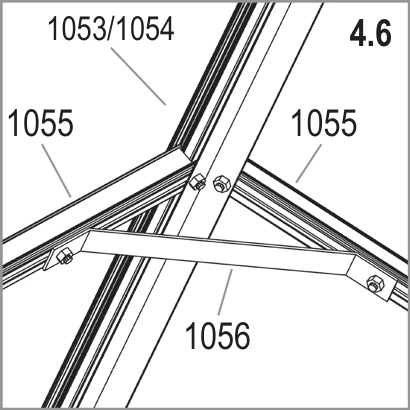

Bolt roof glazing bars 1055 to the ridge; insert an extra bolt in each for roof braces 1056, then fit them. Insert another bolt in each of the 2 glazing bars at the vent position.

Do this now

Place the greenhouse on its prepared base, bolt down loosely, then adjust until corner-to-corner diagonals match and it is completely square. Only then tighten all bolts, to a maximum of 3 Nm.

Detail 4.7
4.7Outside view

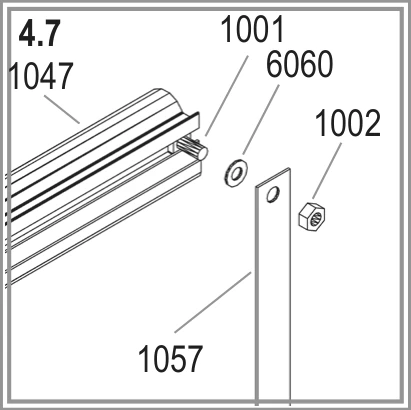

From outside, fit door runner support 1057 to door runner bar 1047 with bolt 1001, washer 6060 and nut 1002.

Detail 4.8
4.8Outside view

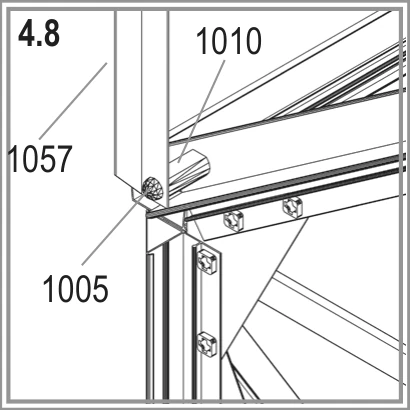

From outside, fix the other end of support 1057 to the gable with bolt 1005 and spacer 1010.

Detail 4.9
4.9Outside view

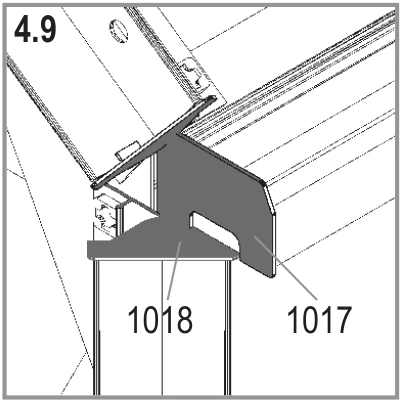

Press end caps 1017 and 1018 onto the open profile ends.

Step 4 drawing
Vitavia drawing 4. The circled numbers match the pictures below.
Detail 4.1
4.1

Bolt the side frames to the gable ends at the top corners. Position side brace 5549 between the eave and sill bars, as shown.

Detail 4.2
4.2

Bolt the side frames to the gable ends at the bottom corners. Join your sill bar (1325 or 1326), corner bar 1036 and bottom bar 1046 as shown.

Detail 4.3
4.3

Fit side brace 5549 at each corner, between the eave bar and sill bar, as shown.

Detail 4.4
4.4

Bolt your ridge bar (1053 or 1054) to the top of both gable ends.

Detail (7500) 4.5
(7500) 4.5

Bolt roof glazing bars 1055 to eave bar 1331. Insert an extra bolt at each roof bar's eave end and connect the corner braces 2056 fitted in step 1.

Detail 4.6
4.6

Bolt roof glazing bars 1055 to the ridge; insert an extra bolt in each for roof braces 1056, then fit them. Insert another bolt in each of the 2 glazing bars at the vent position.

Do this now

Place the greenhouse on its prepared base, bolt down loosely, then adjust until corner-to-corner diagonals match and it is completely square. Only then tighten all bolts, to a maximum of 3 Nm.

Detail 4.7
4.7Outside view

From outside, fit door runner support 1057 to door runner bar 1047 with bolt 1001, washer 6060 and nut 1002.

Detail 4.8
4.8Outside view

From outside, fix the other end of support 1057 to the gable with bolt 1005 and spacer 1010.

Detail 4.9
4.9Outside view

Press end caps 1017 and 1018 onto the open profile ends.

5
Step 5

Build and hang the door

Assemble your sliding door, then fit it into the upper runner and bottom track.

You need

Part 1001
1001×4
Part 1001
1001×4
Part 1002
1002×4
Part 1002
1002×4
Part 1003
1003×16
Part 1003
1003×16
Part 1004
1004×2
Part 1004
1004×2
Part 1007
1007×2
Part 1007
1007×2
Part 1009
1009×2
Part 1009
1009×2
Part 1014
1014×2
Part 1014
1014×2
Part 1015
1015×2
Part 1015
1015×2
Part 1021
1021×2
Part 1021
1021×2
Part 1058
1058×2
Part 1058
1058×2
Part 1059
1059×1
Part 1059
1059×1
Part 1060
1060×1
Part 1060
1060×1
Part 1061
1061×2
Part 1061
1061×2
Part 1062
1062×1
Part 1062
1062×1
Part 1111
1111×1
Part 1111
1111×1
Part 1112
1112×1
Part 1112
1112×1
Part 1113
1113×1
Part 1113
1113×1
Part 1500
1500×2
Part 1500
1500×2
Part 1515
1515×2
Part 1515
1515×2
Step 5 drawing

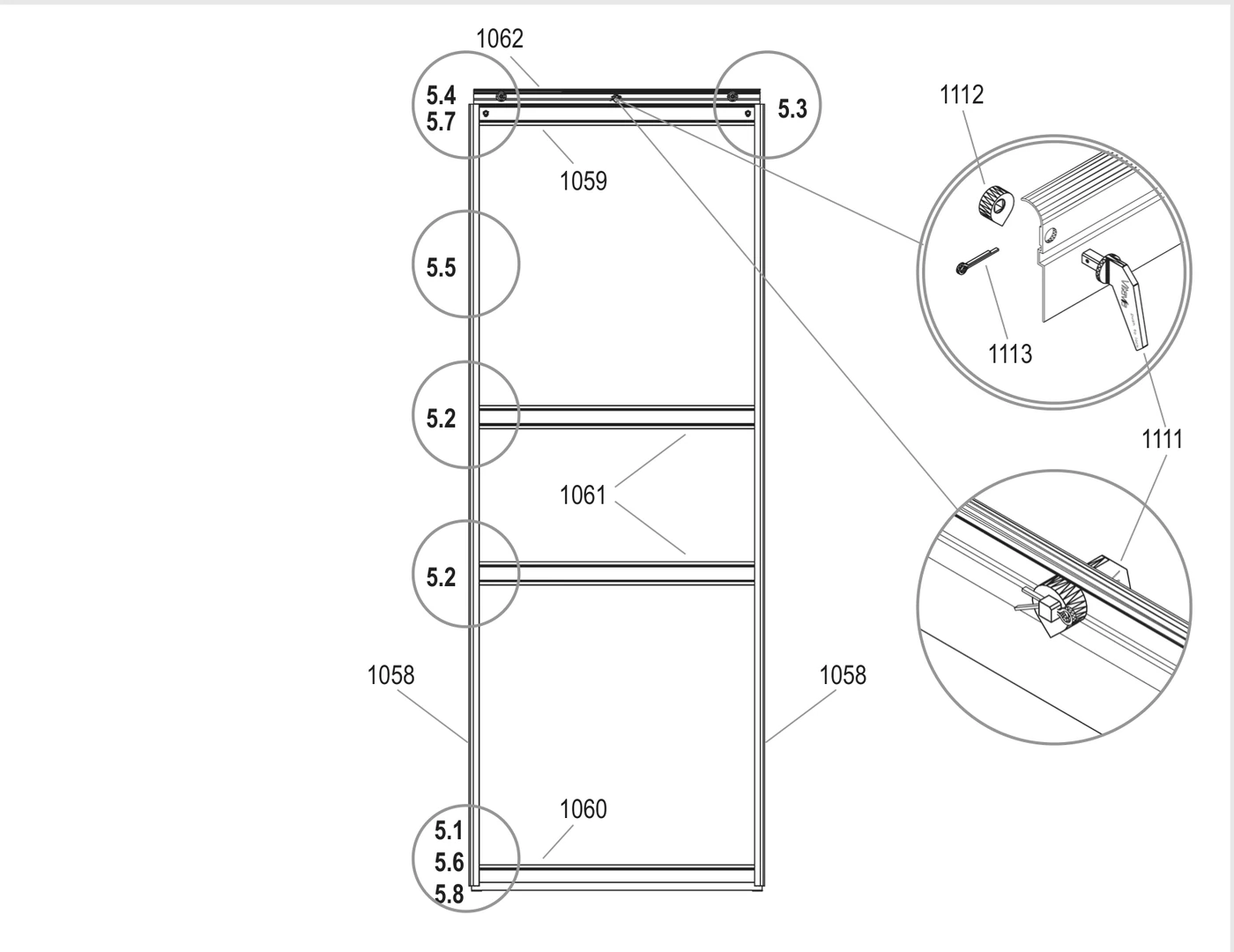

Vitavia drawing 5. The circled numbers match the pictures below.

Installer tip

If the door binds or jumps the track, the frame is almost certainly not quite square. Check it again before you force the door.

Watch out

Never stand the assembled door on gliders 1014. This damages them.

Detail 5.1
5.1

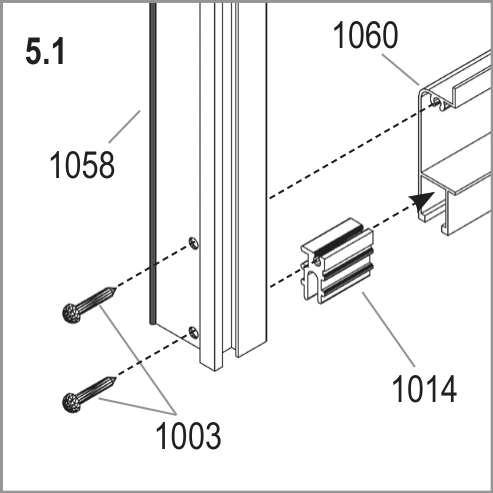

Push a door glider 1014 onto each end of bottom door bar 1060. Screw side bars 1058 to it with screws 1003.

Detail 5.2
5.2

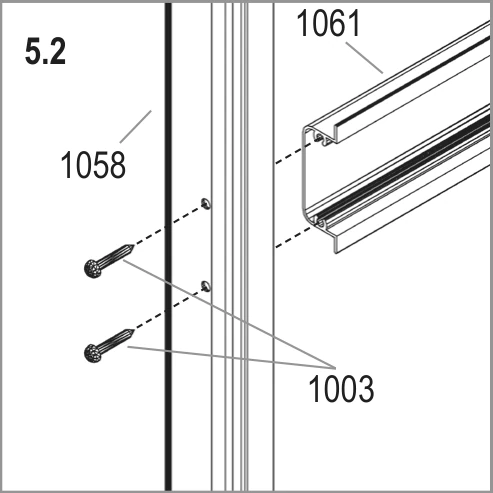

Screw middle bars 1061 between side bars 1058 with screws 1003.

Detail 5.3
5.3

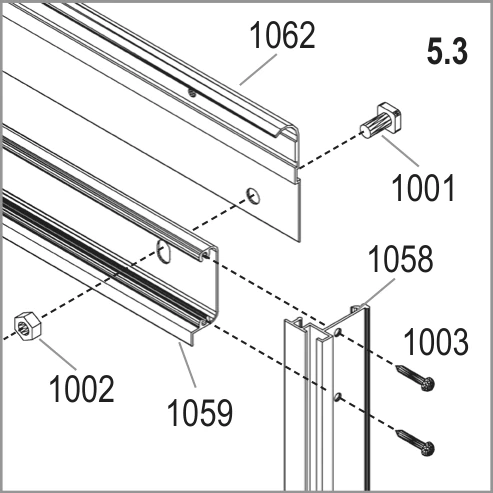

Bolt door bar 1062 to upper bar 1059 with bolt 1001 and nut 1002. Screw upper bar 1059 to side bars 1058 with screws 1003.

Detail 5.4
5.4

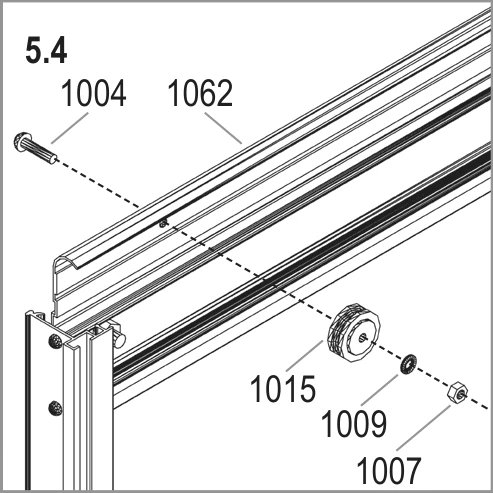

Fix the two door rollers 1015 to door bar 1062 with bolt 1004, washer 1009 and nut 1007.

Detail 5.5
5.5Outside view

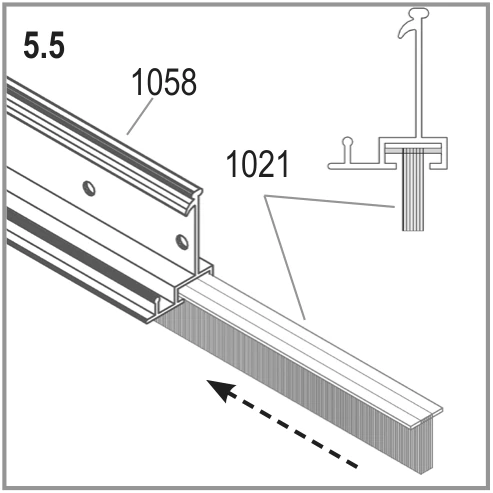

Slide door seals 1021 into both side bars 1058. Cut the seals to length.

Detail 5.6
5.6

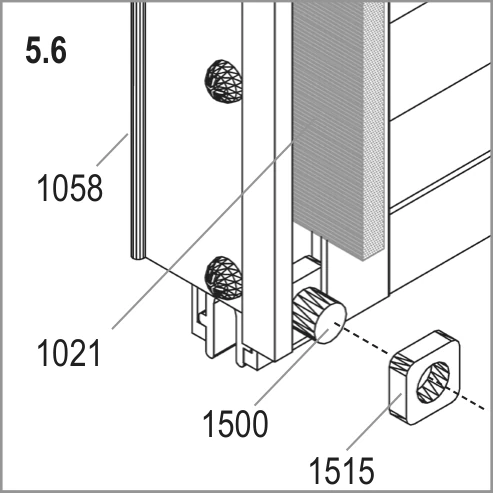

Slide bolt 1500 into the bottom of the door seal channel and secure it with nut 1515. This stops the seal sliding out.

Detail 5.7
5.7Outside view

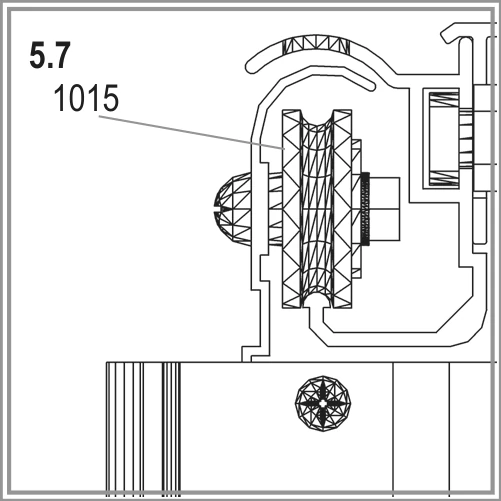

From outside, lift the door and slide rollers 1015 into door runner bar 1047.

Detail 5.8
5.8Outside view

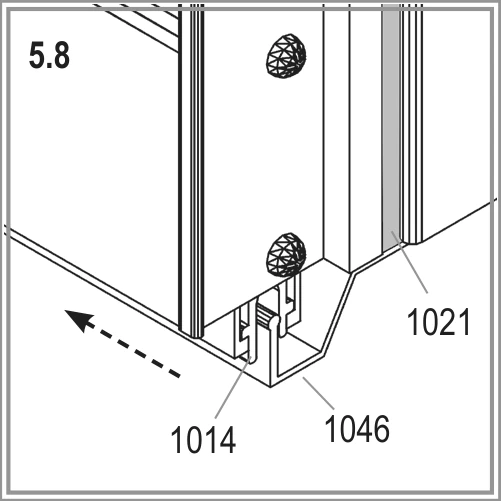

Check door gliders 1014 also run in bar 1046's bottom track. Connect door fixer parts 1111, 1112 and 1113 as the door drawing shows. Fit a nut and bolt in door runner bar 1047's end as a stop; adjust until the door slides freely.

6
Step 6

Build and fit roof vents

Build and fit both roof vents; the 6200 and 7500 each have 2.

You need

Part 1001
1001×8
Part 1001
1001×8
Part 1002
1002×8
Part 1002
1002×8
Part 1006
1006×12
Part 1006
1006×12
Part 1016
1016×4
Part 1016
1016×4
Part 1019
1019×2
Part 1019
1019×2
Part 1063
1063×2
Part 1063
1063×2
Part 1064
1064×2
Part 1064
1064×2
Part 1065
1065×4
Part 1065
1065×4
Part 1066
1066×2
Part 1066
1066×2
Part 1067
1067×2
Part 1067
1067×2

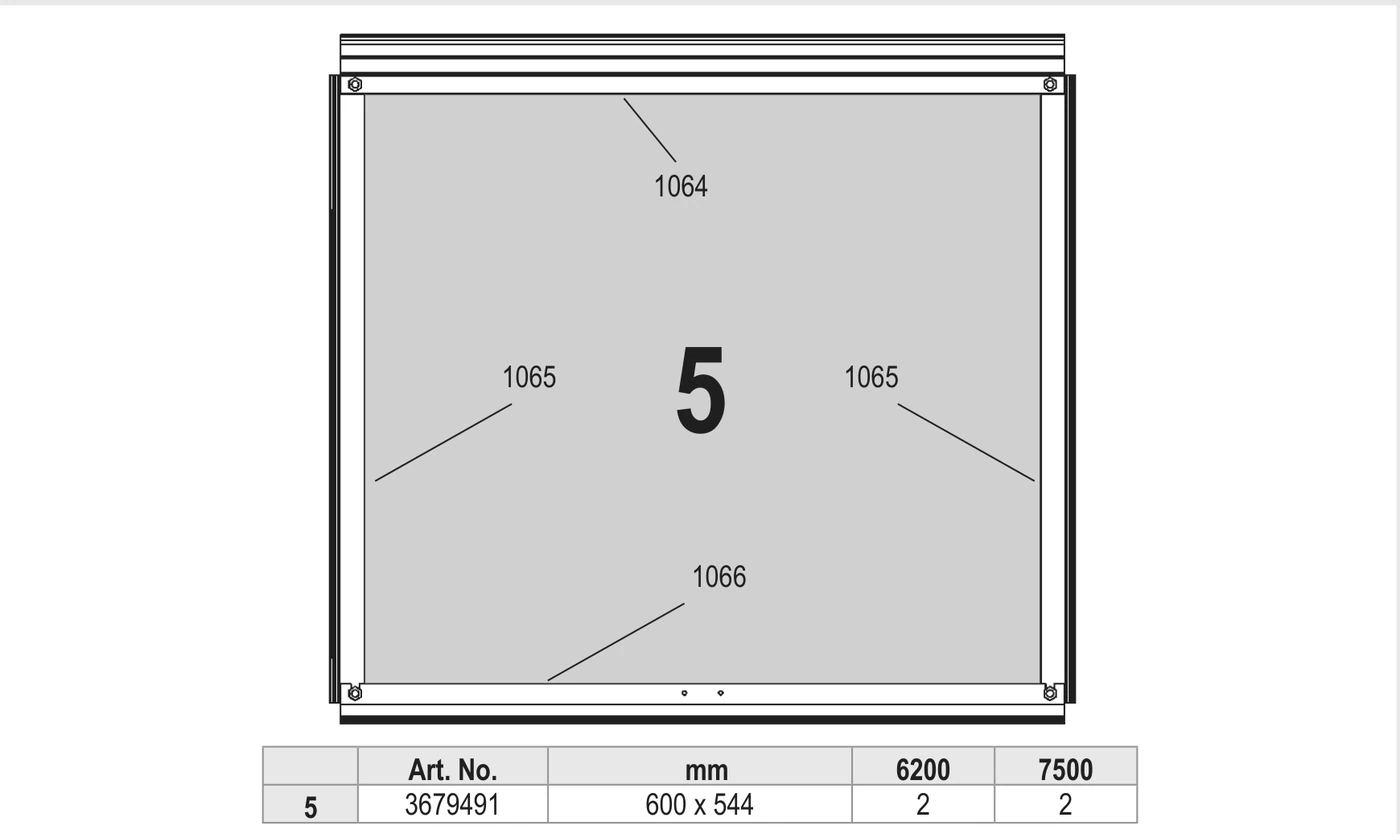

Step 6 drawing
Vitavia drawing 6. The circled numbers match the pictures below.

Installer tip

Fit vent sill 1063, the slam bar, flat edge up, with its grooved lip down towards the pane below. Recheck its orientation if that pane will not sit snugly.

Detail 6.1
6.1

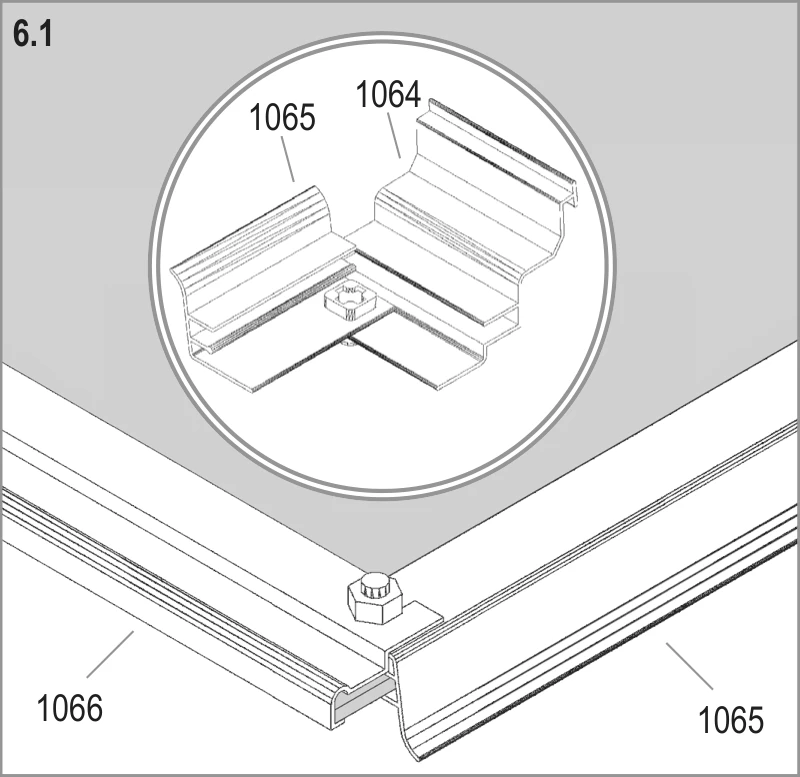

For glass up to 4 mm thick, join vent side bars 1065 and top bar 1064 as shown.

Detail 6.2
6.2

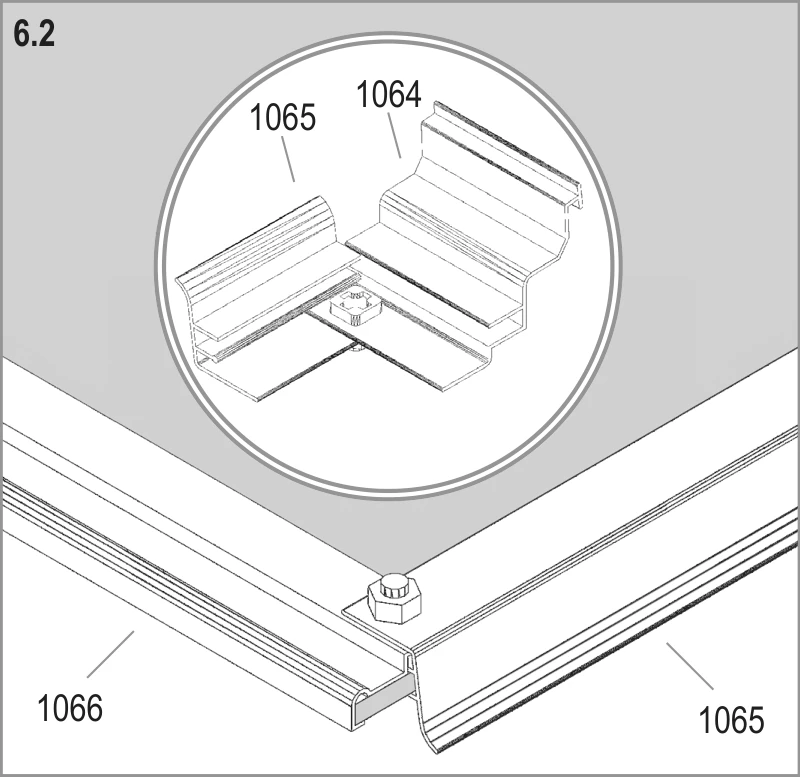

For glass 4 mm or thicker, join vent side bars 1065 and top bar 1064 as shown here instead.

Detail 6.3
6.3Outside view

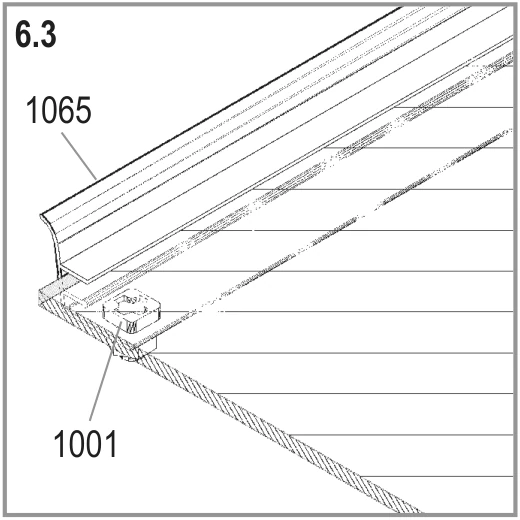

Insert bottom bar 1066's bolts into the prepared holes, then slide the vent glass into side bars 1065's tracks. Fit bottom bar 1066 and check the vent is square before you tighten the bolts.

Detail 6.4
6.4Outside view

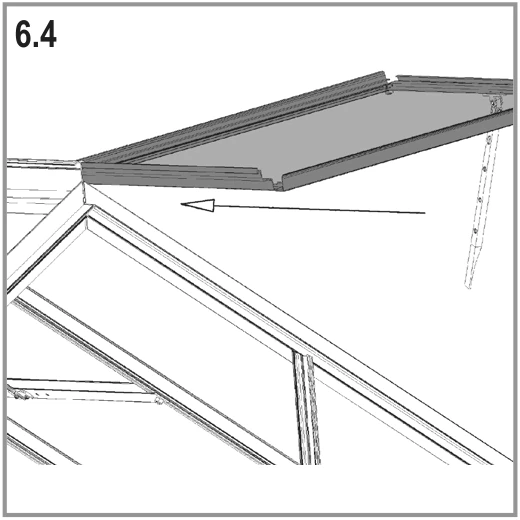

Hook the vent into the ridge bar from one end of the greenhouse.

Detail 6.5
6.5Outside view

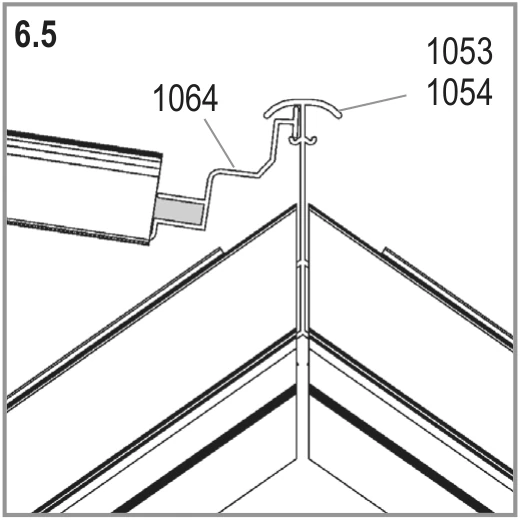

Hook vent top bar 1064 over your ridge bar (1053 or 1054), as shown.

Detail 6.6
6.6

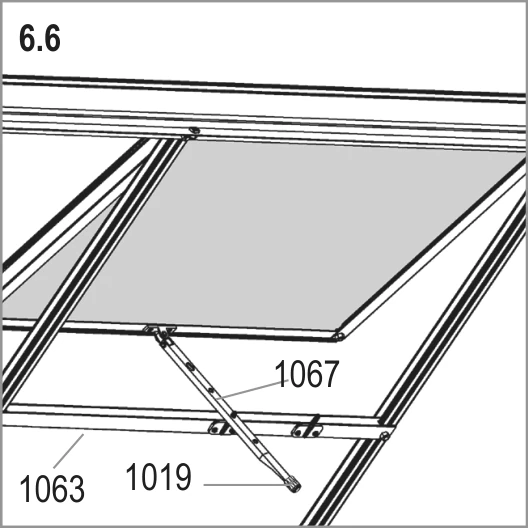

Slide the vent along to your chosen position. Push plastic cap 1019 onto the end of window opener 1067.

Detail 6.7
6.7

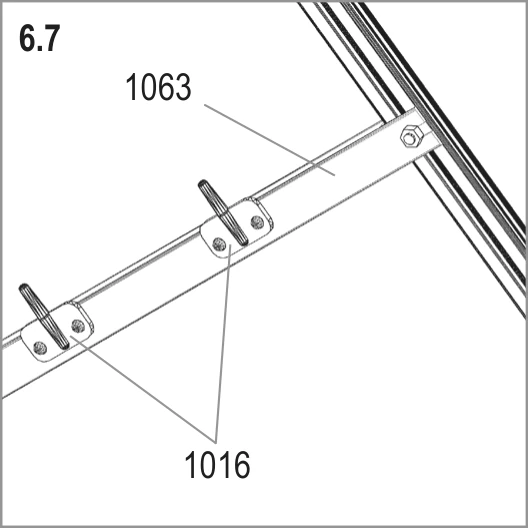

Fix vent sill 1063 to the extra bolts you left in the roof glazing bars.

Detail 6.8
6.8

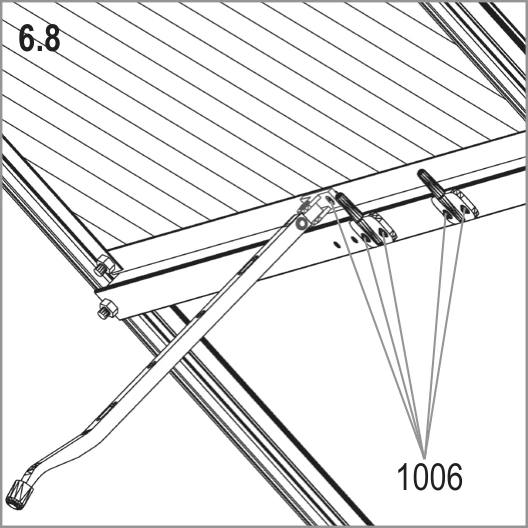

Screw window opener 1067 to vent bottom bar 1066 with screws 1006. Screw both window fixers 1016 onto vent sill 1063 with screws 1006.

7
Step 7

Fit the glazing

Fit the rubber glazing seal first, then glaze the roof before the walls.

Polycarbonate sheets

This step and its pane table cover horticultural glass. Your polycarbonate sheets are different sizes and use different fixings. We recommend you glaze using the fitting instructions Vitavia packs with your polycarbonate sheets.

Your toughened glass

Your toughened glass comes as full panes, listed in the table below. Use the plan below for pane positions, not the drawing above. Join your gable glass with plastic H profiles where glass meets glass, replacing glass retaining clips 1012. Fit each H strip with its longest arm inside and uppermost.

PaneSize (mm)62007500
1610 x 12101517
2610 x 1144810
3610 x 61044
4610 x 22811
4a610 x 34311
5600 x 54422
6610 x 450 x 2444
7610 x 234 x 2022
8610 x 43911
Total panes3842
Plastic H profiles66

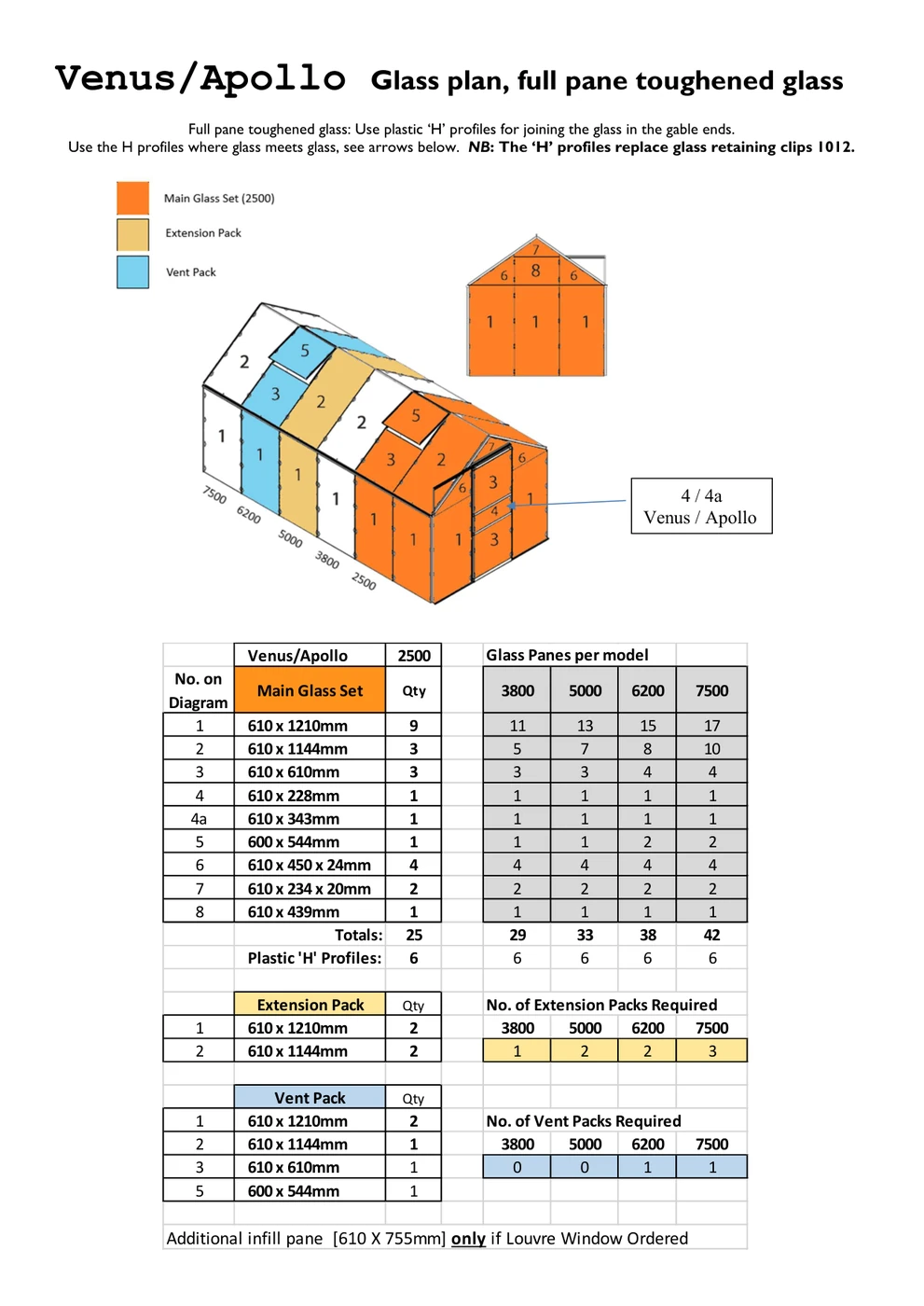

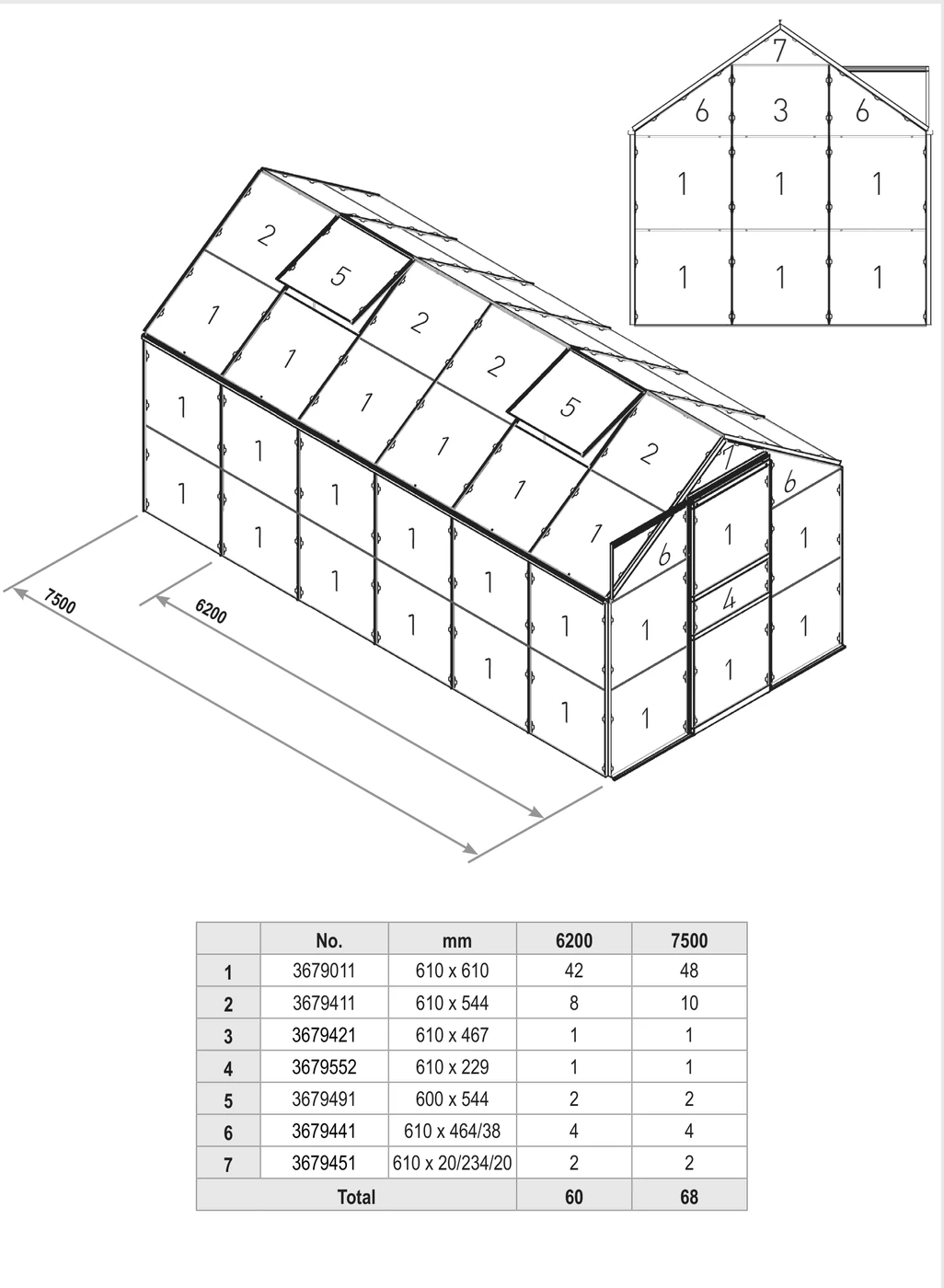

Vitavia toughened glass plan for the Venus
Vitavia's toughened glass plan. Pane numbers match the table.

You need

Part 1011
1011×236
Part 1011
1011×268
Part 1012
1012×60
Part 1012
1012×68
Part 1020
1020×1
Part 1020
1020×1
Step 7 drawing
Vitavia drawing 7. The circled numbers match the pictures below.

Installer tip

Soak the whole glazing seal reel in hot soapy water first so it softens and presses on more easily. Glaze the roof before the walls to avoid leaning over fitted side glass.

Watch out

Never force a pane; forcing glass cracks it. If it will not seat, correct the unsquare frame first.

Detail 7.3
7.3Outside view

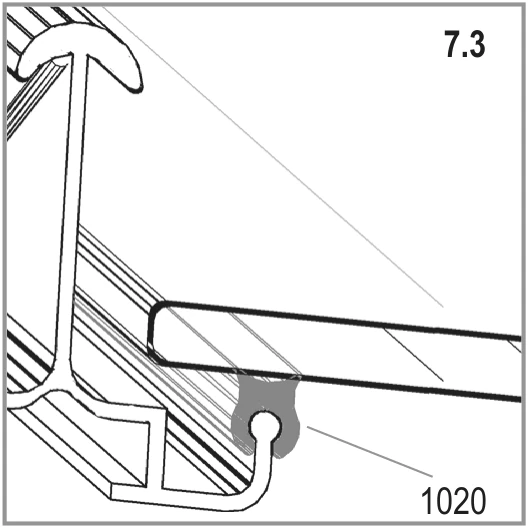

Press rubber glazing seal 1020 onto the aluminium profiles and cut it to length. Complete this before you fit any glass.

Detail 7.2
7.2Outside view

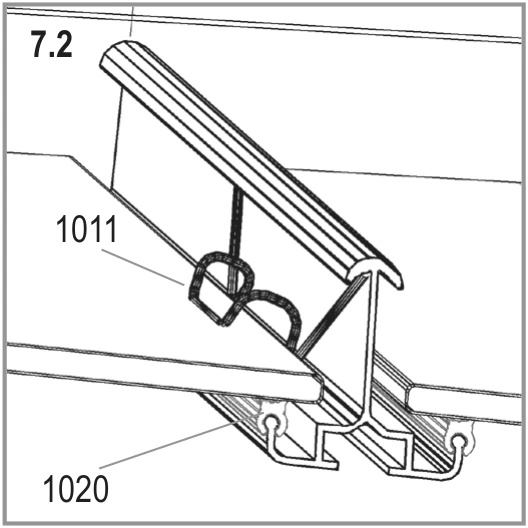

Start at the roof eave. Fix the first pane with glazing spring clips 1011.

Detail 7.1
7.1Outside view

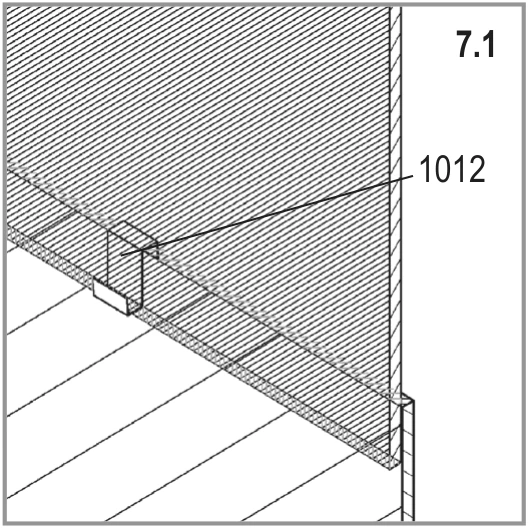

Overlap each next pane over the pane below it. Fit glass retaining clips 1012 between the panes to hold them.

Do this now

Glaze the sides from the bottom upwards. If you chose polycarbonate sheets, follow the instructions packed with them.

Horticultural glass for your greenhouse

PaneSize (mm)62007500
1610 x 6104248
2610 x 544810
3610 x 46711
4610 x 22911
5600 x 54422
6610 x 464/3844
7610 x 20/234/2022
Total6068

Pane numbers match the glazing layout in the drawing above.

Last jobs

Finish and look after it

Finish

  • Anchor your greenhouse. This is not optional.
  • Seal the edges with neutral silicone if you wish. Silicone is not supplied.
  • Stick the warning label inside your greenhouse.
  • Stick the model label onto door bar 1062. You will need it to order spare parts.
  • Keep this guide somewhere safe.

Looking after it

  • Shut the door and all vents in high winds.
  • Clear the roof or support it in heavy snow. Heat your greenhouse in winter.
  • Wash your greenhouse occasionally with a mild detergent that does not attack aluminium or the glazing clips.
  • Keep the upper and lower door tracks clean to prevent grit build-up.
  • Add your greenhouse to your home insurance and check local building rules about where you can put it.

Drawings reproduced from the Vitavia assembly instructions (Vitavia manual 005.01.1306 (Venus 6200, 7500)). Greenhouse Stores, greenhousestores.co.uk.
